Electrical Specifications |
||
Name |
Mobile Satellite Communication Antenna |
|
Frequency (MHz) |
350-390 |
|
Polarization |
Vertical |
|
Gain (dBi) |
4 |
|
Voltage Standing Wave Ratio (VSWR) |
<1.5 |
|
Maximum Power (W) |
100 |
|
Input Impedance (Ω) |
50 |
|
Lightning Protection |
DC |
|
Mechanical Specifications |
||
Connector Type |
N-K |
|
Antenna Dimensions (mm) |

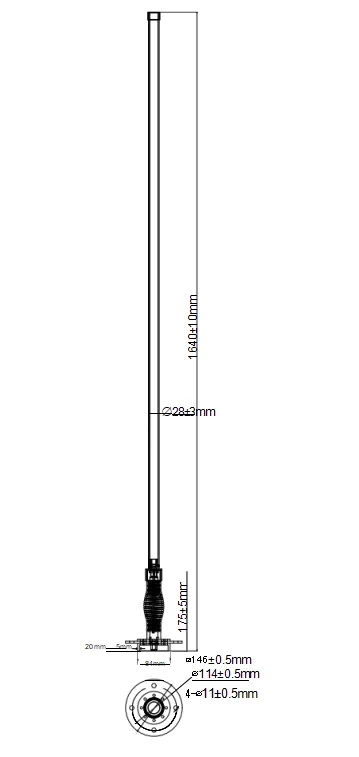

Φ28×1640±10 (See schematic diagram for details) |
|
Antenna Weight (kg) |
≤6 |
|
Maximum Wind Speed (m/s) |
60 |
|
Radome Material |
Fiberglass Reinforced Plastic (FRP) |
|
Radome Color |
Brown-Green (GY05) |
|
Installation Method |
Bottom Flange Mounting |
|
Packaging Method |
Single Antenna in Wooden Case |
|
Environmental Specifications |
||
Operating Temperature (℃) |
-40~+60 |
|
Storage Temperature (℃) |
-45~+70 |
|
Vibration |
GJB367A-2001 3.10.3.1 |
|
Shock |
GJB367A-2001 3.10.3.2 |
|
Salt Spray |
GJB367A-2001 3.10.2.14 |
|
Damp Heat |
GJB367A-2001 3.10.2.5 |
|
Rain Test |
GJB367A-2001 3.10.2.7 |
|
Atmospheric Pressure |
GJB367A-2001 3.10.2.3 |
|
