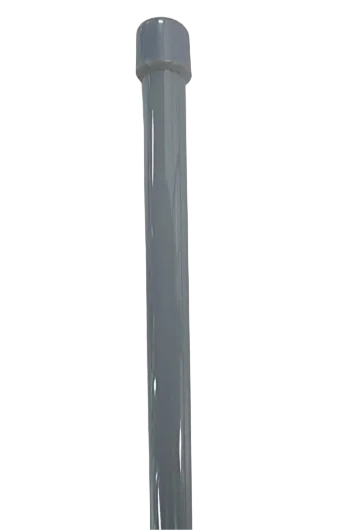

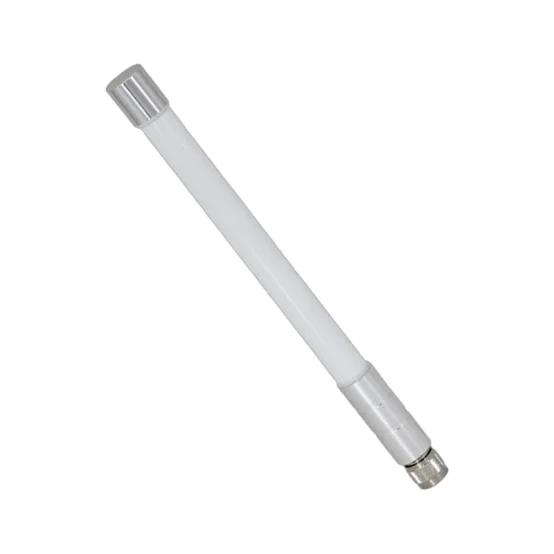

N-Type Female Connector 360° Coverage 4dBi Gain 320-344MHz VHF Omnidirectional Antenna

N-Type Female Connector 360° Coverage 4dBi Gain 320-344MHz VHF Omnidirectional Antenna

Description

[email protected]

Description

Product Description

1.Optimized VHF Band Performance (320-344MHz): Delivers reliable 4dBi gain with 24MHz bandwidth, ideal for professional communication systems requiring stable signal transmission in challenging environments.

2.True 360° Omnidirectional Coverage: Ensures consistent signal reception from all directions with 32° vertical beamwidth. No need for antenna adjustment - perfect for mobile and rotating equipment applications.

3.Compact & Rugged Φ20×650mm Design: Fiberglass reinforced plastic radome provides excellent durability without spring mechanism.Withstands 60m/s wind speeds while maintaining optimal performance.

4.Professional N-Type Female Connector: Ensures secure, reliable connections in demanding environments. Designed for professional communication systems where connection stability is critical.

5.Wide 32° Vertical Beamwidth: Provides enhanced coverage for both ground-level and elevated communications. Superior performance in varied terrain compared to narrow-beam antennas.

Product Detail

Electrical Performance
Frequency Range	320-344 MHz
Bandwidth	24 MHz
Gain	4 dBi
Beamwidth	H: 360°; E: 32°
VSWR (Voltage Standing Wave Ratio)	≤1.5
Polarization	Vertical
Max Power	20 W
Nominal Impedance	50 Ω
Mechanical Specifications
Connector Type	N-Type Female Connector
Radome Material	Fiberglass Reinforced Plastic (FRP), without spring
Antenna Dimension	Φ20×650 mm
Weight	- / Kg
Rated Wind Velocity (Wind Resistance)	60 m/s
