The EoC transmitter and receiver are fully ruggedized Ethernet-over-coax extenders. When upgrading analog cameras to IP cameras, customers can utilize existing cable resources without the need for rewiring. This device provides a 500-meter connection over coaxial cable for a 10/100Mbps IEEE standard electrical copper port. Supported data transmission rates vary based on cable distance and quality. Plug-and-play design ensures straightforward installation without electrical adjustments. The device features LED indicators for clear operational status display.

IEEE802.3, IEEE802.3u compliant	500m transmission distance
Multi-layer PCB design with improved surge, static, and lightning protection	Compact design for minimal space
Industrial wide temperature range -20~+75 ℃	Data and power over 1 single coax or 1 pair of twisted pair

product oem odm services 2m28mhz power over coax device with 500m transmission distance ethernet over coax extender-4

product oem odm services 2m28mhz power over coax device with 500m transmission distance ethernet over coax extender-5

product oem odm services 2m28mhz power over coax device with 500m transmission distance ethernet over coax extender-6

product oem odm services 2m28mhz power over coax device with 500m transmission distance ethernet over coax extender-7

Applications

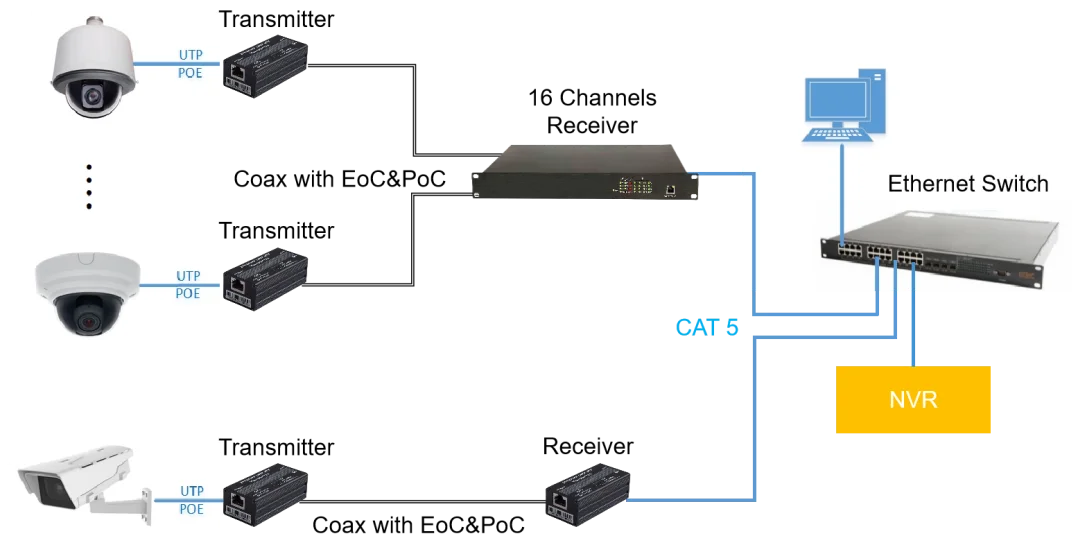

EoC products are designed for paired use: a 1-channel transmitter connects to a 1-channel receiver, or a 1-channel transmitter(s) connects to an 8/16-channel receiver. The diagram below illustrates the connection between a 1-channel transmitter and a 1-channel receiver, as well as a 16-channel receiver.

product oem odm services 2m28mhz power over coax device with 500m transmission distance ethernet over coax extender-9

Application 1: 1-channel EoC transmitter + 16-channel EoC receiver. As shown in the diagram, up to 16 transmitters can be connected to a 16-channel receiver. Application 2: 1-channel EoC transmitter + 1-channel EoC receiver. As illustrated, this configuration is suitable for more dispersed application scenarios.

			Description
Power	Power Supply	45~57VDC
Power		Consumption	<2W
Coax Port	Transmission Medium	75-5 or above coax cable or 1 pair of twisted pair
		Operating Frequency	2M~28M
		Modulation	Wavelet-OFDM
		Power Negotiation Cycle	1S
		Over-current	720mA
		Over-current Protection Time	<2mS
		Output Voltage(Receiver)	+48~57V
		Transmission DistaItemnce	500M
Ethernet Port	Transmission Medium	Cat5e/6
		Standard	IEEE802.3，IEEE802.3U
		Ethernet Delay	<1ms
Protection	ESD	IEC61000-4-2: 6KV (contact), 8KV (air)
Protection		Anti-Thunder Protection	IEC61000-4-5: 1KV (CM), 2KV (DM)
Environment	Operating Temperature	-20℃~+75℃
		Storage Temperature	-40℃~+85℃
		Humidity	0~90% (non-condensing)
Mechanical	Dimensions	29mmX37mmX76mm
		Material	Aluminum
		Color	Black
		Weight	0.2Kg

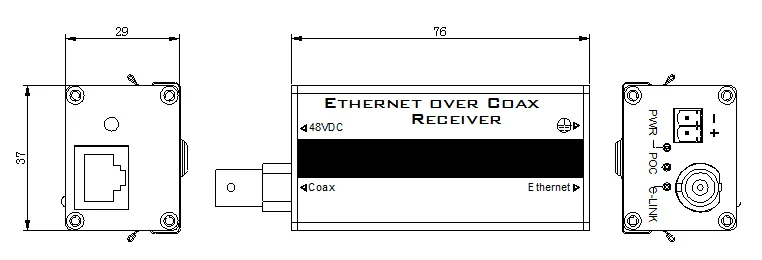

Dimensions (Unit = mm)

product oem odm services 2m28mhz power over coax device with 500m transmission distance ethernet over coax extender-10

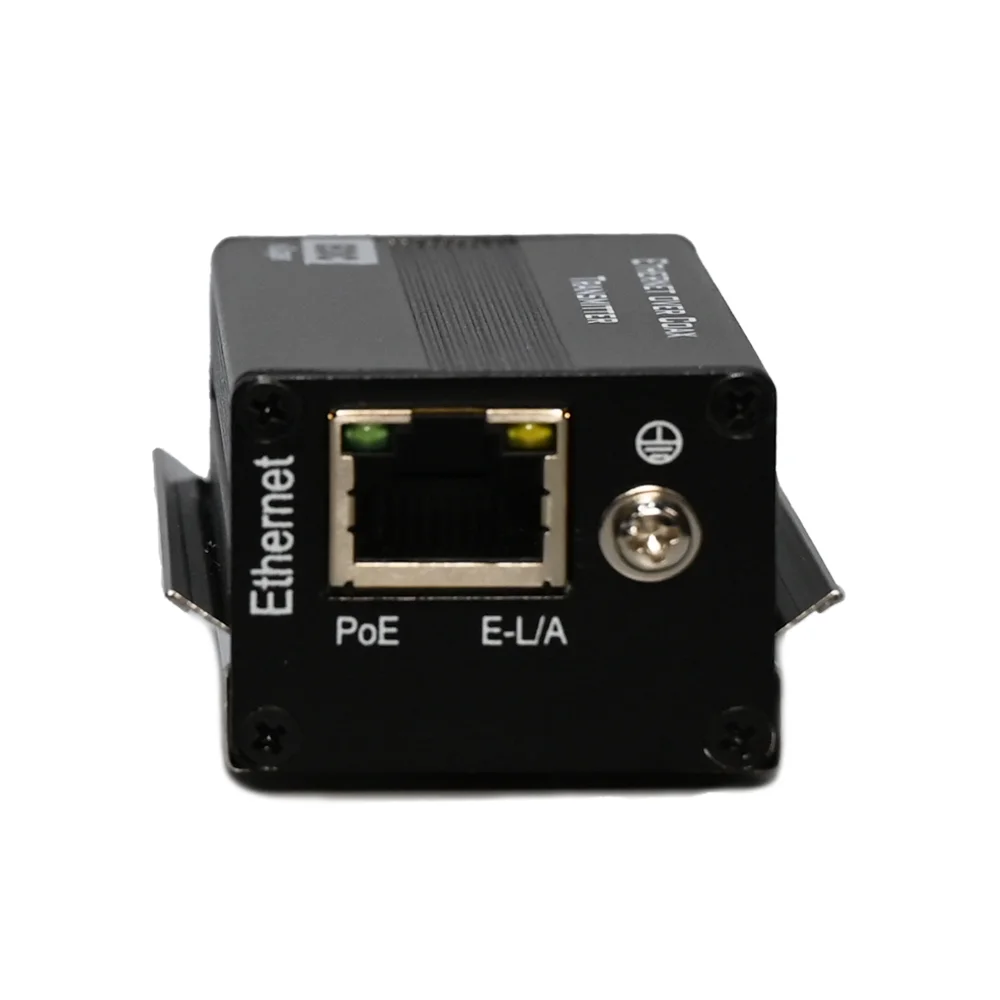

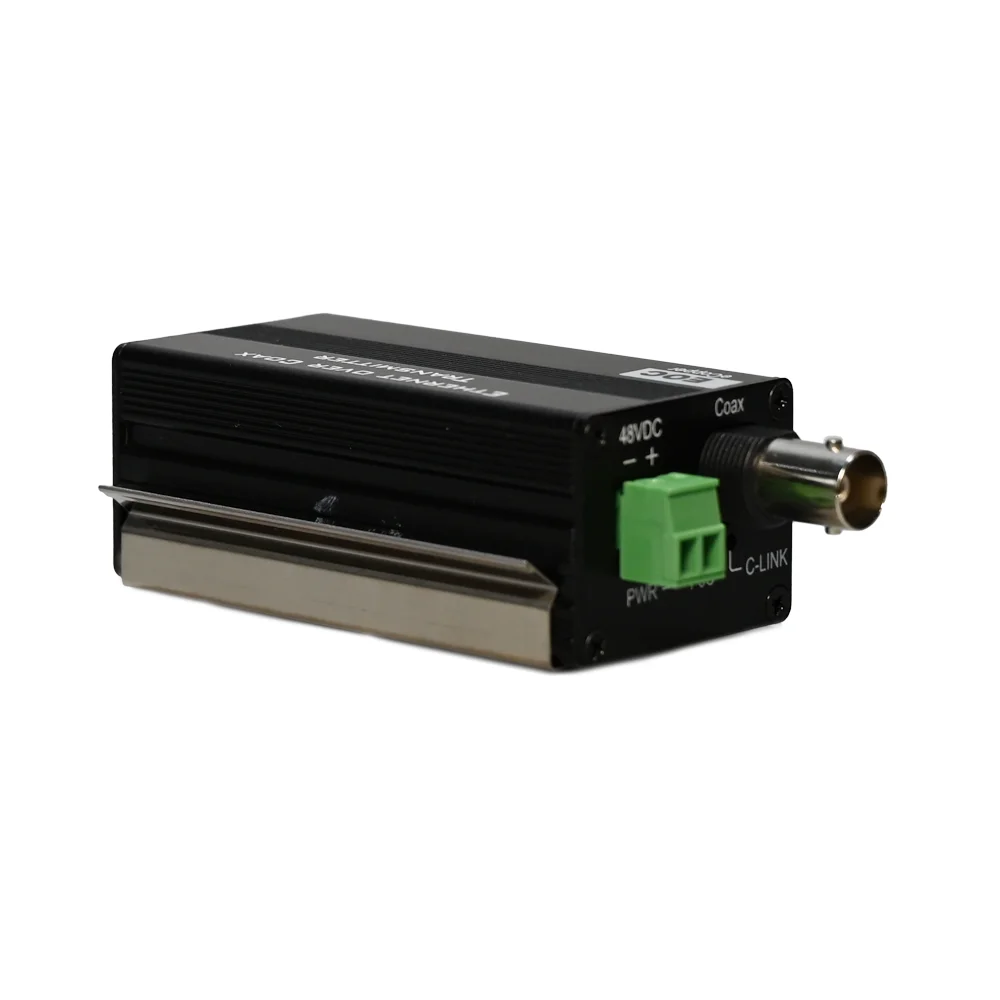

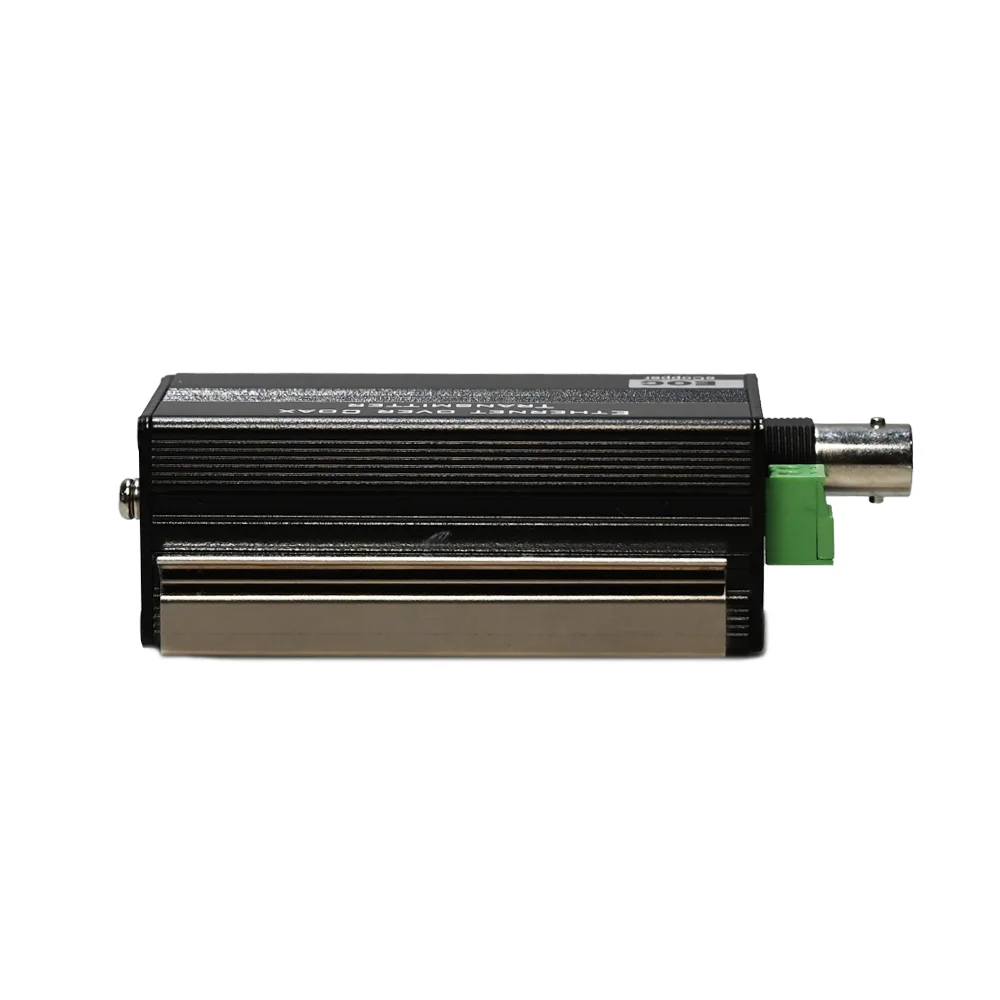

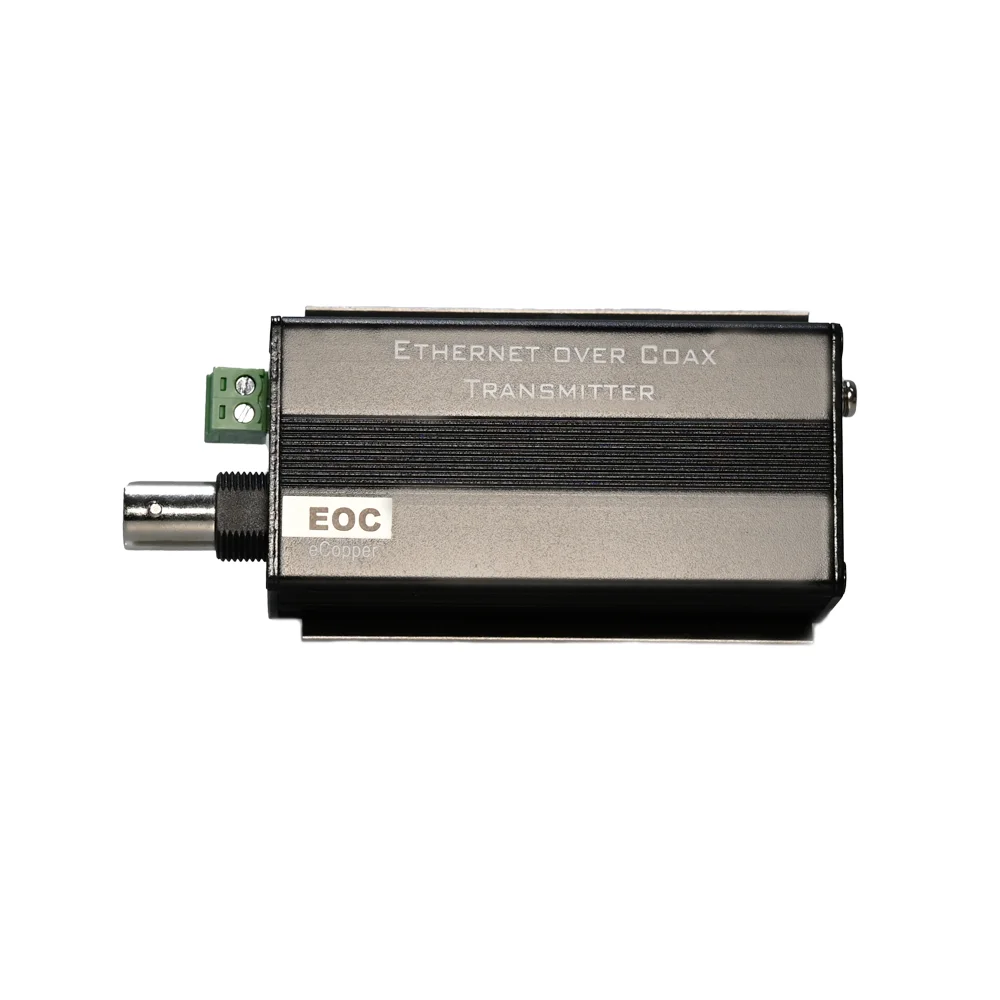

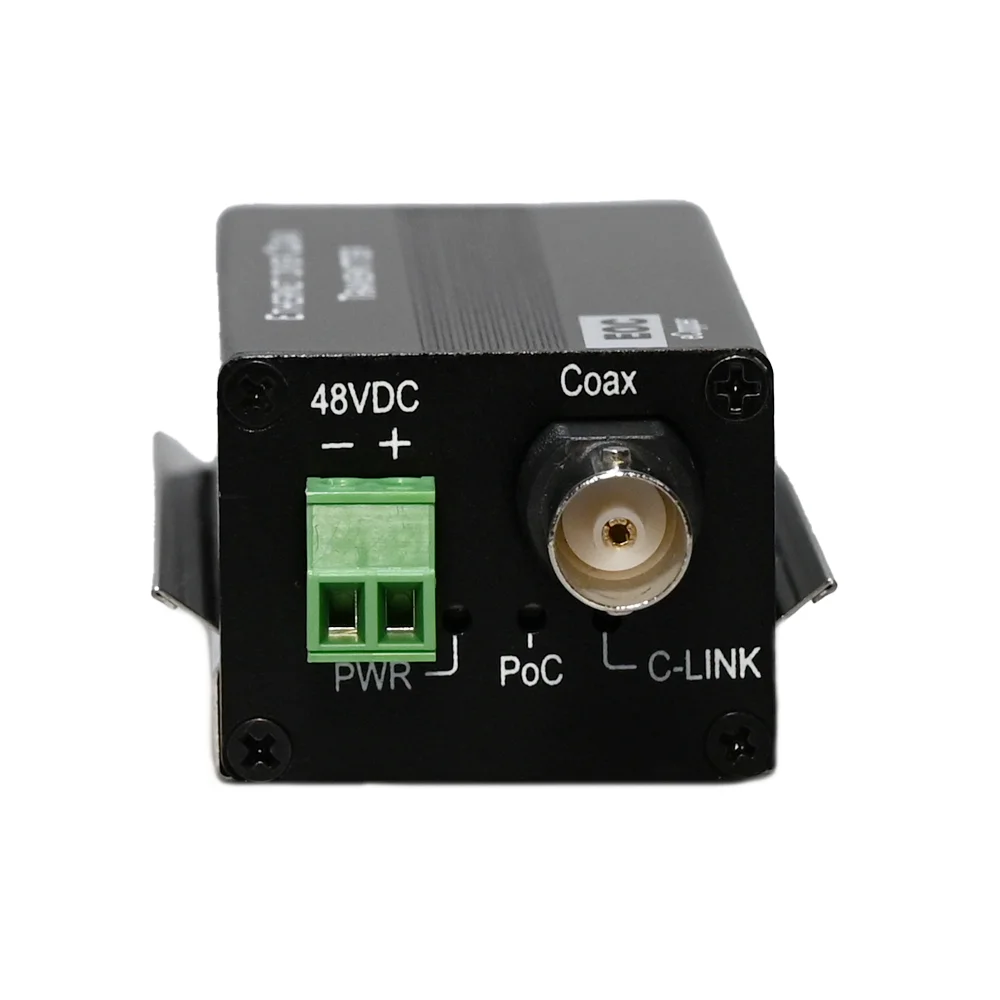

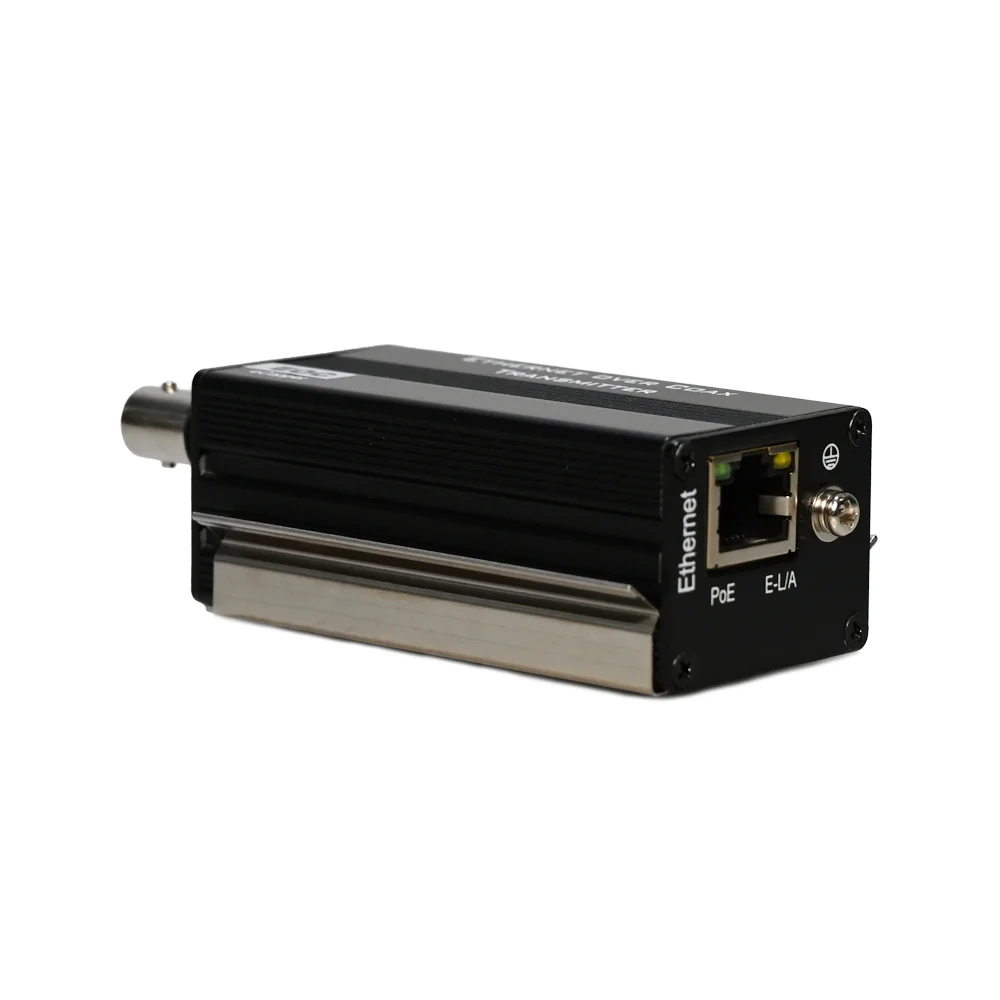

Transmitter Panel View and LED Indicators

product oem odm services 2m28mhz power over coax device with 500m transmission distance ethernet over coax extender-11

product oem odm services 2m28mhz power over coax device with 500m transmission distance ethernet over coax extender-12

LED	Color	Status	Description
PWR	Orange	On	Power supply is normal.
PoC	Green	On	PoC power supply is normal.
C-LINK	Green	On	EoC connection is normal.
PoE	Green	On	Successful handshake with PD and supplying power to PD.
E-L/A	Orange	On/Blink	On: Ethernet link is normal. Blink: The data is active.

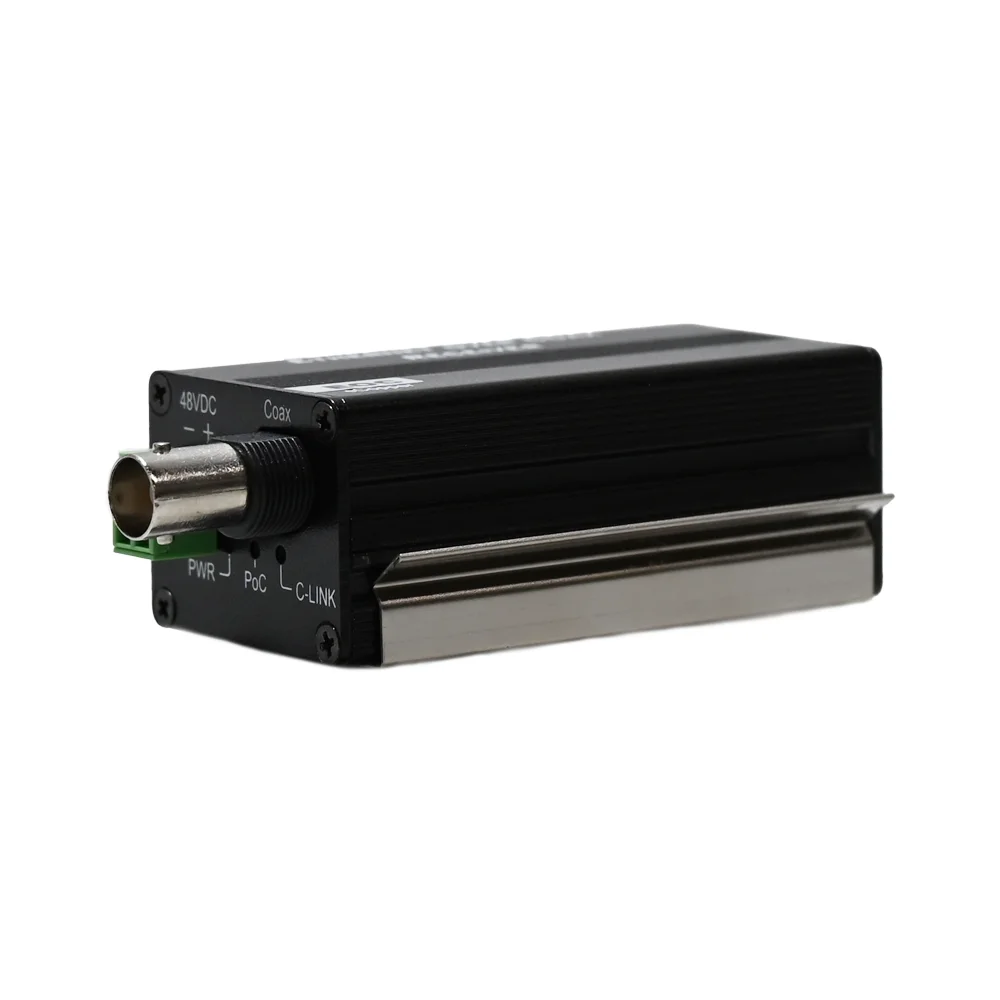

Receiver Panel View and LED Indicators

product oem odm services 2m28mhz power over coax device with 500m transmission distance ethernet over coax extender-13

product oem odm services 2m28mhz power over coax device with 500m transmission distance ethernet over coax extender-14

LED	Color	Status	Description
PWR	Orange	On	Power supply is normal.
PoC	Green	On	PoC power supply is normal.
C-LINK	Green	On	EoC connection is normal.
Ethernet Link/Act	orange	On/Blink	On: Ethernet link is normal. Blink: The data is active.

Order Information

Name	Model	Description
1ch Ethernet over Coax transmitter	DEC01T-PE-W48	1 channel EoC transmitter with PoC/PoE, PSE included. 1BNC port, 110/100M RJ45 Ethernet port. 37~57VDC PoC input. Metal clip mount.
1ch Ethernet over Coax receiver	DEC01R-PC-F1-W48	1 channel EoC receiver with PoC. 1BNC port, 110/100M RJ45 Ethernet port. 45~57VDC power input. Power adapter not included. Metal clip mount.
