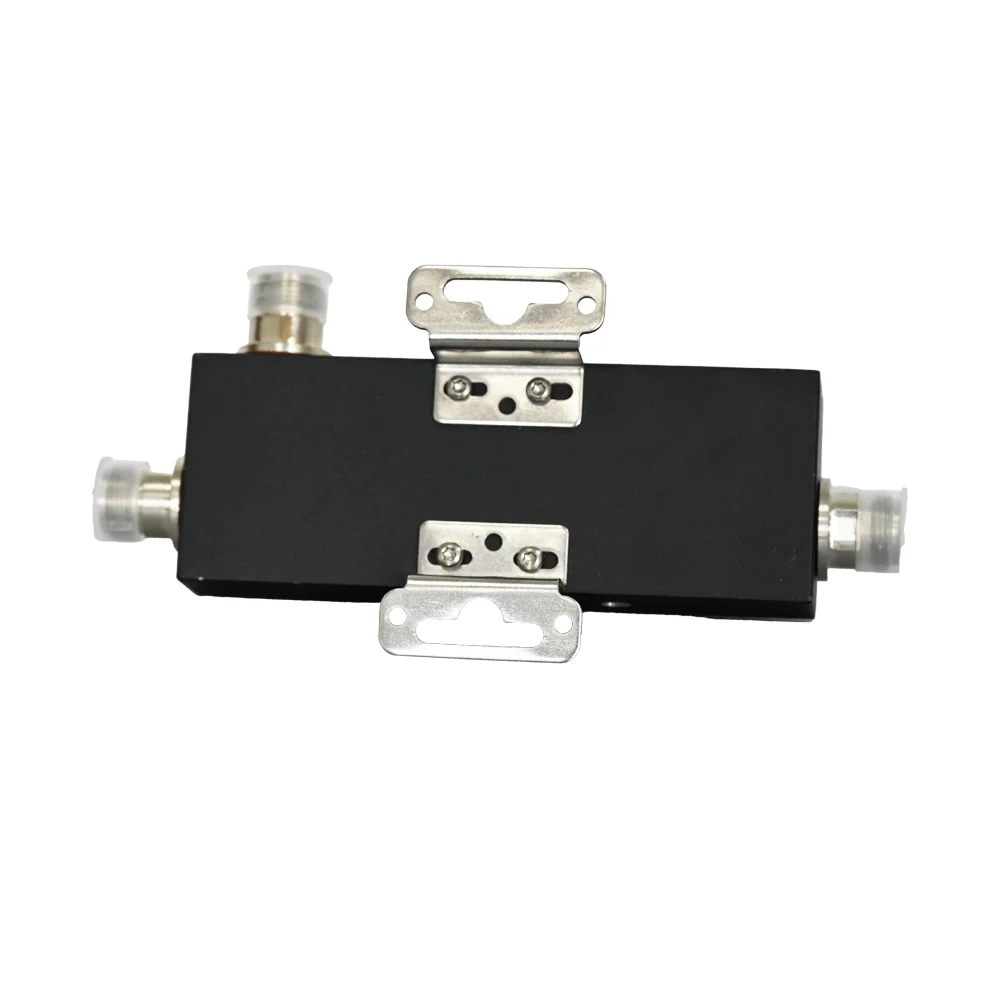

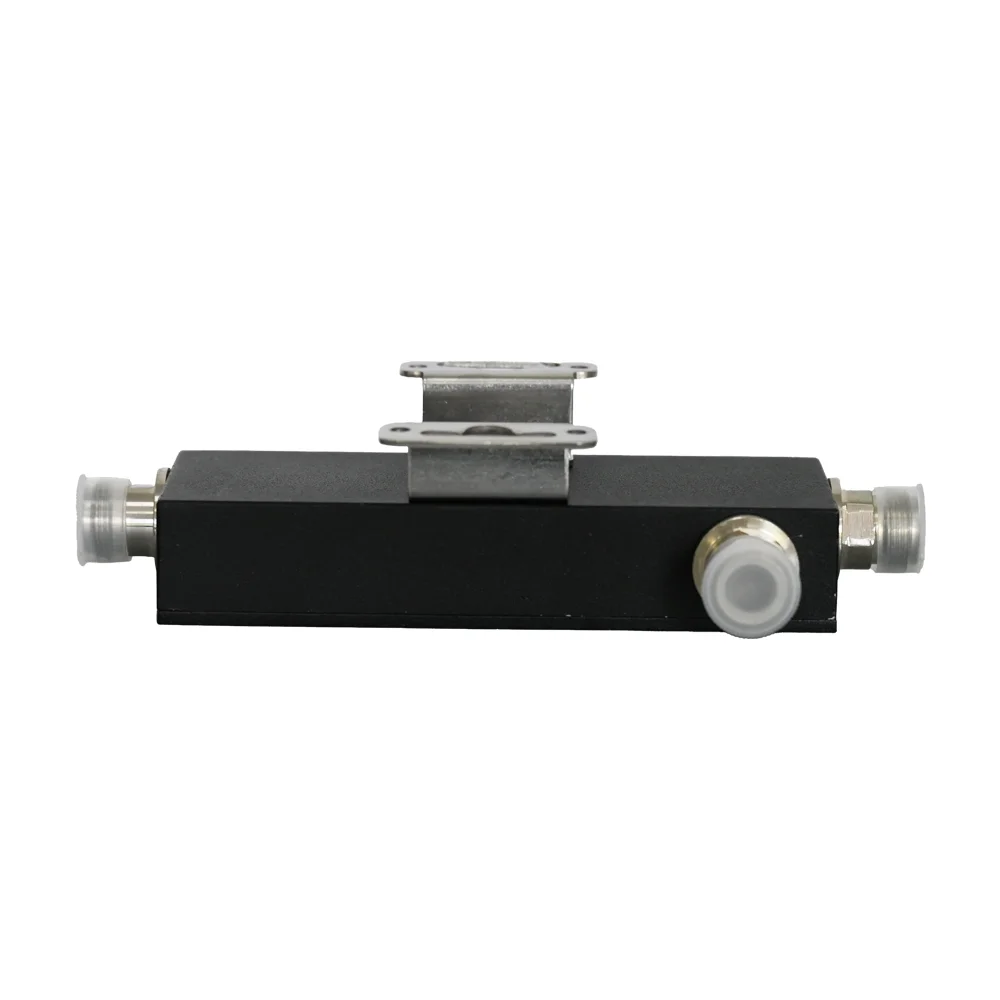

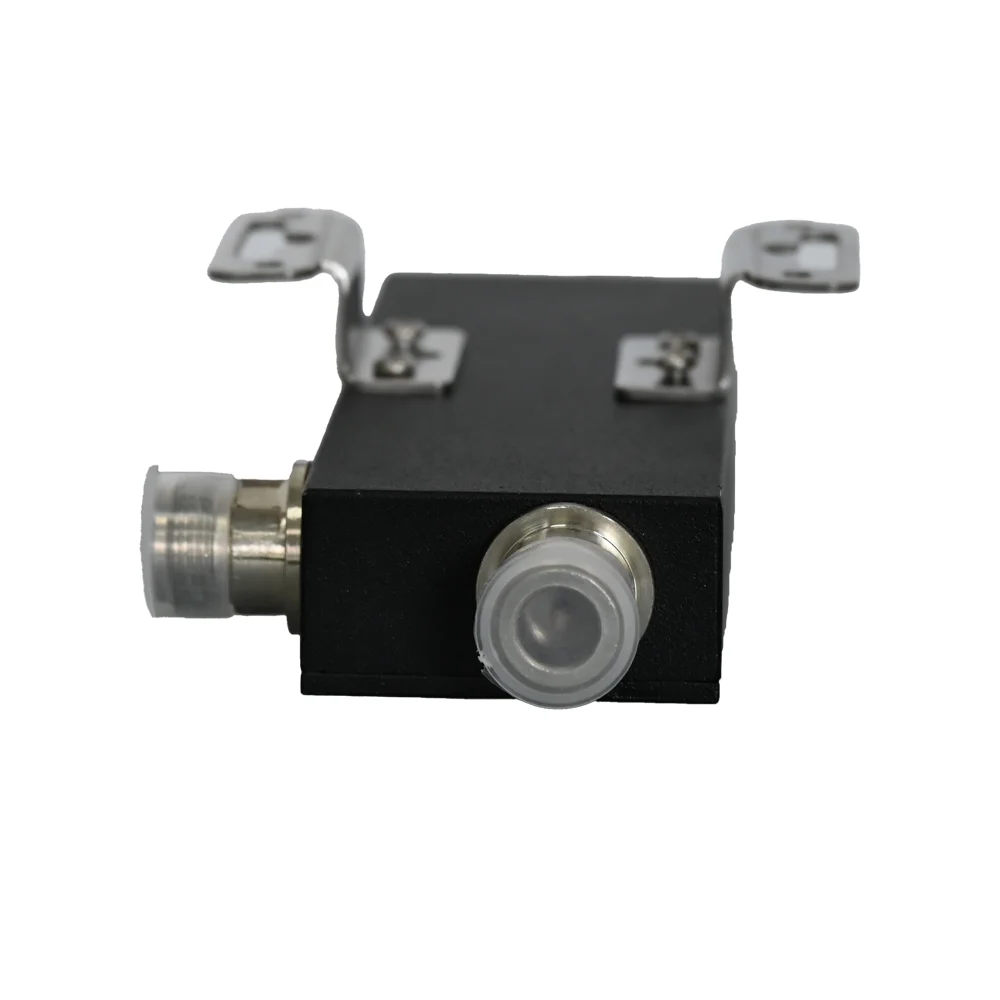

The Yoongwin OEM Service Low Insert Loss Outdoor 698-3800mhz 4.3-10 Female -160dbc Rf Passive Directional Coupler is a top-of-the-line product that offers exceptional performance and reliability. This directional coupler is designed for outdoor use, making it ideal for a wide range of applications.
With a frequency range of 698-3800mhz, this coupler is capable of handling various signals with ease. The 4.3-10 female connector ensures a secure and reliable connection, while the -160dbc insertion loss ensures minimal signal loss. This makes the Yoongwin directional coupler perfect for use in high-demand environments where signal quality is of the utmost importance.
The OEM service offered by Yoongwin ensures that this directional coupler meets the exact specifications and requirements of your project. Whether you need a specific frequency range or custom connectors, Yoongwin can deliver a solution that meets your needs.
One of the key features of this directional coupler is its low insertion loss. This ensures that the signal passing through the coupler experiences minimal degradation, resulting in better overall performance. This is essential for applications where signal quality is critical, such as in telecommunications or data transmission.
The outdoor design of this directional coupler makes it suitable for use in a wide range of environments. Whether you need to install it on a rooftop, in a remote location, or in an industrial setting, this coupler can handle the elements with ease. Its rugged construction and weatherproof design ensure that it will continue to perform reliably even in harsh conditions.
The Yoongwin OEM Service Low Insert Loss Outdoor 698-3800mhz 4.3-10 Female -160dbc Rf Passive Directional Coupler is a top-quality product that offers exceptional performance and reliability. With its customizable features, low insertion loss, and outdoor design, it is the perfect solution for a wide range of applications. Trust Yoongwin to deliver a directional coupler that meets your exact requirements and exceeds your expectations
Frequency Range(MHz) |
698-3800 |
|
Coupling(dB) |
5 6 7 8 10 12 13 15 20 25 30 40 |
|
Coupling Loss (dB) |
±0.9 ±0.9 ±1 ±1.1 ±1.2 ±1.2 ±1.2 ±1.2 ±1.3 ±1.3 ±1.5 ±1.7 |
|
Insertion Loss (dB) |
≤2.3 ≤1.76 ≤1.76 ≤1.42 ≤0.96 ≤0.94 ≤0.6 ≤0.6 ≤0.34 ≤0.32 ≤0.3 ≤0.3 |
|
Isolation (dB) |
≥23 ≥24 ≥25 ≥26 ≥27 ≥28 ≥30 ≥31 ≥33 ≥38 ≥43 ≥48 ≥55 |
|
VSWR |
≤1.3 |
|
PIM(dBc, @2*43dBm) |
≤-160 |
|
Power(W) |
300 |
|
Impedance(Ω) |
50 |
|
Environmental Specifications |
||
Operating Temperature(℃) |
-35° C to +75° C |
|
Relative humidity |
≤95% |
|
Applications |
Indoor/Outdoor |
|
Waterproof Grade |
IP65 |
|

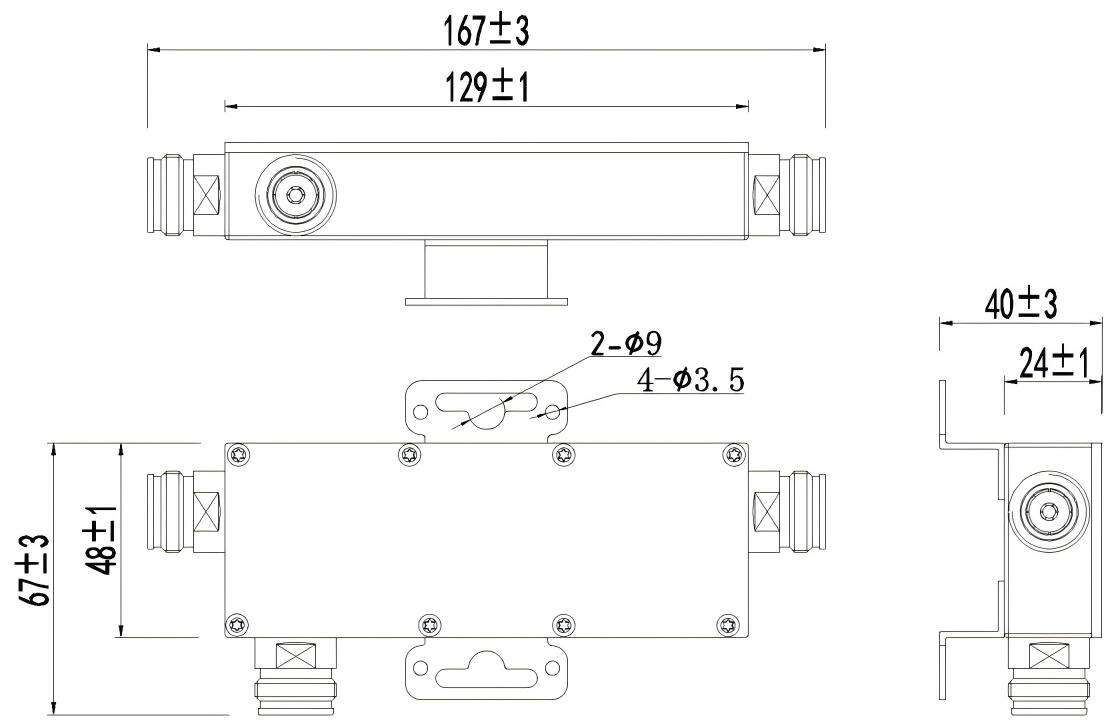

Mechanical Data |
||
RF Connector |
4.3-10-F |
|
Weight（g） |
430 |
|
Colour |
Black or Custom |
|
