Introducing, the Yoongwin Portable SIM Indoor 5G with RJ45 Interface-Smart Home Wireless Router 2.4G 5G LTE Sim CPE, the perfect solution for high-speed internet connectivity in your home or office.
Say goodbye to slow internet speeds and spotty connections with this advanced wireless router. The Yoongwin Portable SIM Indoor 5G router is equipped with cutting-edge technology that delivers lightning-fast 5G speeds for seamless streaming, gaming, and browsing. It also supports both 2.4G and 5G networks, ensuring a stable and reliable connection no matter where you are in your home.
Setting up the Yoongwin Portable SIM Indoor 5G router is quick and easy. Simply insert your SIM card into the designated slot, connect your devices via the RJ45 interface, and you're ready to go. With support for LTE SIM cards, you can enjoy high-speed internet access wherever there is a mobile network signal.
The compact and portable design of the Yoongwin Portable SIM Indoor 5G router makes it ideal for use in small spaces or when you're on the go. Take it with you on business trips, vacations, or to your favorite coffee shop for secure and reliable internet access. The router's sleek and modern design will blend seamlessly with any home or office decor.
With the Yoongwin Portable SIM Indoor 5G router, you can create a secure and private network for all your devices. The router features advanced security features to protect your data and privacy, ensuring that your online activities remain safe and secure.
Whether you're a busy professional working from home, a student studying for exams, or a family streaming movies and playing games, the Yoongwin Portable SIM Indoor 5G router has you covered. Say goodbye to buffering and lagging and hello to ultra-fast internet speeds with this innovative and versatile wireless router.
Experience the power and convenience of the Yoongwin Portable SIM Indoor 5G with RJ45 Interface-Smart Home Wireless Router 2.4G 5G LTE Sim CPE. Upgrade your internet connection today and enjoy seamless connectivity wherever you go
Hardware |
||
CPU |
1.3GHz Dual-core MT7981B |
|
RAM |
DDR4 1GB |
|
Flash |
eMMC 8GB |
|
Ethernet |
One (1) 2.5Gbps WAN Ethernet Port Three (3) 1Gbps LAN Ethernet Ports |
|
Wireless Technology |
802.11b/g/n 300Mbps MIMO Technology |
|
Interfaces |
One (1) Power Adapter Port One (1) Nano SIM Slot |
|
Buttons |
One (1) WPS Button One (1) Power Button One (1) Reset Button |
|
LED Indicators |
One (1) System indicator One (1) 5G indicator One (1) 4G indicator One (1) WiFi indicator |
|
Antennas |

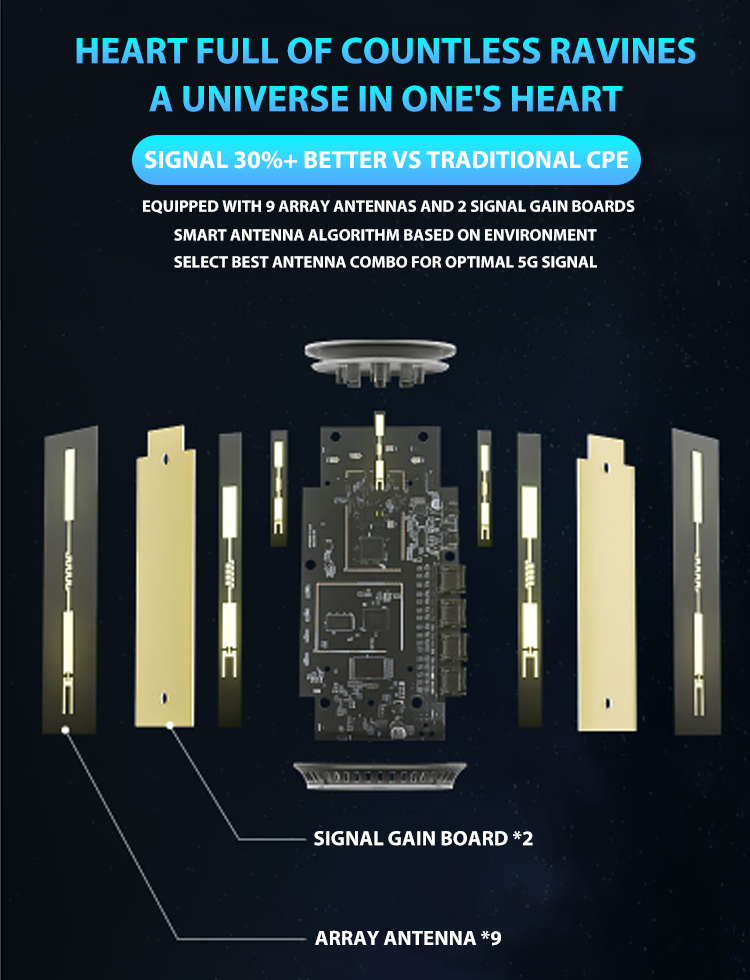

Built-in 5G/LTE primary antenna Built-in 5G/LTE secondary antenna Built-in Wi-Fi 2.4GHz/5GHz antennas |
|
Operating Environment |
0~40°C, 10%～90% non-condensing |
|
Storage Environment |
-40~70°C, 5%～95% non-condensing |
|
Physical Size |
100*100*200 mm |
|
Weight |
750g |
|
Power Supply |
12V/2A |
|
Wi-Fi |
||||
Standards |
2.4GHz |
IEEE 802.11b/g/n/ax |
||
5GHz |
IEEE 802.11a/n/ac/ax |
|||
Supported Rates |
802.11b |
1/2/5.5/11Mbps |
||
802.11a/g |
6/9/12/18/24/36/48/54Mbps |
|||
802.11n |
MCS0~7 |
|||
802.11ac |
MCS0~11 |
|||
802.11ax |
MCS0~11 |
|||
2.4GHz |
Peak PHY Rates |
574Mbps |
||
Channels |
Ch1~13 |
|||
Spatial Streams |
2T2R |
|||
Channelization |
20/40/80MHz |
|||
Client Capacity |
256 |
|||
5GHz |
Peak PHY Rates |
2402Mbps |
||
Channels |
Ch36~64, 100-144, 149~165 |
|||
Spatial Streams |
2T3R |
|||
Channelization |
20/40/80/160MHz |
|||
Client Capacity |
256 |
|||
Celluar |
||||
Module |
Model |
RM520-GL |
||
Area |
Global |
|||
Chipset |
Qualcomm Snapdragon SDX62 |
|||
5G NR |
5G NR |
3GPP Release 16 NSA/SA operation, Sub-6 GHz |
||
Sub-6 NSA Band |
n1/2/3/5/7/8/12/13/14/18/20/25/26/28/39/30/38/40/41/48/66/70/71/75/76/77/78/79 |
|||
Sub-6 SA Band |
n1/2/3/5/7/8/12/13/14/18/20/25/26/28/39/30/38/40/41/48/66/70/71/75/76/77/78/79 |
|||
Max. Sub-6 BW |
120MHz |
|||
Sub-6 CA |
FDD+FDD, TDD+TDD, FDD+TDD DL2CA/UL 2CA |
|||
DL 4x4 MIMO |
n1/2/3/5/7/25/30/38/40/48/66/70/77/78/79 |
|||
UL 2x2 MIMO |
n38/41/48/77/78/79 |
|||
LTE |
LTE Category |
DL Cat19 / UL Cat18 |
||
LTE-FDD Band |
B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71 |
|||
LTE-TDD Band |
B34/38/39/40/41/42/43/48 |
|||
LTE LAA Band |
B46 |
|||
DL 4x4 MIMO |
B1/2/3/4/7/25/30/38/40/41/42/43/48/66 |
|||
UMTS |
WCDMA Band |
B1/2/4/5/8/19 |
||
Max. PHY Rates |
5G SA Sub-6 Max |
DL 2.4 Gbps; UL 900 Mbps |
||
5G NSA Sub-6 Max |
DL 3.4 Gbps; UL 550 Mbps |
|||
LTE Max |
DL 1.6 Gbps; UL 200 Mbps |
|||
WCDMA Max |
DL 42 Mbps; UL 5.76 Mbps |
|||
