Product Name  |

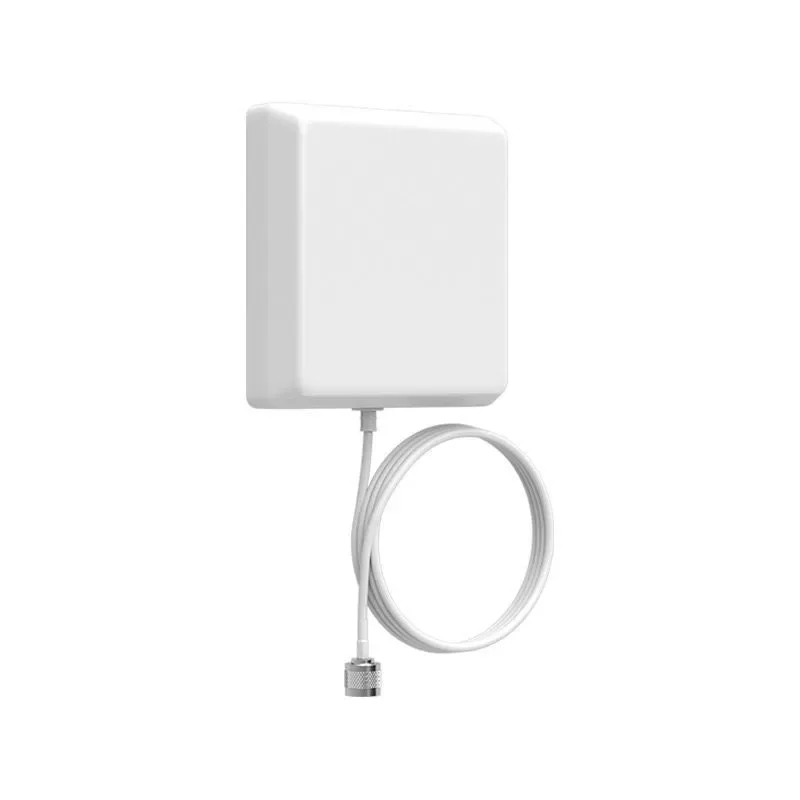

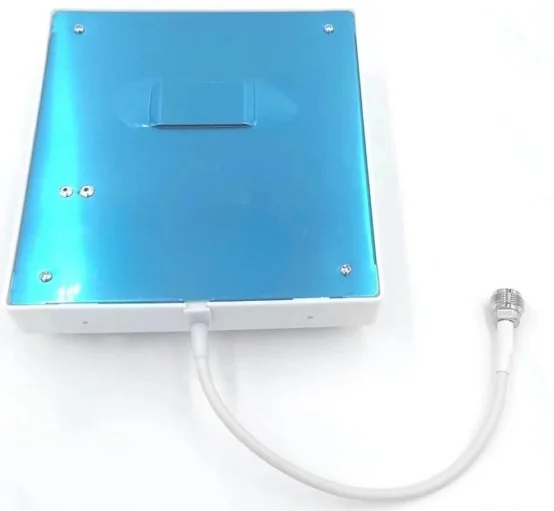

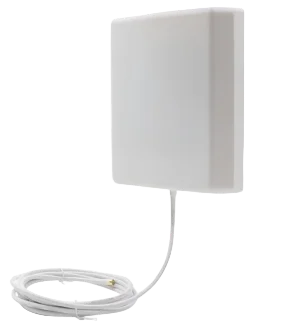

Indoor Directional Unipolar Wall-Mounted Antenna  |
|||||||||||||
Electrical Performance  |
||||||||||||||
Operating Frequency Band (MHz)  |
880-960  |
1710-1850  |
1885-1915  |
2010-2025  |
2300-2400  |
2400-2483.5  |
2515-2675  |
|||||||
Polarization Mode  |
V  |
|||||||||||||
Gain (dBi)  |
≥6.5  |
≥7.0  |
≥7.5  |
≥7.5  |
≥7.5  |
≥7.5  |
≥7.5  |
|||||||
Horizontal Plane Beamwidth (°)  |
90±10  |
65±10  |
65±10  |
65±10  |
65±10  |
65±10  |
65±10  |
|||||||
Vertical Plane Half-Power Beamwidth (°)  |
85  |
65  |
65  |
65  |
65  |
60  |
55  |
|||||||
Front-to-Back Ratio (dB)  |
≥12  |
≥15  |
≥15  |
≥15  |
≥15  |
≥15  |
≥14  |
|||||||
Polarization Isolation (dB)  |
/  |
|||||||||||||
Voltage Standing Wave Ratio  |
≤1.5  |
|||||||||||||
Third-Order Intermodulation (dBm@2*2W)  |
≤-85  |
≤-85  |
/  |
|||||||||||
Power Tolerance (W)  |
≥50  |
|||||||||||||
Mechanical Performance  |
||||||||||||||
Antenna Housing Material  |
PS  |
|||||||||||||
Connector Type  |
N-type Female  |
|||||||||||||
Connector Lead Length (mm)  |
≥250  |
|||||||||||||
Antenna Size (mm)  |
164*154*48  |
|||||||||||||
Packaging Size (mm)  |
201*162*56  |
|||||||||||||
Antenna Weight (kg)  |
0.18  |
|||||||||||||
Operating Temperature (℃)  |
-30~+45  |
|||||||||||||
Storage Temperature (℃)  |
-40~+55  |
|||||||||||||
