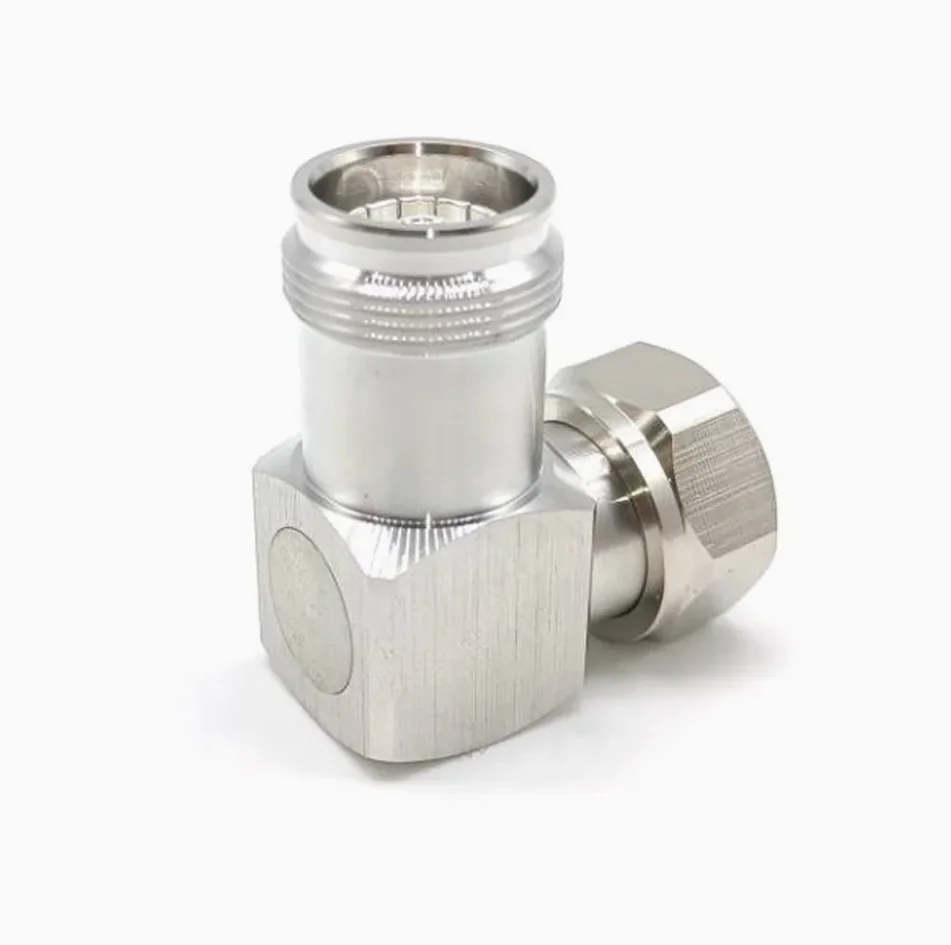

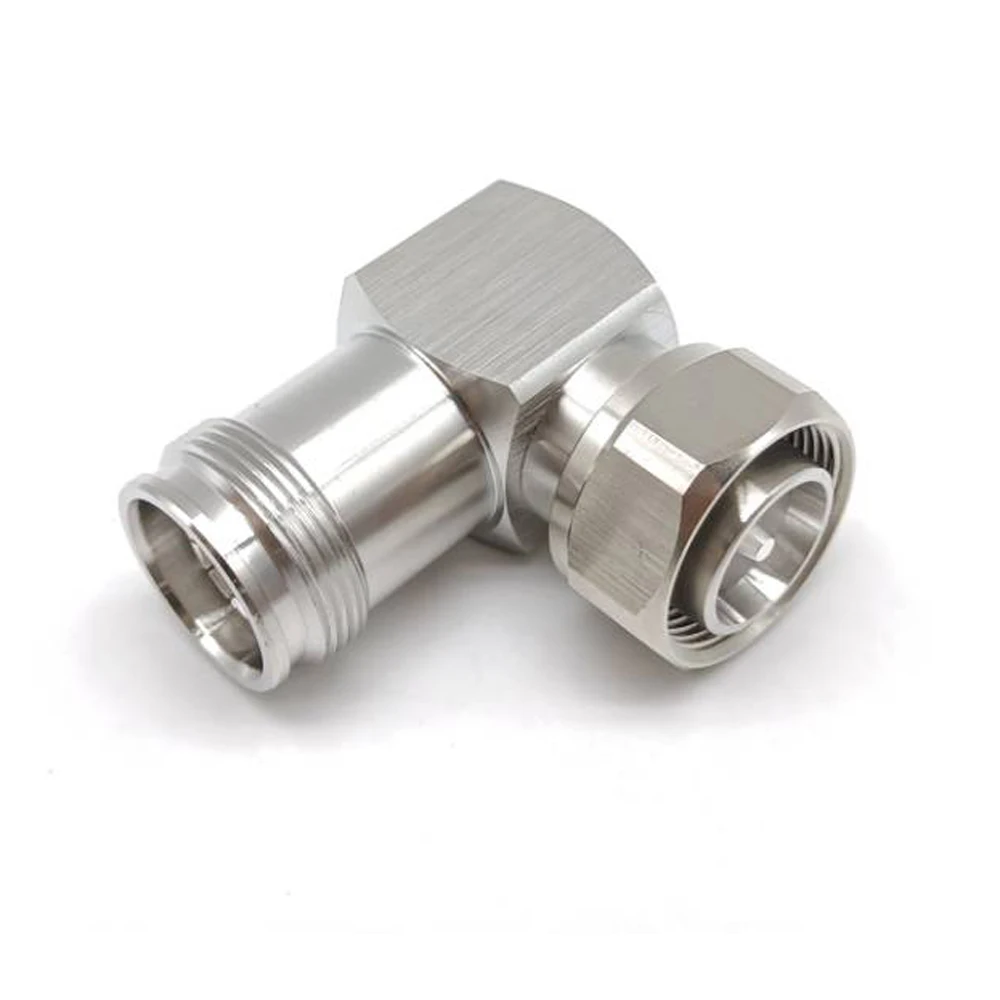

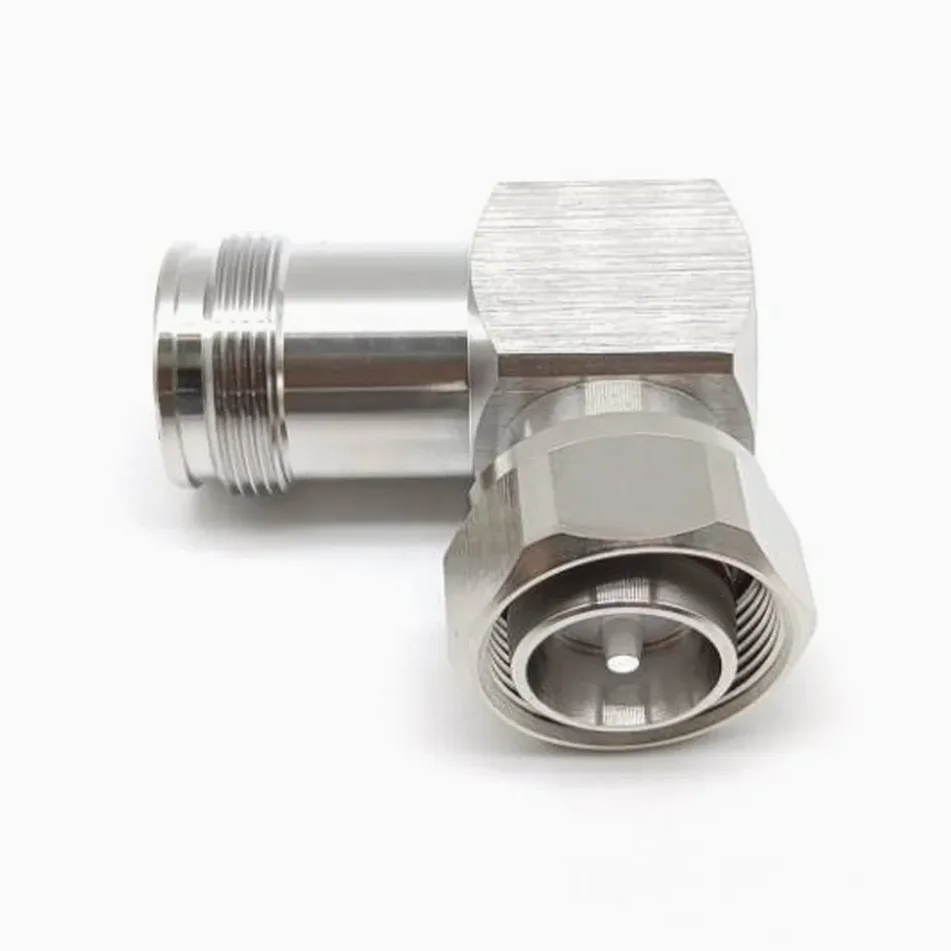

RF Coaxial Connector Adaptor 4.3/10 Male Right Angle to 4.3/10 Female
RF Coaxial Connector Adaptor 4.3/10 Male Right Angle to 4.3/10 Female
RF Coaxial Connector Adaptor 4.3/10 Male Right Angle to 4.3/10 Female
RF Coaxial Connector Adaptor 4.3/10 Male Right Angle to 4.3/10 Female
RF Coaxial Connector Adaptor 4.3/10 Male Right Angle to 4.3/10 Female
RF Coaxial Connector Adaptor 4.3/10 Male Right Angle to 4.3/10 Female
RF Coaxial Connector Adaptor 4.3/10 Male Right Angle to 4.3/10 Female
RF Coaxial Connector Adaptor 4.3/10 Male Right Angle to 4.3/10 Female
RF Coaxial Connector Adaptor 4.3/10 Male Right Angle to 4.3/10 Female
RF Coaxial Connector Adaptor 4.3/10 Male Right Angle to 4.3/10 Female

RF Coaxial Connector Adaptor 4.3/10 Male Right Angle to 4.3/10 Female

Get a Quote Contact Us
  • Description
10 female-1

[email protected]
Inquiry

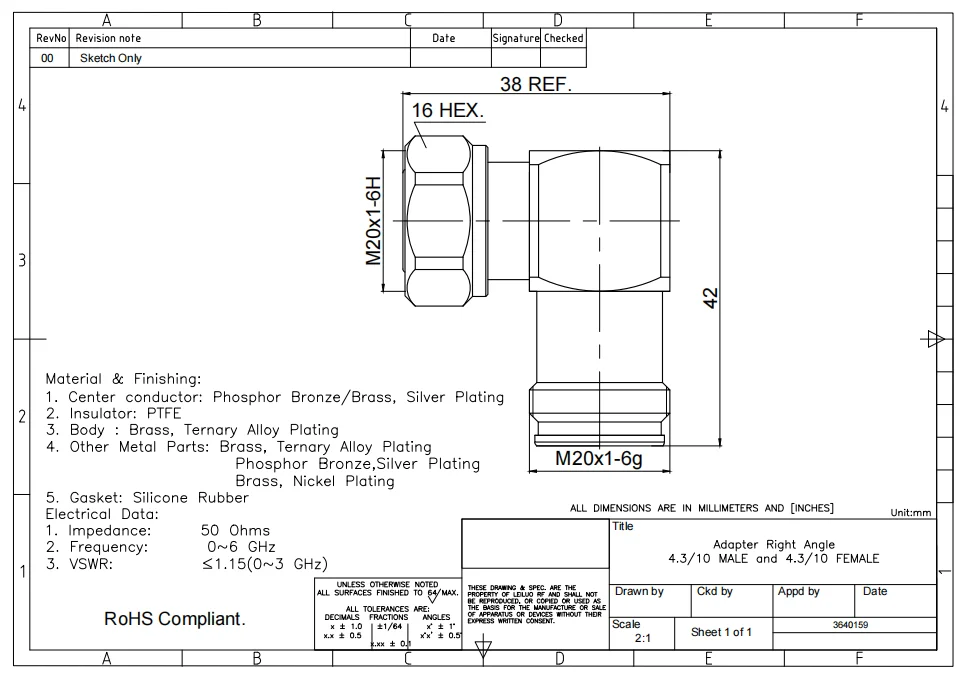

Product Description
Product Detail
10 female-2
Material & Finishing
Center conductor
Phosphor Bronze/Brass, Silver Ploting
Insulators
PTFE
Body
Brass,TernaryAlloyPlating
Other Metal Parts
Brass, Ternary Alloy Plating
Phosphor Bronze, Silver Plating
Brass,Nickel Plating
Gasket
Silicone Rubber
Electrical Data
Impedance
50 Ohms
Frequency
0~6 GHz
VSWR
≤1.15(0~3 GHz)
Company Profile
10 female-3
10 female-4
10 female-5
10 female-6
10 female-7
10 female-8
FAQ
Q: Are you a manufacturer or a trading company? A: We have been professional antenna manufacturer for 18 years. Q: Have gps gsm combo antenna 100% assembles well in stock? A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples. Q: Could I use my own LOGO or design on goods? A: Yes, customized logo and design on mass production are available. Q: What's the payment term? A: T/T, AliPay,Paypal,Afterpay,Klarna etc. Q:What certifications do you have? A:Certified by FCC, CE, RoHS,ISO available upon request. Q: Where is your factory located? Can I visit your factory? A: Factory address: 2nd Floor, Building D4-1, Hongfeng Science and Technology Park, Nanjing Economic and Technological Development Zone, Jiangsu Province. Just call us, we will pick you up with no delay.
