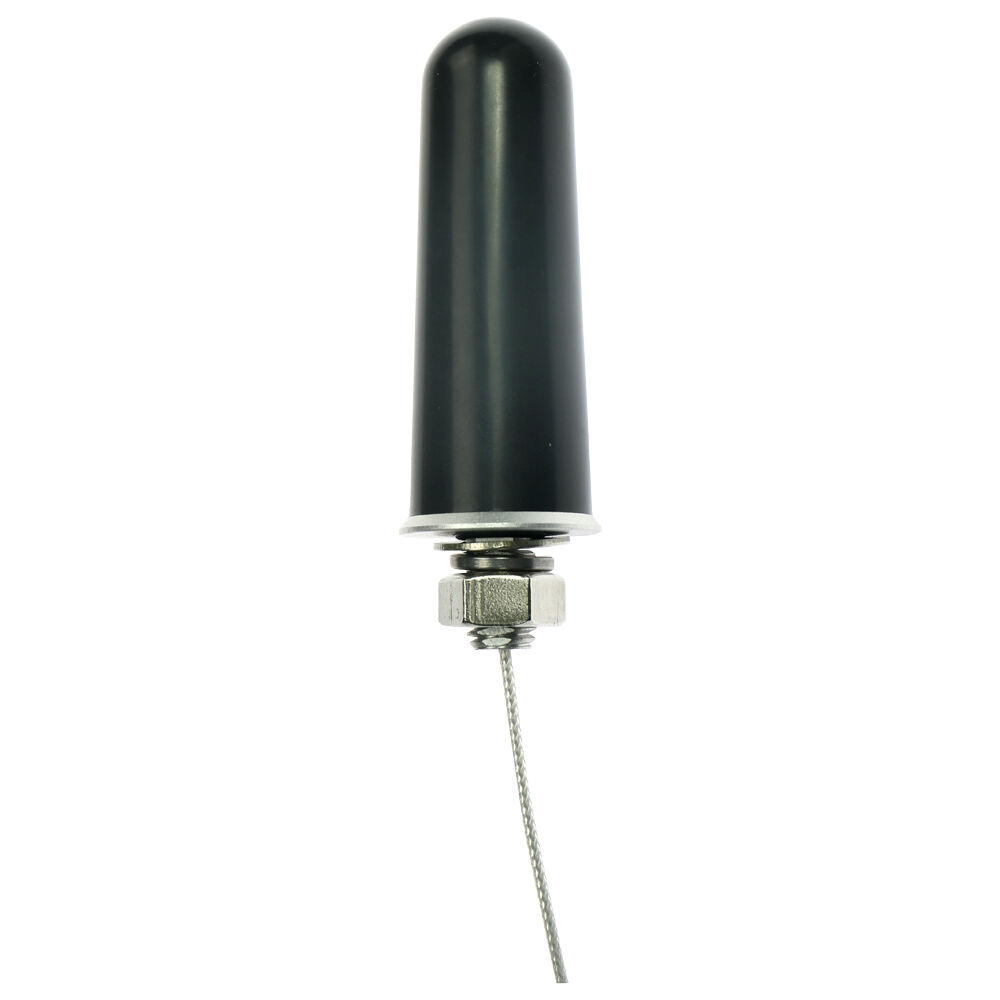

Introducing, the Yoongwin Robust 2400-2483MHz 3dBi WiFi Stubby Antenna with Vertical Polarization! This high-quality antenna is perfect for boosting the signal strength of your WiFi network and improving your internet connection speed.
With a frequency range of 2400-2483MHz, this antenna is compatible with most WiFi routers and devices. The 3dBi gain ensures strong signal reception, allowing you to enjoy faster and more reliable internet access. Plus, the vertical polarization helps to minimize signal interference and improve overall network performance.
The Yoongwin Robust WiFi Stubby Antenna is built to last, thanks to its durable construction and high-quality materials. It is designed to withstand harsh environmental conditions, making it ideal for both indoor and outdoor use. Whether you need to improve the WiFi signal in your home, office, or outdoor space, this antenna is up to the task.
Installation is a breeze with the customizable factory through-hole mount. Simply attach the antenna to your router or device using the provided mounting hardware, and you'll be up and running in no time. The stubby design of the antenna makes it compact and unobtrusive, perfect for spaces where a larger antenna may not be practical.
Upgrad your WiFi network with the Yoongwin Robust 2400-2483MHz 3dBi WiFi Stubby Antenna with Vertical Polarization. Say goodbye to weak signals and slow connection speeds – this antenna will help you achieve faster, more reliable internet access wherever you need it. Trust Yoongwin for all your networking needs
Technical Indicators |
QT2400U |
Frequency Range (MHz) |
2400 ~ 2483 |
Bandwidth (MHz) |
83 |
Polarization Mode |
Vertical |
Gain (dBi) |
3 |
Input Impedance (Ω) |
50 |
Voltage Standing Wave Ratio |
≤1.5 |
Maximum Power (W) |
20 |
Connector Type |
SMAJ |
Antenna Dimensions - mm |
Φ34×108 |
Cable Length (m) |
1 |
Antenna Weight - kg |
Approx. 0.2 |
Mounting Method |
Nut Tightening |
Q: Are you a manufacturer or a trading company
A: We have been professional antenna manufacturer for 18 years
Q: Have gps gsm combo antenna 100% assembles well in stock
A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples
Q: Could I use my own LOGO or design on goods
A: Yes, customized logo and design on mass production are available
Q: What's the payment term
A: T/T, AliPay, Paypal, Afterpay, Klarna etc
Q: What certifications do you have
A: Certified by FCC, CE, RoHS, ISO available upon request
Q: Where is your factory located? Can I visit your factory
A: Factory address: 2nd Floor, Building D4-1, Hongfeng Science and Technology Park, Nanjing Economic and Technological Development Zone, Jiangsu Province
Just call us, we will pick you up with no delay
