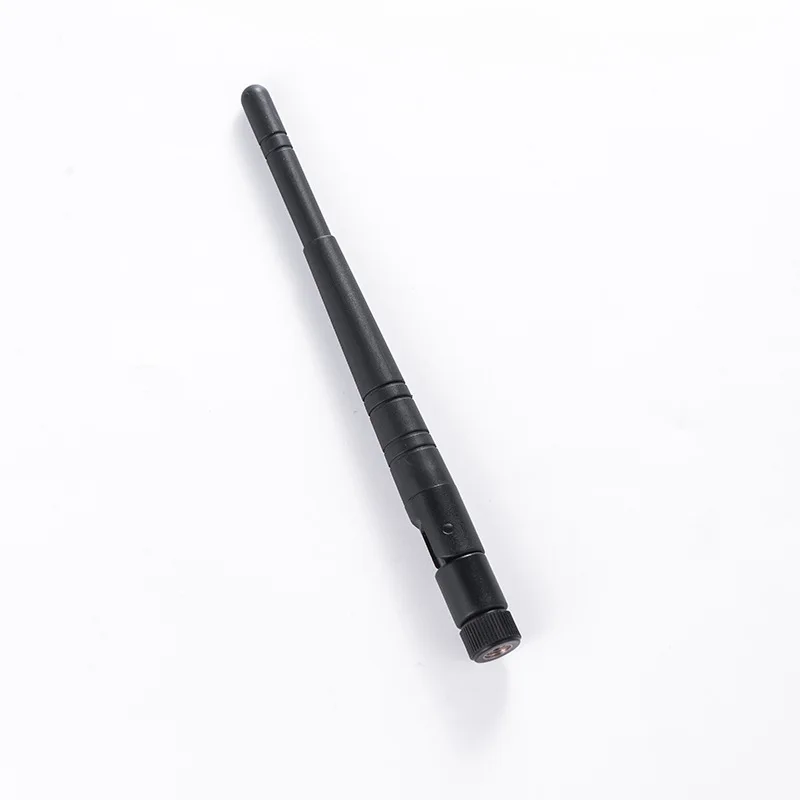

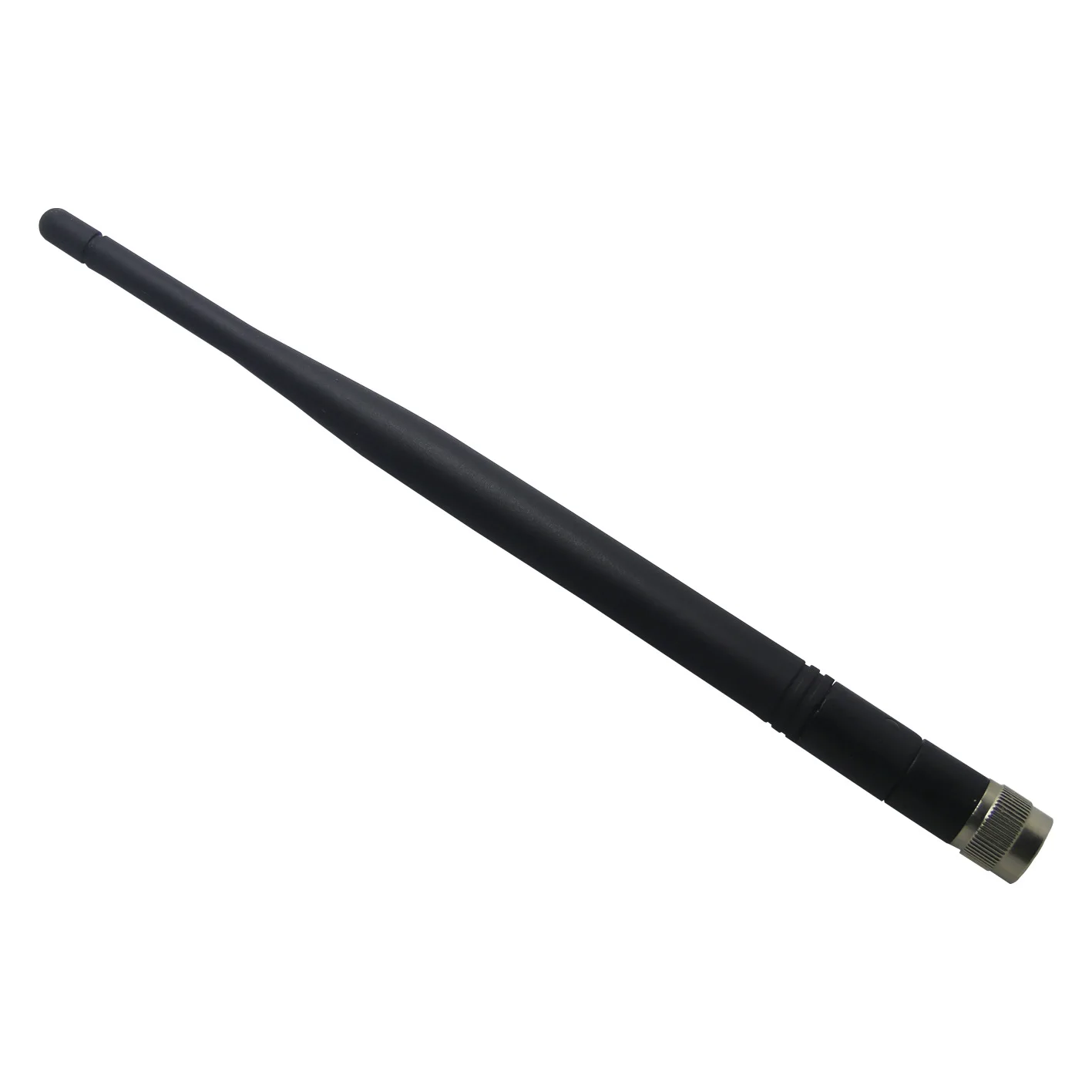

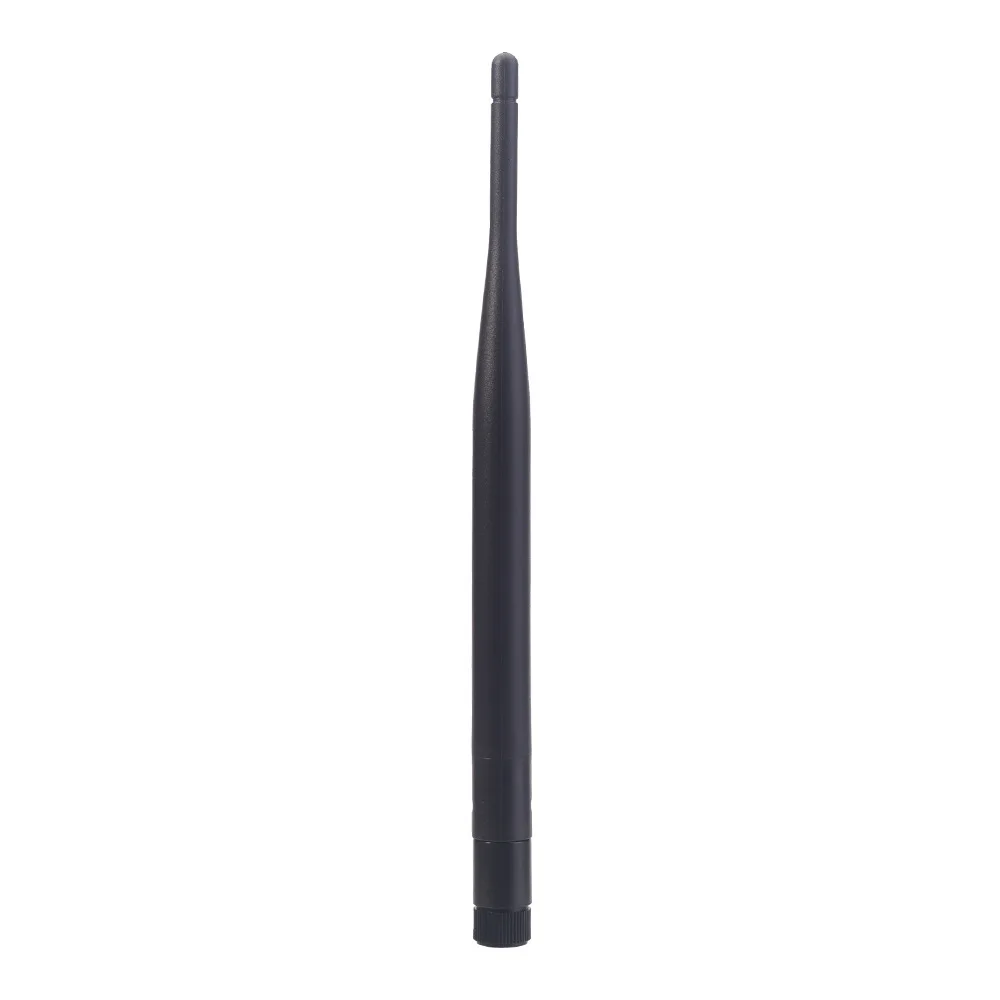

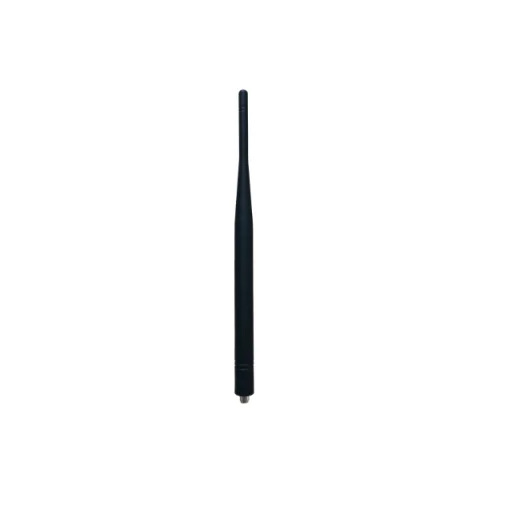

Terminal Antenna 5dBi Gain 5150-5850MHz Frequency, 700MHz Bandwidth, 20W Power, Male Connector
Terminal Antenna 5dBi Gain 5150-5850MHz Frequency, 700MHz Bandwidth, 20W Power, Male Connector
Terminal Antenna 5dBi Gain 5150-5850MHz Frequency, 700MHz Bandwidth, 20W Power, Male Connector
Terminal Antenna 5dBi Gain 5150-5850MHz Frequency, 700MHz Bandwidth, 20W Power, Male Connector
Terminal Antenna 5dBi Gain 5150-5850MHz Frequency, 700MHz Bandwidth, 20W Power, Male Connector
Terminal Antenna 5dBi Gain 5150-5850MHz Frequency, 700MHz Bandwidth, 20W Power, Male Connector
Terminal Antenna 5dBi Gain 5150-5850MHz Frequency, 700MHz Bandwidth, 20W Power, Male Connector
Terminal Antenna 5dBi Gain 5150-5850MHz Frequency, 700MHz Bandwidth, 20W Power, Male Connector
Terminal Antenna 5dBi Gain 5150-5850MHz Frequency, 700MHz Bandwidth, 20W Power, Male Connector
Terminal Antenna 5dBi Gain 5150-5850MHz Frequency, 700MHz Bandwidth, 20W Power, Male Connector

Terminal Antenna 5dBi Gain 5150-5850MHz Frequency, 700MHz Bandwidth, 20W Power, Male Connector

Get a Quote Contact Us
  • Description
product terminal antenna 5dbi gain 5150 5850mhz frequency 700mhz bandwidth 20w power male connector-1

[email protected]
Inquiry
Product Description
Product Detail
product terminal antenna 5dbi gain 5150 5850mhz frequency 700mhz bandwidth 20w power male connector-2
product terminal antenna 5dbi gain 5150 5850mhz frequency 700mhz bandwidth 20w power male connector-3
product terminal antenna 5dbi gain 5150 5850mhz frequency 700mhz bandwidth 20w power male connector-4
Product Name
Antenna
Frequency Range (MHz)
5150～5850
Bandwidth (MHz)
700
Polarization Mode
Vertical
Gain (dBi)
5
Input Impedance (Ω)
50
Voltage Standing Wave Ratio
≤2.5
Maximum Power (W)
20
Connector Type
SMA Male
Antenna Length (cm)
20.5
Antenna Weight (g)
40
