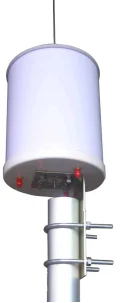

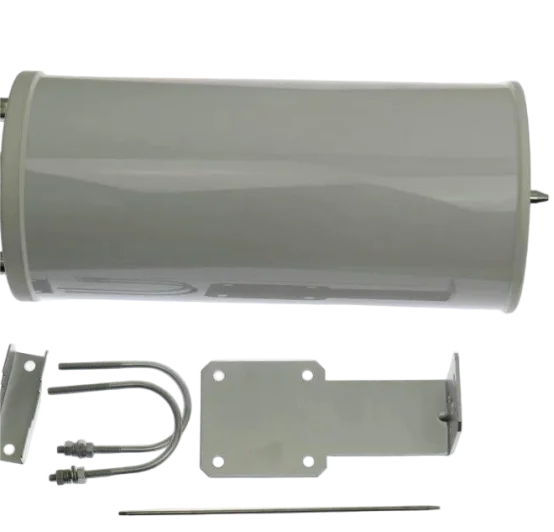

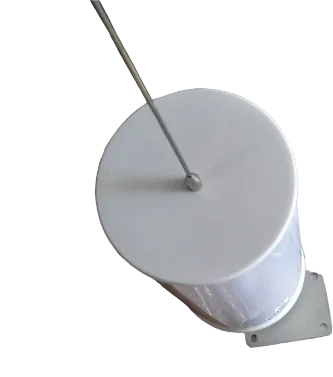

2.4/5GHz Dual-band 3×3 MIMO Omnidirectional Antenna |
||||
Technical Specifications |
M3QC-2458V8AN |
|||
Frequency Range (MHz) |
2400～2500 |
5150～5850 |
||
Bandwidth (MHz) |
100 |
700 |
||
Polarization |
Vertical |
|||
Gain (dBi) |
8 |
10 |
||
Beamwidth (°) |
E:22 |
E:10 |
||
Input Impedance (Ω) |
50 |
|||
Voltage Standing Wave Ratio (VSWR) |
≤1.5 |
≤2 |
||
Maximum Power (W) |
20 |
|||
Connector Type |
3×N Female or as specified 3×2.4&5GHz Dual-band Ports |
|||
Antenna Dimensions (mm) |
Φ145×320 |
|||
Antenna Color |
White |
|||
Antenna Weight (kg) |
1.2 |
|||
Cover Material |
ABS/PC |
|||
Ultimate Wind Speed (m/s) |
60 |
|||
Mast Diameter (mm) |
30~50 |
|||
