VFD/Solar IEEE 18 Certified Space-Saving Square Design Low ESR 40kVar 660VAC 3-Phase Square Power Capacitor

VFD/Solar IEEE 18 Certified Space-Saving Square Design Low ESR 40kVar 660VAC 3-Phase Square Power Capacitor

Description

solar ieee 18 certified space saving square design low esr 40kvar 660vac 3 phase square power capacitor-1

[email protected]

Description

Product Description

Product Detail

Quote the standard	GB/T12747 - 2004, IEC60831 - 1/2 - 2008
Rated voltage	100~660V
Rated frequency	50/60Hz
Capacity tolerance	±5%
Loss(Medium)	< 0.2W/kvar
Inter - electrode withstand voltage	2.15Un(AC) 10S
The shell is pressure resistant	3000V(AC) 10S
Discharge resistor	Standard discharge time 60S
ambient temperature	-25℃~55℃
Humidity	95%
Altitude	2000m
Overvoltage	1.1Un (Allow overvoltage for 6 hours every 24 hours)
Overcurrent	1.3In
Surge current	200In
Design life	100000 hours
Installation method	bracket installation
grounding bolt	M5 Wiring Nut
Protection level	IP20
Security features	Overvoltage protection discharge resistor self - healing
Housing material	Square aluminum case
Thin film material	Zinc aluminum film of polypropylene
Potting compound	Insulating oil (NON - PCB)

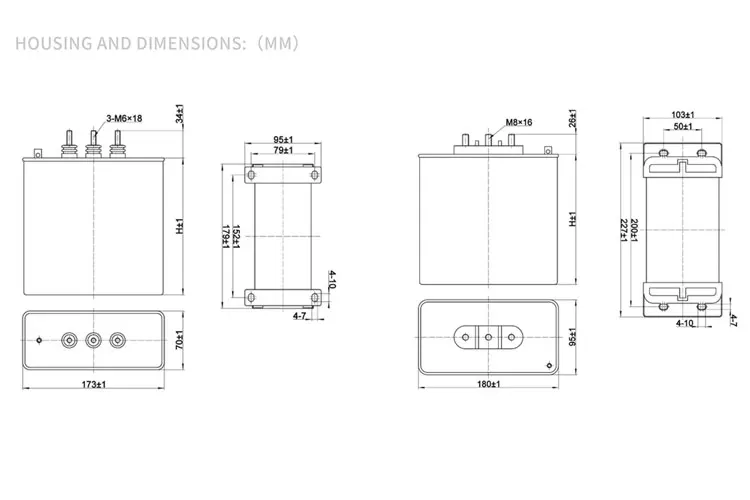

FILTER	Rated capacity (kvar)	Rated capacitance (μF)	Rated current (A)	Overall dimensions(mm)
				Overall dimensions(mm)
						L×D×H	Lead-out end
BKMJ0.4-5-3	5	100	7.2	173×70×130	M6×18
BKMJ0.4-10-3	10	199	14.4	173×70×170	M6×18
BKMJ0.4-15-3	15	298	21.7	173×70×230	M6×18
BKMJ0.4-20-3	20	398	28.9	173×70×230	M6×18
BKMJ0.4-25-3	25	497	36.1	173×70×280	M6×18
BKMJ0.4-30-3	30	597	43.3	180×95×290	M8×16
BKMJ0.4-40-3	40	796	57.7	180×95×290	M8×16
BKMJ0.45-5-3	5	79	6.4	173×70×130	M6×18
BKMJ0.45-10-3	10	157	12.8	173×70×170	M6×18
BKMJ0.45-15-3	15	236	19.2	173×70×230	M6×18
BKMJ0.45-20-3	20	314	25.7	173×70×230	M6×18
BKMJ0.45-25-3	25	393	32.1	173×70×280	M6×18
BKMJ0.45-30-3	30	472	38.5	180×95×210	M8×16
BKMJ0.45-40-3	40	629	51.3	180×95×290	M8×16
BKMJ0.48-5-3	5	69	6	173×70×130	M6×18
BKMJ0.48-10-3	10	138	12	173×70×170	M6×18
BKMJ0.48-15-3	15	207	18	173×70×170	M6×18
BKMJ0.48-20-3	20	276	24.1	173×70×230	M6×18
BKMJ0.48-25-3	25	345	30.1	173×70×280	M6×18
BKMJ0.48-30-3	30	414	36.1	173×70×280	M6×18
BKMJ0.48-40-3	40	553	48.1	180×95×290	M8×16
BKMJ0.525-5-3	5	58	5.5	173×70×130	M6×18
BKMJ0.525-10-3	10	115	11	173×70×170	M6×18
BKMJ0.525-15-3	15	173	16.5	173×70×170	M6×18
BKMJ0.525-20-3	20	231	22	173×70×210	M6×18
BKMJ0.525-25-3	25	289	27.5	173×70×280	M6×18
BKMJ0.525-30-3	30	346	33	173×70×280	M6×18
BKMJ0.525-40-3	40	462	44	180×95×290	M8×16
