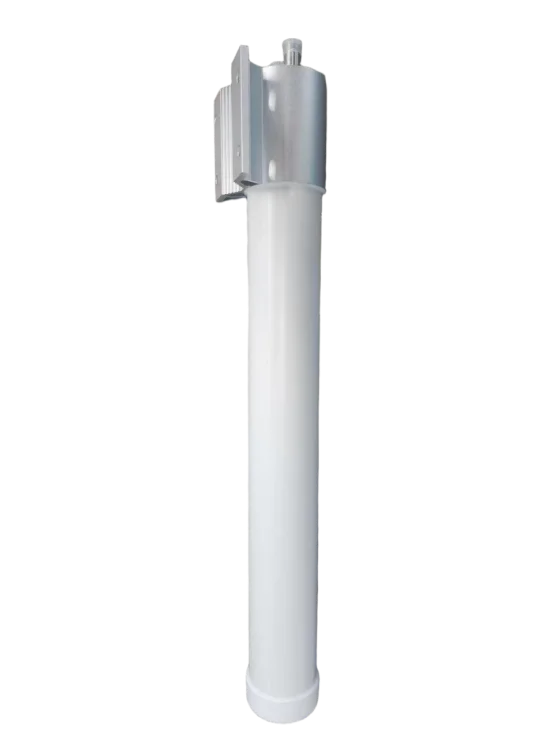

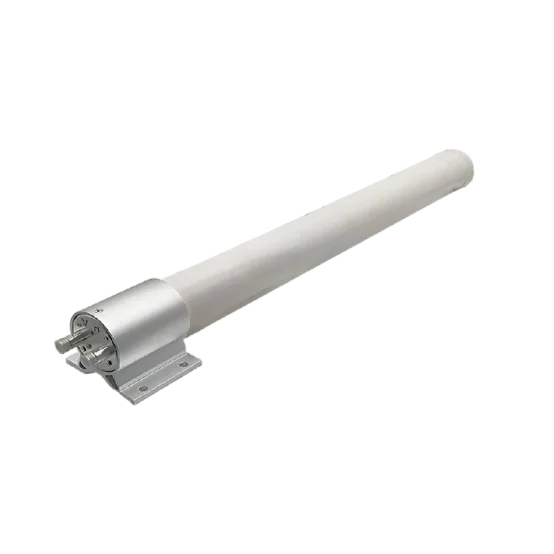

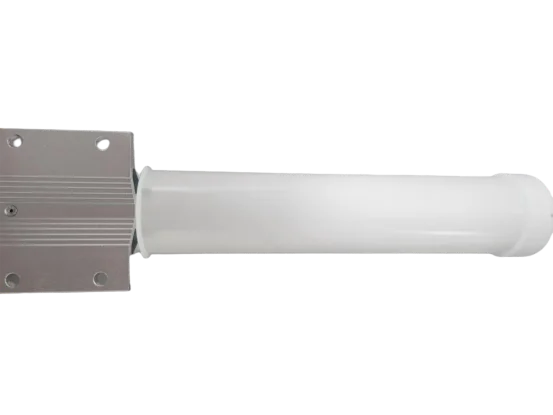

5150～5850MHz 11dBi 3×3 MIMO Omnidirectional Antenna |
||
Technical Specifications |
M3Q-58V11B |
|
Frequency Range (MHz) |
5150～5850 |
|
Bandwidth (MHz) |
700 |
|
Polarization |
Vertical |
|
Gain (dBi) |
11 |
|
Beamwidth (°) |
H: 360 E: 9 |
|
Input Impedance (Ω) |
50 |
|
Voltage Standing Wave Ratio (VSWR) |
≤2 |
|
Maximum Power (W) |
50 |
|

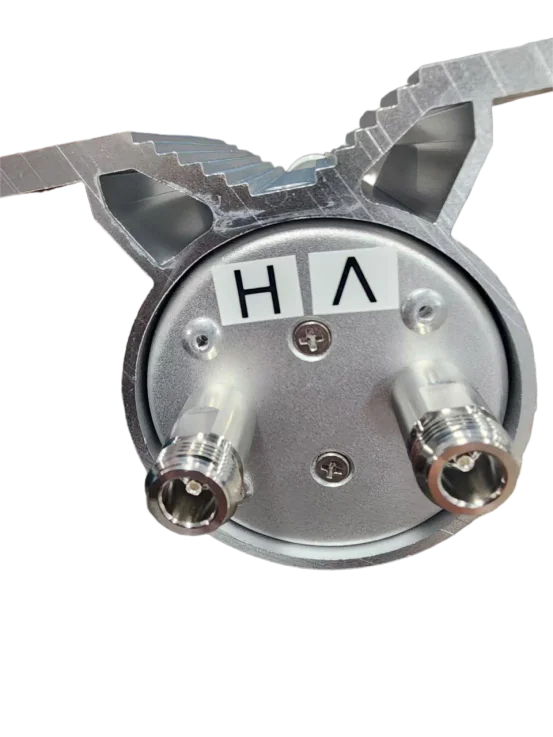

Connector Type |
3×N Female |
|
Antenna Dimensions (mm) |
Φ75×465 |
|
Antenna Weight (kg) |
1.3 |
|
Cover Material |
PVC (White) |
|
Ultimate Wind Speed (m/s) |
60 |
|
Mast Diameter (mm) |
50~90 |
|
