Product Name |

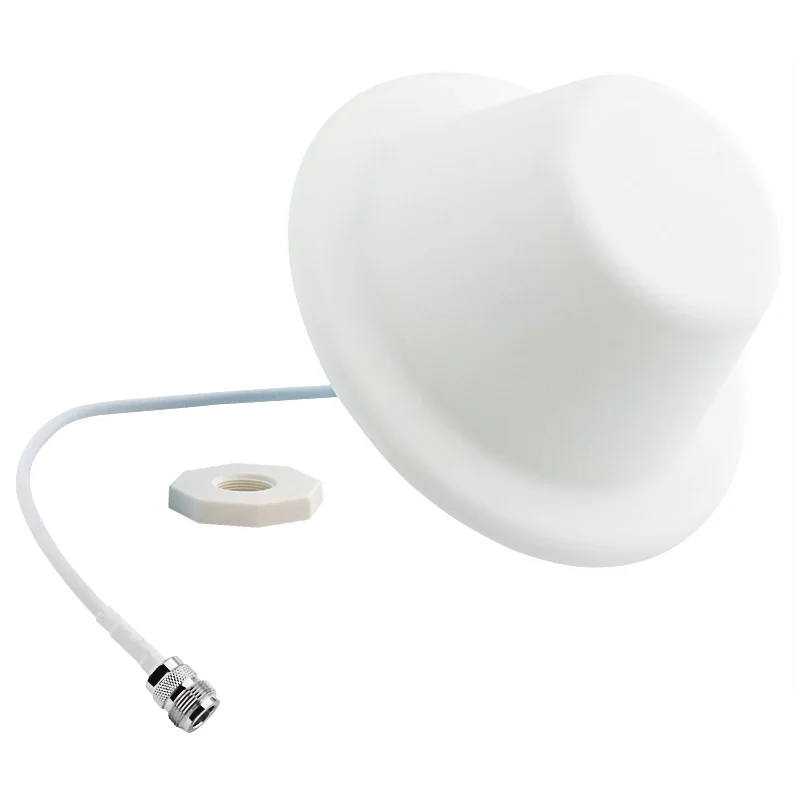

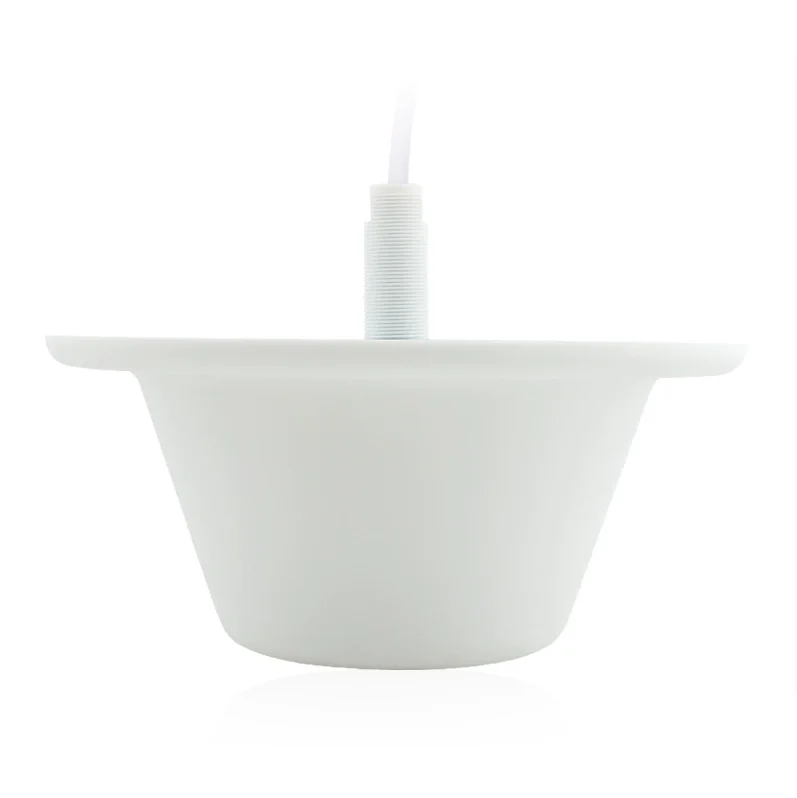

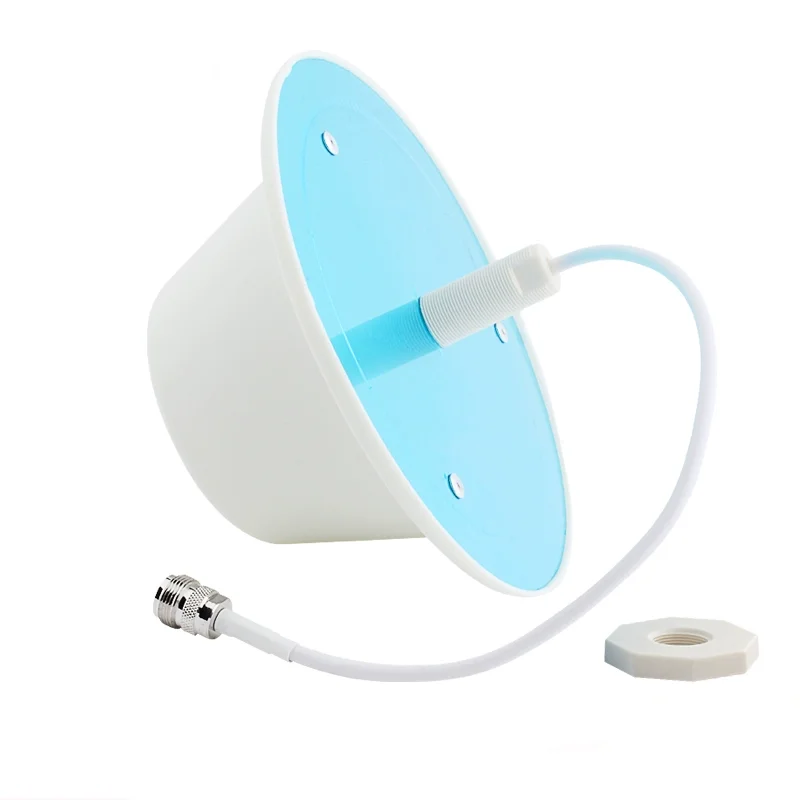

Omni-directional Ceiling Mount Antenna |
||||||||||||
Electrical Performance |
|||||||||||||
Operating Frequency Band (MHz) |
880-960 |
1710-1850 |
1885-1915 |
2010-2025 |
2300-2400 |
2400-2483.5 |
2515-2675 |
||||||
Polarization Mode |
V |
||||||||||||
Gain (dBi) |
≥2.0 |
≥3.0 |
≥3.5 |
≥4.0 |
≥4.0 |
≥4.5 |
≥4.5 |
||||||
Radiation Pattern Circularity (dB) |
±0.5 |
±1 |
±1 |
±1 |
±1 |
±1 |
±1 |
||||||
Vertical Half-Power Beamwidth (°) |
85 |
55 |
55 |
55 |
55 |
55 |
45 |
||||||
Voltage Standing Wave Ratio (VSWR) |
≤1.5 |
||||||||||||
Third-Order Intermodulation (dBm@2*2W) |
≤-85 |
≤-85 |
/ |
||||||||||
Power Tolerance (W) |
≥50 |
||||||||||||
Mechanical Performance |
|||||||||||||
Antenna Enclosure Material |
ABS/PS |
||||||||||||
Connector Type |
N-type Female |
||||||||||||
Connector Lead Length (mm) |
≥250 |
||||||||||||
Antenna Dimension (mm) |
Ф186*85 |
||||||||||||
Packaging Dimension (mm) |
161*161*173 |
||||||||||||
Antenna Weight (kg) |
0.23 |
||||||||||||
Operating Temperature (℃) |
-30~+45 |
||||||||||||
Storage Temperature (℃) |
-40~+55 |
||||||||||||
