Product Name |

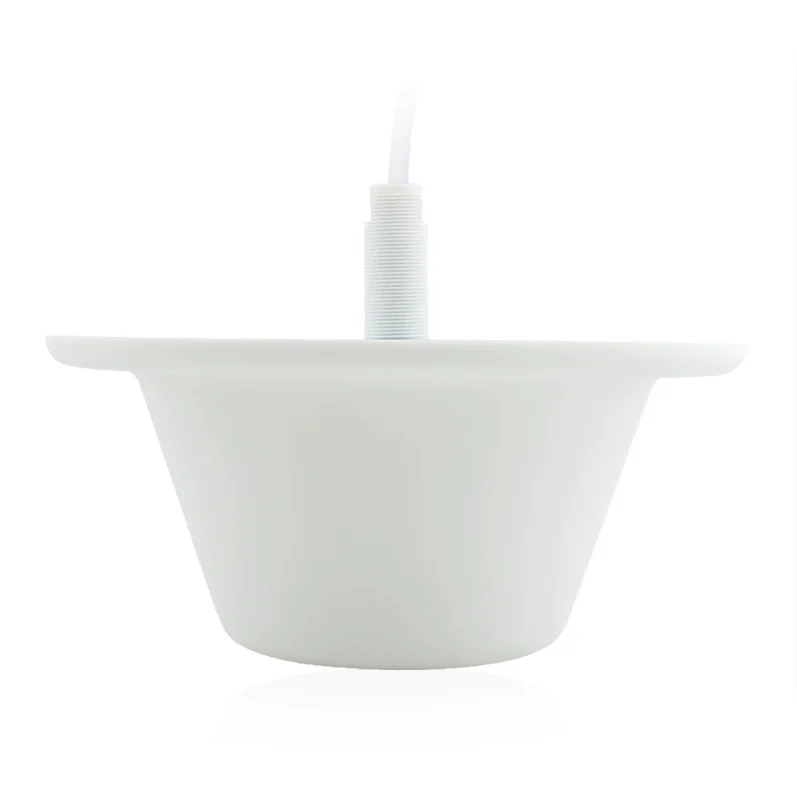

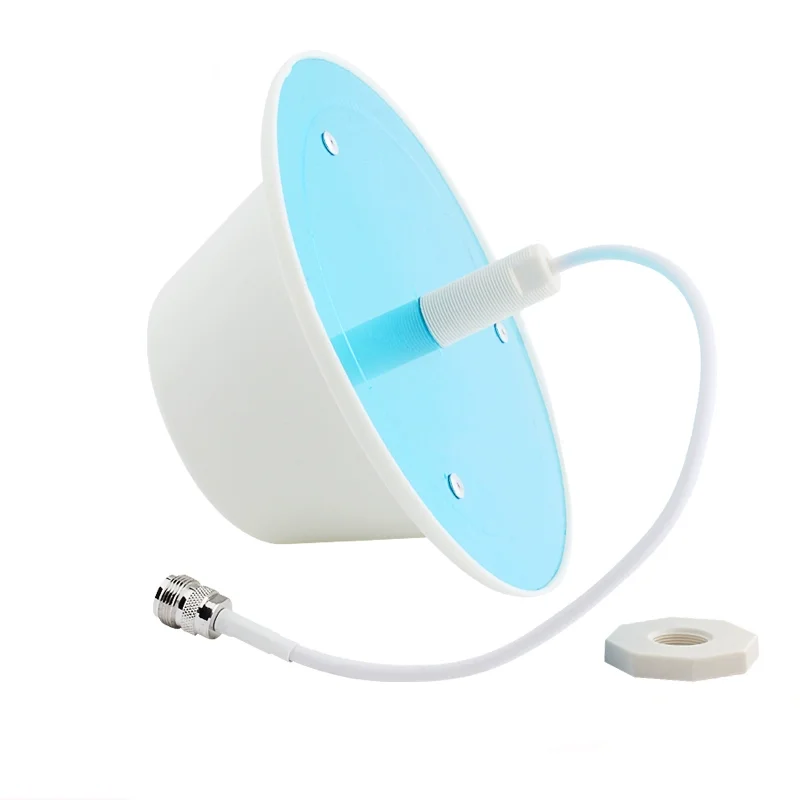

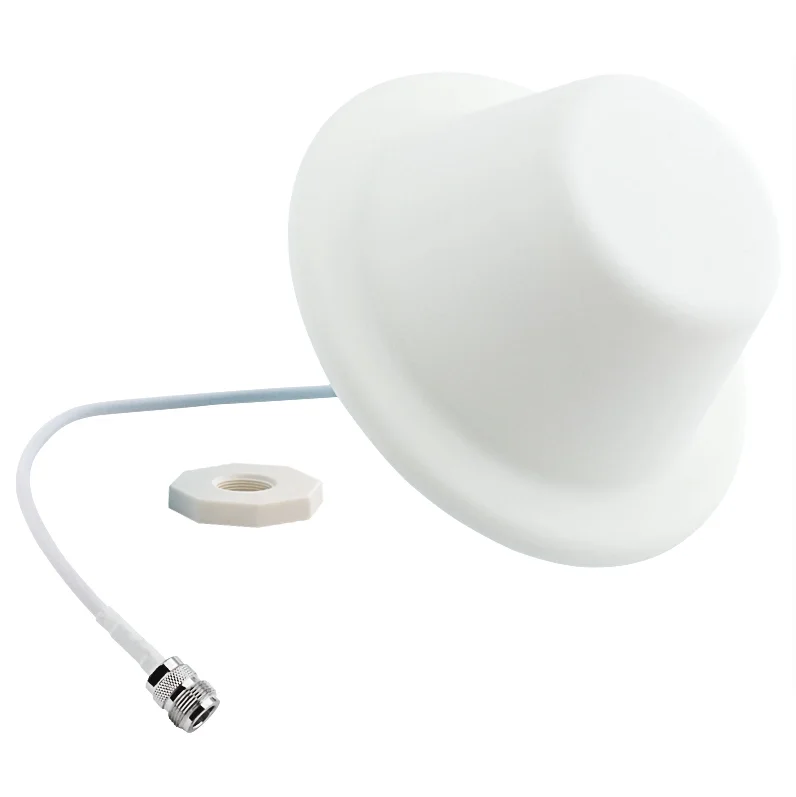

Omni-directional Ceiling Mount Antenna |
||||||||||||
Electrical Performance |
|||||||||||||
Operating Frequency Band (MHz) |
880-960 |
1710-1850 |
1885-1915 |
2010-2025 |
2300-2400 |
2400-2483.5 |
2515-2675 |
||||||
Polarization Mode |
V |
||||||||||||
Gain (dBi) |
≥1.5 |
≥2.5 |
≥3.0 |
≥3.5 |
≥3.5 |
≥4.0 |
≥4.0 |
||||||
Radiation Pattern Circularity (dB) |
±0.5 |
±0.5 |
±0.5 |
±0.5 |
±0.5 |
±0.5 |
±0.5 |
||||||
Maximum Gain Angle Direction (°) |
≥65 |
≥65 |
≥65 |
≥65 |
≥65 |
≥60 |
≥60 |
||||||
Vertical Half-Power Beamwidth (°) |
85 |
55 |
55 |
55 |
55 |
55 |
45 |
||||||
Gain Drop at 85° Angle (dB) |
≤1.0 |
≤1.5 |
≤1.5 |
≤2.0 |
≤2.0 |
≤2.5 |
≤2.5 |
||||||
Gain Drop at 75° Angle (dB) |
≤0.5 |
≤1.0 |
≤1.0 |
≤1.5 |
≤1.5 |
≤2.0 |
≤2.0 |
||||||
Voltage Standing Wave Ratio (VSWR) |
|||||||||||||
Third-Order Intermodulation (dBm@2*2W) |
≤-85 |
≤-85 |
/ |
||||||||||
Power Tolerance (W) |
≥50 |
||||||||||||
Mechanical Performance |
|||||||||||||
Antenna Enclosure Material |
ABS/PS |
||||||||||||
Connector Type |
N-type Female |
||||||||||||
Connector Lead Length (mm) |
≥250 |
||||||||||||
Antenna Dimension (mm) |
Ф184*118 |
||||||||||||
Packaging Dimension (mm) |
166*166*174 |
||||||||||||
Antenna Weight (kg) |
0.24 |
||||||||||||
Operating Temperature (℃) |
-30~+45 |
||||||||||||
Storage Temperature (℃) |
-40~+55 |
||||||||||||
