Product Name |

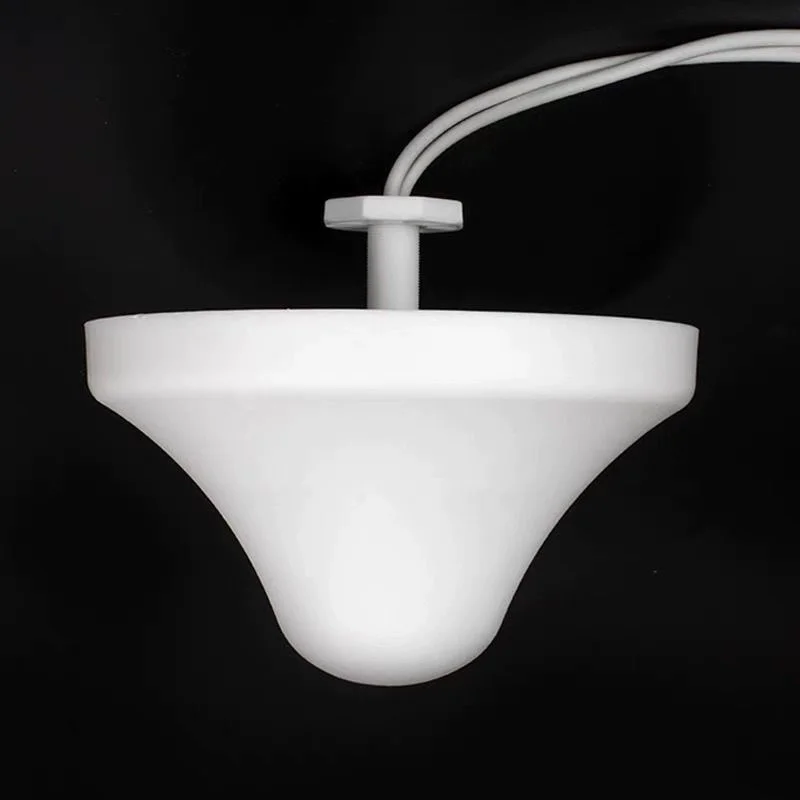

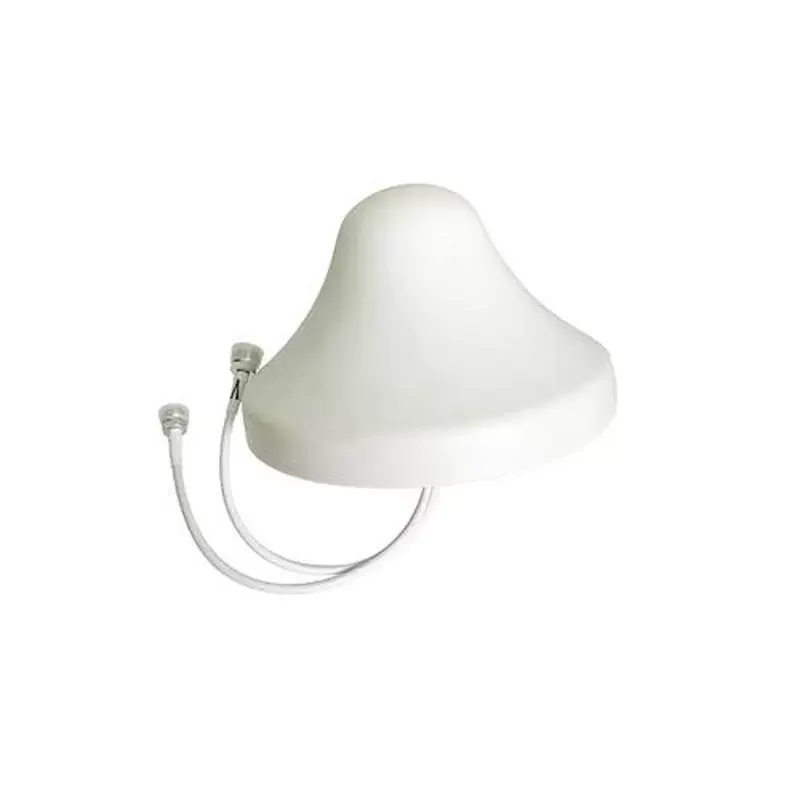

Dual-Polarized Ceiling Mount Antenna |
||||||||||||
Electrical Performance |
|||||||||||||
Operating Frequency Band (MHz) |
880-960 |
1710-1850 |
1885-1915 |
2010-2025 |
2300-2400 |
2400-2483.5 |
2515-2675 |
||||||
Polarization Mode |
V |
V |
H/V |
H/V |
H/V |
H/V |
H/V |
||||||
Gain (dBi) |
≥1.5 |
≥3.0 |
≥2.5(H)
≥3.5(V)
|
≥2.5(H)
≥3.5(V)
|
≥2.5(H)
≥3.5(V)
|
≥2.5(H)
≥3.5(V)
|
≥2.5(H)
≥4.0(V)
|
||||||
Radiation Pattern Circularity (dB) |
±1.2 |
±1.5 |
±2.0（V/H） |
±2.0（V/H） |
±2.0（V/H） |
±2.0（V/H） |
±2.0（V/H） |
||||||
Vertical Half-Power Beamwidth (°) |
85 |
55 |
55 |
55 |
55 |
55 |
45 |
||||||
Cross-Polarization Ratio (dB) |
/ |
/ |
≥10 |
≥10 |
≥10 |
≥10 |
≥10 |
||||||
Polarization Isolation (dB) |
≥20 |
≥20 |
≥25 |
≥25 |
≥25 |
≥25 |
≥25 |
||||||
Voltage Standing Wave Ratio (VSWR) |
≤1.5 |
||||||||||||
Third-Order Intermodulation (dBm@2*2W) |
≤-85 |
≤-85 |
/ |
||||||||||
Average Power Tolerance (W) |
≥50 |
||||||||||||
Mechanical Performance |
|||||||||||||
Antenna Enclosure Material |
ABS/PS |
||||||||||||
Connector Type |
N-type Female |
||||||||||||
Connector Lead Length (mm) |
≥250 |
||||||||||||
Antenna Dimension (mm) |
Ф180*121 |
||||||||||||
Packaging Dimension (mm) |
170*170*174 |
||||||||||||
Antenna Weight (kg) |
0.3 |
||||||||||||
Operating Temperature (℃) |
-30~+45 |
||||||||||||
Storage Temperature (℃) |
-40~+55 |
||||||||||||
