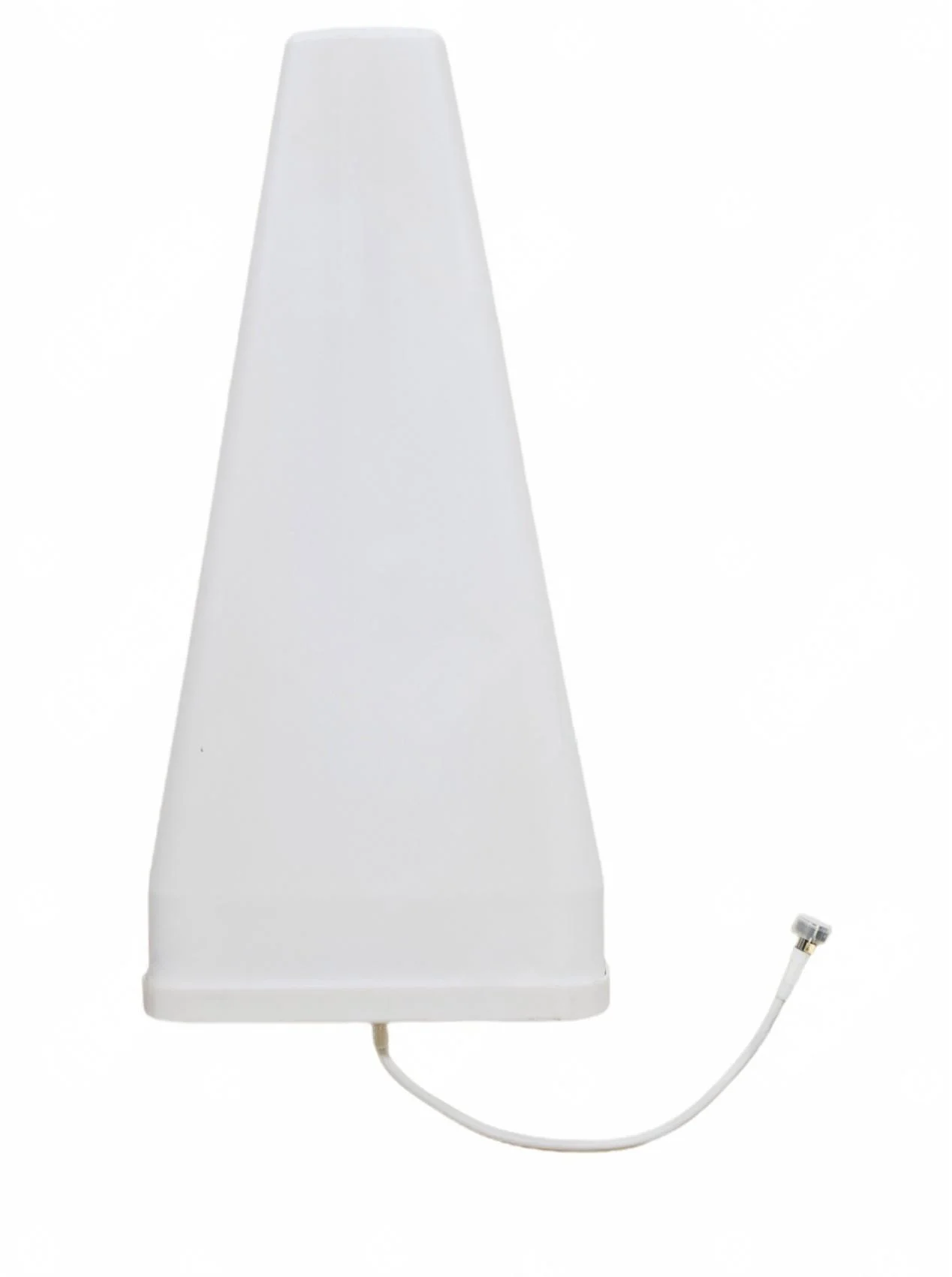

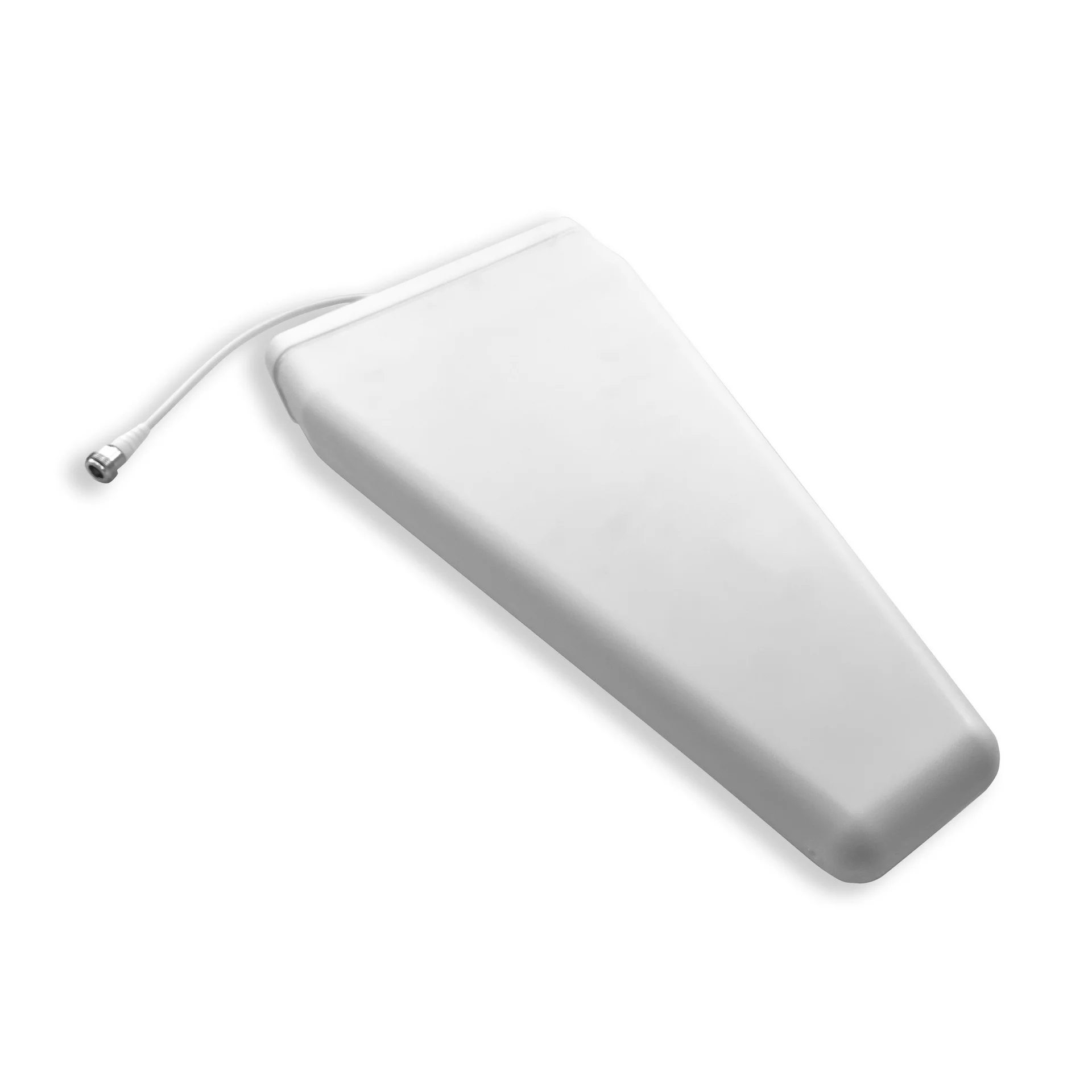

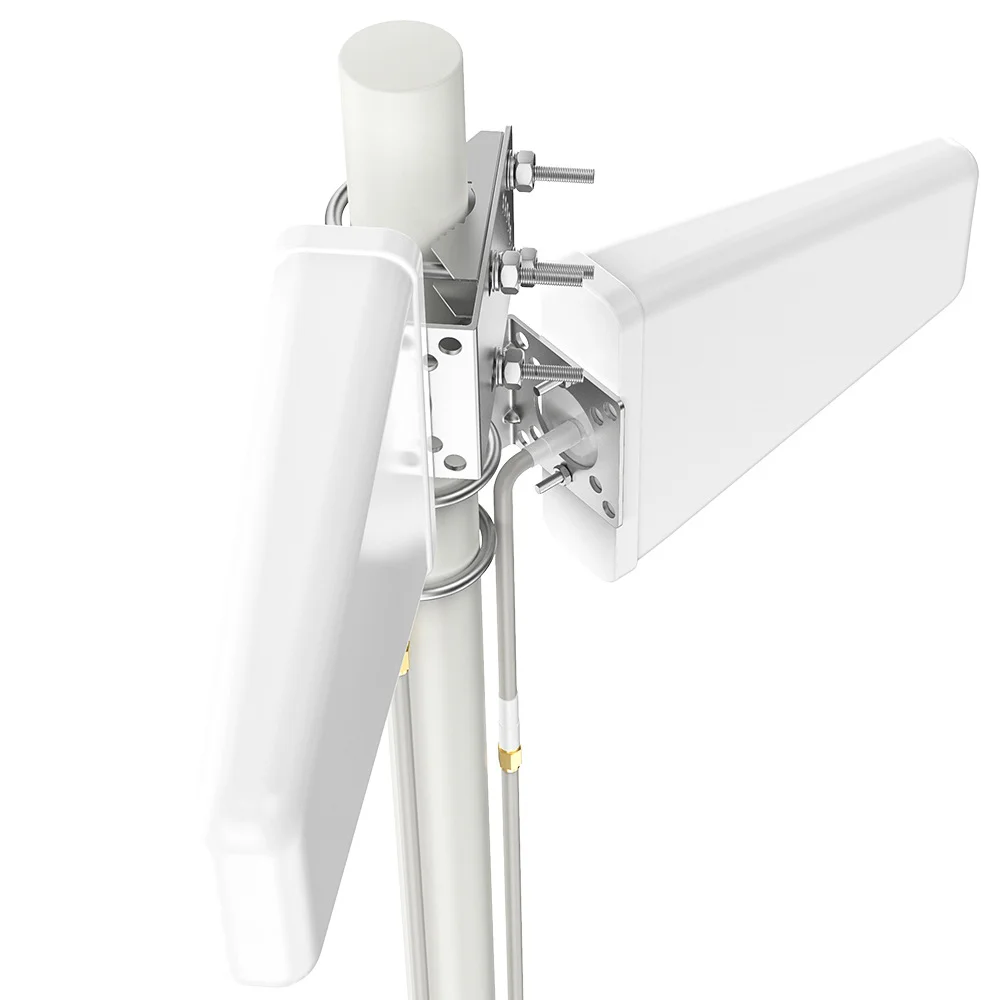

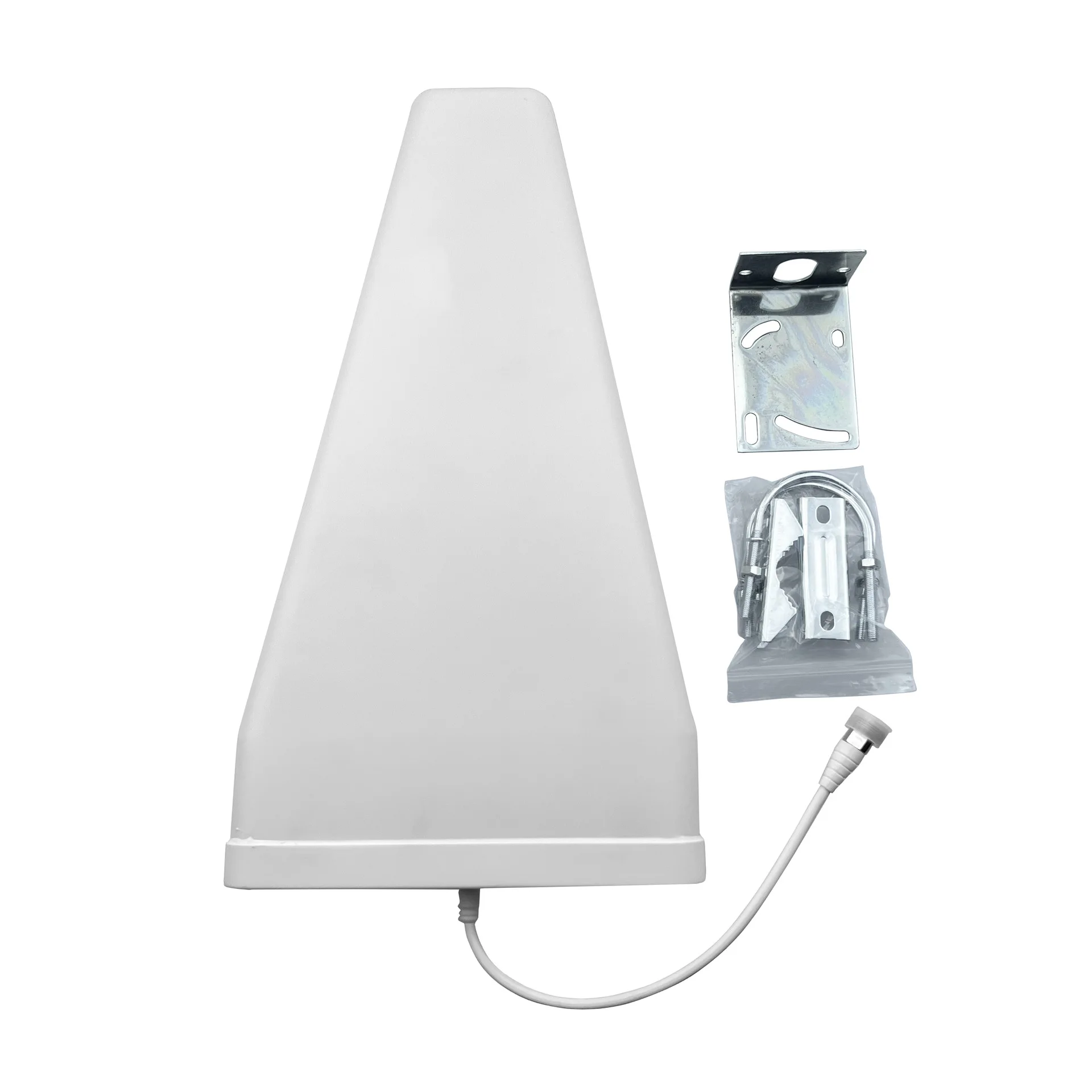

YW-1303B High Gain Directional Log Periodic Antenna for Base Station GSM 3G 4G LTE UHF Wireless Communication Systems
YW-1303B High Gain Directional Log Periodic Antenna for Base Station GSM 3G 4G LTE UHF Wireless Communication Systems
YW-1303B High Gain Directional Log Periodic Antenna for Base Station GSM 3G 4G LTE UHF Wireless Communication Systems
YW-1303B High Gain Directional Log Periodic Antenna for Base Station GSM 3G 4G LTE UHF Wireless Communication Systems
YW-1303B High Gain Directional Log Periodic Antenna for Base Station GSM 3G 4G LTE UHF Wireless Communication Systems
YW-1303B High Gain Directional Log Periodic Antenna for Base Station GSM 3G 4G LTE UHF Wireless Communication Systems
YW-1303B High Gain Directional Log Periodic Antenna for Base Station GSM 3G 4G LTE UHF Wireless Communication Systems
YW-1303B High Gain Directional Log Periodic Antenna for Base Station GSM 3G 4G LTE UHF Wireless Communication Systems
YW-1303B High Gain Directional Log Periodic Antenna for Base Station GSM 3G 4G LTE UHF Wireless Communication Systems
YW-1303B High Gain Directional Log Periodic Antenna for Base Station GSM 3G 4G LTE UHF Wireless Communication Systems
YW-1303B High Gain Directional Log Periodic Antenna for Base Station GSM 3G 4G LTE UHF Wireless Communication Systems
YW-1303B High Gain Directional Log Periodic Antenna for Base Station GSM 3G 4G LTE UHF Wireless Communication Systems

YW-1303B High Gain Directional Log Periodic Antenna for Base Station GSM 3G 4G LTE UHF Wireless Communication Systems

Get a Quote Contact Us
  • Description
product yw 1303b high gain directional log periodic antenna for base station gsm 3g 4g lte uhf wireless communication systems-1

[email protected]
Inquiry
Product Description
product yw 1303b high gain directional log periodic antenna for base station gsm 3g 4g lte uhf wireless communication systems-2
product yw 1303b high gain directional log periodic antenna for base station gsm 3g 4g lte uhf wireless communication systems-3
Product Detail
Electrical Performance
Parameter 1
Parameter 2
Parameter 3
Operating Frequency Band (MHz)
806-960
1710-2500
3300-3700
Polarization Mode
V
V
V
Gain (dBi)
≥8.0
≥8.5
≥8.5
Horizontal Plane Half - Power Beamwidth (°)
90±15
75±20
75±20
Vertical Plane Half - Power Beamwidth (°)
75
60
60
Front - to - Back Ratio (dB)
≥12
≥15
≥12
Voltage Standing Wave Ratio
≤1.5
≤1.5
≤1.5
Third - Order Intermodulation (dBm)
≤-107 (Input power 2×33dBm)
≤-107 (Input power 2×33dBm)
≤-107 (Input power 2×33dBm)
Average Power Tolerance (W)
50
50
50
Third - Order Intermodulation (dBm)
≤-107 (Input power 2×33dBm)
≤-107 (Input power 2×33dBm)
≤-107 (Input power 2×33dBm)
Average Power Tolerance (W)
50
50
50
Mechanical Performance
Mechanical Performance
Specification


Antenna Housing Material
ABS/PS
Connector Type
N - type Female
Connector Lead Length (mm)
≥200
Antenna Size (mm)
472*212*64
Packaging Size (mm)
526*220*72
Antenna Weight (kg)
0.5
Operating Temperature (℃)
-30~+45
Storage Temperature (℃)
-40~+55
