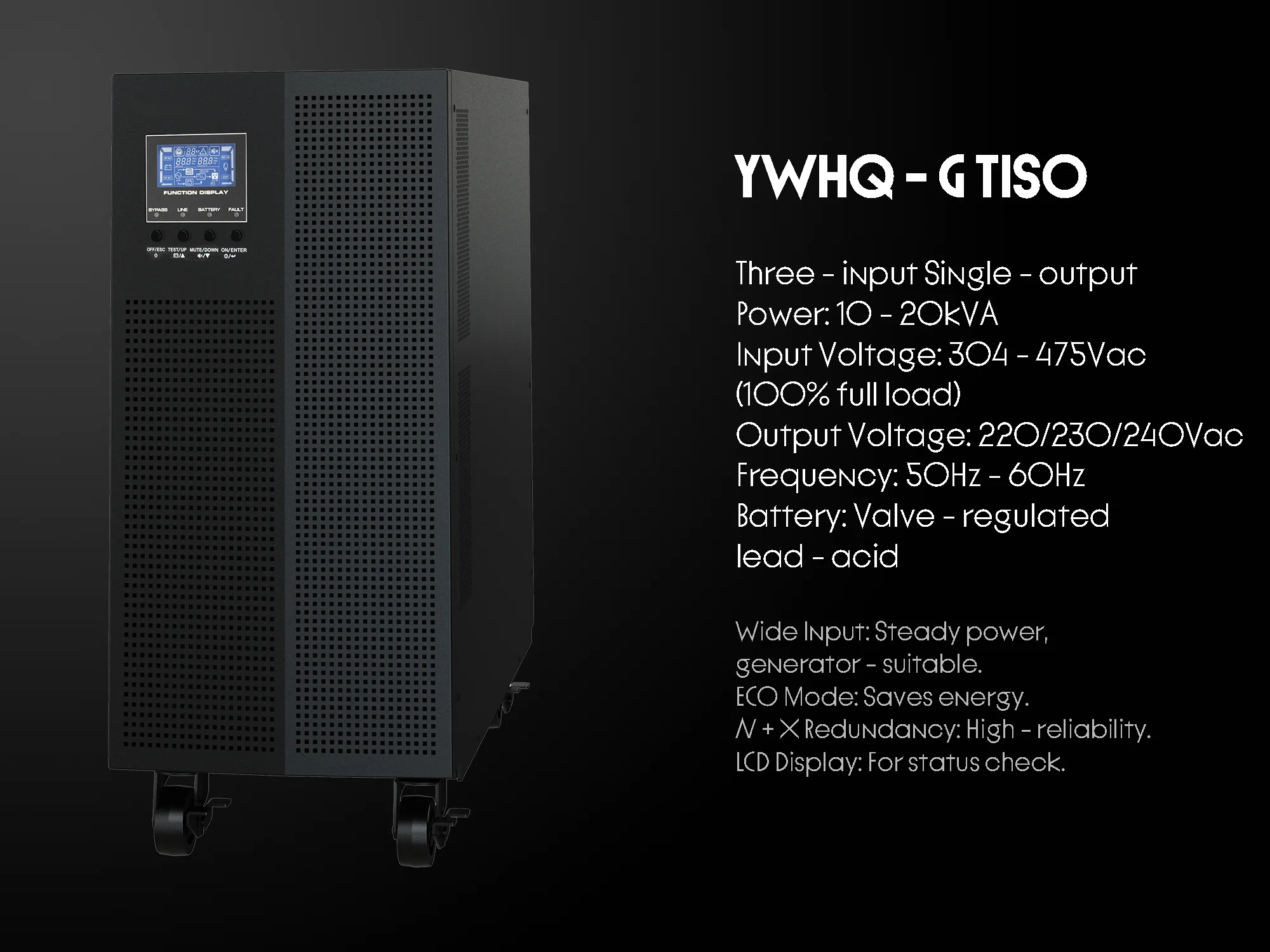

YW-HQ-G Series Online UPS with High-Frequency Three-Input Single-Origin for Communication Antennas

YW-HQ-G Series Online UPS with High-Frequency Three-Input Single-Origin for Communication Antennas

Description

[email protected]

Description

Product Description

Yoongwin Situation Awareness Technology Co., Ltd., founded in 2007 in Nanjing Economic and Technological Development Zone with a registered capital of RMB 60.06 million, controls eight medium - sized tech enterprises. Its main business spans thin - film circuits, antenna & feeder products, etc., and it's involved in industrial Internet security and electromagnetic space protection.
As a member of multiple associations, it holds dual - software and ISO2700 info security certifications. With over 100 patents, it was recognized as a Nanjing Gazelle Enterprise from 2020 - 2022, indicating continuous growth.

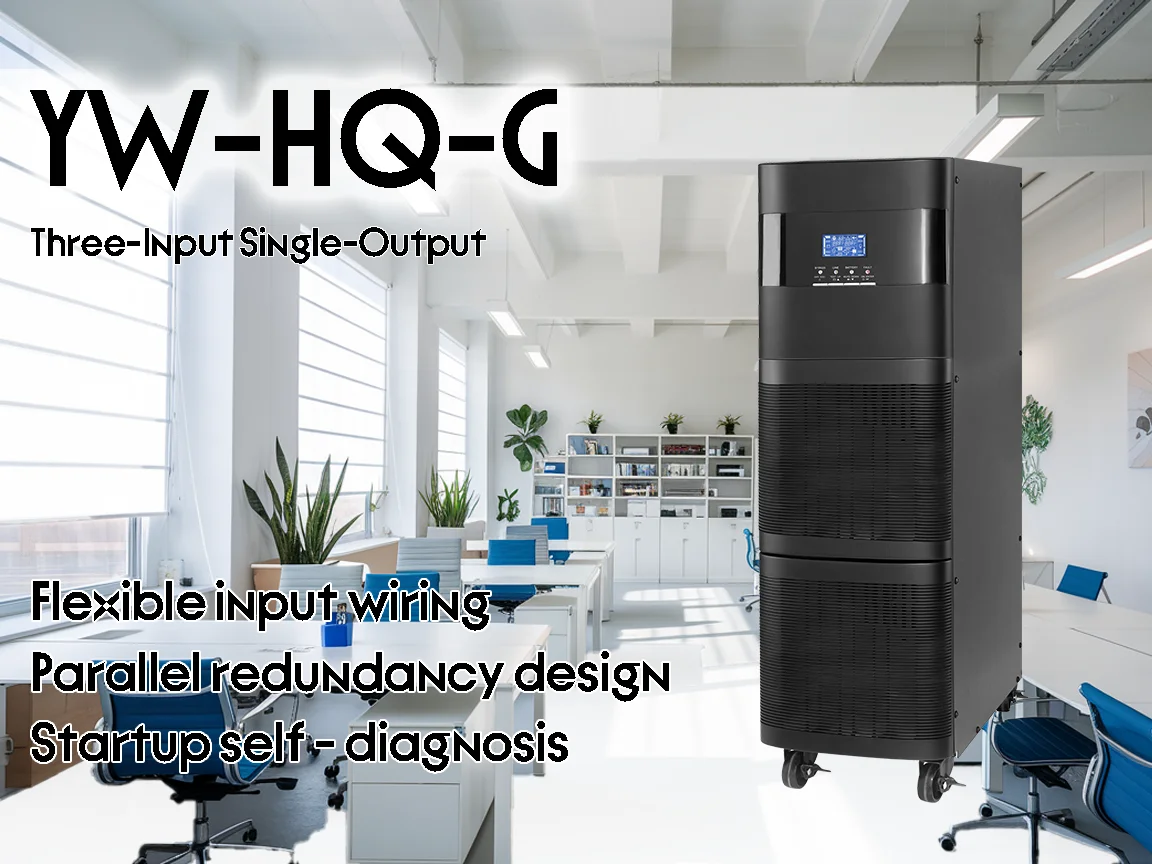

YW-HQ-G Series Online UPS with High-Frequency Three-Input Single-Origin for Communication Antennas factory

Product Detail

Model	YW-HQ3110G(L)	YW-HHQ3115G(L)	YW-HHQ3120G(L)
Capacity	10kVA	15kVA	20kVA
Input
Rated Voltage	380Vac (Three - phase + N)
Voltage Range	190 Vac~520 Vac @50% load; 305 Vac~478Vac @100% load
Frequency Range	46Hz - 54 Hz @50Hz system; 56Hz - 64 Hz @60Hz system
Power Factor	≥0.99@100% load
Output
Output Voltage	208/220/230/240Vac
Voltage Accuracy	± 1%
Frequency Range (Synchronous Range)	46Hz - 54 Hz or 56Hz - 64 Hz
Frequency Range (Battery Mode)	50 Hz ± 0.1Hz or 60 Hz ± 0.1Hz
Power Factor	Standard 0.8 (Optional 0.9)
Current Peak Ratio	3:1
Overload Capacity (Utility Mode)	105% - 110%: 10 minutes; 110% - 130%: 1 minute; >130%: 1 second
Overload Capacity (Battery Mode)	105% - 110%: 30 seconds; 110% - 130%: 10 seconds; >130%: 1 second
Total Harmonic Distortion (THD)	≤2% @ 100% linear load; ≤5% @ 100% non - linear load
Transfer Time
Utility → Battery	0 ms
Inverter → Bypass	0 ms
Efficiency
Inverter Mode	>93%	>92%
Battery (Standard Unit)
Number of Batteries	Preset 16 sections (Adjustable from 16 - 20 sections)	Preset 2 x 16 sections (Adjustable from 16 - 20 sections)
Battery Charging Time	9 hours to reach 90% capacity
Charging Current	1A	2A
Charging Voltage	218.4Vdc ± 1%
Physical Characteristics
Dimensions Depth x Width x Height (mm)	592 x 250 x 576	815 x 250 x 826
Net Weight (kg)	83	164
Environmental Conditions
Operating Environment	Relative humidity 0 - 95% and temperature 0 - 40°C (non - condensing)
Noise Level	< 60 dB(A) @ 1m
Management
Intelligent RS - 232 or USB	Support Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and MAC
Optional SNMP	Support power management by SNMP manager and web browser
