YW-HQ-GR Series Three-Input Single-Output High-Frequency Online UPS Rack-Mounted for Communication Antennas

YW-HQ-GR Series Three-Input Single-Output High-Frequency Online UPS Rack-Mounted for Communication Antennas

Description

[email protected]

Description

Product Description

Yoongwin Situation Awareness Technology Co., Ltd., founded in 2007 in Nanjing Economic and Technological Development Zone with a registered capital of RMB 60.06 million, controls eight medium - sized tech enterprises. Its main business spans thin - film circuits, antenna & feeder products, etc., and it's involved in industrial Internet security and electromagnetic space protection.
As a member of multiple associations, it holds dual - software and ISO2700 info security certifications. With over 100 patents, it was recognized as a Nanjing Gazelle Enterprise from 2020 - 2022, indicating continuous growth.

YW-HQ-GR Series Three-Input Single-Output High-Frequency Online UPS Rack-Mounted for Communication Antennas factory

Product Detail

Model	YWHQ3110GR(L)	YWHQ3115GR(L)	YWHQ3120GR(L)
Capacity	10kVA	15kVA	20kVA
Input
Rated Voltage	380Vac (Three - phase + N)
Voltage Range	190Vac - 520Vac @50% load; 305Vac - 478Vac @100% load
Frequency Range	46Hz - 54Hz @50Hz system; 56Hz - 64Hz @60Hz system
Power Factor	≥0.99@100% load
Output
Output Voltage	208/220/230/240Vac
Voltage Accuracy	±1%
Frequency Range (Synchronous Range)	46Hz - 54Hz or 56Hz - 64Hz
Frequency Range (Battery Mode)	50Hz ± 0.1Hz or 60Hz ± 0.1Hz
Power Factor	Standard 0.8 (Optional 0.9)
Current Peak Ratio	3:1
Total Harmonic Distortion (THD)	≤2% @ 100% linear load; ≤5% @ 100% non - linear load
Overload Capacity
Utility Mode	105% - 110%: 10 minutes; 110% - 130%: 1 minute; >130%: 1 second
Battery Mode	105% - 110%: 30 seconds; 110% - 130%: 10 seconds; >130%: 1 second
Transfer Time
Utility → Battery	0 ms
Inverter → Bypass	0 ms
Efficiency
Inverter Mode	>90%
Battery
Battery Model	12V / 7Ah
Battery Quantity	Preset 16 sections (Adjustable from 16 - 20 sections)	Preset 2×16 sections (Adjustable from 16 - 20 sections)
Charging Current	1A ± 10%	2A ± 10%
Charging Voltage	218.4Vdc ± 1%
Physical Characteristics

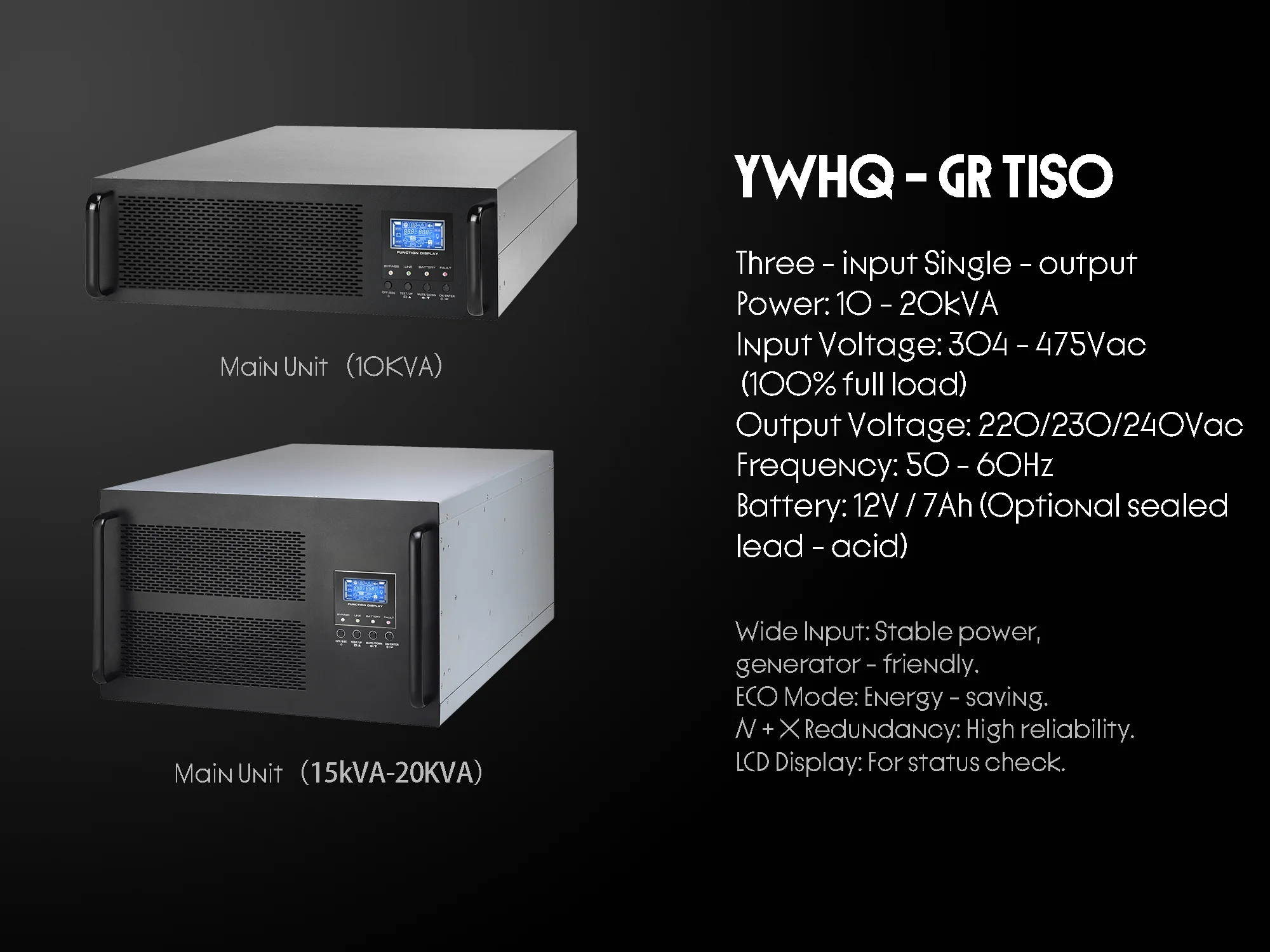

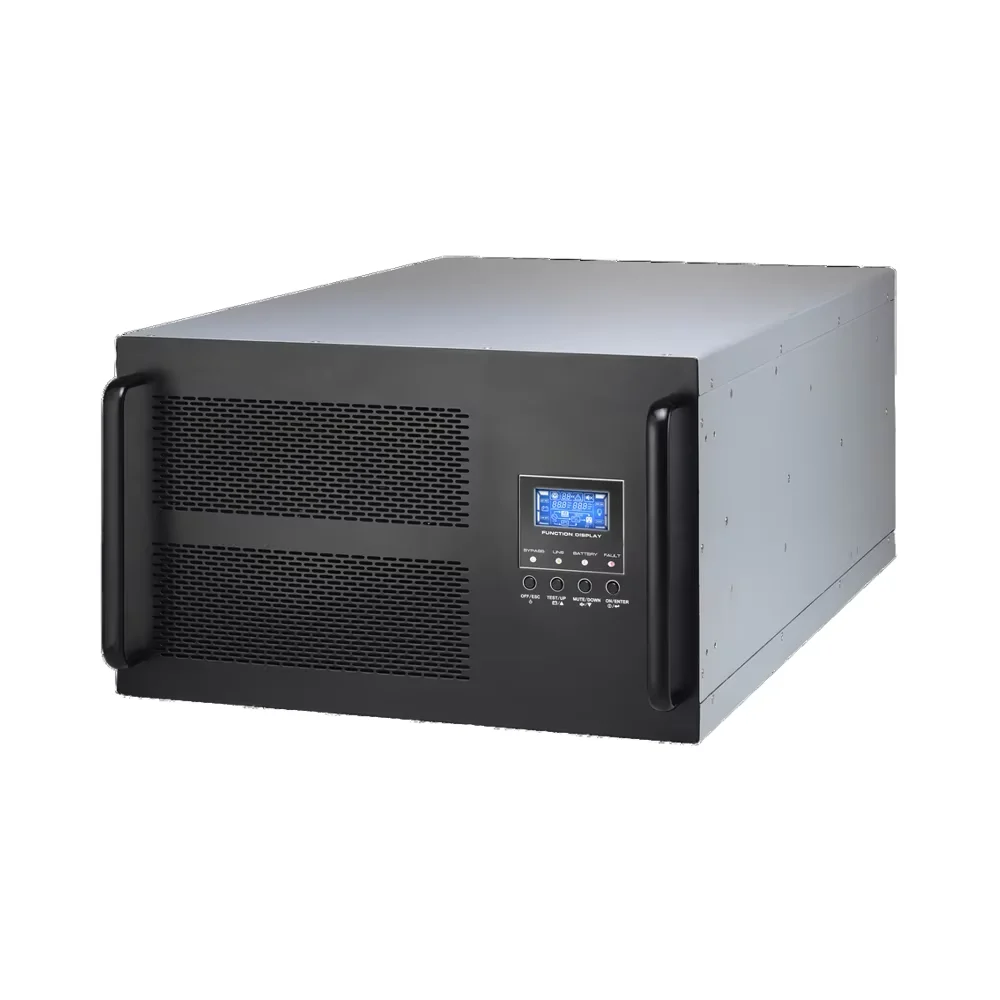

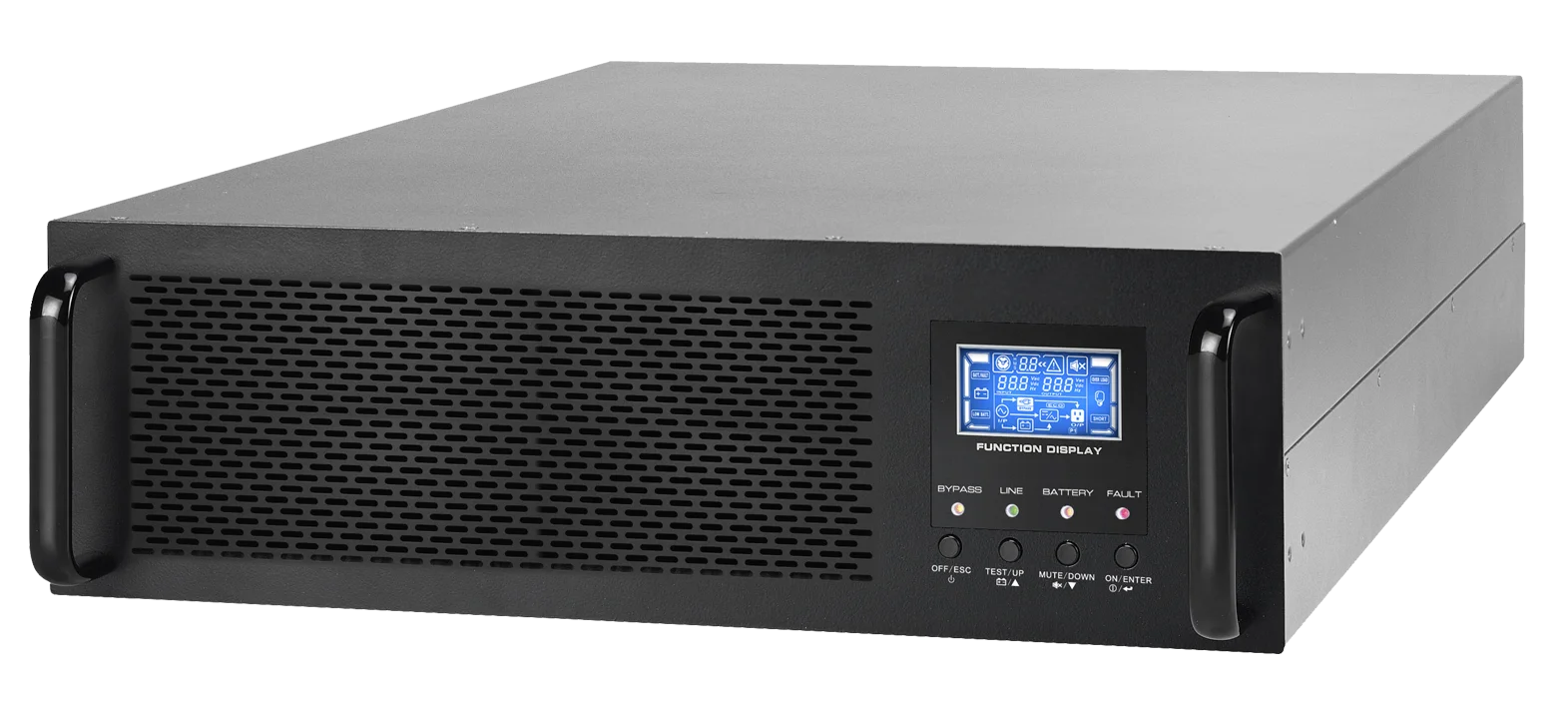

Dimensions Depth x Width x Height (mm)	UPS main unit: 668 x 482.6 x 133(3U)	UPS main unit: 668 x 482.6 x 266(6U)
Dimensions Depth x Width x Height (mm)		Battery cabinet: 580 x 482.6 x 133(3U)	Battery cabinet: 580 x 482.6 x 133(3U) x 2 pcs
Net Weight (kg)	UPS main unit: 22; Battery cabinet: 63	UPS main unit: 45; Battery cabinet: 63 x 2 pcs
Environmental Conditions
Operating Environment	Relative humidity 0 - 95% and temperature 0 - 40°C (non - condensing)
Noise Level	< 60dB(A) @ 1m	< 65dB(A) @ 1m
Management
Intelligent RS - 232 or USB	Support Windows® 2000/2003/XP/Vista/2008/7/8, Linux and MAC
Optional SNMP	Support power management by SNMP manager and web browser
