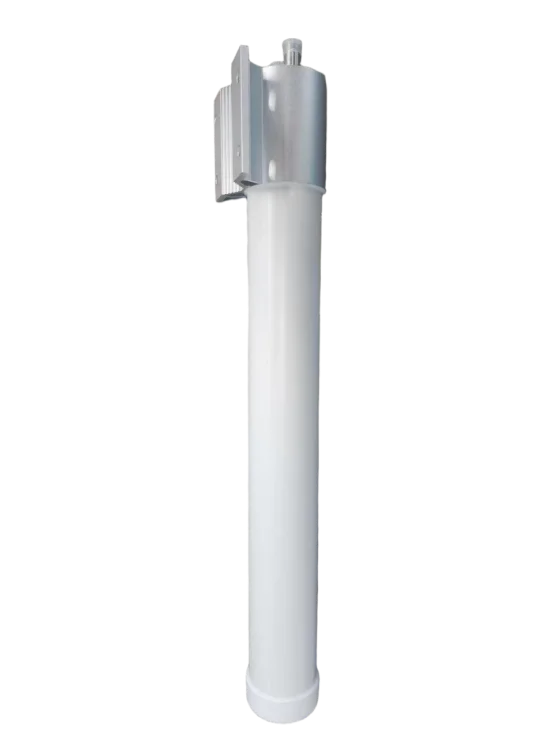

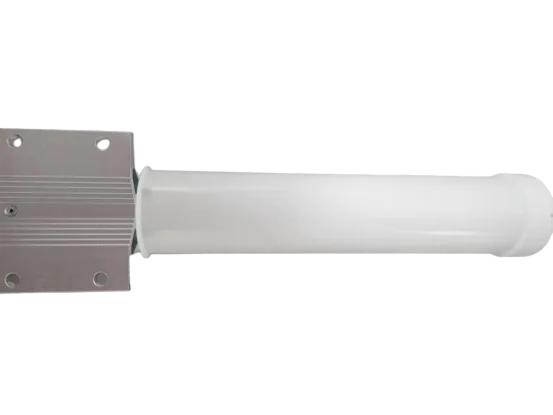

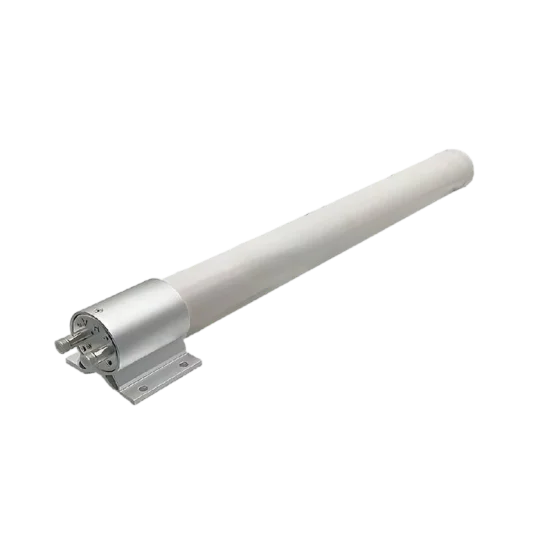

YW-QB24VH13A 2400～2500MHz 13dBi Vertical/Horizontal Dual-polarization Antenna |
|||
Technical Specifications |
QB24VH13A |
||
Frequency Range (MHz) |
2400～2500 |
5150～5850 |
|
Bandwidth (MHz) |
100 |
700 |
|
Polarization |
Vertical/Horizontal |
||
Gain (dBi) |
13 |
10 |
|
Input Impedance (Ω) |
50 |
11 |
|
Voltage Standing Wave Ratio (VSWR) |
≤1.8 |
||
Maximum Power (W) |
50 |
||

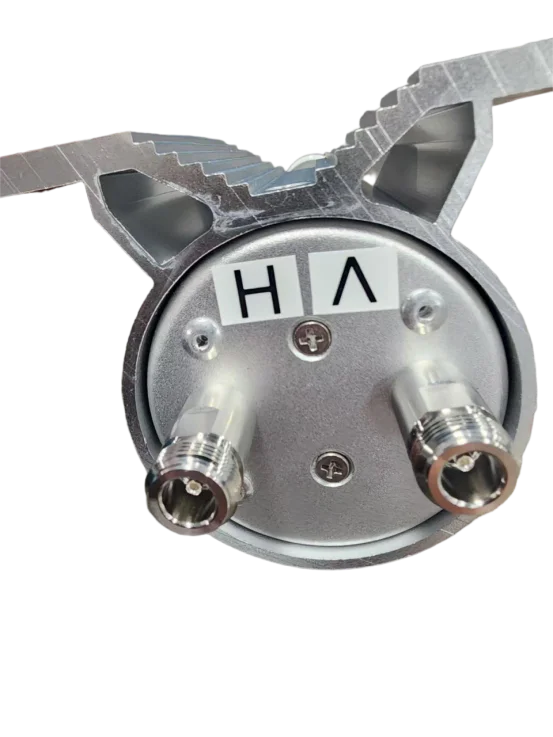

Connector Type |
2×N Female |
||
Antenna Dimensions (mm) |
Φ75×1150 |
||
Antenna Weight (kg) |
2.5 |
||
Cover Material |
PVC (White) |
||
Ultimate Wind Speed (m/s) |
60 |
||
Mast Diameter (mm) |
50~90 |
||
