Description

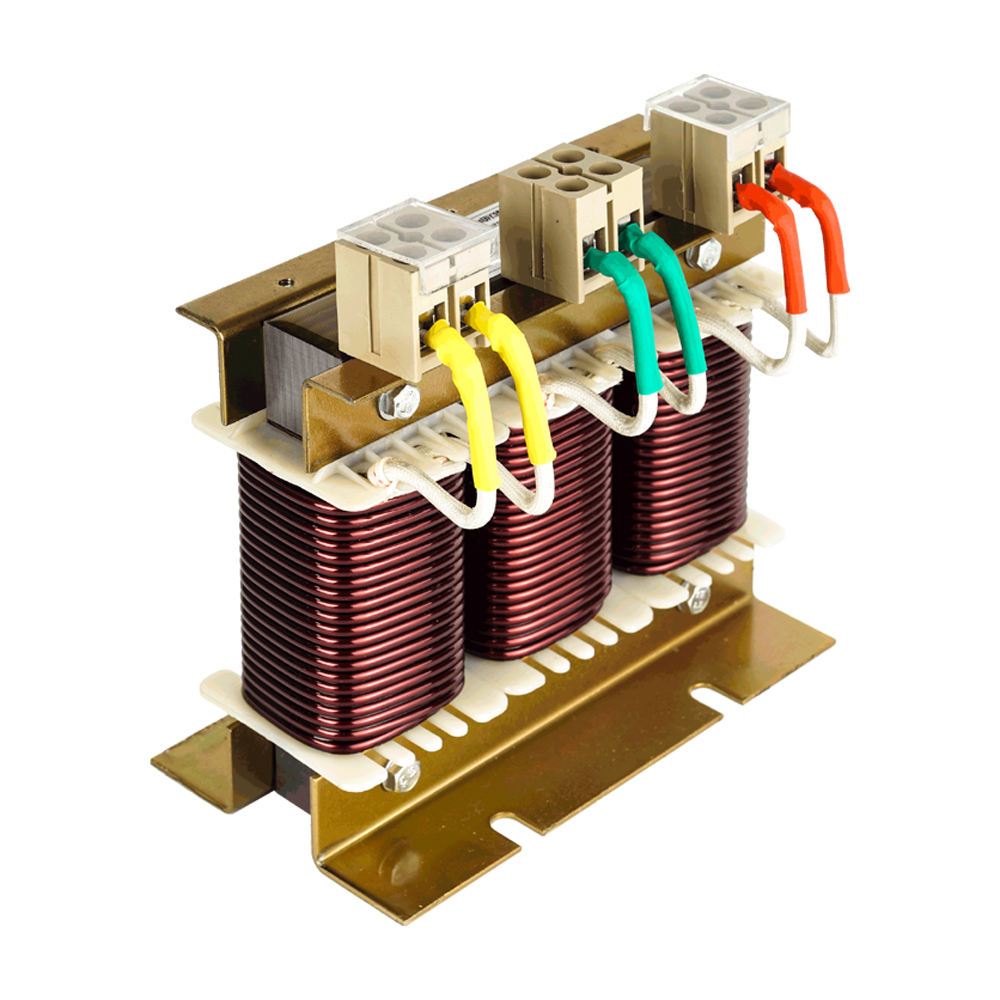

Critical Defense Component for Power System Stability — Yoongwin Three-Phase Output Reactors
Between VFDs and motors, voltage spikes and harmonic pollution silently degrade equipment lifespan. Our industrial-grade three-phase output reactors eliminate dV/dt transients and suppress high-frequency harmonics, reducing motor winding insulation stress by 40%+ and extending precision equipment service life by 30% – delivering reliability for smart manufacturing.

Place of Origin:	China
Brand Name:	YOONGWIN
Model Number:	YW-YB-OCL
Certification:	CE
Minimum Order Quantity:	10
Price:	$20.70-1, 363.20
Delivery Time:	20 days
Payment Terms:	T/T, Paypal

Rated voltage	380VAC	Rated current	5A~5600A
Dielectric strength	3500VAC/50Hz/10mA/10sNo flashover breakdown	Fundamental frequency	50Hz
Dielectric strength	3500VAC/50Hz/10mA/10sNo flashover breakdown	Fundamental frequency	50Hz
Temperature rise	65K	Overload capacity	1.35 times the rated current for 1 minute
Insulation class	F/H	Altitude	<1000 meters
Operating temperature	-30~+45℃	Environmental rating	IP00

Reactor type	Adapted power(KW)	Rated current (A)	Voltage drop (V)	Inductance (mH)	Weight(Kg)	Overall dimensions(LW H) (mm)	Installationdimensions (A*B)	Mounting hole(mm)
OCL-5-1.4	1.5	5	2.2	1.4	3.2	150100155	80*60	6*12
OCL-5-1.4	1.5	5	2.2	1.4	3.2	150100155	80*60	6*12
OCL-10-0.7	2.2	10	2.2	0.7	3.3	150100155	80*60	6*12
OCL-15-0.467	5.5	15	2.2	0.467	3.4	150100155	80*60	6*12
OCL-15-0.467	5.5	15	2.2	0.467	3.4	150100155	80*60	6*12
OCL-20-0.35	7.5	20	2.2	0.35	3.5	150100155	80*60	6*12
OCL-30-0.233	11	30	2.2	0.233	3.8	150135135	80*70	6*12
OCL-40-0.175	15	40	2.2	0.175	5.5	185120155	150(95)*55	8*16
OCL-50-0.14	18.5	50	2.2	0.14	6	185120155	150(95)*55	8*16
OCL-60-0.117	22	60	2.2	0.117	6.8	185135155	150(95)*75	8*16
OCL-80-0.0875	30	80	2.2	0.0875	7.8	185145155	150(95)*75	8*16
OCL-110-0.0637	37	110	2.2	0.0584	8.4	185145155	150(95)*75	8*16
OCL-125-0.056	45	125	2.2	0.056	8.8	185145155	150(95)*75	8*16
OCL-150-0.0467	55	150	2.2	0.0467	14	210150210	150(110)*95	8*16
OCL-200-0.035	75	200	2.2	0.035	14.6	210150210	150(110)*95	8*16
OCL-250-0.028	90	250	2.2	0.028	23.5	250160240	170(130)*110	10*20
OCL-275-0.0255	110	275	2.2	0.0255	24.5	250160240	170(130)*110	10*20
OCL-330-0.021	132	330	2.2	0.021	25	250165240	170(130)*110	10*20
OCL-450-0.0175	160	400	2.2	0.0175	27	250170290	170(130)*110	10*20
OCL-500-0.014	200	500	2.2	0.014	28	250180290	170(130)*110	10*20
OCL-540-0.013	220	540	2.2	0.013	29	260180290	170(130)110	10*20
OCL-625-0.0112	250	625	2.2	0.0112	35	300180300	240(200)*115	10*20
OCL-700-0.01	280	700	2.2	0.01	37	300180300	240(200)*115	10*20
OCL-800-0.0088	315	800	2.2	0.0088	43	330200310	240(180)*130	10*20
OCL-900-0.0077	355	900	2.2	0.0077	49	330200310	240(180)*130	10*20
OCL-1000-0.007	380	1000	2.2	0.007	51	330200310	240(180)*130	10*20
OCL-1100-0.0063	400	1100	2.2	0.0063	55	360210330	300*140	12*25
OCL-1180-0.0059	450	1180	2.2	0.0059	58	360210330	300*140	12*25
OCL - 1290 -0.0056	500	1250	2.2	0.0056	61	360210330	300*140	12*25
OCL-1450-0.005	550	1400	2.2	0.005	65	360210330	300*140	12*25
OCL-1500 -0.0046	550	1500	2.2	0.0046	68	360210330	300*140	12*25
OCL- 1600-0.0044	630/650	1600	2.2	0.0044	73	360230330	300*160	12*25

Fan & pump VFD systems \ CNC machine spindle drives \ Crane control cabinets
PV inverter outputs \ Automated production line motor groups \ Marine propulsion systems

Rigorous QC: 100% tested for inter-turn withstand voltage (3.5Un, 5s) and inductance matching (±2% tolerance)

Smart Selection: Online configurator tool (5kW~800kW power range)

Global Certifications: UL / CE / RoHS / REACH, compliant with IEC 60289

Rapid Delivery: Standard units ship in 48hrs, expedited orders supported
