Electrical Specifications | ||||
Frequency range (MHz) |

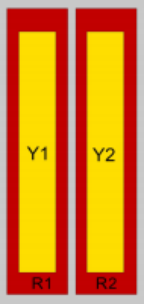

R1/R2-698~960×2 |
|||
698~806 |
790~862 |
824~894 |
880~960 |
|
Polarization |
±45° |
|||
Gain at mid tilt (dBi) |
16 |
16.6 |
16.8 |
17 |
Gain over all tilts (dBi) |
15.8±0.5 |
16.4±0.5 |
16.6±0.5 |
16.8±0.5 |
Horizontal 3dB beamwidth (°) |
69±7 |
67±5 |
65±5 |
65±5 |
Vertical 3dB beamwidth (°) |
9.0±0.5 |
8.1±0.4 |
7.8±0.3 |
7.4±0.4 |
Front to back ratio (dB) Total power, ±30° |
>21 |
>22 |
>24 |
>24 |
Cross polar ratio (dB) (at Boresight) |
>21 |
>22 |
>23 |
>22 |
Electrical downtilt (°) |
2~12 |
|||
|
Sidelobe suppression (dB) (First sidelobe above main beam) |
>16 |
>16 |
>16 |
>16 |
Efficiency average(%) |
87 |
85 |
84 |
83 |
VSWR |
<1.5 |
|||
Isolation: intra-system (dB) |
≥25 |
|||
Isolation: inter-system (dB) |
≥25 |
|||
Intermodulation IM3 (2×43dBm carrier) |
≤-153 dBc |
|||
Impedance (Ω) |
50 |
|||
Max. power per input (W) @50°C |
400 |
|||
Lightning protection |
Dc Ground |
|||
Electrical Specifications | |||||
Frequency Range (MHz) |
Y1/Y2-1427~2690×2 |
||||
1427~1518 |
1710~1920 |
1920~2200 |
2200~2490 |
2490~2690 |
|
Polarization |
±45° |
||||
Gain at mid tilt (dBi) |
16.9 |
18.7 |
19.0 |
19.4 |
19.7 |
Gain over all tilts (dBi) |
16.7±0.5 |
18.5±0.5 |
18.8±0.5 |
19.2±0.5 |
19.5±0.6 |
Horizontal 3dB beamwidth (°) |
69±5 |
65±6 |
62±5 |
60±5 |
59±6 |
Vertical 3dB beamwidth (°) |
7.5±0.6 |
6.1±0.6 |
5.4±0.5 |
4.8±0.5 |
4.3±0.3 |
Front to back ratio (dB) Total power, ±30° |
>27 |
>32 |
>32 |
>30 |
>30 |
Cross polar ratio (dB) (at Boresight) |
>20 |
>20 |
>20 |
>20 |
>22 |
Electrical downtilt (°) |
2~12 |
||||
|
Sidelobe suppression (dB) (First sidelobe above main beam) |
>16 |
>16 |
>16 |
>16 |
>16 |
89 |
88 |
86 |
85 |
83 |
|
Efficiency average(%) | |||||
VSWR |
<1.5 |
||||
Isolation: intra-system (dB) |
≥25 |
≥25 |
|||
Isolation: inter-system (dB) |
≥27 |
≥28 |
|||
Intermodulation IM3 (2×43dBm carrier) |
≤-153 dBc |
||||
Impedance (Ω) |
50 |
||||
Max. power per input (W) @50°C |
200 |
||||
Lightning protection |

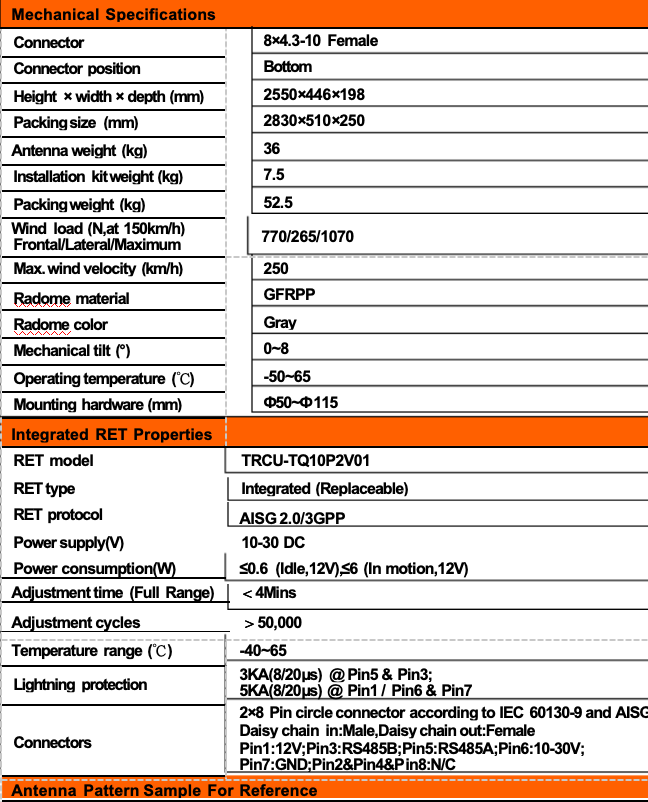

Dc Ground |
||||
