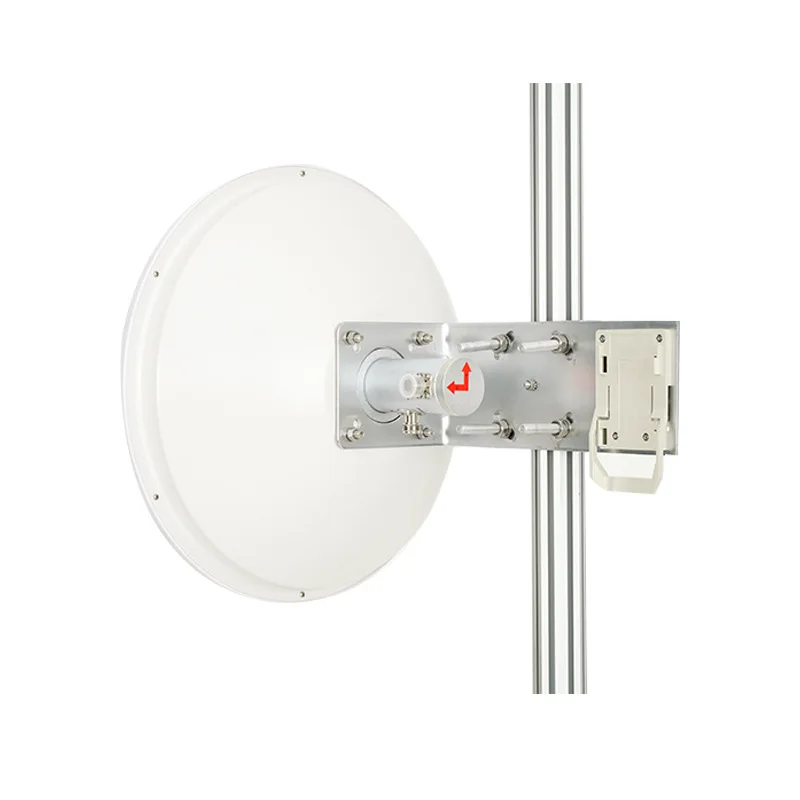

Electrical Specifications |
||
Frequency (GHz) |
10.125~11.7 |
|
Polarization |
Single(V or H) |
|
Gain , Low(dBi) |
40.2 |
|
Gain, Mid(dBi) |
40.7 |
|
Gain, Top(dBi) |
41 |
|
Beam Width |
1.5° |
|
Cross-pol. Discrimination_XPD (dB) |
30 |
|
F/B Ratio (dB) |
67 |
|
VSWR / RL (dB) |
1.3/17.7 |
|
Regulatory Compliance |
ETSI EN 302217 Range 1 Class 3 |
|
Mechanical Specifications |
||
Diameter (m) |
1.2 |
|
Antenna Color |
RAL7035 |
|
Radome Options |
Fabric |
|
Interface Type |
Φ19.6 (mm) |
|
Side Struts, Included |
1 |
|
Azimuth Adjustment |
Coarse : 360 ° Fine : ±10 ° |
|
Elevation Adjustment |
Fine : ±10 ° |
|
Diameter of Mounting Pole (mm) |
Φ114 |
|
Wind Velocity Survival Rating (km/h) |
252 |
|
Wind Velocity Operational (km/h) |
200 |
|
Ice-load (mm) |
25.4 |
|
Operational Temperature (℃) |
-45~+60 |
|
Net Weight (kg) |
37.3 ±1.5 |
|
Gross Weight (kg) |
65.2 ±2.0 |
|

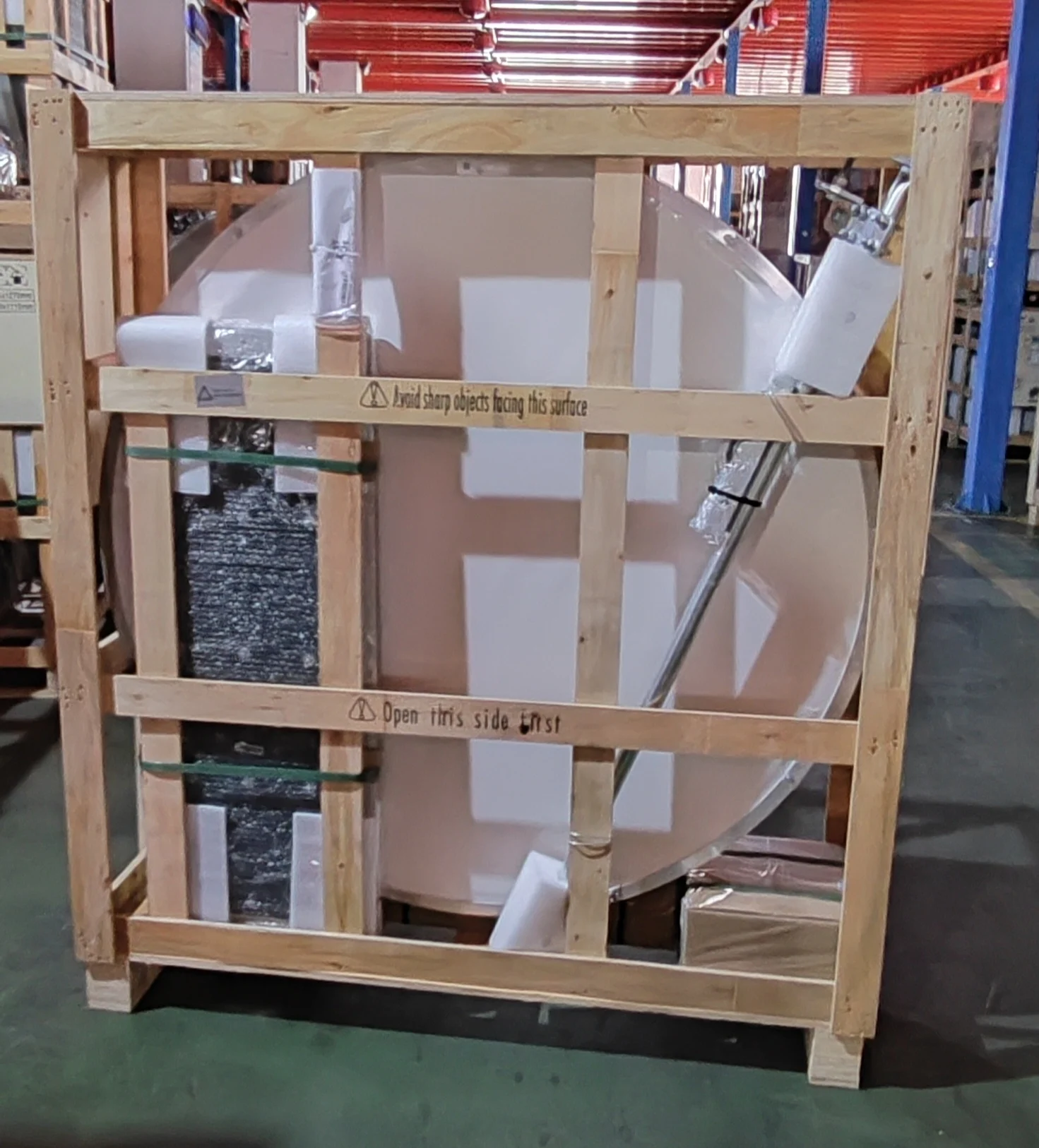

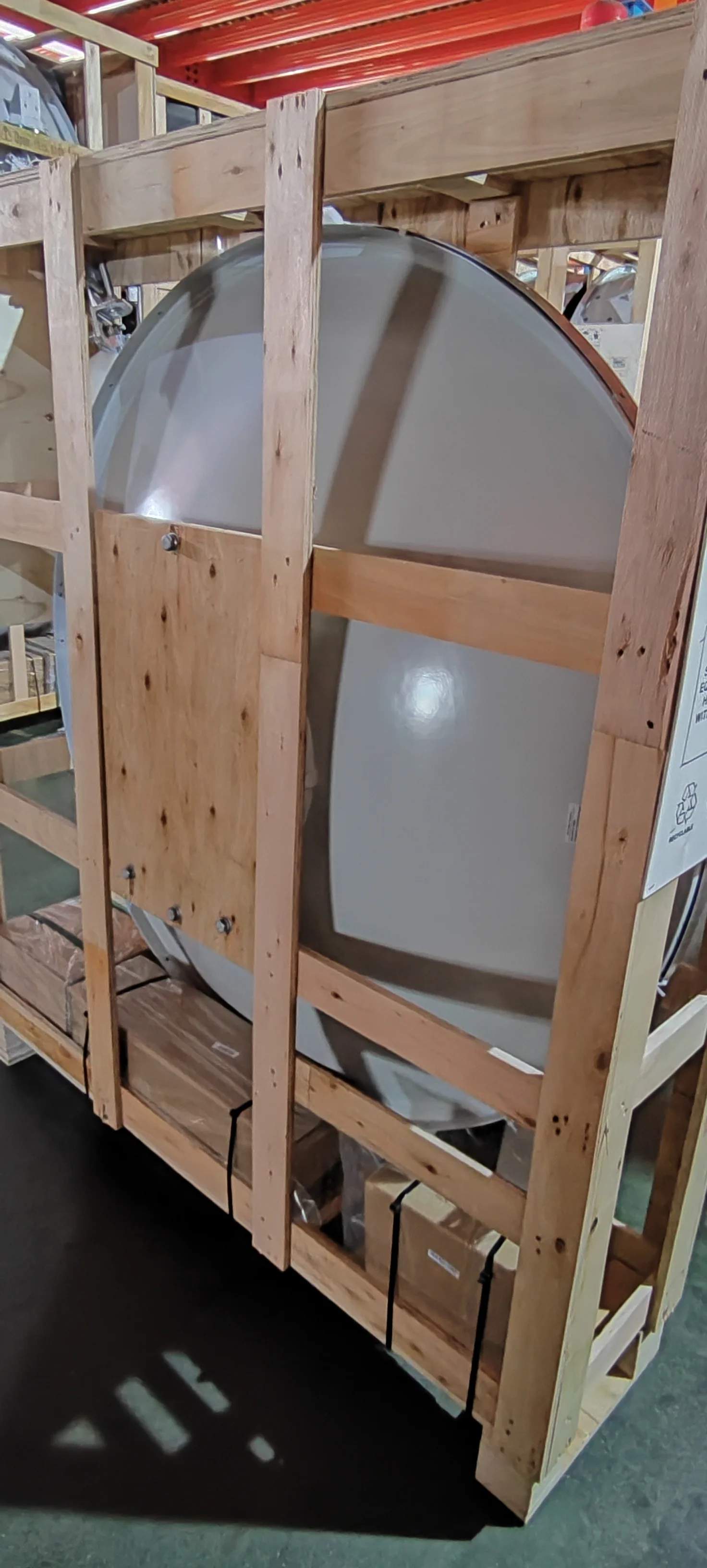

Packaging |
wooden |
|
L×W×H (mm) |
1380*380*1550 |
|
Wind Load Specifications |
||||||||||
Axial Force (N) @ survival wind speed |
5050 |
|||||||||
Side Force (N) @ survival wind speed |
2492 |
|||||||||
Twisting Moment (N•m) @ survival wind speed |
1979 |
|||||||||
Dimensions (mm) |
ΦA |
B |
C |
D |
E |
|||||
1302 |
392 |
706 |
292 |
1540 |
||||||
Note: 1. The values of B and C are measured at the pole diameter of 114mm 2. The thickness of the radome is not included in the dimensions of A and C |
||||||||||
