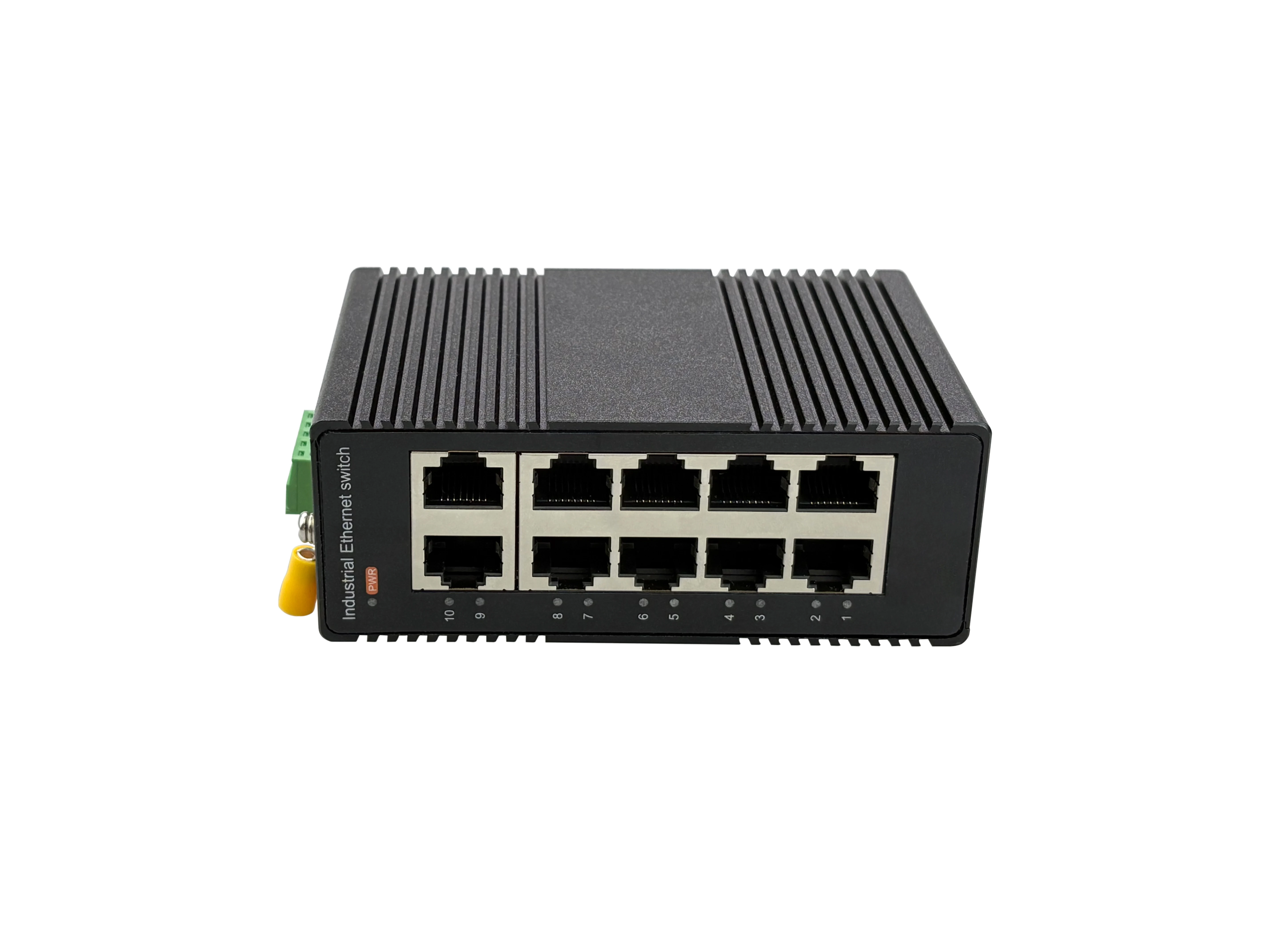

RJ45 port |
10x10/100/1000Base-T (auto-sensing) Full/half-duplex MDI/MDI-X (auto-sensing) Transmission distance: ≤ 100 meters |
Network Protocol |
IEEE802.3 - CSMA/CD； IEEE802.3i - 10Base-T； IEEE802.3u - 100Base-TX/FX； IEEE802.3x - Flow Control; IEEE802.3z - 1000Base-X； IEEE802.3ab - 1000Base-T； |
Work Environment |
Working temperature: -40~85 ℃ (-40~185 ° F) Storage temperature: -40~85 ℃ (-40~185 ° F) Relative humidity: 5% to 95% (no condensation) |
Power Interface |

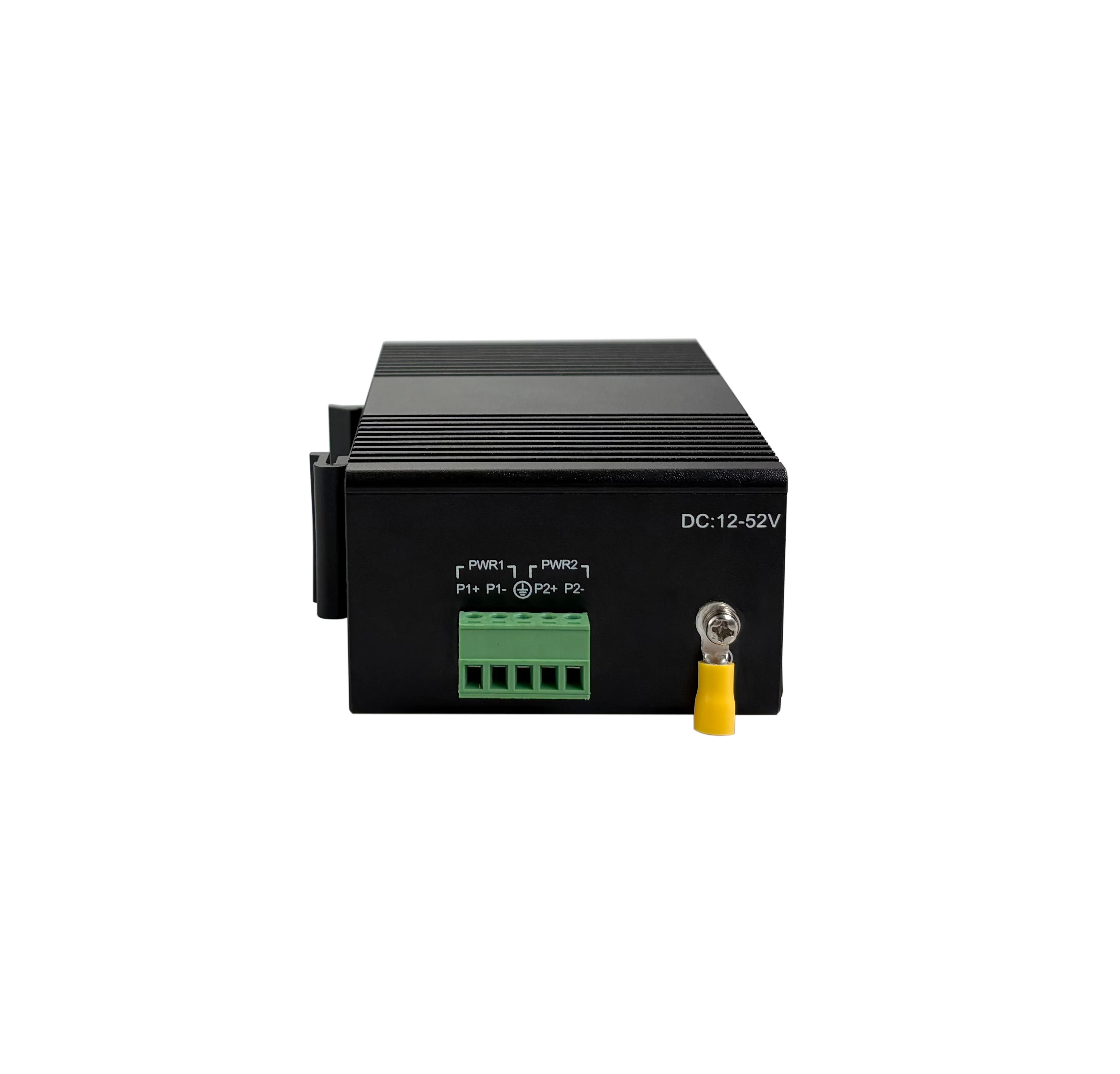

Input voltage: DC12-52V Connector: 5-pin 3.81mm pitch terminal block Supports dual power supply redundancy Supports reverse connection protection |
Switch Properties |
Application Layer: Layer 2 Backplane Bandwidth: 20Gbps Total Packet Forwarding Rate: 14.88Mpps MAC Table: 2K Packet Buffer: 1M Latency: < 3μs Switching Method: Store-and-Forward Total Power Consumption: < 3W |
Mechanical Properties |

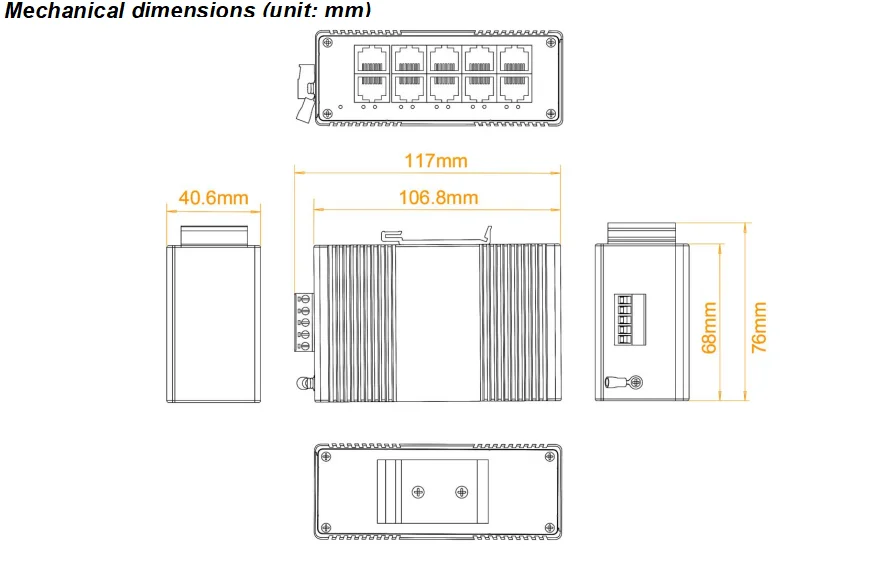

Housing: IP40-rated aluminum alloy Mounting: DIN rail, wall mount Cooling: Natural cooling, fanless Weight: 0.3 kg Weight (package included): 0.4 kg Dimensions: 106.8 x 68 x 40.6 mm (L x W x H) |
LED Indicators |
Power indicator: PWR (red) Network port indicator: Green (Link/ACT) |
Authentication |
CE, FCC, RoHS, ISO9001, Ministry of Public Security inspection report, telecom grade network access license, Vettel testing report |
MTBF |
300000 hours |
Warranty |
5 years |
Industry standards |
EMI: FCC Part 15 Subpart B Class A，EN 55022 Class A EMS : IEC(EN)61000-4-2(ESD): ±8kV(contact), ±15kV(air) IEC(EN)61000-4-3(RS): 10V/m(80～1000MHz) IEC(EN)61000-4-4(EFT):PowerPort:±4kV; Data Port: ±2kV IEC(EN)61000-4-5(Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6(CS): 10V(150kHz～80MHz) IEC(EN)61000-4-16(CM EMI) : 30V cont. 300V,1s IEC 60068-2-27 (Shock) IEC 60068-2-32 (Freefall) IEC 60068-2-6 (Vibration) |
