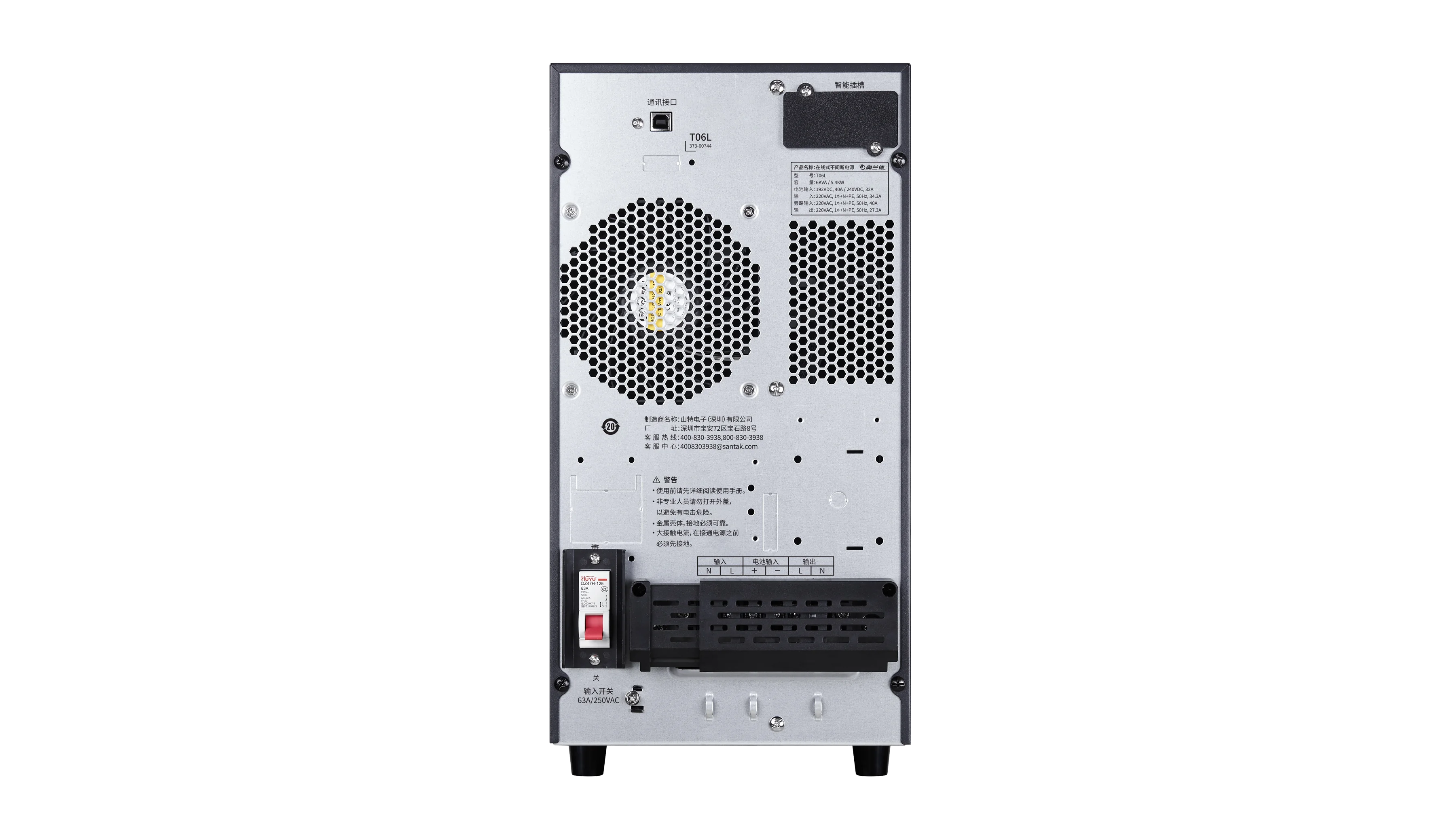

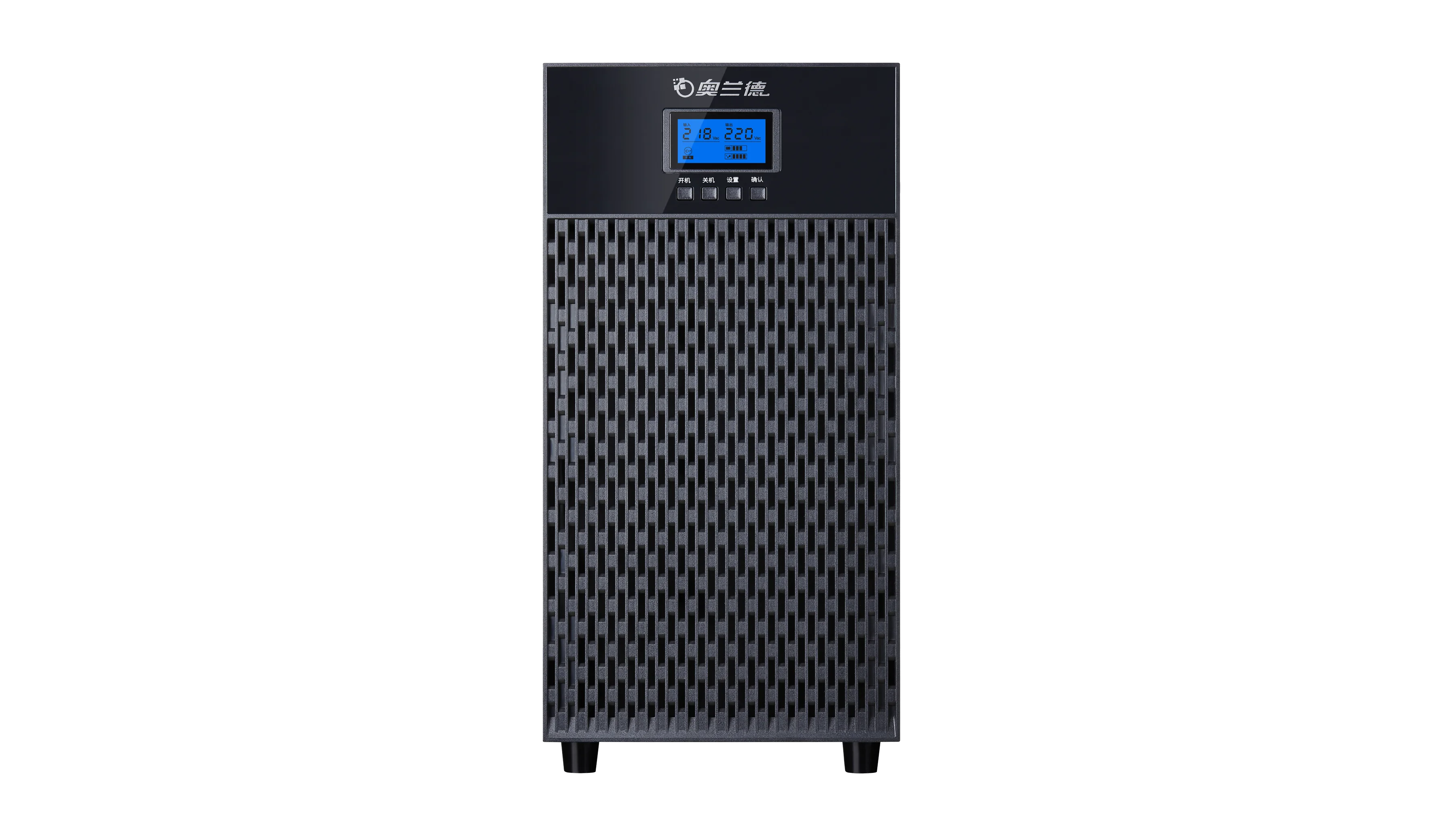

10KVA High-Efficiency Advanced Power Management Single Phase Work Station Uninterruptible Power Supply (UPS)

10KVA High-Efficiency Advanced Power Management Single Phase Work Station Uninterruptible Power Supply (UPS)

Description

[email protected]

Description

Product Description

Yoongwin Situation Awareness Technology Co., Ltd., founded in 2007 in Nanjing Economic and Technological Development Zone with a registered capital of RMB 60.06 million, controls eight medium - sized tech enterprises. Its main business spans thin - film circuits, antenna & feeder products, etc., and it's involved in industrial Internet security and electromagnetic space protection.
As a member of multiple associations, it holds dual - software and ISO2700 info security certifications. With over 100 patents, it was recognized as a Nanjing Gazelle Enterprise from 2020 - 2022, indicating continuous growth.

Orland 10KVA High-Efficiency Advanced Power Management Single Phase Work Station Uninterruptible Power Supply (UPS) manufacture

Product Detail

Product Specification

T01

T01L

T02

T02L

T03

T03L

Input

Input Voltage/Frequency

220Vac/50Hz

Input Power Factor

>0.98

Input Harmonic

Input Voltage Range

110Vac~300Vac

Input Frequency Range

40Hz~70Hz, self-adaptive

Output

Output Power

1kVA/900W

2kVA/1.8kW

3kVA/2.7kW

Output Voltage Waveform

Sine wave

Output Voltage/Frequency

220Vac±1%, 50Hz±0.1Hz

Overall Efficiency (Mains/Bypass)

90%/97%

Output Voltage Total Harmonic Distortion

<2% (linear load)

Battery

Battery Type

Lead - acid Battery

Battery Capacity

12V/9AH *2

36Vdc

12V/9AH *4

72Vdc

12V/9AH *6

72Vdc

Charging Current

Standard Machine Backup Time

4 minutes

4.5 minutes

Physical Parameters

Dimensions (Depth × Width × Height)

355 x 144 x 230mm

400 x 191 x 330mm

Weight

9.8Kg

4.2Kg

18.3Kg

7.9Kg

24.1Kg

8.3Kg

Communication and Management

Control Panel

LCD + Buttons + Buzzer

Communication Port

USB HID

Communication Card Slot

Standard Configuration

Environment

Operating Temperature

0℃~40℃

Relative Humidity

0%~95%, non - condensing

Altitude

≤3000m (1000m~3000m linear derating)

Noise

Four - stage speed regulation, full load ≤50dB

Specifications and Standards

Safety

YD/T 1095—2018, GB7260/GB4943

EMC

C2, IEC 62040 - 2:2016, EN IEC 62040 - 2:2018, GB/T 7260.2 - 2009

Certification

TLC Certification, CQC Energy - saving Certification

Product Quality Assurance

Quality Assurance

Three - year warranty for the entire machine

Product Specification	T06	T06L	T10	T10L
Input
Input Voltage/Frequency	220Vac/50Hz
Input Power Factor	>0.99
Input Harmonic	3%
Input Voltage Range	110Vac~300Vac
Input Frequency Range	40Hz~70Hz, self-adaptive
Output
Output Power	6kVA/5.4kW			10kVA/9kW
Output Voltage Waveform	Sine wave
Output Voltage/Frequency	220Vac±1%, 50Hz±0.1Hz
Overall Efficiency (Mains/Bypass)	94%/98%
Output Voltage Total Harmonic Distortion	<2% (linear load)
Battery
Battery Type	Lead - acid Battery
Battery Capacity	12V/7AH *15	192/240Vdc	12V/9AH *16	192/240Vdc
Charging Current	1A	4A	1A	4A
Standard Machine Backup Time	3 minutes	/	3 minutes	/
Physical Parameters
Dimensions (Depth × Width × Height)	Standard: 506 x 248 x 616mm Long: 506 x 212 x 420mm}
Dimensions (Depth × Width × Height)	Standard: 506 x 248 x 616mm Long: 506 x 212 x 420mm}
Weight	47.8Kg	13.8Kg	51.1Kg	16Kg
Communication and Management
Control Panel	LCD + Buttons + Buzzer
Communication Port	USB Virtual Serial Port
Communication Card Slot	Standard Configuration
Environment
Operating Temperature	0℃~40℃
Relative Humidity	0%~95%, non - condensing
Altitude	≤3000m (1000m~3000m linear derating)
Noise	Four - stage speed regulation, full load ≤55dB
Specifications and Standards
Safety	YD/T 1095—2018, GB7260/GB4943
EMC	C3, IEC 62040 - 2:2016, EN IEC 62040 - 2:2018, GB/T 7260.2 - 2009
Certification	TLC Certification, CQC Energy - saving Certification
Product Quality Assurance
Quality Assurance	Three - year warranty for the entire machine
