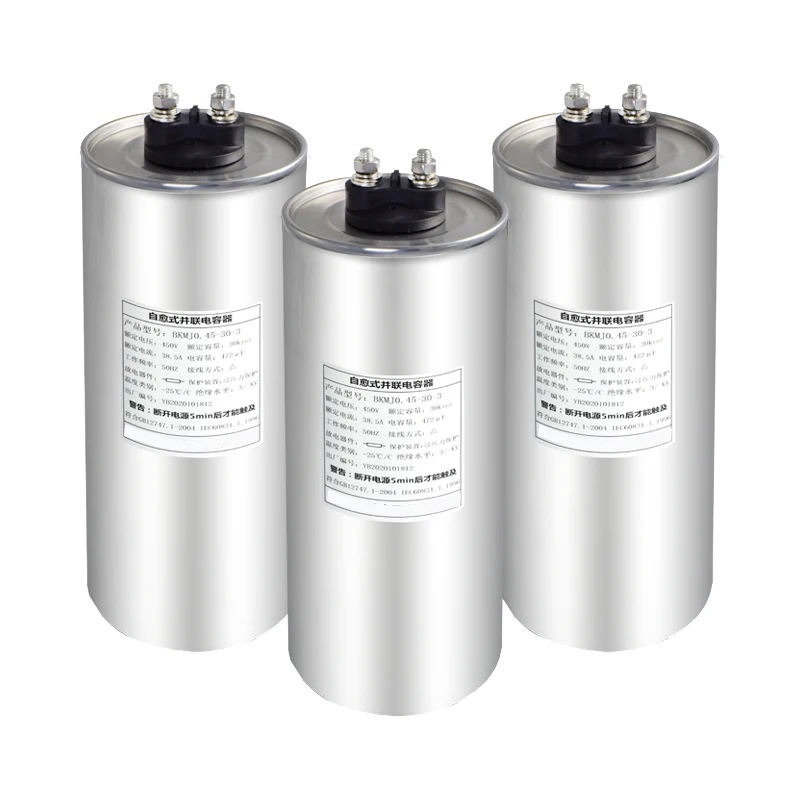

100V-660V Three-phase or Single-phase Kvar Self-healing Low-voltage Shunt Capacitor

100V-660V Three-phase or Single-phase Kvar Self-healing Low-voltage Shunt Capacitor

Description

[email protected]

Description

Product Description

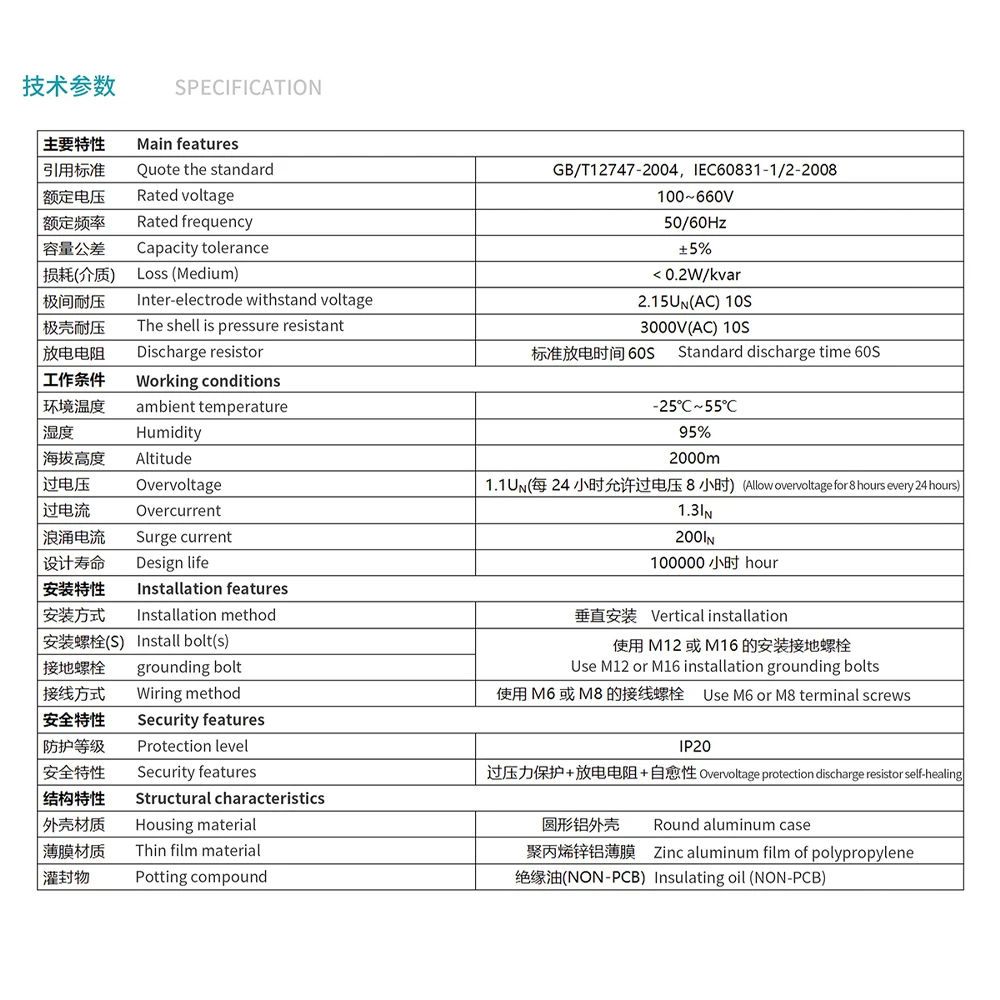

Product Detail

Quote the standard	GB/T12747 - 2004, IEC60831 - 1/2 - 2008
Rated voltage	100 - 660V
Rated frequency	50/60Hz
Capacity tolerance	±5%
Loss(Medium)	< 0.2W/kvar
Inter - electrode withstand voltage	2.15Un(AC) 10S
The shell is pressure resistant	3000V(AC) 10S
Discharge resistor	Standard discharge time 60S
ambient temperature	-25℃~55℃
Humidity	95%
Altitude	2000m
Overvoltage	1.1Un (Allow overvoltage for 8 hours every 24 hours)
Overcurrent	1.3In
Surge current	200In
Design life	100000 hours
Installation method	Vertical installation
Install bolt(s)	Use M12 or M16 installation grounding bolts
grounding bolt	Use M12 or M16 installation grounding bolts
Wiring method	Use M6 or M8 terminal screws
Protection level	IP20
Security features	Overvoltage protection discharge resistor self - healing
Housing material	Round aluminum case
Thin film material	Zinc aluminum film of polypropylene
Potting compound	Insulating oil (NON - PCB)

FILTER

Rated capacity
(kvar)

Rated capacitance
(μF)

Rated current
(A)

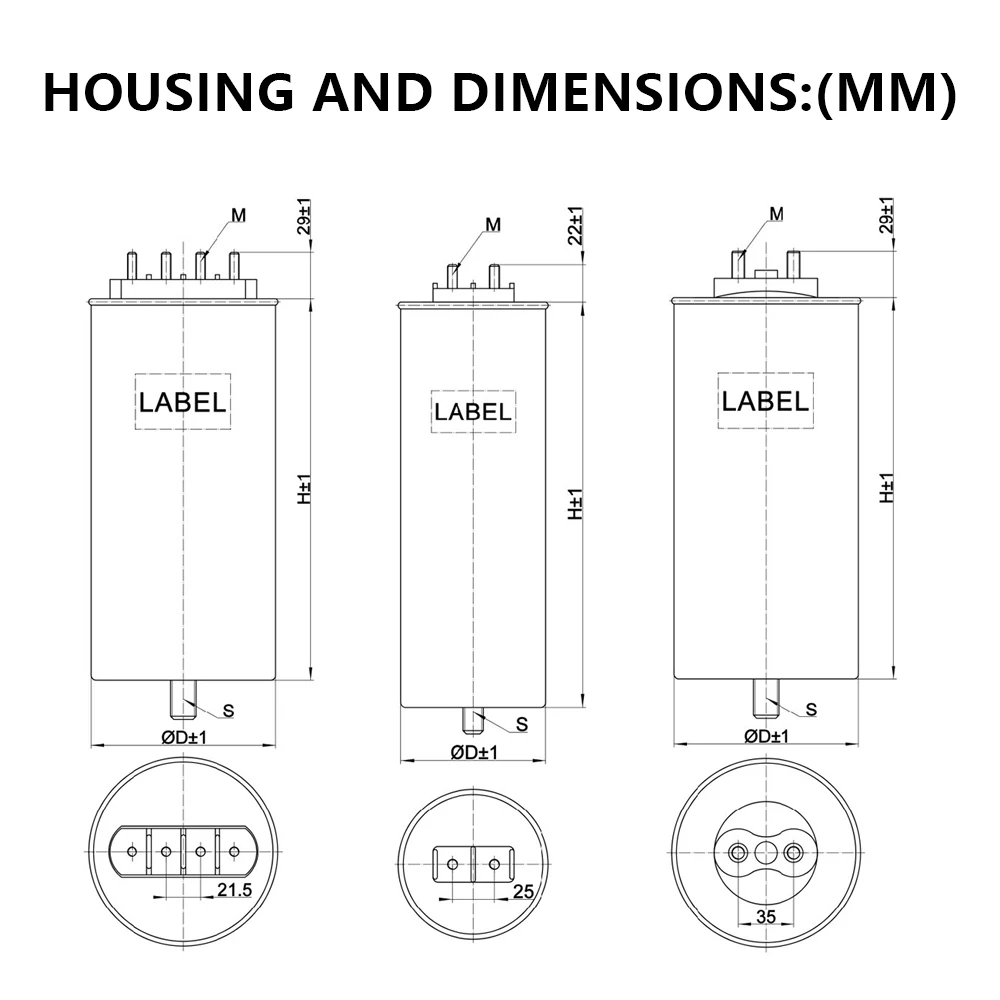

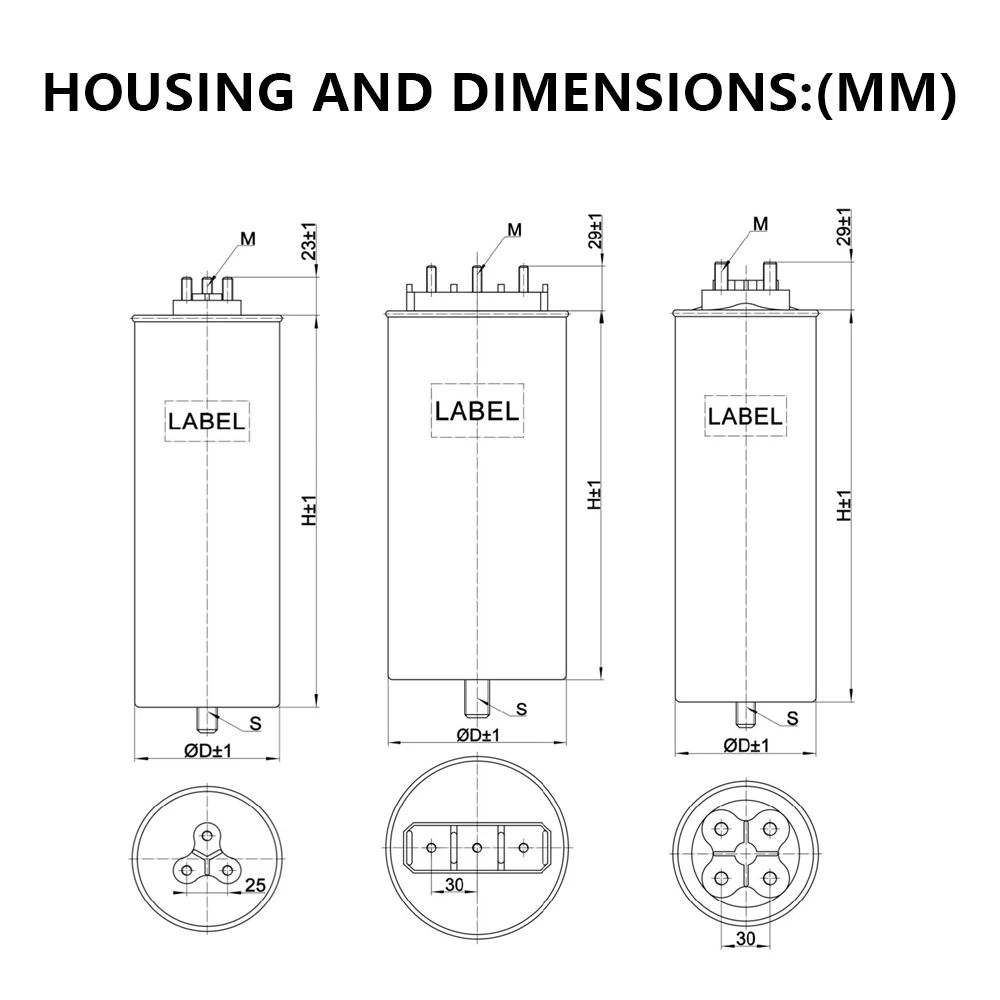

Overall dimensions(mm)

ΦD×H

Lead-out end (M)

Install the bolt (S)

MKPS0.4-5-3

100

7.2

76×180

M6×17

M12×16

MKPS0.4-10-3

199

14.4

86×240

M6×17

M12×16

MKPS0.4-15-3

298

21.7

96×240

M6×17

M12×16

MKPS0.4-20-3

398

28.9

116×240

M6×17

M16×25

MKPS0.4-25-3

497

36.1

116×240

M6×17

M16×25

MKPS0.4-30-3

597

43.3

116×290

M6×17

M16×25

MKPS0.4-40-3

796

57.7

136×290

M8×17

M16×25

FILTER

Rated capacity
(kvar)

Rated capacitance
(μF)

Rated current
(A)

Overall dimensions(mm)

ΦD×H

Lead-out end (M)

Install the bolt (S)

MKPS0.45-5-3

6.4

76×180

M6×17

M12×16

MKPS0.45-10-3

157

12.8

86×180

M6×17

M12×16

MKPS0.45-15-3

236

19.2

86×240

M6×17

M12×16

MKPS0.45-20-3

314

25.7

96×240

M6×17

M12×16

MKPS0.45-25-3

393

32.1

116×240

M6×17

M16×25

MKPS0.45-30-3

472

38.5

116×240

M6×17

M16×25

MKPS0.45-40-3

629

51.3

116×290

M6×17

M16×25

FILTER

Rated capacity
(kvar)

Rated capacitance
(μF)

Rated current
(A)

Overall dimensions(mm)

ΦD×H

Lead-out end (M)

Install the bolt (S)

MKPS0.48-5-3

76×180

M6×17

M12×16

MKPS0.48-10-3

138

86×180

M6×17

M12×16

MKPS0.48-15-3

207

86×240

M6×17

M12×16

MKPS0.48-20-3

276

24.1

96×240

M6×17

M12×16

MKPS0.48-25-3

345

30.1

116×290

M6×17

M16×25

MKPS0.48-30-3

414

36.1

116×290

M6×17

M16×25

MKPS0.48-40-3

553

48.1

116×290

M6×17

M16×25

FILTER

Rated capacity
(kvar)

Rated capacitance
(μF)

Rated current
(A)

Overall dimensions(mm)

ΦD×H

Lead-out end (M)

Install the bolt (S)

MKPS0.525-5-3

5.5

76×180

M6×17

M12×16

MKPS0.525-10-3

115

86×180

M6×17

M12×16

MKPS0.525-15-3

173

16.5

86×240

M6×17

M12×16

MKPS0.525-20-3

231

96×240

M6×17

M12×16

MKPS0.525-25-3

289

27.5

116×240

M6×17

M16×25

MKPS0.525-30-3

346

116×290

M6×17

M16×25

MKPS0.525-40-3

462

136×290

M8×17

M16×25

FILTER

Rated capacity
(kvar)

Rated capacitance
(μF)

Rated current
(A)

Overall dimensions(mm)

ΦD×H

Lead-out end (M)

Install the bolt (S)

MKPS0.25-5-3y0

255

86×180

M8×17

M12×16

MKPS0.25-10-3y0

509

106×240

M6×17

M12×16

MKPS0.25-15-3y0

764

116×240

M6×17

M16×25

MKPS0.25-20-3y0

1019

116×240

M6×17

M16×25

MKPS0.25-25-3y0

1273

116×290

M6×17

M16×25

MKPS0.25-30-3y0

1528

116×290

M6×17

M16×25

FILTER

Rated capacity
(kvar)

Rated capacitance
(μF)

Rated current
(A)

Overall dimensions(mm)

ΦD×H

Lead-out end (M)

Install the bolt (S)

MKPS0.28-5-3y0

203

86×180

M8×17

M12×16

MKPS0.28-10-3y0

406

106×240

M6×17

M12×16

MKPS0.28-15-3y0

609

116×240

M6×17

M16×25

MKPS0.28-20-3y0

812

116×240

M6×17

M16×25

MKPS0.28-25-3y0

1015

116×290

M6×17

M16×25

MKPS0.28-30-3y0

1218

116×290

M6×17

M16×25

FILTER

Rated capacity
(kvar)

Rated capacitance
(μF)

Rated current
(A)

Overall dimensions(mm)

ΦD×H

Lead-out end (M)

Install the bolt (S)

MKPS0.25-5-1

251

19.7

76×180

M8×17

M12×16

MKPS0.25-10-1

502

39.4

86×240

M8×17

M12×16

MKPS0.25-15-1

754

59.2

96×240

M8×17

M12×16

MKPS0.25-20-1

1005

78.9

116×240

M8×17

M16×25

MKPS0.25-25-1

1256

98.6

116×290

M8×17

M16×25

MKPS0.25-30-1

1507

118.3

136×290

M8×17

M16×25

FILTER

Rated capacity
(kvar)

Rated capacitance
(μF)

Rated current
(A)

Overall dimensions(mm)

ΦD×H

Lead-out end (M)

Install the bolt (S)

MKPS0.28-5-1

200

15.7

76×180

M8×17

M12×16

MKPS0.28-10-1

401

37.5

86×240

M8×17

M12×16

MKPS0.28-15-1

601

47.2

116×240

M8×17

M16×25

MKPS0.28-20-1

801

62.9

116×290

M8×17

M16×25

MKPS0.28-25-1

1001

78.6

116×290

M8×17

M16×25

MKPS0.28-30-1

1202

94.4

136×290

M8×17

M16×25
