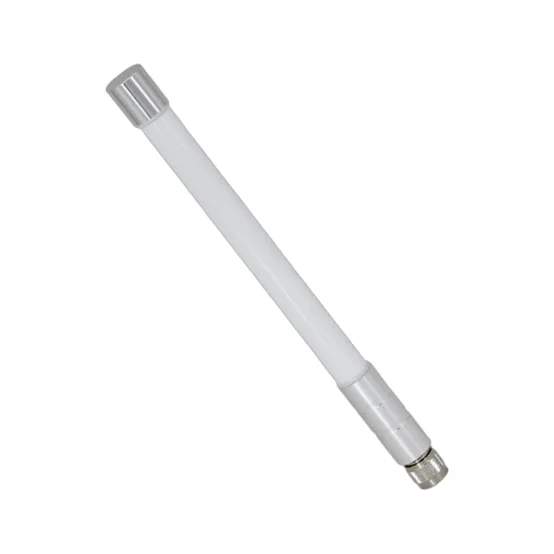

100W Power Capacity -140dBc IMD 3dBi Gain 370-390MHz Industrial UHF Antenna

100W Power Capacity -140dBc IMD 3dBi Gain 370-390MHz Industrial UHF Antenna

Description

[email protected]

Description

Product Description

1.Exceptional 75° Vertical Beamwidth: Provides significantly wider vertical coverage than standard antennas, ideal for mobile applications and uneven terrain. Ensures reliable signal reception across varying heights and elevations.

2.Ultra-Lightweight Compact Design: Weighing under 0.5kg with compact ￠20×600mm dimensions, this antenna offers easy installation and minimal visual impact. Perfect for space-constrained applications and mobile deployments.

3.Excellent -140dBc Intermodulation Performance: Delivers clean signal transmission with minimal interference, crucial for multi-operator environments and sensitive communication systems where signal purity is paramount.

4.Wide Temperature Range Operation: Functions reliably from -40℃ to +65℃ with 5-95% humidity tolerance. The fiberglass radome provides durable protection against harsh environmental conditions.

5.Cost-Effective Professional Solution: Combines professional-grade performance with affordable pricing. Offers 50% efficiency and 100W power handling at a fraction of the cost of larger commercial antennas.

Product Detail

Electrical Specifications
Frequency Range				370-390MHz
Gain				3.0±1dBi
Efficiency				50%
Polarization				Vertical
Beam width	Horizontal		360deg
		Vertical		75deg
VSWR				≤1.8
PIM, 3rd Order, 2 x 2 W				-140dBc
Maximum Power				100W
Impedance				50ohm
Mechanical Specifications
Dimensions, HxDia				￠20x600mm
Weight, without Mounting Kit				<0.5kg
Radome Material and Color				Fiberglass
Connector Type and Location				1xN-male,Bottom
Operational Temperature				-40 ~+65℃
Operational Humidity				5~95%
