Introduction

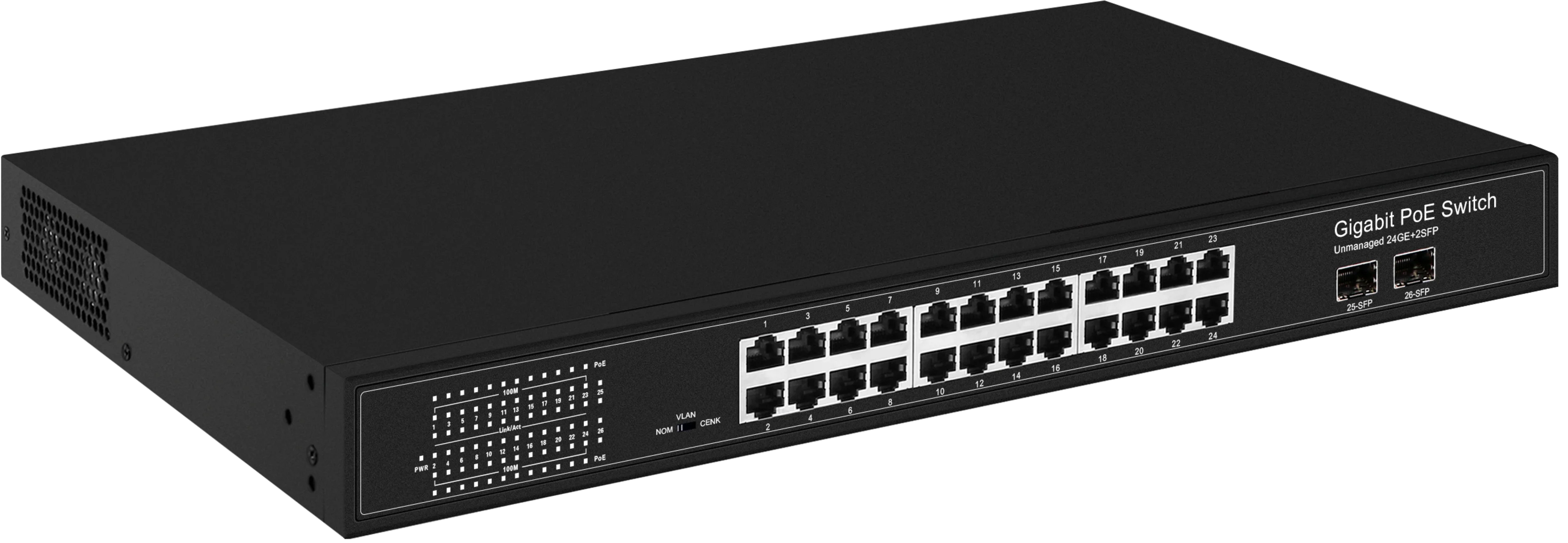

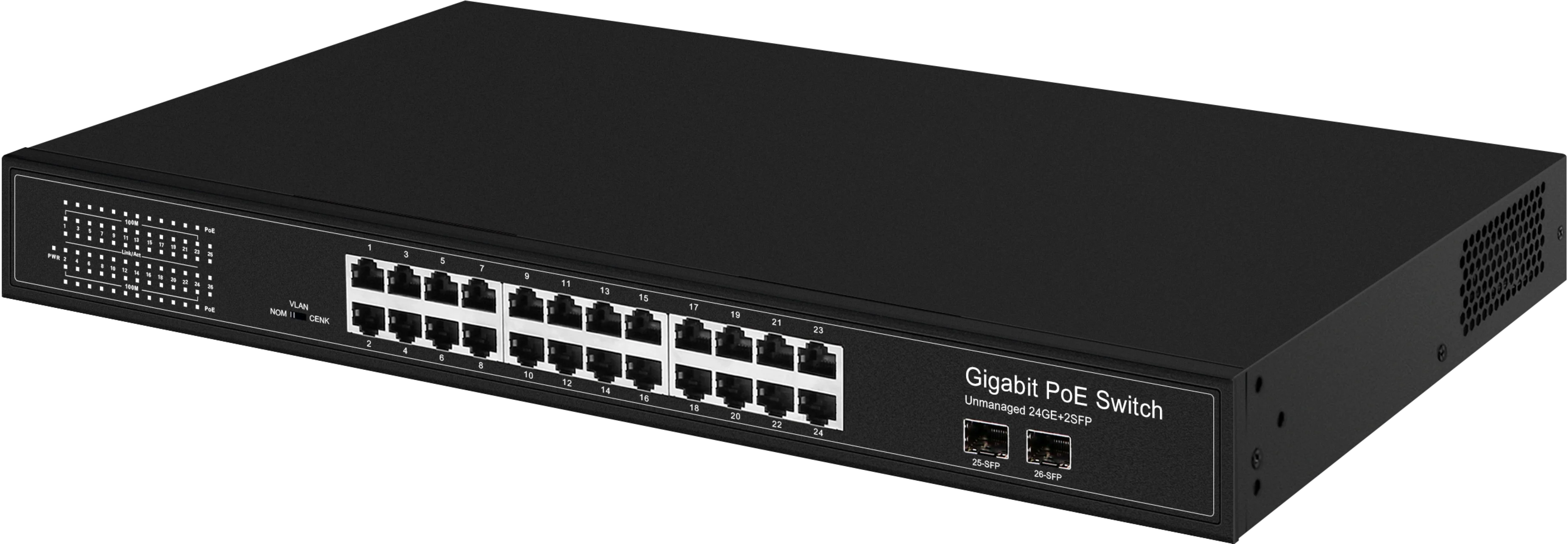

YW-PS304C-262TS series are unmanaged POE switches with 24 Gigabit ports and 2 Gigabit SFP fiber module expansion slots, of which ports 1-24 support IEEE 802.3af/at standard POE power supply, and the single-port POE power is up to 30 W. As a POE power supply device, it can automatically detect and identify the powered devices that comply with the standard and supply power to them through the network cable. As a POE power supply device, it can automatically detect and recognize the powered devices that meet the standard and supply power to them through the network cable. Through the network cable for wireless AP, network cameras, network telephone, visual access control intercom and other POE terminal equipment power supply, to meet the demand for high-density POE power supply network environment, suitable for hotels, campuses, parks, supermarkets, scenic spots, factories, dormitories and SMB small and medium-sized enterprises to form a cost-effective network. Non-network management model, plug and play, no configuration, easy to use and maintain. Translated with DeepL.com (free version)

Features

Gigabit Ports
Supports the combination of "gigabit POE electrical ports + gigabit optical ports", facilitating flexible network setup for users and meeting networking needs in various scenarios.

All ports support non-blocking wire-speed forwarding for smoother transmission.

Supports IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control.

Intelligent POE Power Supply Function

24 100/1000Base-T RJ45 ports support POE power supply, meeting the POE power supply needs of scenarios such as security monitoring, telephone conference systems, and wireless coverage.
Ports 1-24 comply with the IEEE 802.3af/at POE power supply standard, with a maximum single-port POE output power of 30W; they automatically identify POE devices for power supply without damaging non-POE devices. The maximum total POE output power of the device reaches 400W.

Stable and Reliable Equipment with Simple Operation

The host features low-power design, a galvanized steel metal shell, and excellent heat dissipation to ensure stable operation of the product.
The equipment meets national CCC standards and fully complies with CE, FCC, and RoHS safety requirements, ensuring safe and reliable use.
Users can easily check the working status of the device through the power indicator, port status indicator, and POE working indicator (POE).

2 Gigabit SFP + 24 Gigabit Smart Web PoE Switch Optic Fiber Equipment FTTH Compatible Board or Card Type supplier

Product Model	YW-JT-PS304C-262TS
Product Name	2 Optical + 24 Electrical Gigabit POE Switch
Fixed Ports	2410/100/1000M RJ45 PoE Ports
Fixed Ports		21000M SFP Optical Module Expansion Slots
Function Switches	N: Standard Sharing Mode V: Port Isolation Mode C: Current Limiting Mode


Network Protocols	IEEE 802.3 IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-X IEEE 802.3x IEEE 802.3af/at International Standards





Port Characteristics	Ports 1 - 24: 10/100/1000BaseT (X), Auto-detection, Full/Half Duplex MDI/MDI-X Auto-adaptation
POE Ports	Ports 1 - 24 support IEEE 802.3af/at Standard POE Power Supply
Forwarding Mode	Store-and-Forward (Wire Speed)
Backplane Bandwidth	56Gbps (Non-blocking)
Packet Forwarding Rate	41.67Mpps
MAC Address Table	8K
Packet Forwarding Buffer	4.1M
Twisted Pair Transmission	10M: Cat3, 4, 5 UTP (≤100 meters) 100M: Cat5 or later UTP (≤100 meters) 1000M: Cat5e or later UTP (≤100 meters) SFP: Supports 1000M Single-mode and Multi-mode Modules, Maximum Distance ≤120km (Depends on the Optical Module)



Maximum Single Port/Average Power	30W/15.4W
Total POE Power	MAX 400W
Overall Power Consumption	Standby Power Consumption: <15W; Full-load Power Consumption: <415W

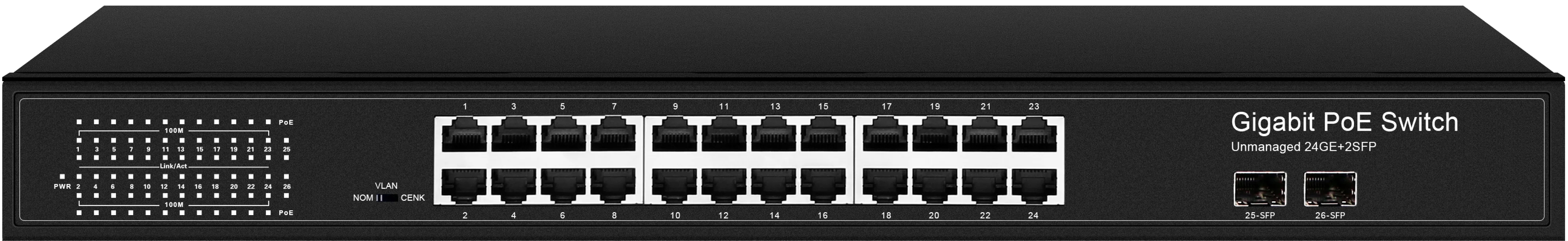

LED Indicators	PWR: Power Indicator (Green) 1-24: 10/100, 1000M Network Connection Indicator (Green) 25-26: SFP Port Connection Indicator (Green) PoE Ports: PoE Indicator (Orange)

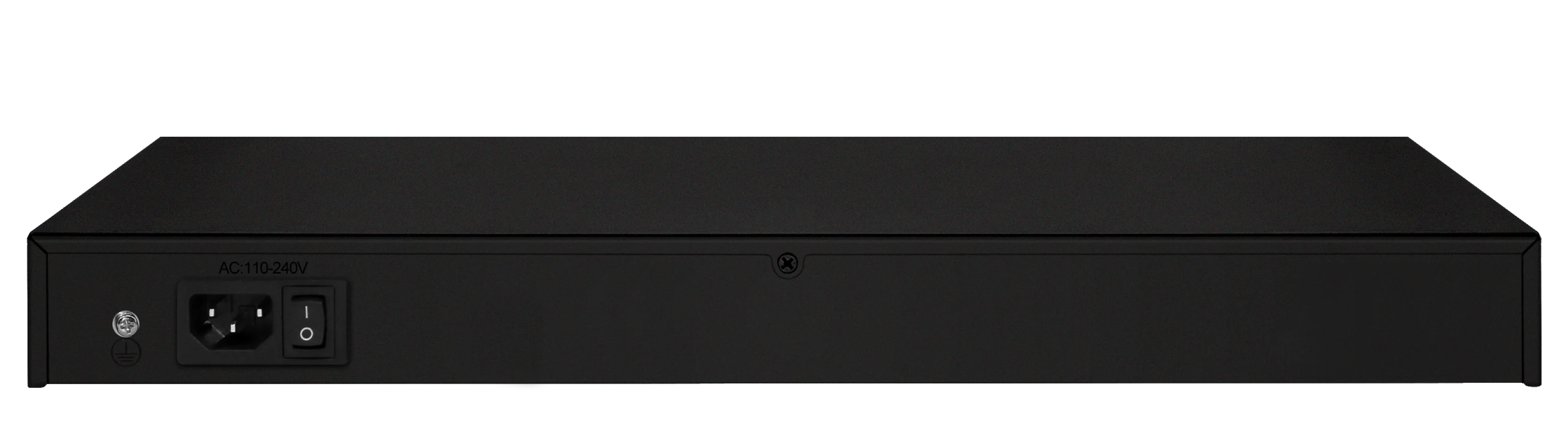

Matching Power Supply	Built-in Power Supply AC: 100-240Vac 50-60Hz 5A, Maximum 415W
Operating Temperature/Humidity	-10~+55 °C; 5%~90% Non-condensing
Storage Temperature/Humidity	-40~+75 °C; 5%~95% Non-condensing
Product Dimensions/Packaging Dimensions (LWH)	440mm290mm45mm
Product Dimensions/Packaging Dimensions (LWH)		515mm375mm95mm
Net Weight/Gross Weight (kg)	3.4kg/4.1kg
Installation Method	Rack-mounted (Rack Mounting Ears Accessories Included)
Lightning Protection/Protection Level	Port Lightning Protection: 6KV 8/20us;
Lightning Protection/Protection Level		Protection Level: IP30
Safety and Regulatory Certifications	3C;
Safety and Regulatory Certifications		CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS;
Mean Time Between Failures	>50000 hours
Warranty Period	5 years for the main unit (adapters and accessories not included)

Applications

Highway Electromechanical System Architecture

The electromechanical systems in expressways primarily consist of toll collection, surveillance, and communication subsystems. As the foundational infrastructure, the communication system interconnects all subsystems, serving as the core for service delivery and information-based operations.The expressway's full-network communication adopts a fiber-optic ring network as its backbone, structured around Layer 3 Gigabit Industrial Ethernet Switches supporting fiber-optic ring topology.At each site access point, Layer 2 (or Layer 3) switches establish dedicated subnets for various services. These application subnets are segmented using Virtual Local Area Networks (VLANs) to meet distinct operational requirements.

2 Gigabit SFP + 24 Gigabit Smart Web PoE Switch Optic Fiber Equipment FTTH Compatible Board or Card Type factory

Industrial Switches for Oil & Gas Field Intelligence
Industrial Ethernet switches enable intelligent monitoring and management of oil/gas fields, enhancing production efficiency and operational safety. These switches withstand extreme field environments—including low/high temperatures, high altitude, humidity, and EMI—while delivering high-reliability, high-performance, stable, and secure network communications.
