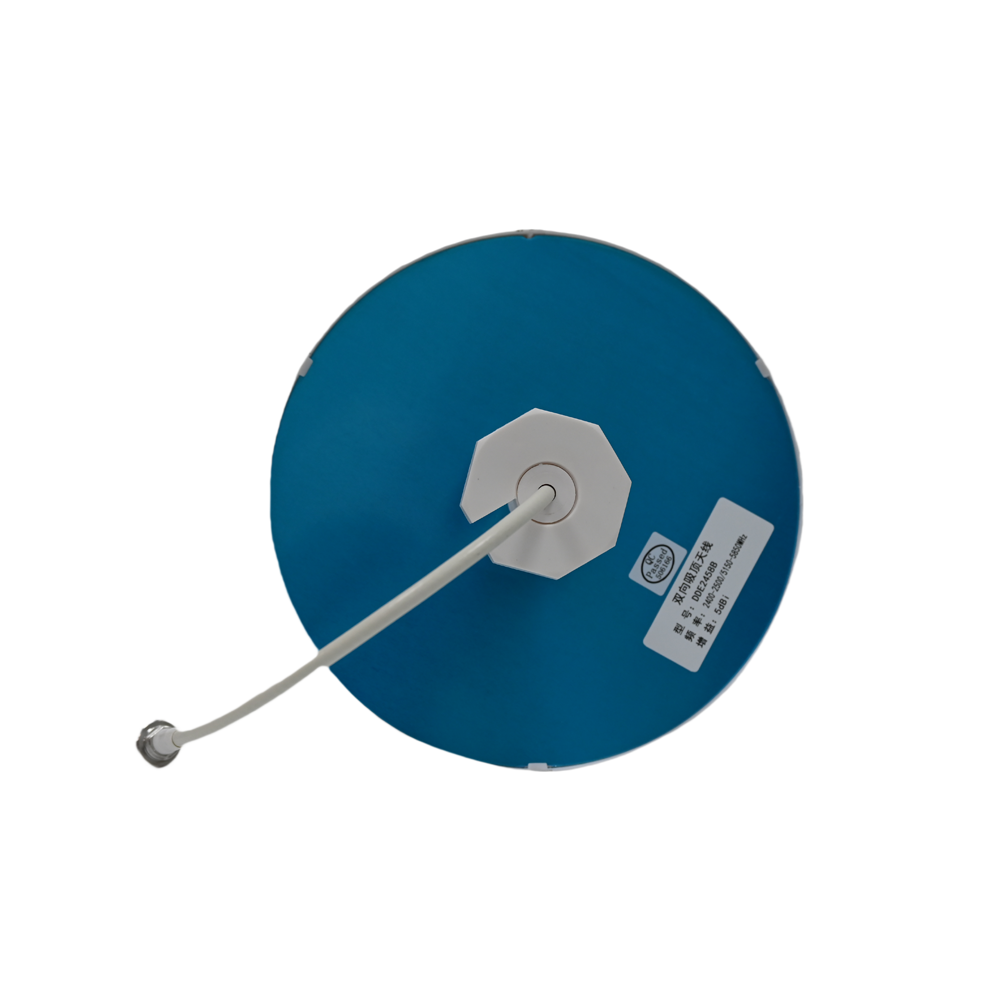

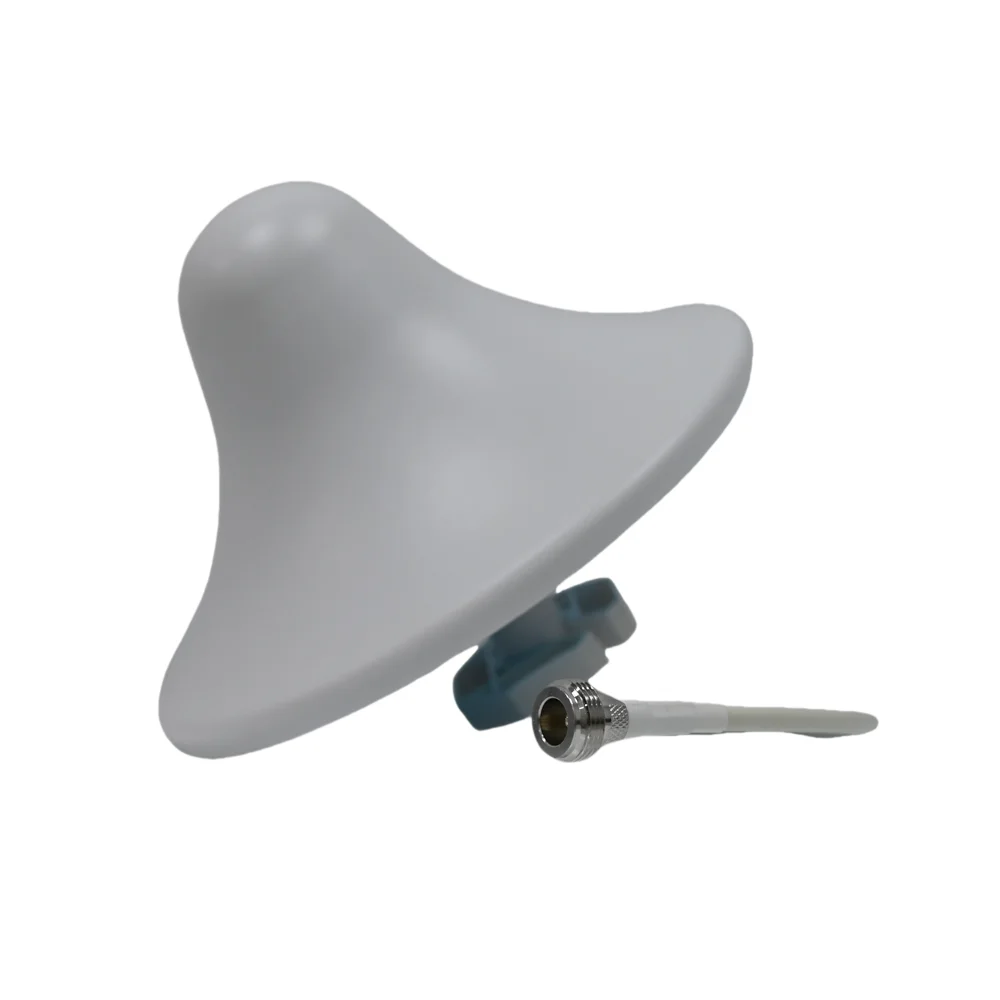

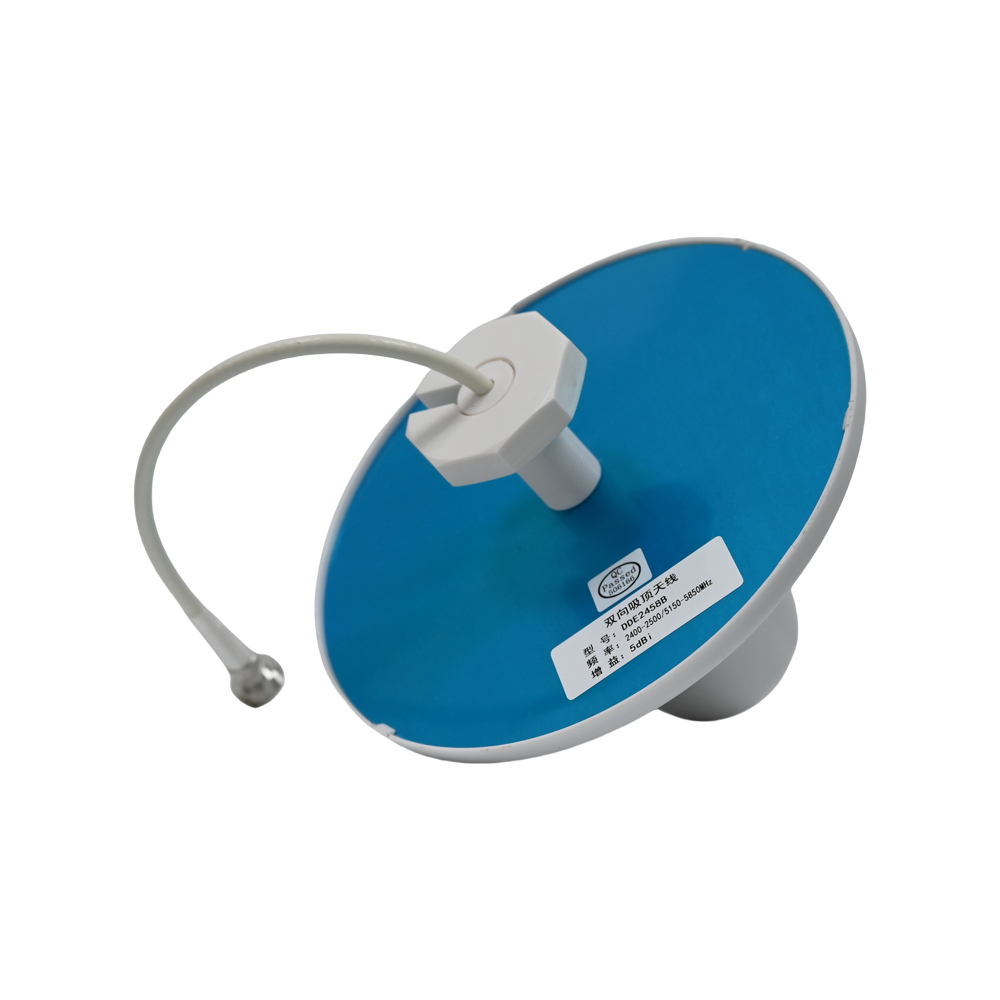

Introducing, the Yoongwin 20W Tri-Band Ceiling Antenna, designed specifically for Industrial IoT applications requiring stable and reliable signal transmission. This high-performance antenna boasts a 5dBi gain for maximum signal strength, making it ideal for industrial environments where connectivity is crucial.
The Yoongwin Ceiling Antenna features a bi-directional design with vertical polarization, ensuring optimal coverage and signal reception. With a frequency range of 2400-2500MHz, this antenna is perfect for a variety of IoT applications, including smart factories, warehouses, and industrial automation systems.
Thanks to its 20W power capacity, this antenna can handle high-power transmission without sacrificing signal quality. Whether you need to connect multiple devices or transmit large amounts of data, the Yoongwin 20W Ceiling Antenna delivers reliable performance every time.
Installation is a breeze with the included mounting hardware, allowing for easy ceiling placement in any industrial setting. The sleek and compact design blends seamlessly into any environment, making it the perfect choice for discreet installations where aesthetics are important.
With its durable construction and weatherproof design, the Yoongwin 20W Ceiling Antenna is built to withstand harsh industrial conditions, ensuring long-lasting performance in even the most demanding environments. Plus, the antenna is backed by Yoongwin's reputation for quality and reliability, giving you peace of mind knowing you're investing in a top-notch product.
Don't let poor signal strength hold your Industrial IoT applications back. Upgrade to the Yoongwin 20W Tri-Band Ceiling Antenna and experience the difference firsthand. With its high gain, bi-directional design, and vertical polarization, this antenna is sure to improve your connectivity and streamline your operations. Invest in the best with Yoongwin
Technical Indicators |
DDE2458B |
||
Frequency Range (MHz) |
2400～2500 |
5150～5850 |
|
Bandwidth (MHz) |
100 |
700 |
|
Polarization Mode |
Vertical |
||
Gain (dBi) |
5 |
||
Half - Power Beamwidth - ° |
H:115; E:45 |
||
Input Impedance (Ω) |
50 |
||
Voltage Standing Wave Ratio |
≤2 |
||
Maximum Power (W) |
20 |
||
Connector Type |
N Female or Customized by User |
||
Antenna Size - mm |
φ165×94 |
||
Lead Length (cm) |
30 |
||
Antenna Color |
White |
||
Antenna Weight - kg |
0.3 |
||
Mounting Method |
Ceiling Mounted |
||
Q: Are you a manufacturer or a trading company
A: We have been professional antenna manufacturer for 18 years
Q: Have gps gsm combo antenna 100% assembles well in stock
A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples
Q: Could I use my own LOGO or design on goods
A: Yes, customized logo and design on mass production are available
Q: What's the payment term
A: T/T, AliPay, Paypal, Afterpay, Klarna etc
Q: What certifications do you have
A: Certified by FCC, CE, RoHS, ISO available upon request
Q: Where is your factory located? Can I visit your factory
A: Factory address: 2nd Floor, Building D4-1, Hongfeng Science and Technology Park, Nanjing Economic and Technological Development Zone, Jiangsu Province
Just call us, we will pick you up with no delay
