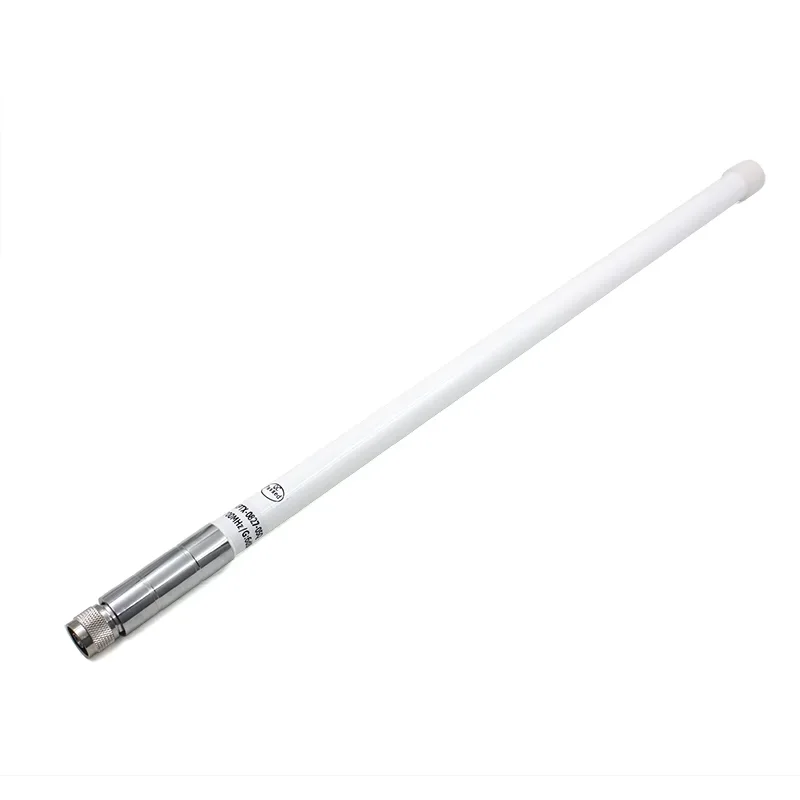

Portable/Mobile White 5dBi Magnetic Base Omni Fiberglass Antenna |
||
Technical Specifications |
YW-QB24V5AM |
|
Frequency Range (MHz) |
2400～2483/2300～2700 |
|
Bandwidth (MHz) |
83/400 |
|
Polarization |
Vertical |
|
Gain (dBi) |
5 |
|
Input Impedance (Ω) |
50 |
|
Voltage Standing Wave Ratio (VSWR) |
≤1.5/1.8/2 |
|
Maximum Power (W) |
50 |
|
Connector Type |
N Male |
|
Antenna Length (cm) |
29.5/33 |
|
Antenna Weight (kg) |
Approximately 0.2 |
|
Cover Material |
Fiberglass |
|
Ultimate Wind Speed (m/s) |
60 |
|
Mounting Method |
Used with suction cup mounts |
|
