Introduction

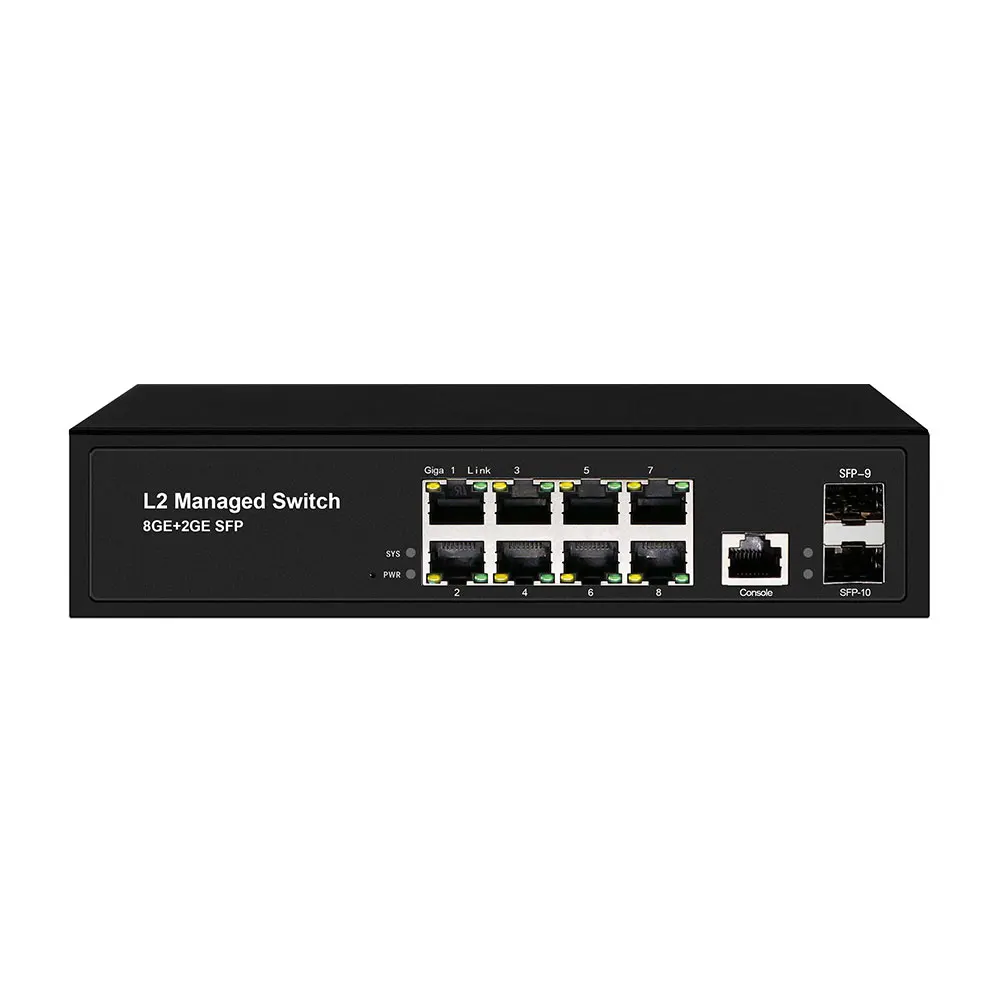

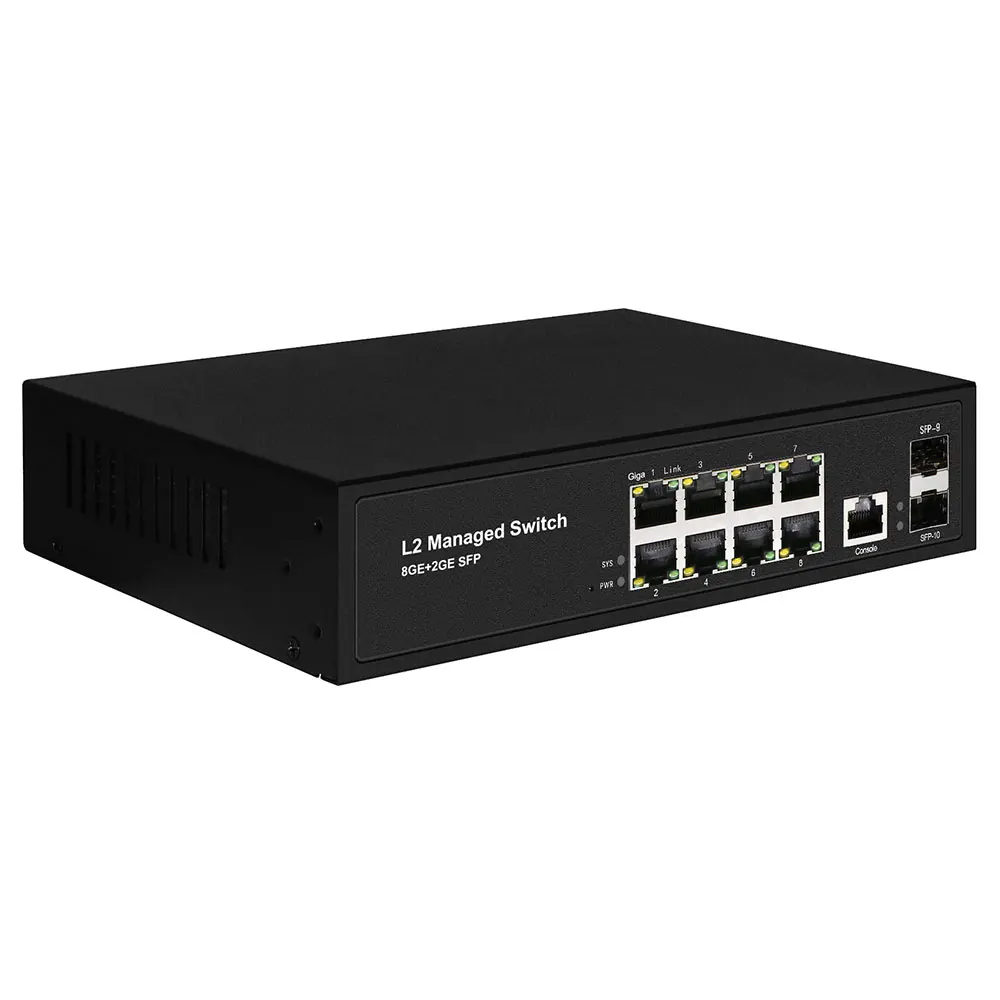

YW-S3310-GEM Series Gigabit Managed Switch
The YW-S3310-GEM series is our independently developed fully managed Gigabit switch, featuring 8× Gigabit RJ45 ports + 2× Gigabit SFP fiber slots.

Key Features:
1. Port Intelligence:
Auto MDI/MDIX crossover on all RJ45 ports.
Wire-speed forwarding capability.

2. Advanced Management & Security:
Comprehensive security mechanisms.
Robust ACL/QoS policies.
Rich VLAN functionality.
Easy operation and maintenance via Web, CLI, SNMP, and Telnet.

3. High Reliability & Redundancy:
Supports STP/RSTP/MSTP (<50ms convergence).
ITU-T G.8032 ERPS (<20ms failover) for rapid link recovery.
Ensures uninterrupted transmission for critical applications during network faults.

4. Flexible Configuration:
Port management, rate limiting, VLAN segmentation, IGMP snooping, and security policies.

Applications:
Ideal for high-density network environments in hotels, campuses, industrial parks, retail stores, scenic areas, hospitals, banks,and other medium-to-large-scale scenarios requiring cost-effective, high-performance, and reliable communication networks.

product 2x10g sfp fiber 8x1g copper compact 82 port managed switch for office retail hotel-3

product 2x10g sfp fiber 8x1g copper compact 82 port managed switch for office retail hotel-5

Product Model	JT - S3310 - GEM
Product Name	2 - Optical 8 - Electrical Gigabit Layer 2 Managed Switch
Fixed Ports	8 10/100/1000M RJ45 ports
Fixed Ports		2 Gigabit SFP Optical Fiber Module Expansion Slots
Network Protocols	IEEE802.3 10BASE - T, IEEE802.3i 10Base - T, IEEE802.3u 100Base - TX, IEEE802.3ab 1000Base - T, IEEE802.3z 1000Base - X, IEEE802.3x
Port Characteristics	1 - 8 10/100/1000BaseT (X) auto - detection, full/half - duplex MDI/MDI - X auto - adaptation
Forwarding Mode	Store - and - Forward (full - line speed)
Backplane Bandwidth	16Gbps (non - blocking)
Packet Forwarding Rate	11.90Mpps
MAC Address Table	8K
Packet Buffering	4.1M
Transmission Distance	10M: Cat3, 4, 5 UTP (≤250m)
		100M: Cat5 or later UTP (150m)
		1000M: Cat6 or later UTP (150m)
		SFP: Supports 1G single - mode and multi - mode optical modules, maximum distance ≤120km (depends on the optical module).
Total Power Consumption of the Whole Machine	Standby power consumption: <3W; Full - load power consumption: <15W
LED Indicators	PWR: Power indicator
		SYS: System indicator
		9 - 10: SFP optical port connection indicators
		RJ45 MDI/MDI - X ports: Network connection indicators (Green/100M + Orange/1000M)
Matching Power Supply	AC 100 - 240V 50/60HZ 0.2A
Operating Temperature/Humidity	- 10 ~ + 55°C; 5% - 90% RH, no condensation
Storage Temperature/Humidity	- 40 ~ + 75°C; 5% - 95% RH, no condensation
Product Size/Packaging Size (LWH)	206mm140mm45mm
Product Size/Packaging Size (LWH)		265mm220mm68mm
Net Weight/Gross Weight (kg)	1.0kg/1.3kg
Lightning Protection/Protection Level	6KV 8/20μs;
Lightning Protection/Protection Level		IP30
Installation Method	Desktop type
Safety Certification	3C; CE - EMC EN55032; CE - LVD EN62368; FCC Part 15 Class B; RoHS
Mean Time Between Failures	>100000 hours
Warranty Period	5 years for the main unit (adapters and accessories not included)
MAC Address Table	Automatic MAC address learning, automatic aging and aging time setting;
		8K MAC addresses;
		Supports port - based VLAN
VLAN	Supports up to 4096 VLANs;
		Supports Voice VLAN, enabling QoS configuration for voice data;
		Supports 802.1Q standard VLAN
Reliability	Supports STP/RSTP/MSTP spanning tree protocols;
		Supports EIPS/EAPS ring network protocols;
		Supports 802.1X authentication
QOS	802.1p port queue priority algorithm;
		Cos/Tos, QOS marking;
		WRR (Weighted Round Robin), weighted priority round - robin algorithm;
		Supports WRR, SP, WFQ three priority scheduling modes
Discovery	Supports LLDP (802.1ab);
Discovery		Supports LLDP - MED
Port Aggregation	Supports 8 groups of aggregation, with a maximum of 8 ports per group
Port Mirroring	Supports bidirectional port mirroring for sending and receiving
Environmental Protection	Supports loop protection function: real - time detection, rapid alarm, precise positioning, intelligent blocking, automatic recovery
Port Isolation	Supports mutual isolation of downstream ports while communicating with upstream ports
Port Flow Control	Half - duplex based on backpressure control;
Port Flow Control		Full - duplex based on PAUSE frames
Port Rate Limiting	Supports input/output bandwidth management based on ports
Multicast Control	IGMPv1/2/3 and MLDv1/2 Snooping;
		Supports GMRP protocol registration;
		Multicast address management, multicast VLAN, multicast routing ports, static multicast addresses
DHCP	DHCP Snooping
Storm Suppression	Supports suppression of storms of unknown unicast, multicast, unknown multicast, and broadcast types
Storm Suppression		Storm suppression based on bandwidth adjustment and storm filtering
Security Features	Supports user port + IP address + MAC address
		ACLs based on IP and MAC
		Supports port - based MAC address quantity security
Network Management	Web - based Graphical User Interface (GUI)
		CLI management based on Telnet, TFTP, Console
		Supports SNMP V1/V2/V3 management
		Supports RMON V1/V2 management
		Intelligent configuration utility
System Maintenance	Supports upgrade upload
		Supports system log viewing
		Supports WEB to restore factory settings

Applications

Highway Electromechanical System Architecture

The electromechanical systems in expressways primarily consist of toll collection, surveillance, and communication subsystems. As the foundational infrastructure, the communication system interconnects all subsystems, serving as the core for service delivery and information-based operations.The expressway's full-network communication adopts a fiber-optic ring network as its backbone, structured around Layer 3 Gigabit Industrial Ethernet Switches supporting fiber-optic ring topology.At each site access point, Layer 2 (or Layer 3) switches establish dedicated subnets for various services. These application subnets are segmented using Virtual Local Area Networks (VLANs) to meet distinct operational requirements.

product 2x10g sfp fiber 8x1g copper compact 82 port managed switch for office retail hotel-6

Industrial Switches for Oil & Gas Field Intelligence
Industrial Ethernet switches enable intelligent monitoring and management of oil/gas fields, enhancing production efficiency and operational safety. These switches withstand extreme field environments—including low/high temperatures, high altitude, humidity, and EMI—while delivering high-reliability, high-performance, stable, and secure network communications.
