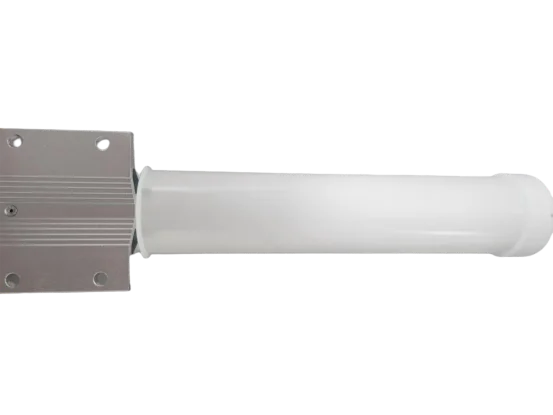

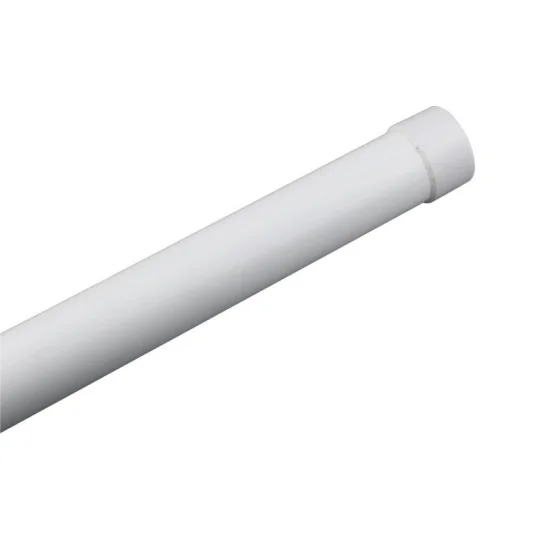

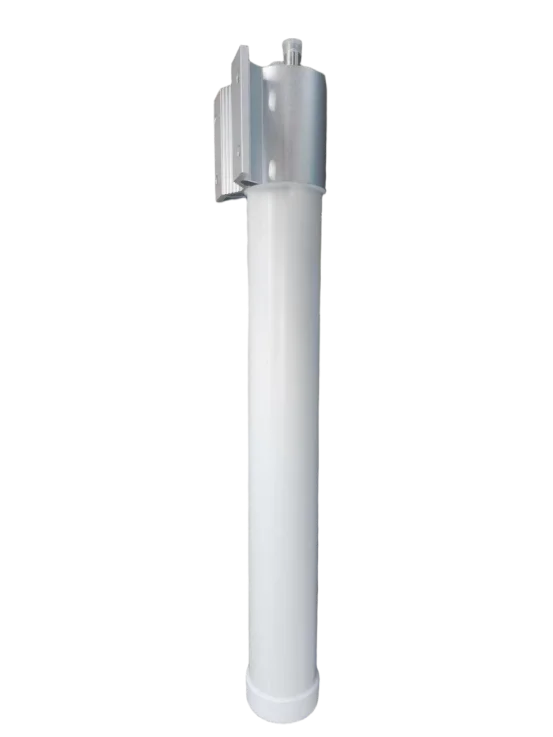

2xN-K Connectors 360° Coverage 8dBi Gain 1920-2170MHz Dual-Port MIMO Omnidirectional Antenna

2xN-K Connectors 360° Coverage 8dBi Gain 1920-2170MHz Dual-Port MIMO Omnidirectional Antenna

Description

[email protected]

Description

Product Description

1.Dual-Port MIMO Technology: Significantly improves data throughput and signal reliability by enabling multiple data streams.Experience enhanced network capacity and reduced signal dropouts in high-density user environments.

2.Wide 250MHz Bandwidth (1920-2170MHz): Supports multiple communication standards including 3G, 4G, and WLAN applications. One antenna solution for various network requirements, simplifying your infrastructure planning.
3.Redundant Dual N-K Connectors: Provides system redundancy and connection flexibility. Enables simultaneous multi-system operation or backup configurations, ensuring uninterrupted communication service.
4.Precision 17° Vertical Beamwidth: Combines full 360° horizontal coverage with focused vertical pattern. Delivers the perfect balance between coverage area and signal concentration for efficient spectrum utilization.
5.All-Weather PVC Construction: Withstands extreme temperatures from -40℃ to +60℃ and wind speeds up to 60m/s. The durable design ensures long-term reliability in harsh outdoor environments with minimal maintenance.

Product Detail

Electrical Performance
Frequency Range (MHz)	1920～2170
Bandwidth (MHz)	250
Polarization	Vertical
Voltage Standing Wave Ratio (VSWR)	≤2.0
Gain (dBi)	8
Horizontal 3dB Beamwidth (°)	360
Vertical 3dB Beamwidth (°)	17
Maximum Power (W)	100
Input Impedance (Ω)	50
Ground Protection	DC
Mechanical & Environmental Specifications
Connector Type	2×N-K
Antenna Dimensions (mm)	≤Φ85×800
Antenna Weight (excluding clamp, kg)	2
Radome Material	PVC (Polyvinyl Chloride)
Operating Temperature (℃)	-40～+60
Maximum Wind Speed (m/s)	60
Installation Method	Pole-Mounted
Pole Diameter (mm)	Φ40~Φ90
