Description

440 vac din rail mount 3 phase 3 wire emi power filter for cnc spindles lv products-1

[email protected]

Description

Product Description

Product Detail

Maximum operating voltage（VAC）	Operating frequency（Hz）	Hipot test voltage P-N(VDC) 、PN-E(VAC)	Operating temperatureHz	Minimum insulation resistance
380/440	50/60	2150（P-P，VDC）、2700（P-E，VDC）	-25~+85℃	>200M@500VDC

Product Model	Connections - Terminal	Connections - Guide rail	Current rating @40℃	Leakage current	Components - L (mH)	Components - Cx(μF)	Components - Cy(nF)	Components - R(MΩ)

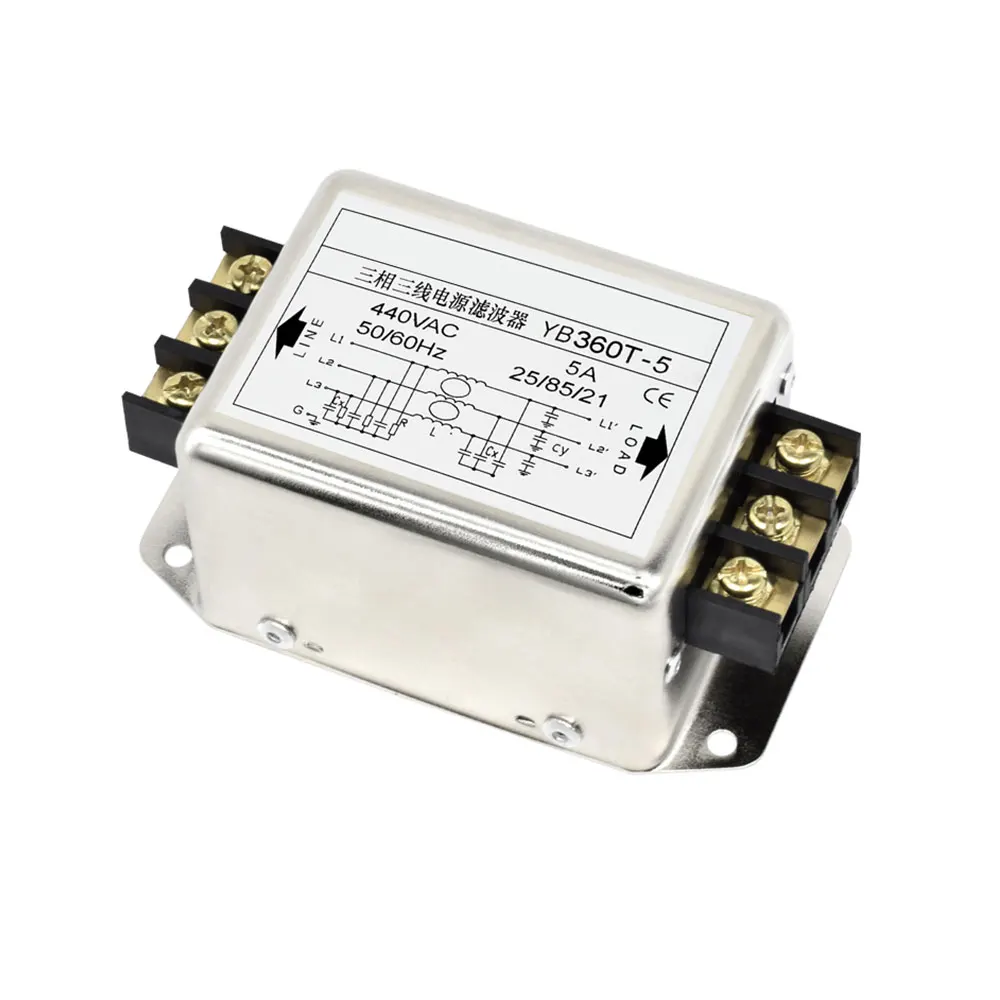

YB360T-5	√	----	5A	<1.5mA	3	0.47	10	1M
YB360T-10	√	----	10A	<1.5mA	1	0.47	10	1M
YB360T-16	√	----	16A	<1.5mA	0.8	0.47	10	1M
YB360T-20	√	----	20A	<1.5mA	0.8	0.47	10	1M
YB360T-30	√	----	30A	<1.5mA	0.5	0.47	10	1M

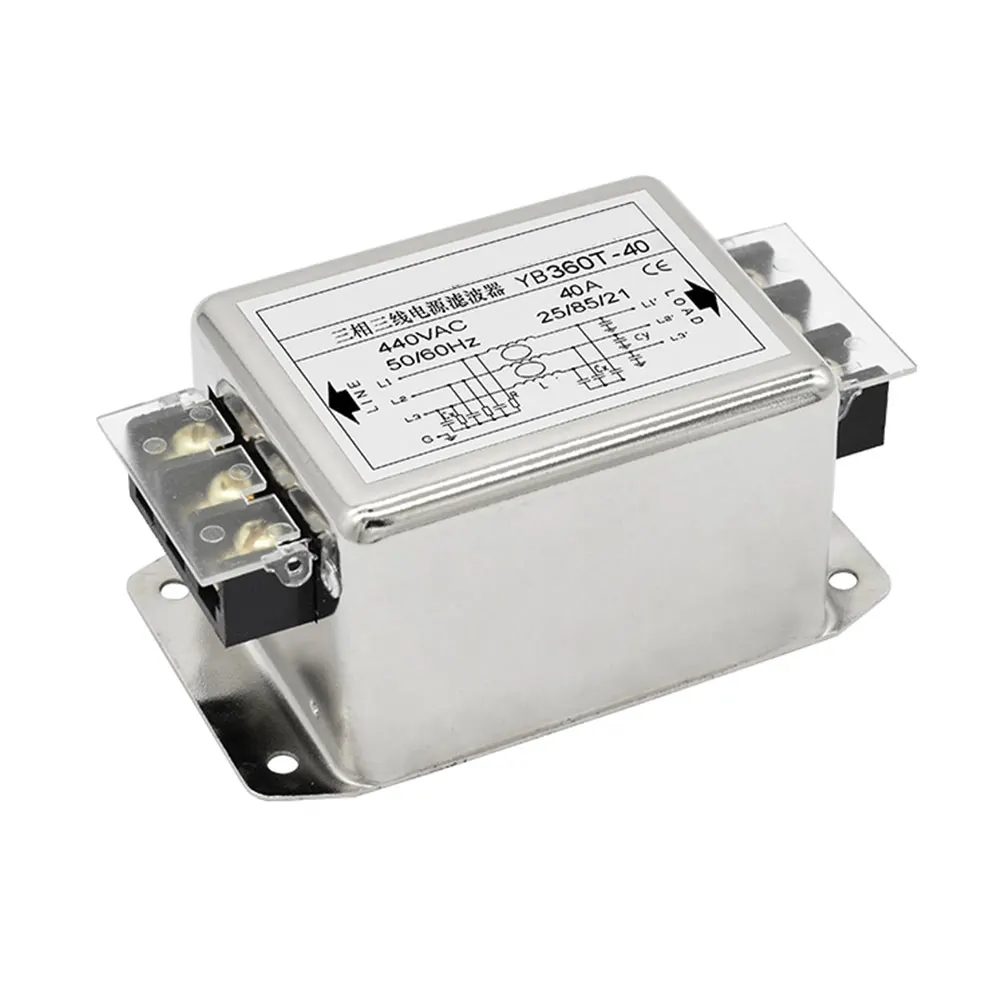

YB360T-40	√	----	40A	<1.5mA	0.5	0.47	10	1M
YB360T-50	√	----	50A	<1.5mA	0.3	0.47	10	1M
YB360T-60	√	----	60A	<1.5mA	0.3	0.47	10	1M
YB360TG-5	√	√	5A	<1.5mA	3	0.47	10	1M
YB360TG-10	√	√	10A	<1.5mA	1	0.47	10	1M

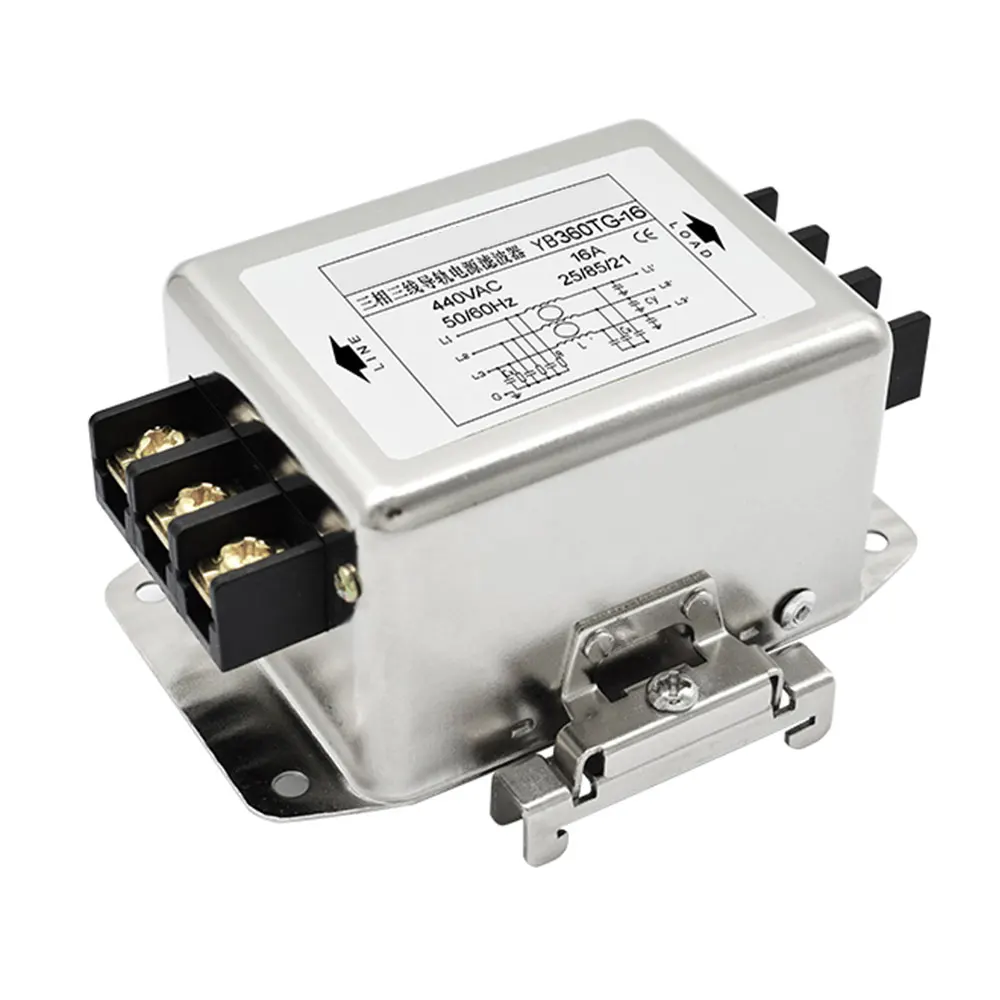

YB360TG-16	√	√	16A	<1.5mA	0.8	0.47	10	1M
YB360TG-20	√	√	20A	<1.5mA	0.8	0.47	10	1M
YB360TG-30	√	√	30A	<1.5mA	0.5	0.47	10	1M
YB360TG-40	√	√	40A	<1.5mA	0.5	0.47	10	1M
YB360TG-50	√	√	50A	<1.5mA	0.3	0.47	10	1M
YB360TG-60	√	√	60A	<1.5mA	0.3	0.47	10	1M

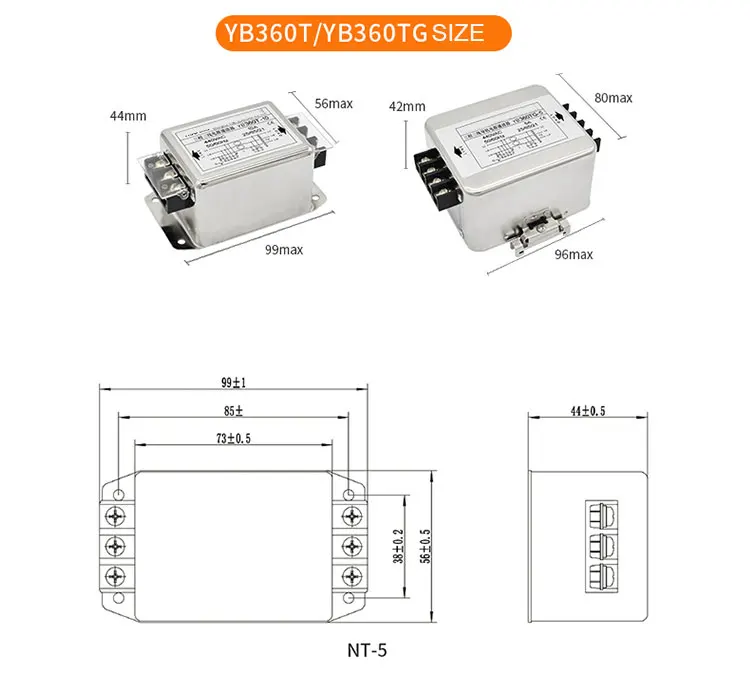

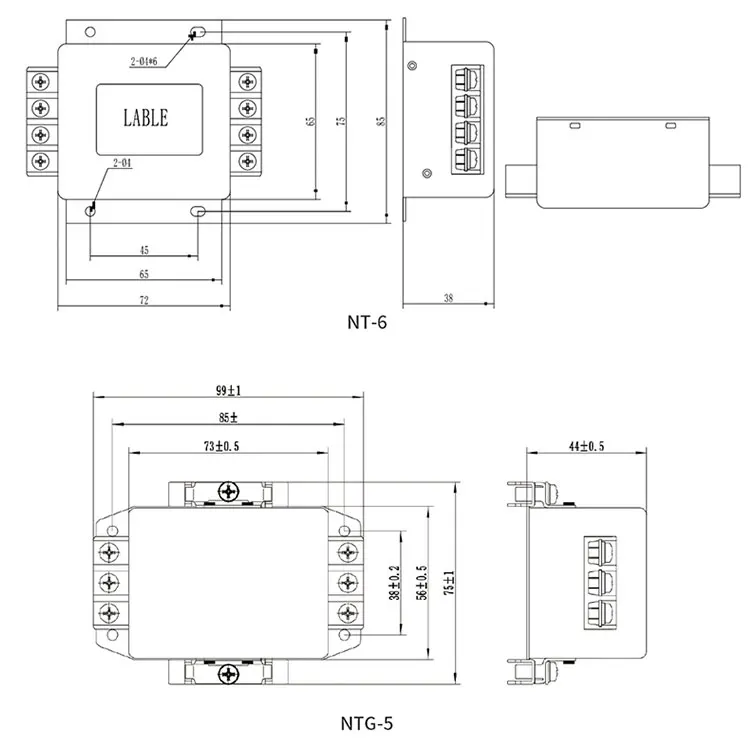

380/440 VAC DIN Rail Mount 3-Phase 3-Wire EMI Power Filter for CNC Spindles LV Products details

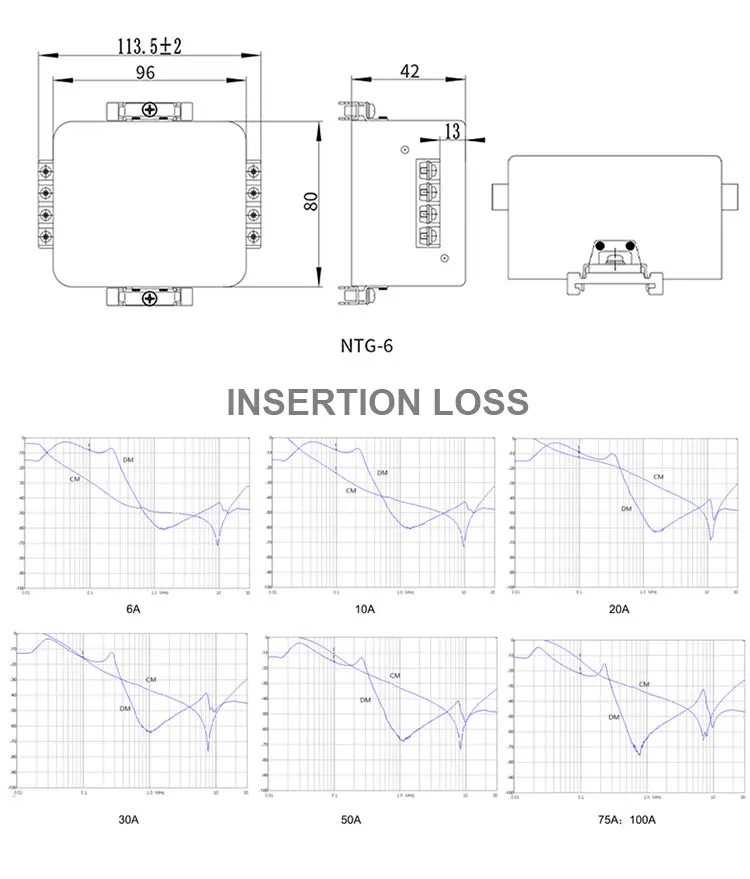

380/440 VAC DIN Rail Mount 3-Phase 3-Wire EMI Power Filter for CNC Spindles LV Products supplier

380/440 VAC DIN Rail Mount 3-Phase 3-Wire EMI Power Filter for CNC Spindles LV Products factory
