Home > Products > Others > Filters > Power Filter

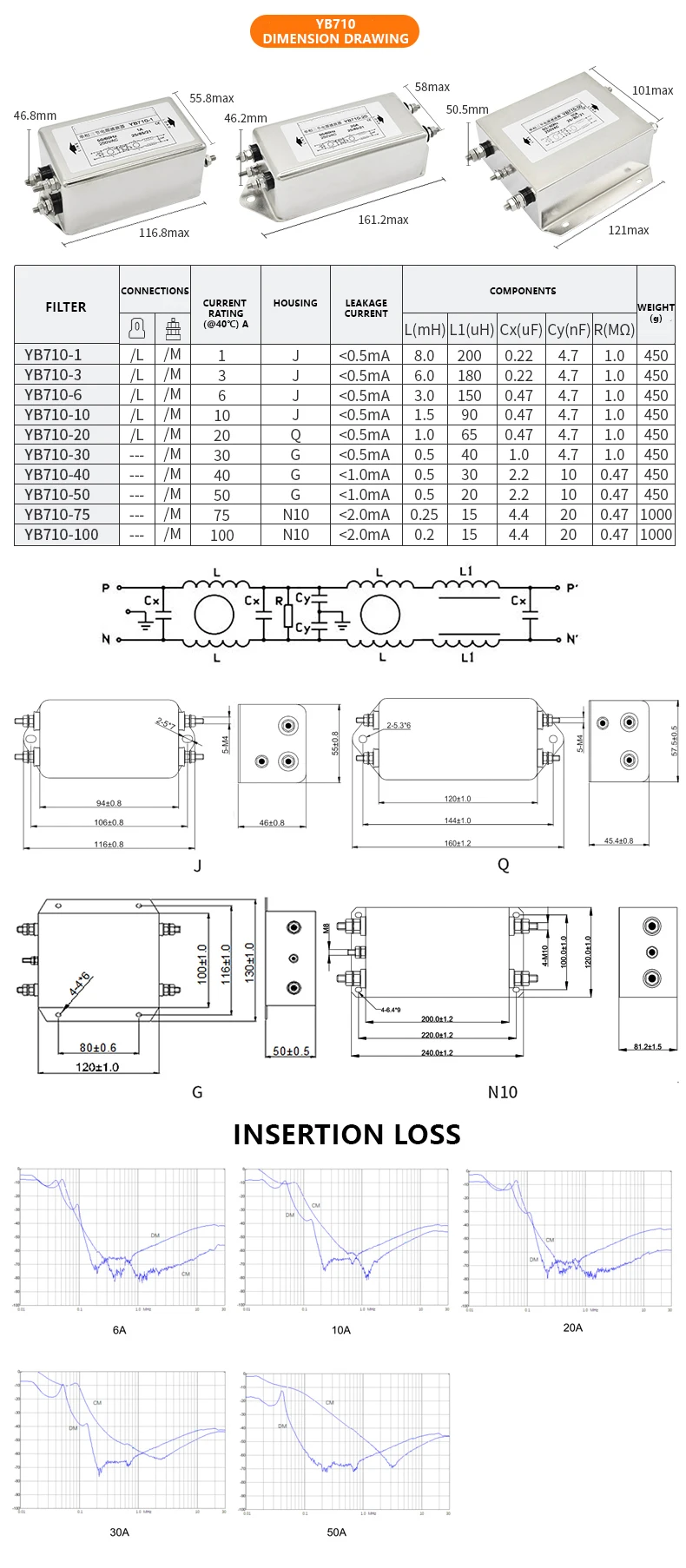

Maximum operating voltage（VAC） |
Operating frequency Hz |
Hipot test voltage
P-N(VDC) 、PN-E(VAC)
|
Operating temperatureHz |
Minimum insulation resistance |
250 |
50/60 |
1760（P-N，VDC）、2000（PN-E，VAC） |
-25~+85℃ |
>200M@500VDC |
Connections - Solder |
Connections - Bolts |
Current rating @40℃ |
Leakage current |
Components - L (mH) |
Components - L1(uH) |
Components - Cx(μF) |
Components - Cy(nF) |
Components - R(MΩ) |
Weight (g) |
/L |
/M |
1A |
<0.5mA |
8 |
200 |
0.22 |
4.7 |
1 |
450 |
/L |
/M |
3A |
<0.5mA |
6 |
180 |
0.22 |
4.7 |
1 |
450 |
/L |
/M |
6A |
<0.5mA |
3 |
150 |
0.47 |
4.7 |
1 |
450 |
/L |
/M |
10A |
<0.5mA |
1.5 |
90 |
0.47 |
4.7 |
1 |
450 |
/L |
/M |
20A |
<0.5mA |
1 |
65 |
0.47 |
4.7 |
1 |
450 |
---- |
/M |
30A |
<0.5mA |
0.5 |
40 |
1 |
4.7 |
1 |
450 |
---- |
/M |
40A |
<1.0mA |
0.5 |
30 |
2.2 |
10 |
0.47 |
450 |
---- |
/M |
50A |
<1.0mA |
0.5 |
20 |
2.2 |
10 |
0.47 |
450 |
---- |
/M |
75A |
<2.0mA |
0.25 |
15 |
4.4 |
20 |
0.47 |
1000 |
---- |
/M |
100A |
<2.0mA |
0.2 |
15 |
4.4 |
20 |
0.47 |
1000 |
