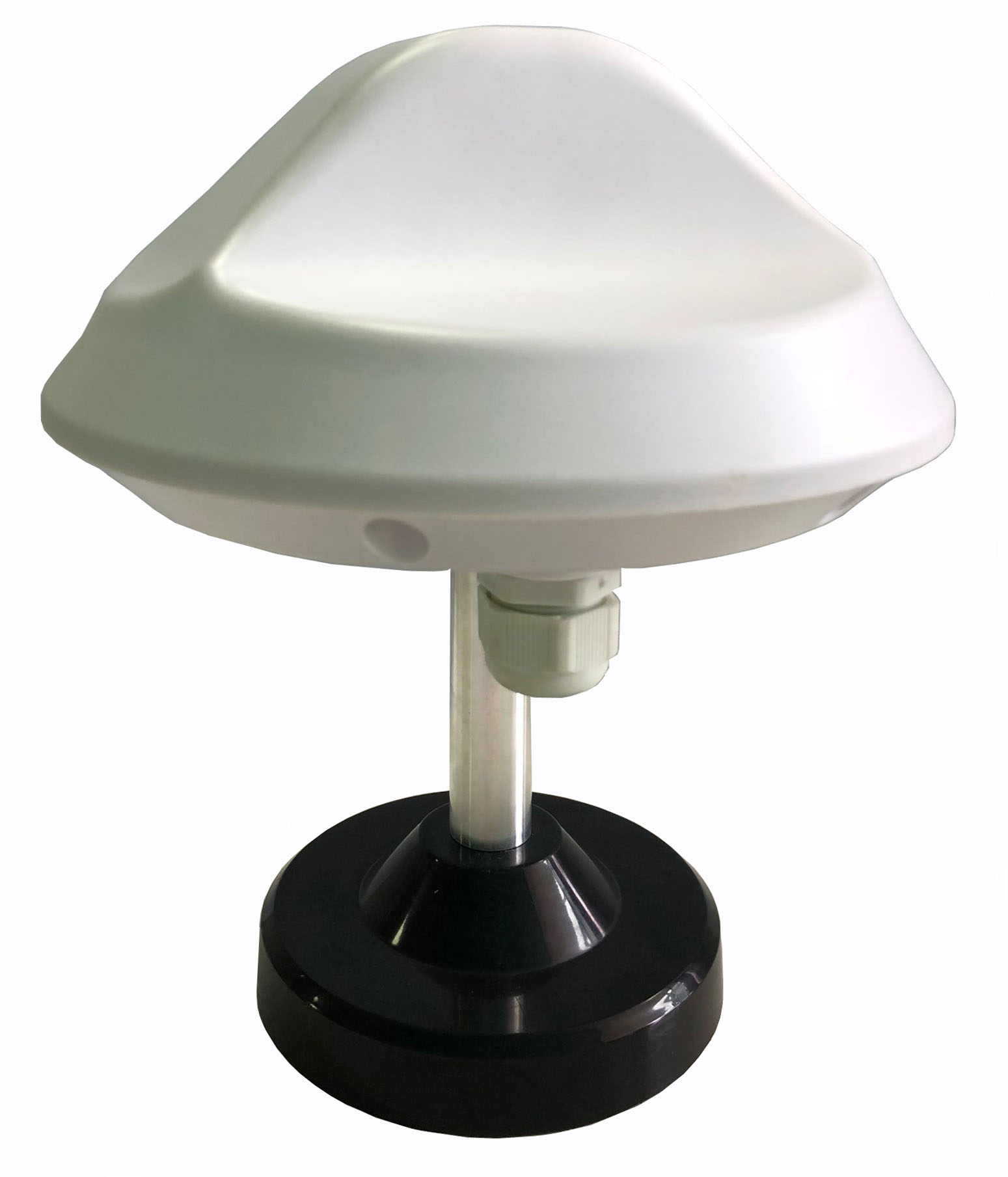

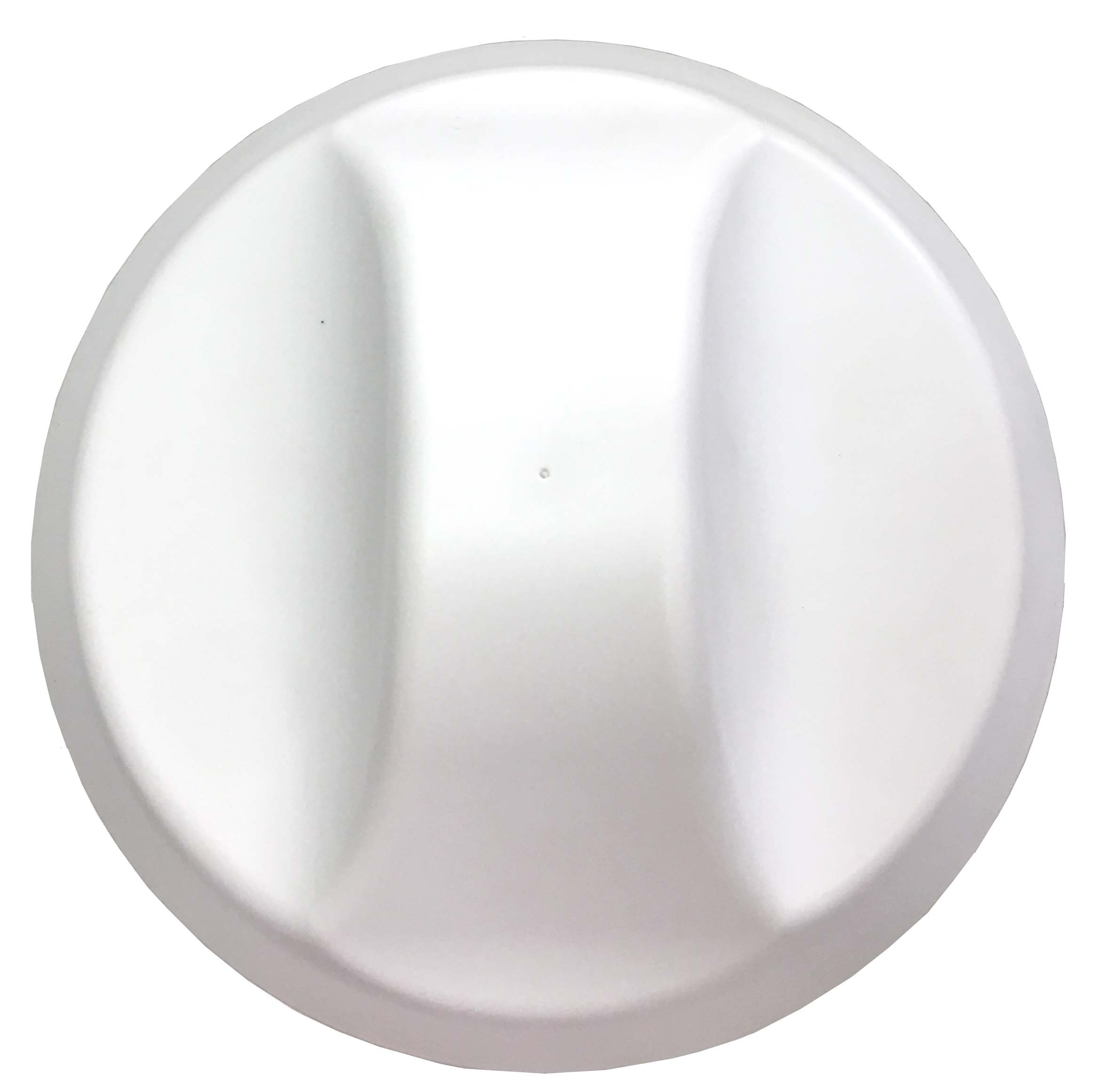

Introducing, the Yoongwin 3dBi Vehicle-Mounted Dual-Polarized Omnidirectional Antenna, the perfect solution for reliable communication on the go. This high-performance antenna operates within the frequency range of 5150-5850MHz, making it ideal for a wide range of communication applications.
Designed for easy installation on vehicles, this antenna boasts a sleek and compact design that won't compromise the aesthetic of your vehicle. The dual-polarized omnidirectional design ensures a strong and stable connection, even while in motion. With a gain of 3dBi, this antenna provides a strong signal reception and transmission, allowing you to stay connected wherever your travels take you.
The Yoongwin 3dBi Vehicle-Mounted Dual-Polarized Omnidirectional Antenna is built to withstand the rigors of outdoor use. Constructed from durable materials, this antenna is resistant to harsh weather conditions and will continue to perform reliably even in challenging environments. Whether you're on a remote job site, out in the wilderness, or simply navigating through urban areas, this antenna will keep you connected.
This versatile antenna is compatible with a wide range of communication devices, making it a convenient and cost-effective choice for your communication needs. Whether you're using it for cellular communication, Wi-Fi, or other wireless applications, the Yoongwin antenna delivers consistent and reliable performance.
Whether you're a professional on the road or a recreational traveler, the Yoongwin 3dBi Vehicle-Mounted Dual-Polarized Omnidirectional Antenna is a must-have accessory for staying connected. With its easy installation, durable construction, and exceptional performance, this antenna is sure to enhance your communication experience wherever you go.
Don't let unreliable connectivity slow you down – invest in the Yoongwin 3dBi Vehicle-Mounted Dual-Polarized Omnidirectional Antenna today and stay connected on the move. Trust Yoongwin for high-quality, dependable communication solutions that keep you connected when it matters most
Technical Indicators |
M2B - 58VH3A |
Frequency Range (MHz) |
5150 ~ 5850 |
Bandwidth (MHz) |
700 |
Polarization Mode |
Vertical/Horizontal |
Gain (dBi) |
3 |
Beam Width - ° |
H: 360；E: 55 |
Input Impedance (Ω) |
50 |
Voltage Standing Wave Ratio |
≤2 |
Maximum Power (W) |
20 |
RF Interface |
2×MMCX Right Angle - Built - in |
Exposed Interface |
PG16 Waterproof Fixed Connector |
Antenna Dimensions - mm |
Φ180×210 - Including Magnetic Adsorption Base |
Antenna Color |
White |
Antenna Weight - kg |
Approx. 2 |
Housing Material |
ABS |
Maximum Wind Speed (km/h) |
120 |
Mounting Method |
Magnetic Adsorption - Strong Magnet |
Remarks |
Can Built - in RF Main Board |
