Maximum operating voltage（VAC） |
Operating frequency Hz |
Hipot test voltage
P-N(VDC) 、PN-E(VAC)
|
Operating temperatureHz |
Minimum insulation resistance |
250 |
50/60 |
1760（P-N，VDC）、2000（PN-E，VAC） |
-25~+85℃ |
>200M@500VDC |

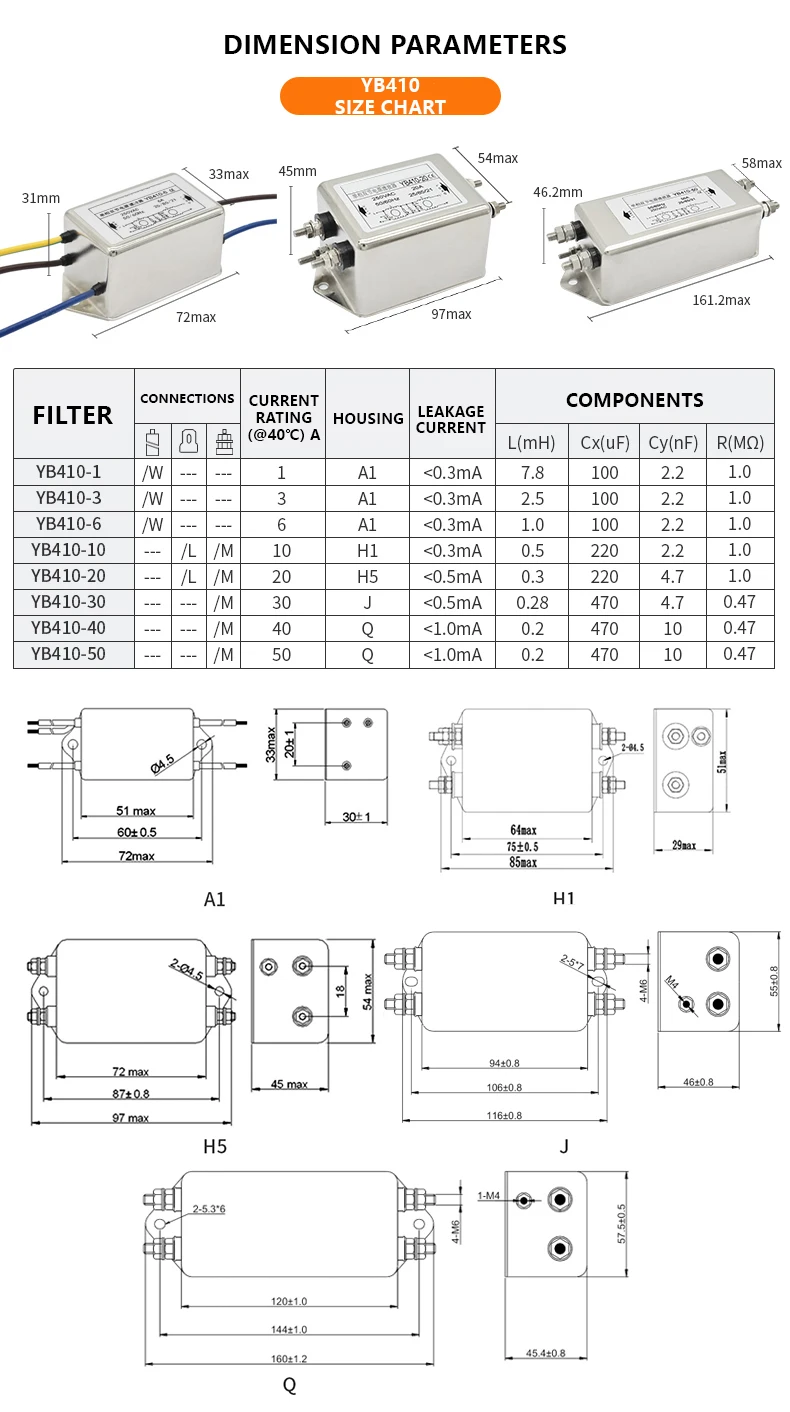

Product Model |

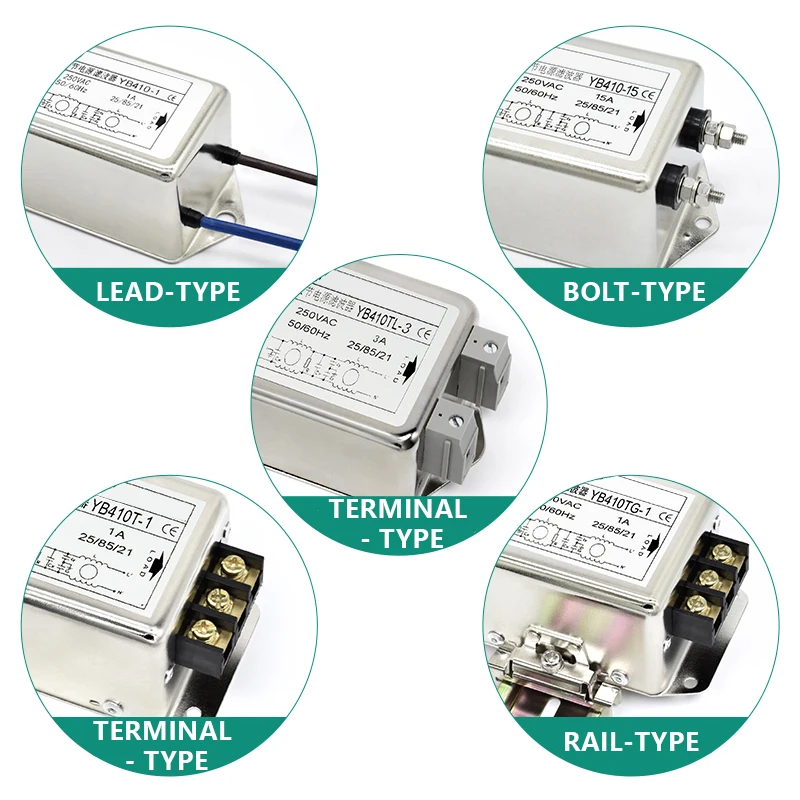

Connections - Wire |
Connections - Bolts |
Connections - Solder |
Current rating @40℃ |
Leakage current |
Components - L (mH) |
Components - Cx(μF) |
Components - Cy(nF) |
Components - R(MΩ) |

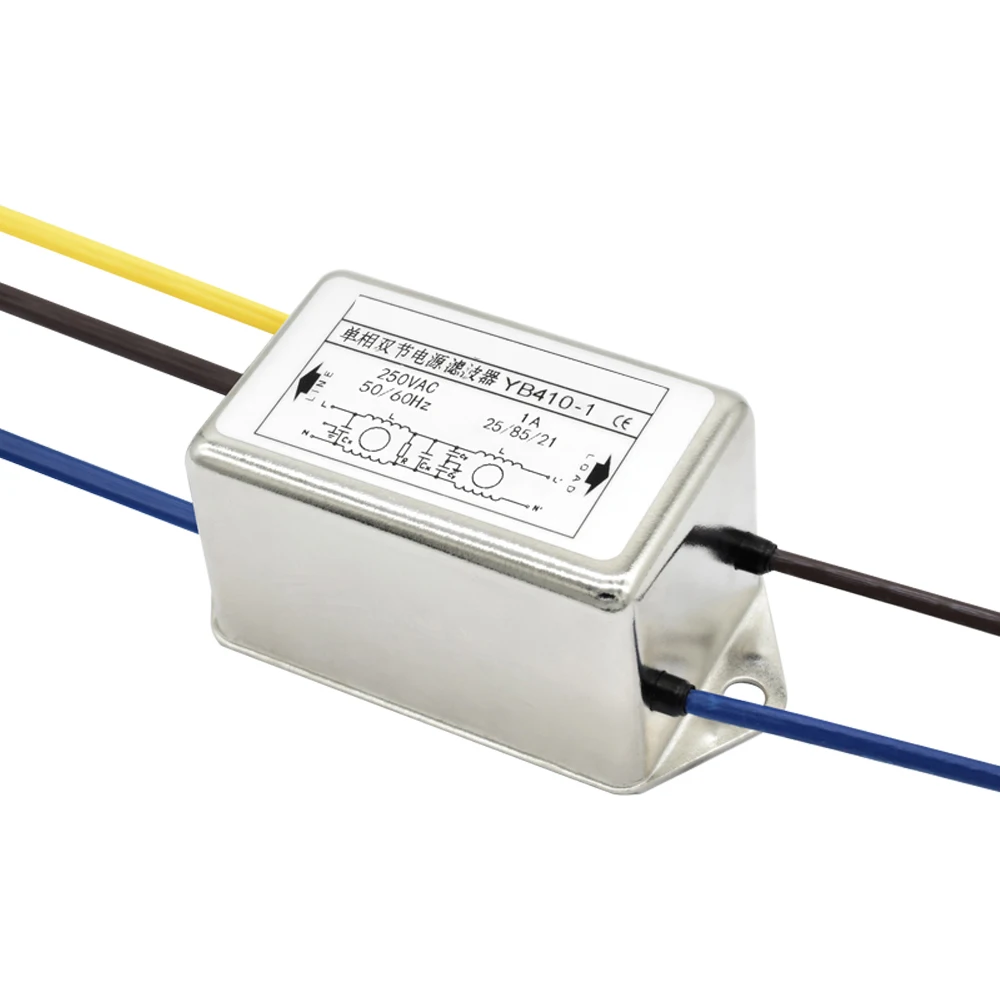

YB410-1 |
/W |
---- |
---- |
1A |
<0.3mA |
7.8 |
100 |
2.2 |
1 |
YB410-3 |
/W |
---- |
---- |
3A |
<0.3mA |
2.5 |
100 |
2.2 |
1 |
YB410-6 |
/W |
---- |
---- |
6A |
<0.3mA |
1 |
100 |
2.2 |
1 |
YB410-10 |
---- |
/M |
/L |
10A |
<0.3mA |
0.5 |
220 |
2.2 |
1 |

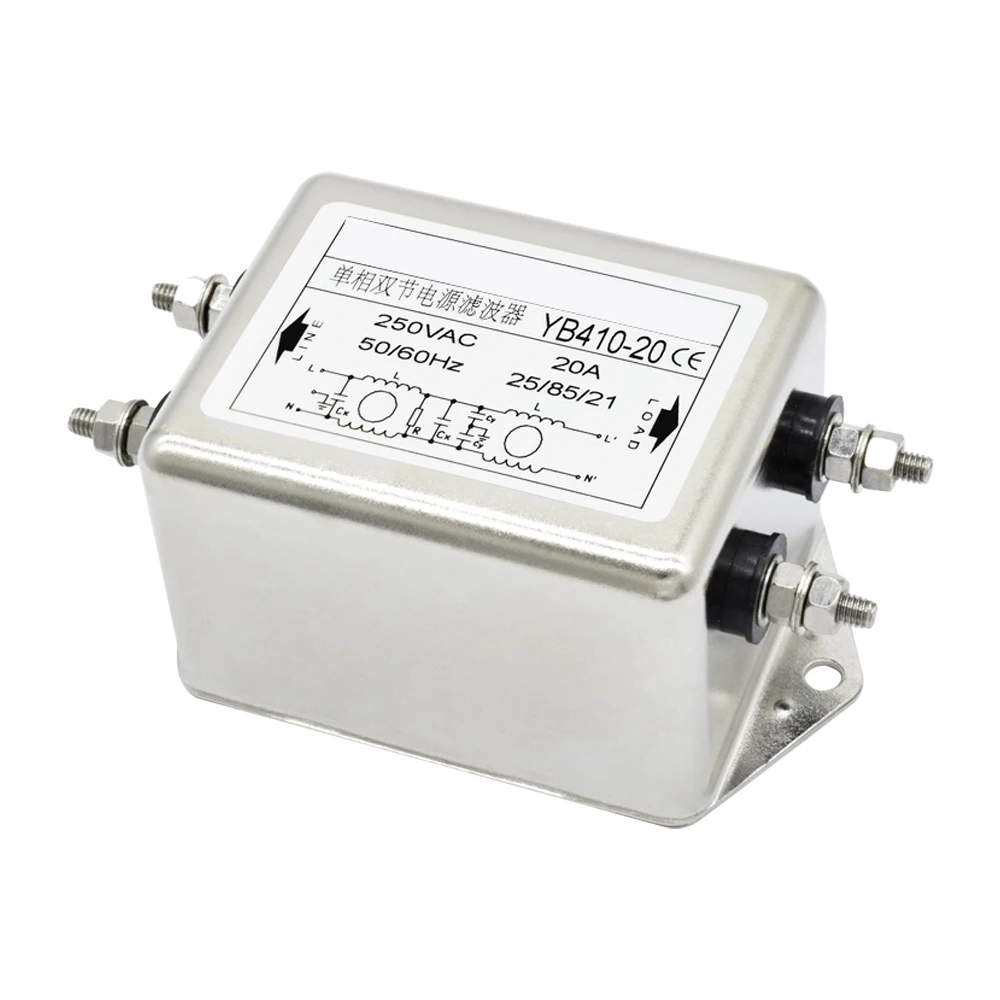

YB410-20 |
---- |
/M |
/L |
20A |
<0.5mA |
0.3 |
220 |
4.7 |
1 |
YB410-30 |
---- |
/M |
---- |
30A |
<0.5mA |
0.28 |
470 |
4.7 |
0.47 |

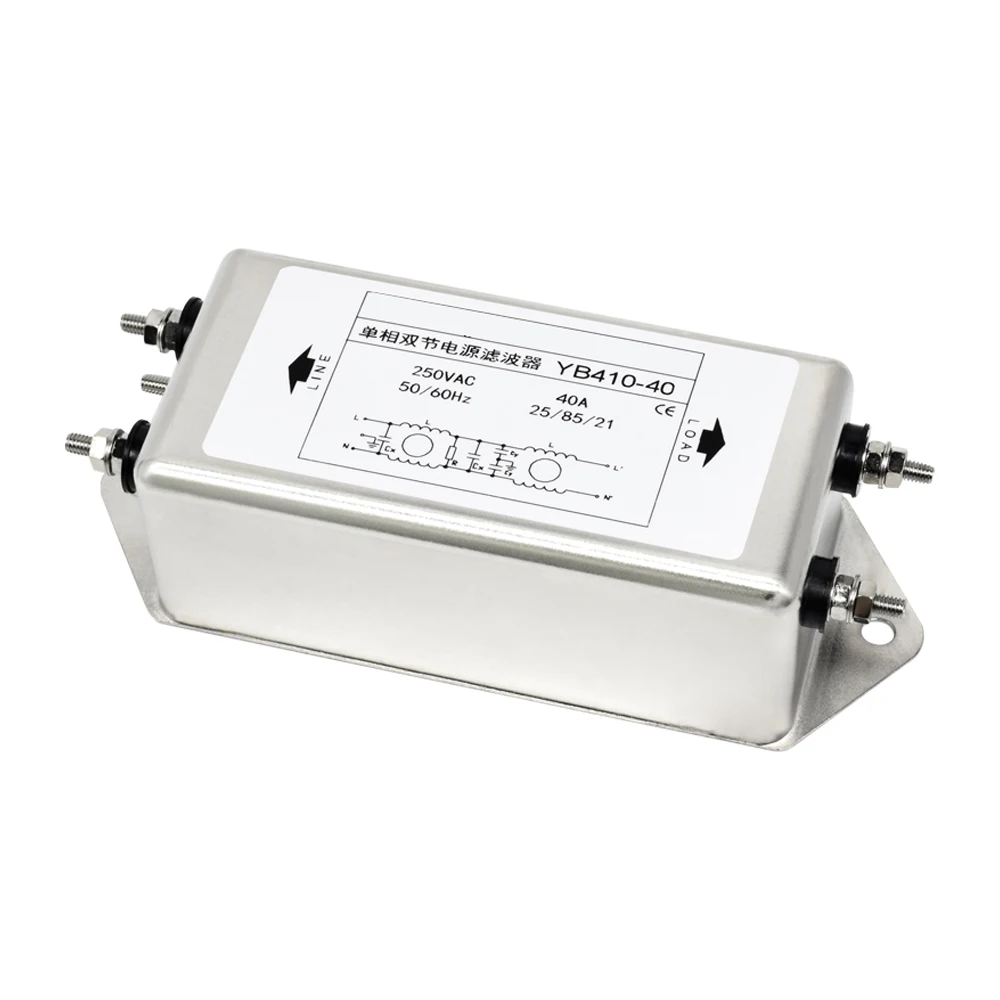

YB410-40 |
---- |
/M |
---- |
40A |
<1.0mA |
0.2 |
470 |
10 |
0.47 |
YB410-50 |
---- |
/M |
---- |
50A |
<1.0mA |
0.2 |
470 |
10 |
0.47 |
