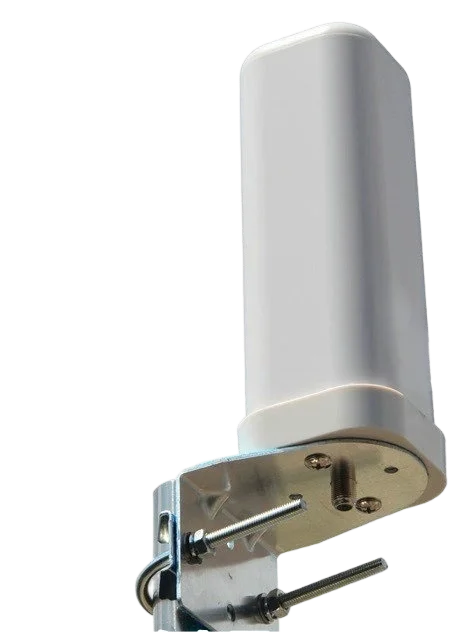

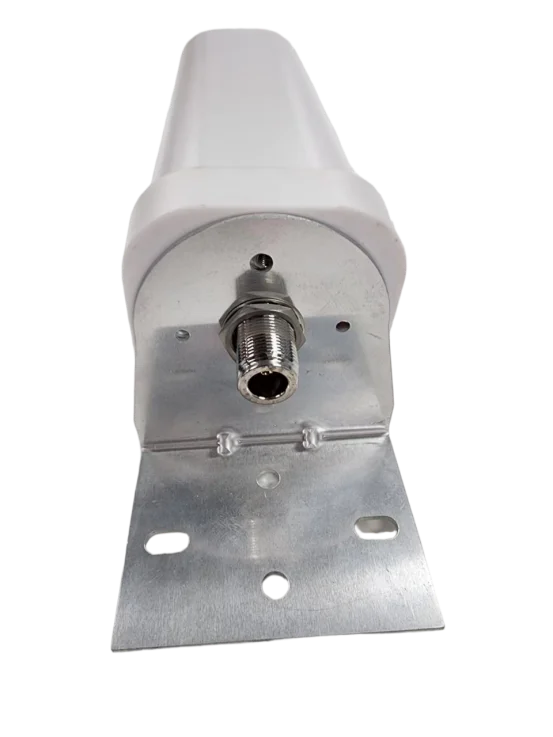

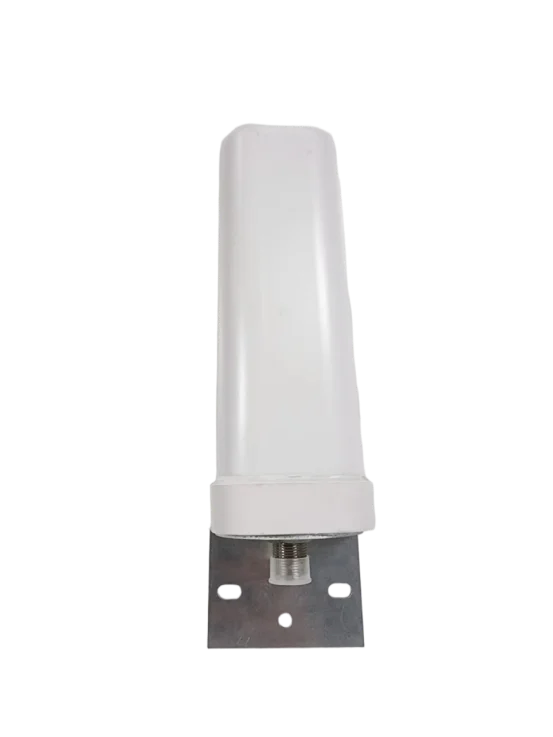

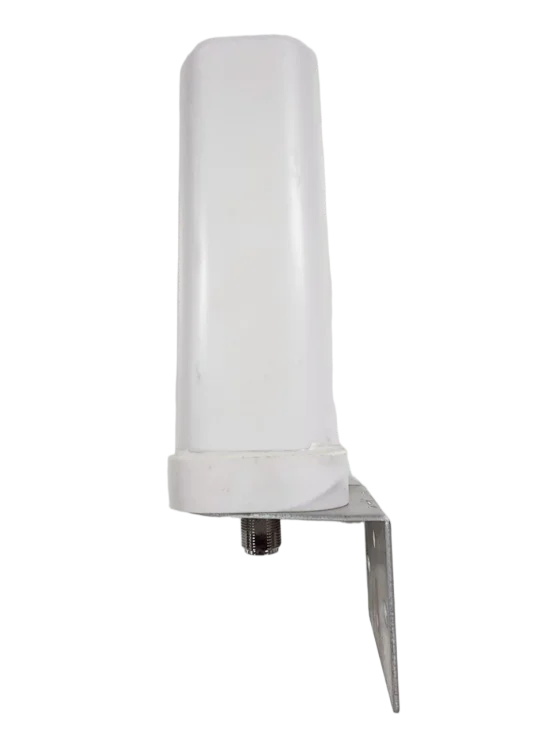

5150～5850MHz 8dBi 3×3 MIMO Omnidirectional Antenna |
||
Technical Specifications |
M3Q-58V8B |
|
Frequency Range (MHz) |
5150～5850 |
|
Bandwidth (MHz) |
700 |
|
Polarization |
Vertical |
|
Gain (dBi) |
8 |
|
Beamwidth (°) |
H: 360 E: 18 |
|
Input Impedance (Ω) |
50 |
|
Voltage Standing Wave Ratio (VSWR) |
≤2 |
|
Maximum Power (W) |
50 |
|
Connector Type |
3×N Female |
|
Lead Length (cm) |
10 or as specified by user |
|
Antenna Dimensions (mm) |
Φ82×220 |
|
Antenna Weight (kg) |
0.4 |
|
Cover Material |
PVC (White) |
|
Ultimate Wind Speed (m/s) |
60 |
|
Mast Diameter (mm) |
35~50 |
|
