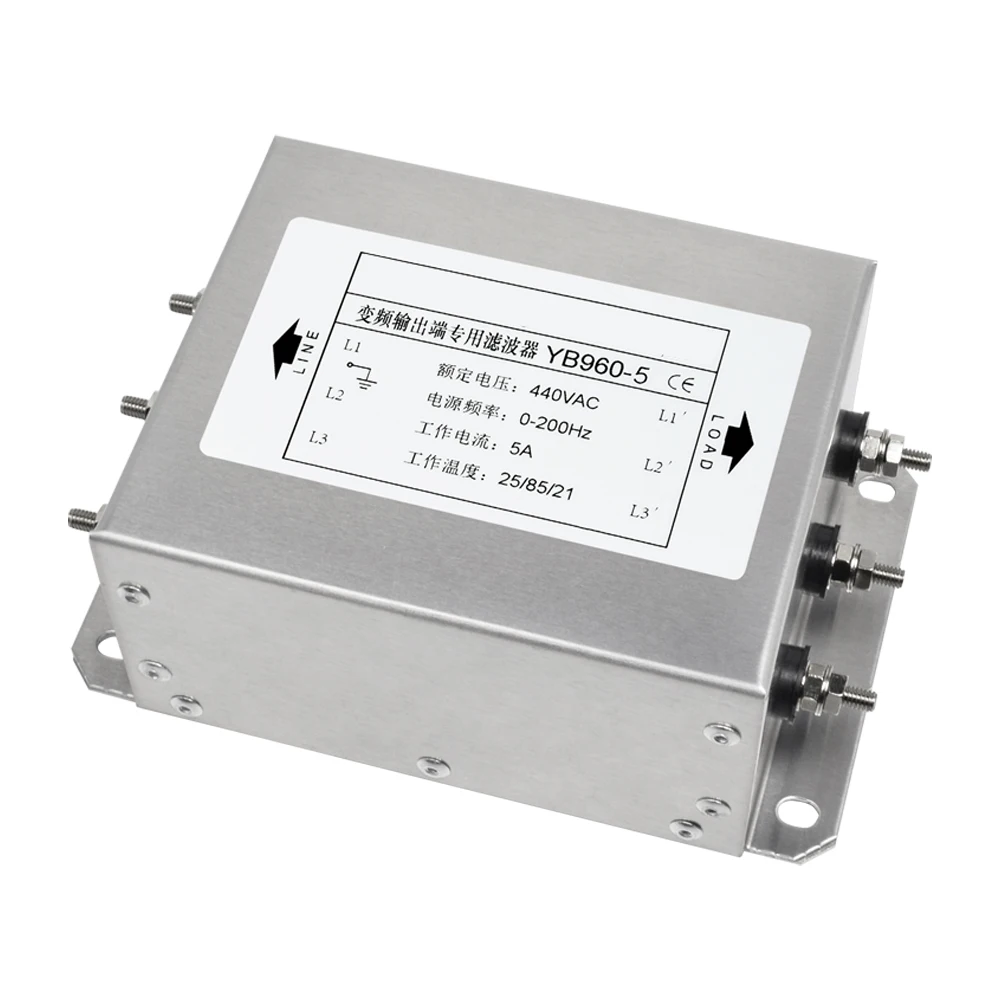

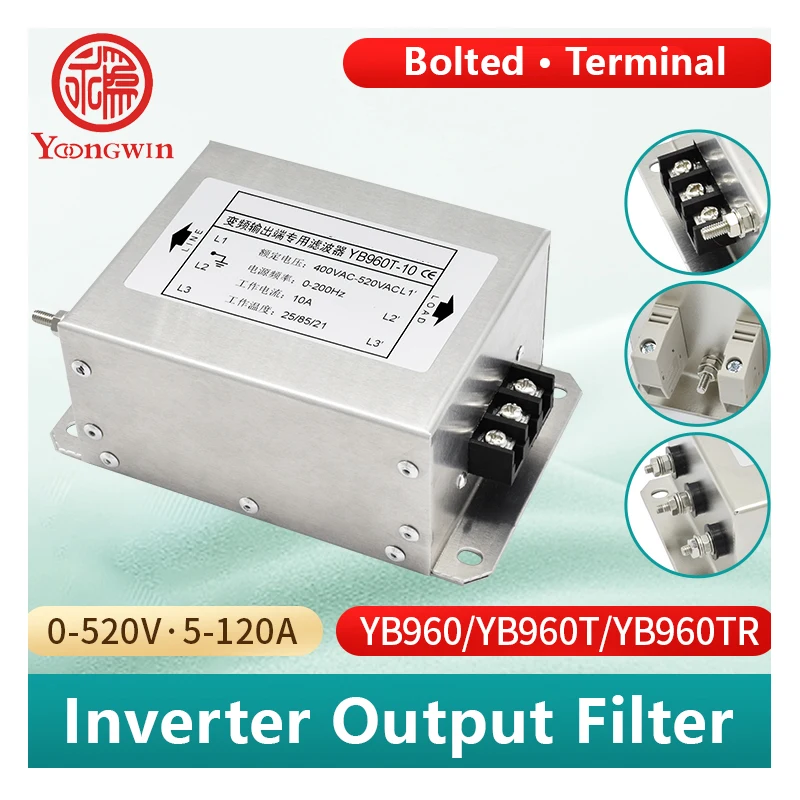

Introducing, the Yoongwin 440V Selectable LV Products 5A-1600A Inverter with Specific Output EMC Filter, a versatile and reliable solution for all your power conversion needs. This high-quality inverter is designed to provide seamless and efficient operation, making it the perfect choice for a wide range of applications.
With a selectable voltage range of 440V, this inverter is able to handle a variety of power requirements, making it a versatile option for any project. Whether you need to power industrial machinery or sensitive electronic equipment, the Yoongwin inverter has you covered.
The Yoongwin inverter is available in a range of sizes, from 5A to 1600A, ensuring that you can find the perfect model to suit your specific needs. Whether you need to power a small appliance or a large industrial system, this inverter is up to the task.
One of the standout features of the Yoongwin inverter is its specific output EMC filter. This filter helps to reduce electromagnetic interference, ensuring that your equipment runs smoothly and efficiently. With this filter in place, you can rest assured that your power conversion process will be reliable and consistent.
In addition to its high-quality construction and advanced features, the Yoongwin inverter is also incredibly easy to use. With user-friendly controls and a simple interface, you can quickly and easily set up and operate this inverter, saving you time and hassle.
When it comes to performance, the Yoongwin inverter delivers. With a robust design and high-quality components, this inverter is built to last. You can count on it to provide reliable power conversion for years to come.
The Yoongwin 440V Selectable LV Products 5A-1600A Inverter with Specific Output EMC Filter is a top-of-the-line solution for all your power conversion needs. With its versatile voltage range, range of sizes, specific output filter, and user-friendly design, this inverter is sure to impress. Invest in the Yoongwin inverter today and experience the difference for yourself
Maximum operating voltage （VAC） |
Operating frequency Hz |
Hipot test voltage
P - N(VDC) P - E - VDC
|
Operating temperatureHz |
Minimum insulation resistance |
|||||
440 |
50/60 |
2150 2700 |
25/85/21 |
>200M@500VDC |

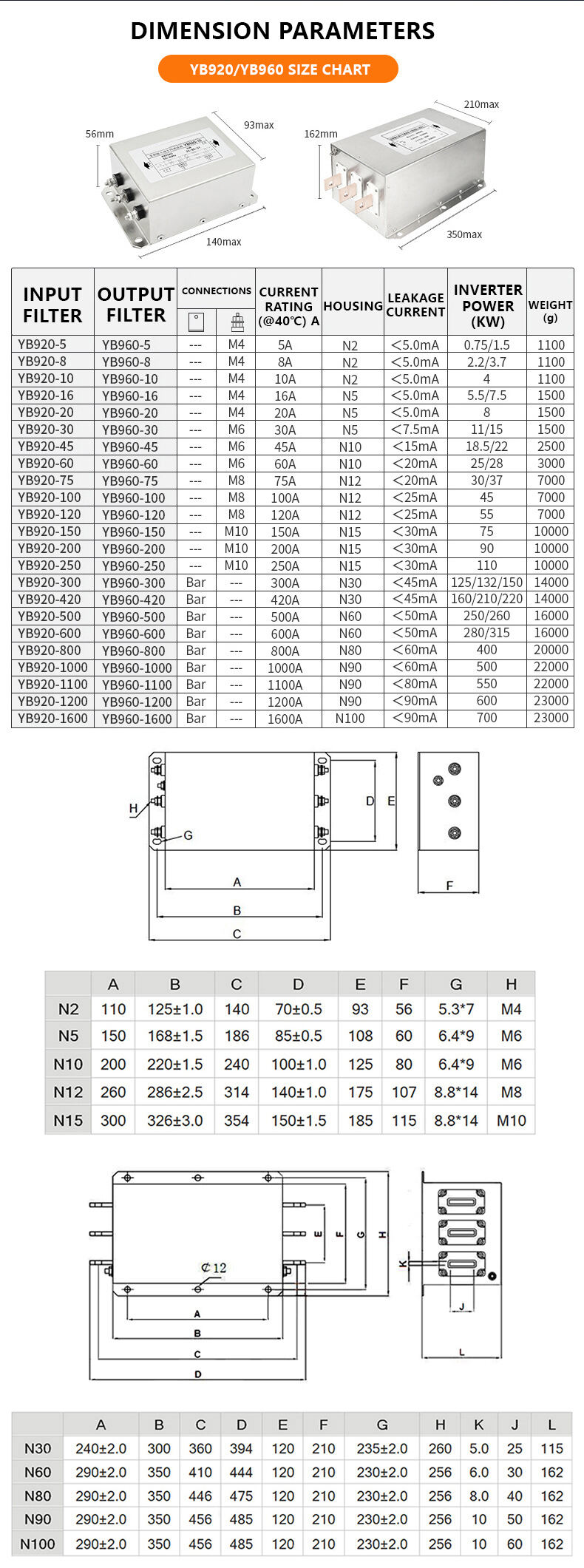

Product Model |
Current rating @40℃ |
Leakage current |
Inverter power - KW |
Connections - M4 |
Connections - Bar |
Weight - g |
YB960-5 |
5A |
<5.0ma<>
|
0.75/1.5 |
M4 |
---- |
1100 |
YB960-8 |
8A |
<5.0ma<>
|
2.2/3.7 |
M4 |
---- |
1100 |
YB960-10 |
10A |
<5.0ma<>
|
4 |
M4 |
---- |
1100 |
YB960-16 |
16A |
<5.0ma<>
|
5.5/7.5 |
M4 |
---- |
1500 |
YB960-20 |
20A |
<5.0ma<>
|
8 |
M4 |
---- |
1500 |
YB960-30 |
30A |
<7.5ma<>
|
11.0/15.0 |
M6 |
---- |
1500 |
YB960-45 |
45A |
<15ma<>
|
18.5/22 |
M6 |
---- |
2500 |
YB960-60 |
60A |
<20ma<>
|
25/28 |
M6 |
---- |
3000 |
YB960-75 |
75A |
<20ma<>
|
30/37 |
M8 |
---- |
7000 |
YB960-100 |
100A |
<25ma<>
|
45 |
M8 |
---- |
7000 |
YB960-120 |
120A |
<25ma<>
|
55 |
M8 |
---- |
7000 |
YB960-150 |
150A |
<30ma<>
|
75 |
M10 |
---- |
10000 |
YB960-200 |
200A |
<30ma<>
|
90 |
M10 |
---- |
10000 |
YB960-250 |
250A |
<30ma<>
|
110 |
M10 |
---- |
10000 |
YB960-300 |
300A |
<45ma<>
|
125/132/150 |
---- |
Bar |
14000 |
YB960-420 |
420A |
<45ma<>
|
160/210/220 |
---- |
Bar |
14000 |
YB960-500 |
500A |
<50ma<>
|
250/260 |
---- |
Bar |
16000 |
YB960-600 |
600A |
<50ma<>
|
280/315 |
---- |
Bar |
16000 |
YB960-800 |
800A |
<60ma<>
|
400 |
---- |
Bar |
20000 |
YB960-1000 |
1000A |
<60ma<>
|
500 |
---- |
Bar |
22000 |
YB960-1100 |
1100A |
<80ma<>
|
550 |
---- |
Bar |
22000 |
YB960-1200 |
1200A |
<90ma<>
|
600 |
---- |
Bar |
23000 |
YB960-1600 |
1600A |
<90ma<>
|
700 |
---- |
Bar |
23000 |
