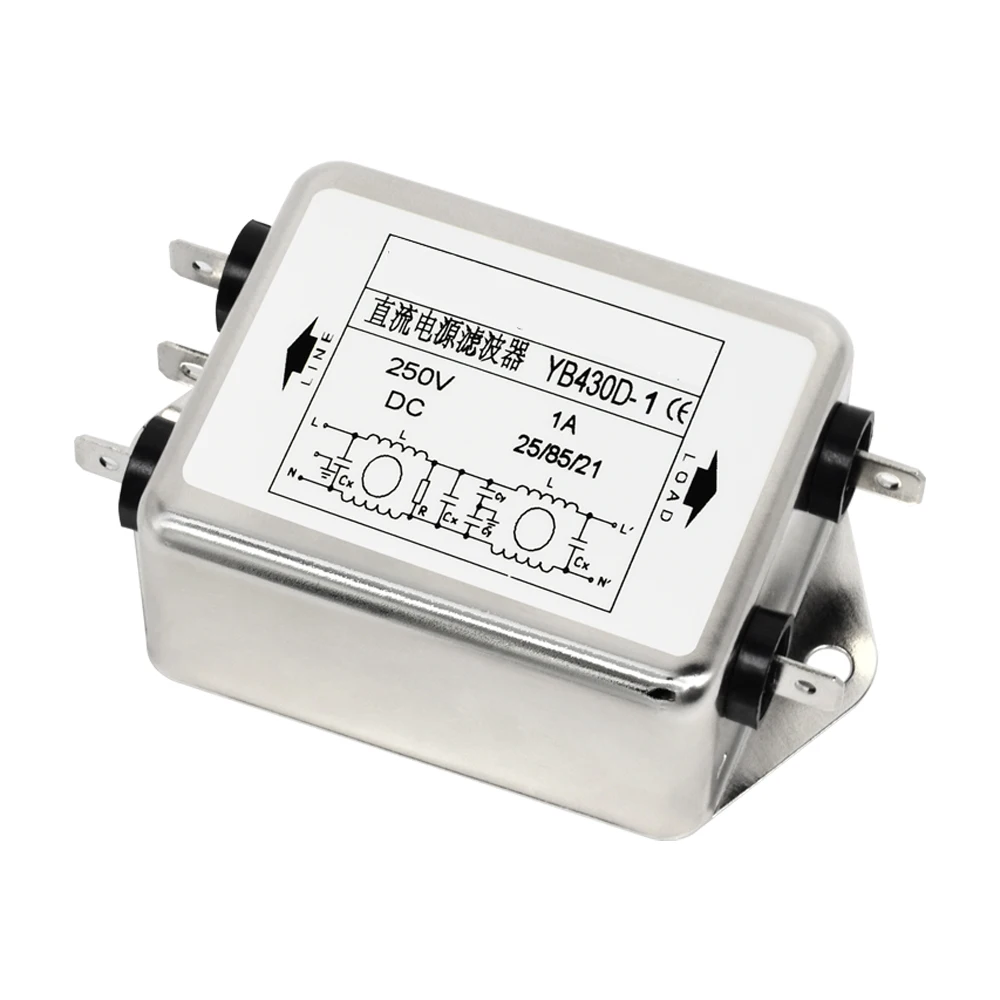

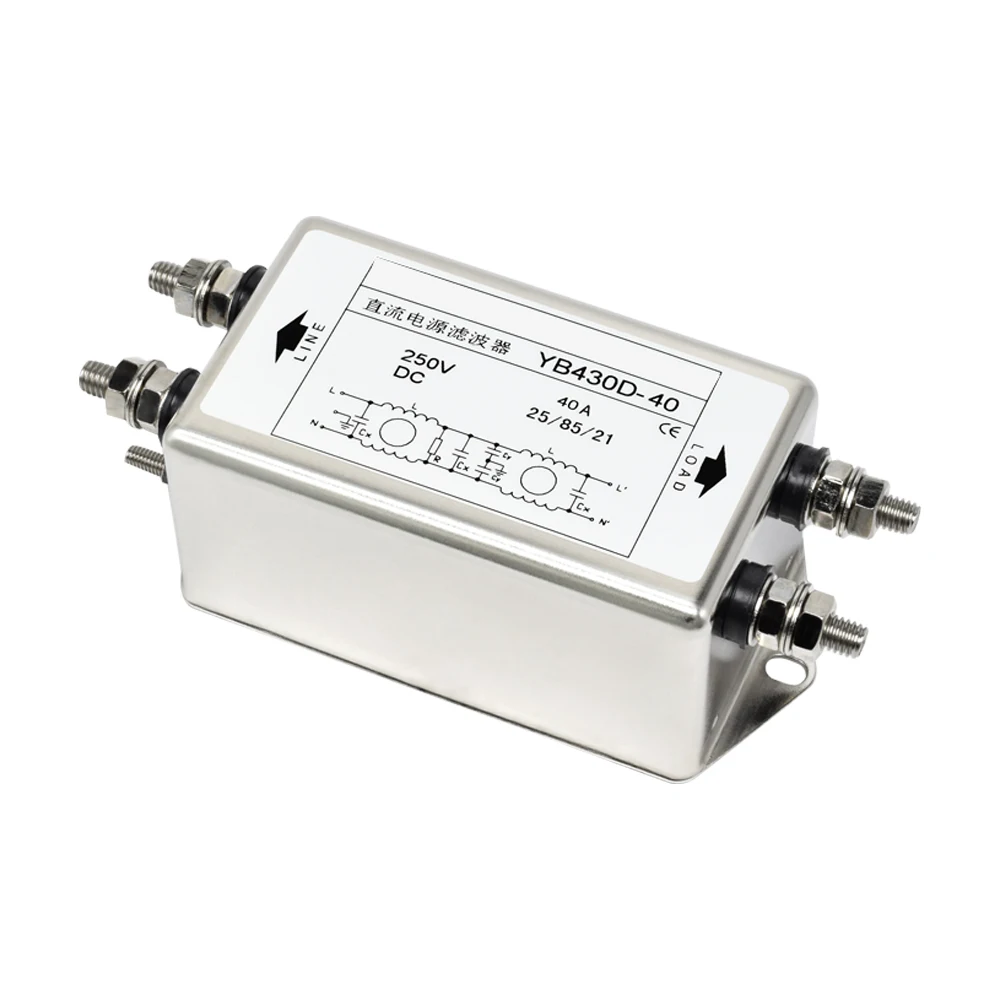

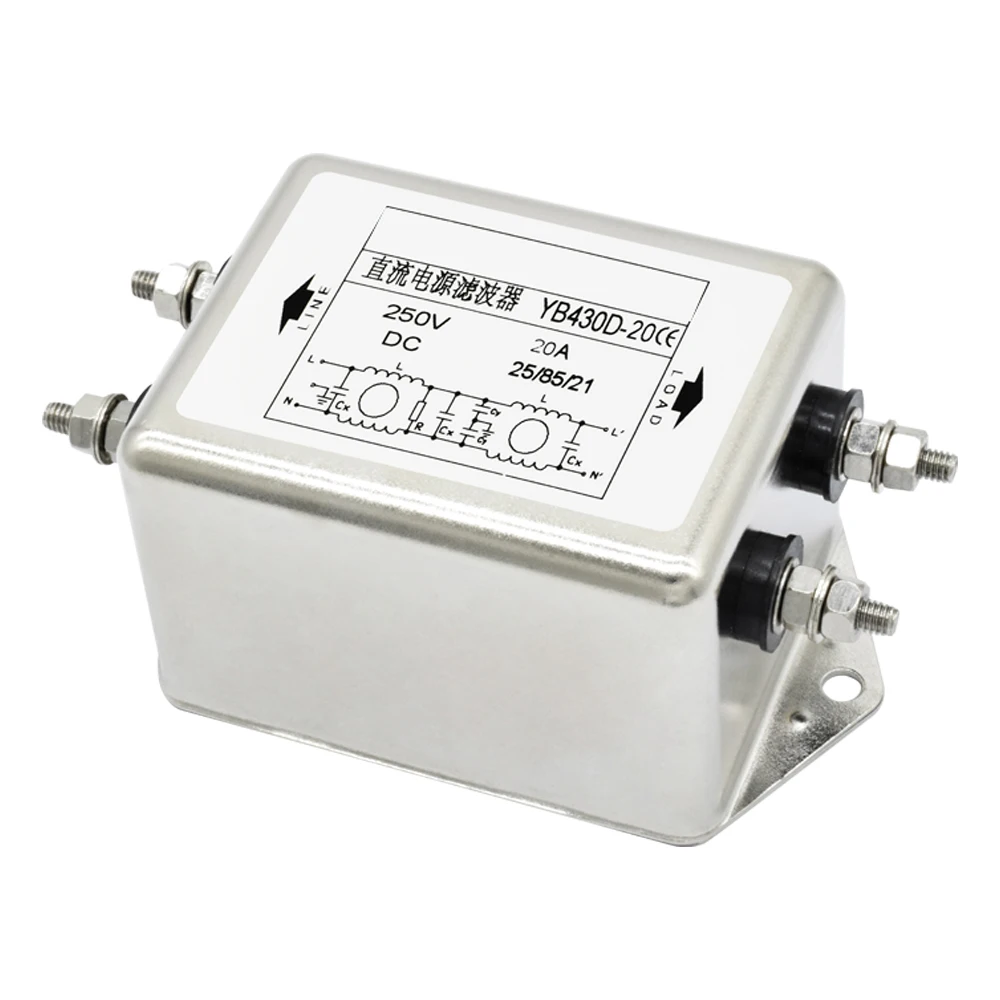

Introducing, the Selectable 250V DC Two-Section Power Filter LV Products from Yoongwin. This innovative product is designed to provide effective filtering and protection for your devices, ensuring a smooth and reliable power supply.
With multiple current options available - 3A, 6A, 10A, 15A, 20A, and 30A - you can choose the perfect fit for your specific needs. Whether you are looking to power up small electronics or larger appliances, Yoongwin has you covered.
The two-section design of this power filter allows for enhanced filtering capabilities, ensuring that your devices are protected from unwanted electrical interference and noise. This results in improved performance and longevity for your electronics.
Installing the Selectable 250V DC Two-Section Power Filter LV Products is quick and easy, allowing you to enjoy the benefits of reliable power protection in no time. Simply connect the filter to your power source and enjoy the peace of mind knowing that your devices are safeguarded.
Yoongwin is a trusted brand known for its high-quality, reliable products. With the Selectable 250V DC Two-Section Power Filter LV Products, you can trust that you are getting a top-of-the-line power filter that will deliver on its promises.
Say goodbye to power surges and electrical disturbances with the Selectable 250V DC Two-Section Power Filter LV Products from Yoongwin. Keep your devices safe and running smoothly with this essential power protection solution.
Don't settle for subpar power protection - invest in the best with Yoongwin's Selectable 250V DC Two-Section Power Filter LV Products. Upgrade your power supply today and enjoy peace of mind knowing that your devices are safe and secure
Maximum operating voltage（VDC） |
Operating frequency Hz |
Hipot test voltage
P-N(VDC)、PN-E - VDC
|
Operating temperatureHz |
Minimum insulation resistance |
|||||
250 |
DC |
1000（P-N，VDC）、1000（PN-E，VDC） |
-25~+85℃ |
>200M@500VDC |

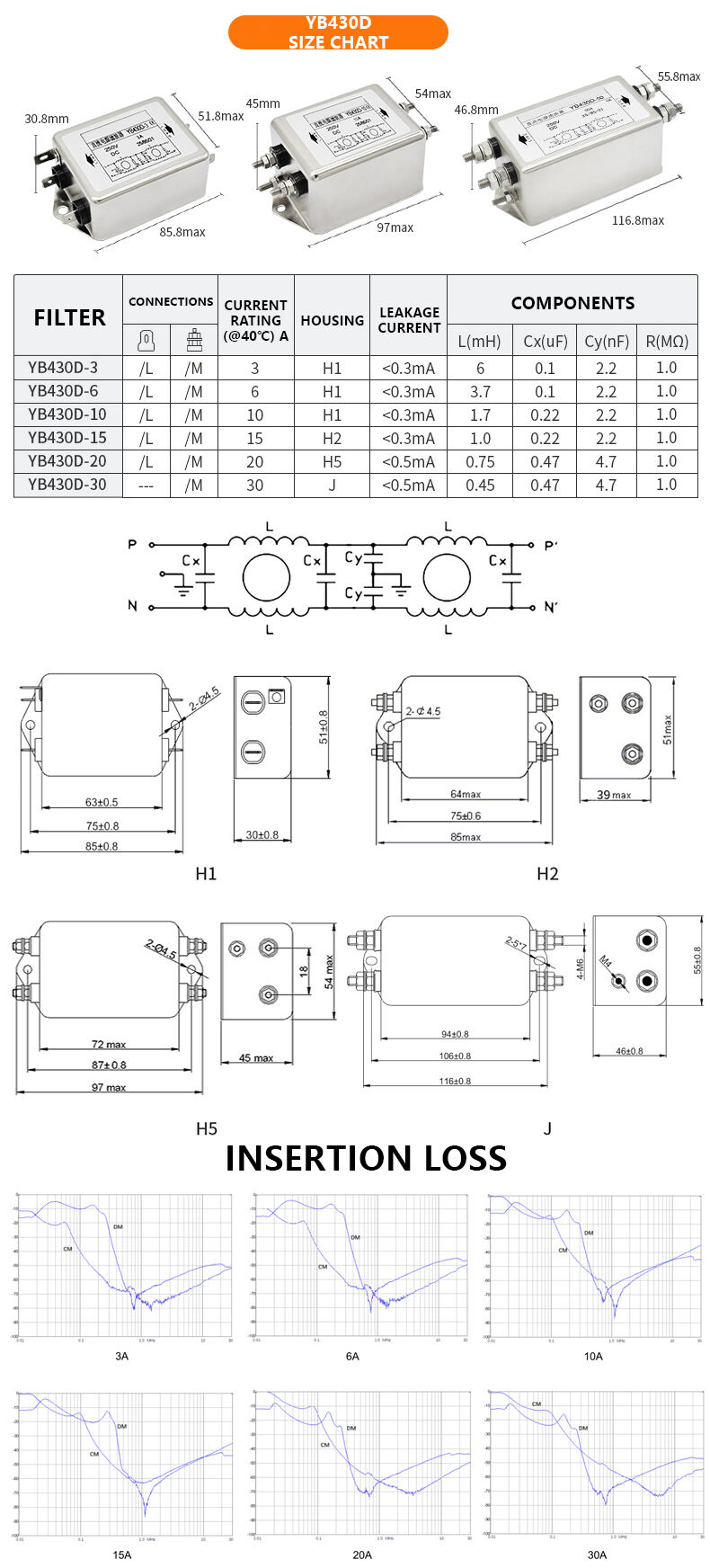

Product Model |
Connections - Bolts |
Connections - Solder |
Current rating @40℃ |
Leakage current |
Components - L - mH |
Components - Cx - μF |
Components - Cy - nF |
Components - R - MΩ |
YB430D-3 |
/M |
/L |
3A |
<0.3ma<>
|
6 |
0.1 |
2.2 |
1 |
YB430D-6 |
/M |
/L |
6A |
<0.3ma<>
|
3.7 |
0.1 |
2.2 |
1 |
YB430D-10 |
/M |
/L |
10A |
<0.3ma<>
|
1.7 |
0.22 |
2.2 |
1 |
YB430D-15 |
/M |
/L |
15A |
<0.3ma<>
|
1 |
0.22 |
2.2 |
1 |
YB430D-20 |
/M |
/L |
20A |
<0.5ma<>
|
0.75 |
0.47 |
4.7 |
1 |
YB430D-30 |
/M |
---- |
30A |
<0.5ma<>
|
0.45 |
0.47 |
4.7 |
1 |
