Home > Products > Wireless Communication > Routers > Portable WiFi Devices

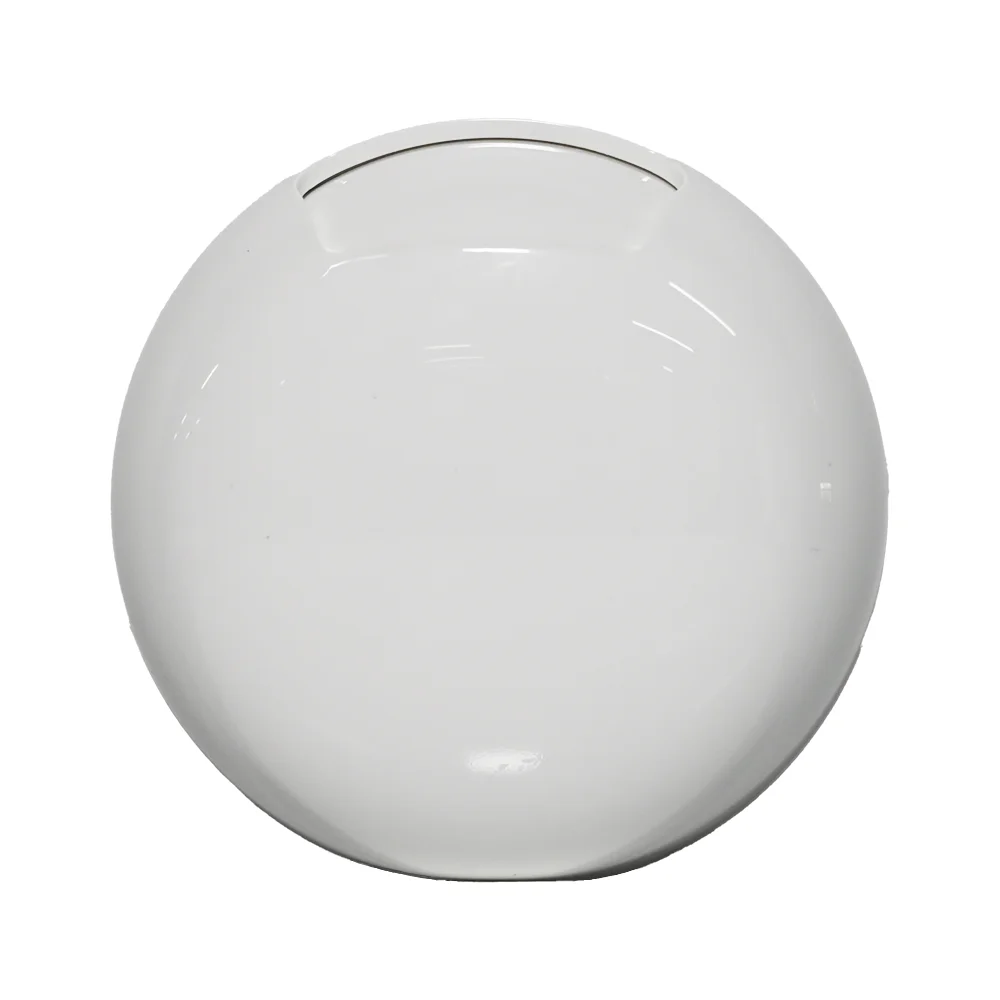

Introducing, the Yoongwin 4G Pocket WiFi Router, the ultimate solution for staying connected on-the-go. This innovative device is designed for those who need fast and reliable internet access wherever they are. With its Type-C Sim Card compatibility, you can easily insert your own Sim Card and enjoy instant connectivity.
The Yoongwin 4G Pocket WiFi Router is perfect for outdoor adventures, allowing you to stay connected while exploring remote areas or traveling internationally. With its mini size and lightweight design, you can easily slip it into your pocket or bag and take it with you wherever you go.
With support for international roaming, the Yoongwin 4G Portable WiFi allows you to seamlessly connect to networks around the world. Whether you're traveling for business or pleasure, you can rely on this device to keep you connected and informed.
This mobile hotspot is capable of providing high-speed internet access, making it ideal for streaming, browsing, and video calling. With its 4G technology, you can enjoy fast and stable connections, allowing you to stay productive and connected no matter where you are.
The Yoongwin 4G Pocket WiFi Router is easy to set up and use, making it perfect for users of all levels. Simply insert your Sim Card, turn on the device, and connect your devices to the WiFi network. You can also manage your connections and settings through the user-friendly interface.
Whether you're a frequent traveler, outdoor enthusiast, or remote worker, the Yoongwin 4G Pocket WiFi Router is the perfect companion for staying connected on-the-go. Say goodbye to unreliable public WiFi networks and slow internet speeds – with this device, you can enjoy fast and stable internet access wherever you are.
Don't miss out on the opportunity to experience the convenience and reliability of the Yoongwin 4G Pocket WiFi Router. Stay connected, stay informed, and stay productive with this innovative mobile hotspot. Order yours today and take your connectivity to the next level
Hardware |
||
Solution |
TM22G+SV6158-M |
|
Memory |
2Gb |
|
Flash |
512Mb |
|
Ethernet port |
None |
|
Interface |
1 Type-C power interface |
|
Button |
1 Reset button |
|
Indicator lights |
1 green-orange dual-color LED system light 1 green-orange dual-color LED charging light |
|
Antenna |
Built-in professional Wi-Fi and 4G antennas |
|
Operating temperature and humidity |
0~40°C, 10%～90% non-condensing |
|
Storage humidity |
-10~60°C, 5%～95% non-condensing |
|
External dimensions |
81.6X81.6X37 mm |
|
Overall weight |
128g |
|
Battery |
3300mAh |
|
Power supply specification |
Type-C 5V/2A |
|
Wi-Fi |
||||
Technical Standards |
2.4GHz |
802.11b/g/n |
||
Modulation Methods |
802.11b |
1/2/5.5/11Mbps |
||
802.11g |
6/9/12/18/24/36/48/54Mbps |
|||
802.11n |
MCS0~7 |
|||
2.4GHz |
Maximum Speed |
150Mbps |
||
Frequency Bands |
2.4GHz: HE20: CH1 to CH13
HE40: CH3 to CH11 |
|||
Wi-Fi Spatial Stream |
1T1R |
|||
Channel Bandwidth |
2.4GHz: 20/40MHz |
|||
Maximum Number of Accesses |
8 |
|||
Cellular |
||||
Module |
Module Model |
TM22G |
||
Applicable Region |
Global |
|||
Cellular Frequency Bands |
LTE FDD |
B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B17/B18/B19/B20/B25/B26/B28AB/B66 |
||
TDD-LTE |
B34/B38/B39/B40/B41 |
|||
WCDMA |
B1 |
|||
GSM/GPRS/EDGE |
B1/B2/B4/B5/B8 |
|||
Cellular Data Rates |
FDD |
Maximum uplink rate 50Mbps, Maximum downlink rate 150Mbps |
||
TDD |
Maximum uplink rate 35Mbps, Maximum downlink rate 130Mbps |
|||
