65° H-Beamwidth 12dBi Gain 1710-2700MHz 6-Port Clustered Base Station Antenna for High-Density Coverage

65° H-Beamwidth 12dBi Gain 1710-2700MHz 6-Port Clustered Base Station Antenna for High-Density Coverage

Description

[email protected]

Description

Product Description

1. Space-Saving 6-Port Clustered Design
Integrates six independent ports into a single compact unit (Φ200×600mm), dramatically saving tower space and simplifying site deployment for multi-operator scenarios.

2. Wide 65° Beam for Broad Coverage
Features a 65°±10 horizontal beamwidth, providing extensive coverage ideal for urban cells and areas requiring wide-angle signal distribution.

3. Excellent Isolation and Low Intermodulation
Boasts high port-to-port isolation (≥23dB) and outstanding third-order intermodulation (140dBc), ensuring clear signal quality and minimal interference in congested networks.

4. Stable Performance with Precision Downtilt
Offers electrical downtilt functionality with high accuracy (±1°), allowing for remote and precise network optimization to enhance signal quality and reduce interference.

5. Robust Outdoor Build for Harsh Conditions
Constructed with a UPVC radome and rated for operation from -40°C to +60°C, it is built to deliver reliable long-term performance in demanding outdoor environments.

Product Detail

Electrical Indicators
Frequency (MHz)	1710 ~ 2700
Polarization Mode	±45°
Gain (dBi)	12±1
Electrical Downtilt Angle (°)	0
Accuracy of Electrical Downtilt Angle (°)	±1
Horizontal Beamwidth (°)	65±10
Vertical Beamwidth (°)	30±5
Front - to - back Ratio (dB)	≥20
Isolation (dB)	≥23
Cross Polarization Ratio (dB)	Axial ≥15 (±60°±10)
Third - order Intermodulation (2×43dBm)	140dBc
Input Impedance (Ω)	50
VSWR	≤1.5
Power Handling (W)	100
Ground Protection	DC
Mechanical Parameters

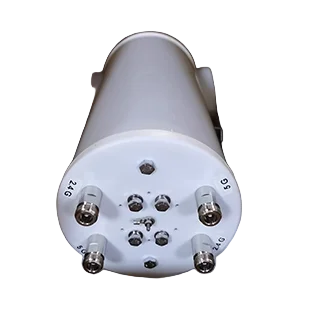

Connector Type	6*N - K
Connector Position	Bottom
Radome Material	UPVC
Radome Color	Gray
Dimension (mm)	Φ200×600
Mechanically Adjustable Angle (°)	0
Limit Wind Speed (m/s)	60
Operating Temperature (°C)	- 40 ~ +60
Pole Size (mm)	Φ35 - 43

Application Scenarios

1.High-Capacity Urban Cell Sites: Ideal for dense urban areas where multiple operators or carriers need to be accommodated on a single antenna platform to save space and reduce visual impact.

2.4G/LTE and 5G Network Densification: Supports the key 1.7-2.7 GHz band, making it suitable for expanding network capacity and coverage in crowded spectrum environments.

3.Base Station Sharing and Co-location: The 6-port design is perfect for sites shared by multiple operators, simplifying infrastructure and reducing rental costs.

4.Shopping Malls and Stadiums: Provides wide horizontal coverage (65°) suitable for large indoor or semi-indoor venues with high user concentration.

5.Traffic Roads and Suburban Coverage: The balanced beamwidth offers a good blend of coverage and capacity for linear and wider area deployments.
