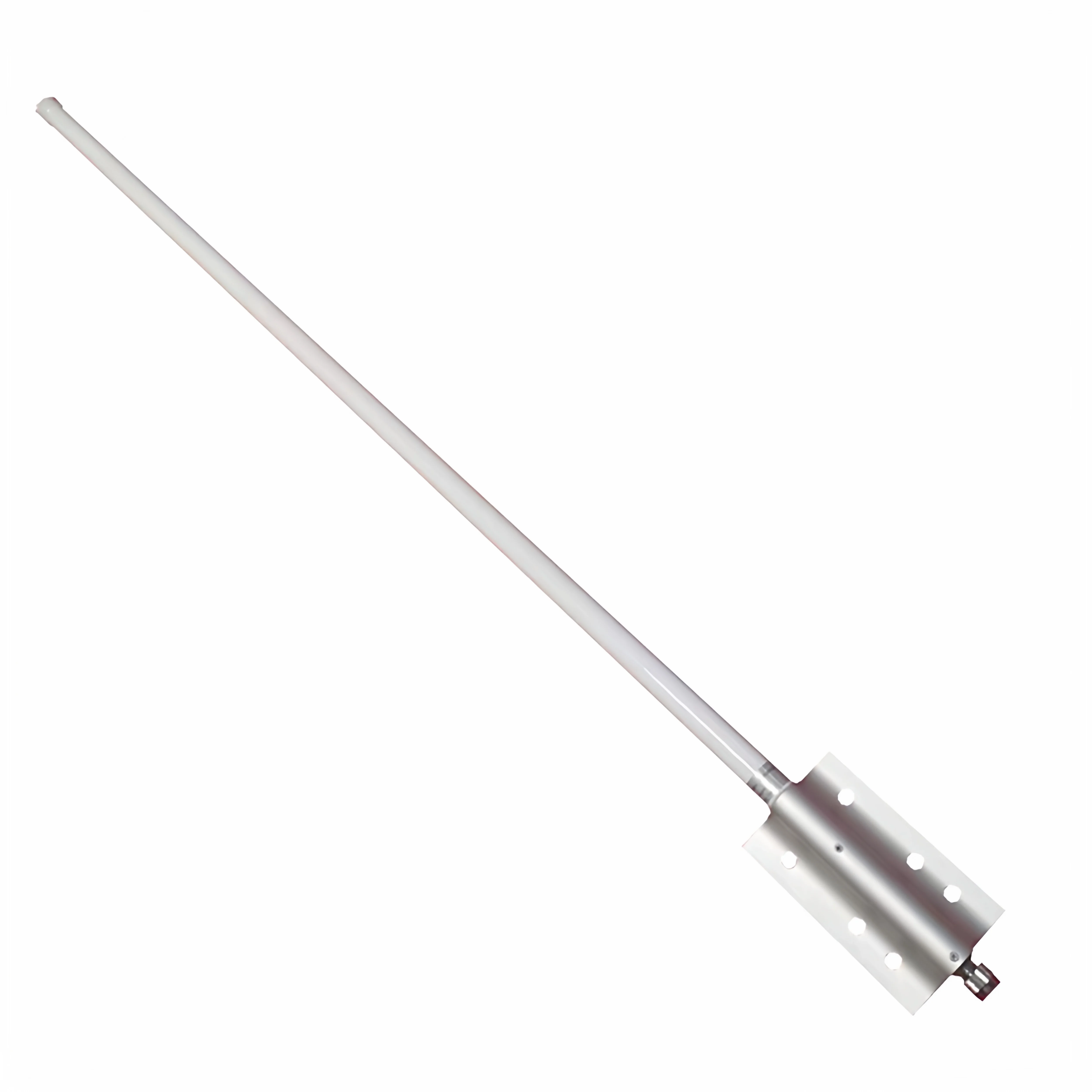

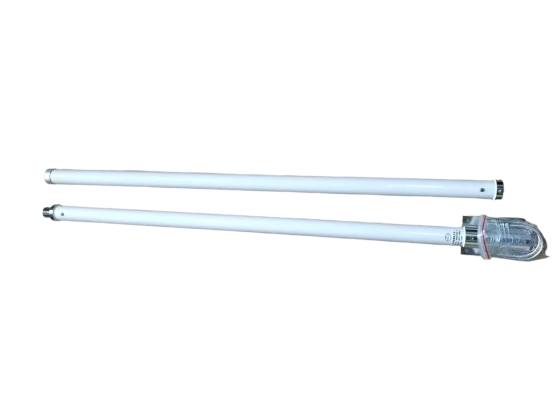

7/16 DIN Connector 360° Horizontal Coverage 12dBi Gain 806-960MHz Base Station Omnidirectional Antenna
7/16 DIN Connector 360° Horizontal Coverage 12dBi Gain 806-960MHz Base Station Omnidirectional Antenna
7/16 DIN Connector 360° Horizontal Coverage 12dBi Gain 806-960MHz Base Station Omnidirectional Antenna
7/16 DIN Connector 360° Horizontal Coverage 12dBi Gain 806-960MHz Base Station Omnidirectional Antenna
7/16 DIN Connector 360° Horizontal Coverage 12dBi Gain 806-960MHz Base Station Omnidirectional Antenna
7/16 DIN Connector 360° Horizontal Coverage 12dBi Gain 806-960MHz Base Station Omnidirectional Antenna
7/16 DIN Connector 360° Horizontal Coverage 12dBi Gain 806-960MHz Base Station Omnidirectional Antenna
7/16 DIN Connector 360° Horizontal Coverage 12dBi Gain 806-960MHz Base Station Omnidirectional Antenna
7/16 DIN Connector 360° Horizontal Coverage 12dBi Gain 806-960MHz Base Station Omnidirectional Antenna
7/16 DIN Connector 360° Horizontal Coverage 12dBi Gain 806-960MHz Base Station Omnidirectional Antenna

7/16 DIN Connector 360° Horizontal Coverage 12dBi Gain 806-960MHz Base Station Omnidirectional Antenna

Get a Quote Contact Us
  • Description
16 din connector 360 horizontal coverage 12dbi gain 806 960mhz base station omnidirectional antenna-1

[email protected]
Inquiry
Product Description
Product Detail
Electrical Specifications
Operating Frequency Band (MHz)
806-960
Polarization (°)
V (Vertical)
VSWR of Each Radiating Port
≤1.5
Third-Order Intermodulation (dBm)
≤-107
Average Power Handling Capacity (W)
200
Horizontal Half-Power Beamwidth (°)
360
Vertical Half-Power Beamwidth (°)
7±1
Gain (dBi)
11±1
Connector Type
7/16 DIN / 4.3-10
Characteristic Impedance (Ω)
50
Lightning Protection
DC Grounding
Recommend Products
Company Profile
16 din connector 360 horizontal coverage 12dbi gain 806 960mhz base station omnidirectional antenna-2
16 din connector 360 horizontal coverage 12dbi gain 806 960mhz base station omnidirectional antenna-3
16 din connector 360 horizontal coverage 12dbi gain 806 960mhz base station omnidirectional antenna-4
16 din connector 360 horizontal coverage 12dbi gain 806 960mhz base station omnidirectional antenna-5
16 din connector 360 horizontal coverage 12dbi gain 806 960mhz base station omnidirectional antenna-6
16 din connector 360 horizontal coverage 12dbi gain 806 960mhz base station omnidirectional antenna-7
FAQ
Q: Are you a manufacturer or a trading company? A: We have been professional antenna manufacturer for 18 years. Q: Have gps gsm combo antenna 100% assembles well in stock? A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples. Q: Could I use my own LOGO or design on goods? A: Yes, customized logo and design on mass production are available. Q: What's the payment term? A: T/T, AliPay,Paypal,Afterpay,Klarna etc. Q:What certifications do you have? A:Certified by FCC, CE, RoHS,ISO available upon request. Q: Where is your factory located? Can I visit your factory? A: Factory address: 2nd Floor, Building D4-1, Hongfeng Science and Technology Park, Nanjing Economic and Technological Development Zone, Jiangsu Province. Just call us, we will pick you up with no delay.
