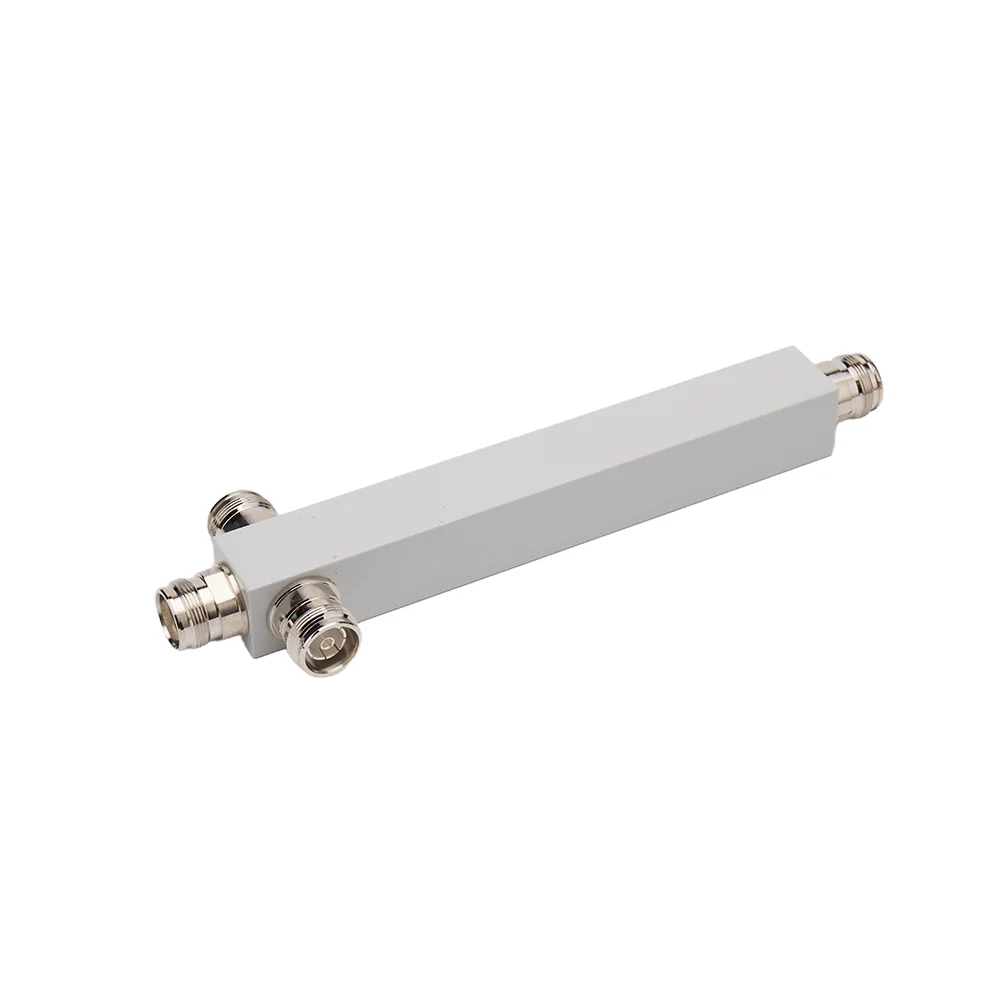

Advanced 614-6000MHz 1-in-3 Out RF Power Splitter, 4.8dB Insertion Loss, IP67 Waterproof, N-F/4.3-10/D-F Connectors
Advanced 614-6000MHz 1-in-3 Out RF Power Splitter, 4.8dB Insertion Loss, IP67 Waterproof, N-F/4.3-10/D-F Connectors
Advanced 614-6000MHz 1-in-3 Out RF Power Splitter, 4.8dB Insertion Loss, IP67 Waterproof, N-F/4.3-10/D-F Connectors
Advanced 614-6000MHz 1-in-3 Out RF Power Splitter, 4.8dB Insertion Loss, IP67 Waterproof, N-F/4.3-10/D-F Connectors
Advanced 614-6000MHz 1-in-3 Out RF Power Splitter, 4.8dB Insertion Loss, IP67 Waterproof, N-F/4.3-10/D-F Connectors
Advanced 614-6000MHz 1-in-3 Out RF Power Splitter, 4.8dB Insertion Loss, IP67 Waterproof, N-F/4.3-10/D-F Connectors

Advanced 614-6000MHz 1-in-3 Out RF Power Splitter, 4.8dB Insertion Loss, IP67 Waterproof, N-F/4.3-10/D-F Connectors

Get a Quote Contact Us
  • Description
d f connectors-1

[email protected]
Inquiry
Product Description
Product Detail
d f connectors-2
d f connectors-3
Type
3 Way
Frequency range
614-6000
Split Loss
4.8±0.5(dB)
Return loss/VSWR
≤1.30
Intermodulation
≤-160dBc (2×20W)
Impedance
50(Ω)
Application
Outdoor（IP67）
Connectors
N-F/4.3-10/D-F
Input power
≥200W
Operation temperature
-20~+65℃
