Auto-Pointing Flyaway Terminal for Electric Utility and Hydropower Plant

product auto pointing flyaway terminal for electric utility and hydropower plant-2
Product Description
Yoongwin Situation Awareness Technology Co., Ltd., founded in 2007 in Nanjing Economic and Technological Development Zone with a registered capital of RMB 60.06 million, controls eight medium - sized tech enterprises. Its main business spans thin - film circuits, antenna & feeder products, etc., and it's involved in industrial Internet security and electromagnetic space protection.
As a member of multiple associations, it holds dual - software and ISO2700 info security certifications. With over 100 patents, it was recognized as a Nanjing Gazelle Enterprise from 2020 - 2022, indicating continuous growth.
Product Detail

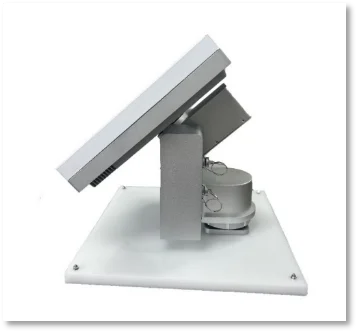

The TU300, nicknamed "Little Cute", is a highly portable Ku-band flyaway satellite terminal designed for rapid deployment in static or temporary locations. This all-in-one station integrates a flat-panel antenna and modem, offering a simple "one-button" auto-acquisition function to establish a satellite link within minutes.Ideal for remote industrial monitoring and emergency backup, it delivers higher data rates for reliable video, data, and voice communication. It is the perfect satellite solution for SCADA applications, enabling smart grid management and fault detection in the power and hydropower industries where terrestrial networks are unavailable.
Rapid Deployment & Portability: Compact flyaway design (≤4kg) allows for easy transportation and setup by a single person in the field.
One-Button Operation: Features fully automatic satellite pointing—just power on and press a button to connect.
Tailored for Industrial IoT: Provides robust connectivity for SCADA, telemetry, and remote video surveillance in critical infrastructure.
Higher Data Throughput: Supports data rates up to 1.8 Mbps, facilitating efficient transmission of operational data and video streams.
Proven Reliability: Successfully deployed in State Grid projects for reliable power line monitoring in off-grid regions.
HTS Compatible: Accesses high-throughput Ku-band satellites for efficient and cost-effective data transfer.

Product Name
TU300 "Little Cute" Ku-band Flyaway Satellite Terminal for Remote Monitoring
Frequency Band
Ku-band
Multiple Access
Forward: Spread Spectrum TDM / Return: Spread Spectrum MF-TDMA
Channel Data Rate
Forward: 16.7 kbps - 1843.2 kbps
Return: 10.23 kbps - 1843.2 kbps (Adaptive)
Modulation
BPSK
Acquisition Mode
One-Button Auto Acquisition
Antenna Type
Flat Panel
Dimensions
≤ 330mm × 330mm × 40mm (excluding motor)
Weight
≤ 4 kg (excluding motor)

The TU300 flyaway terminal is the go-to solution for establishing instant, reliable communication where it's needed most:

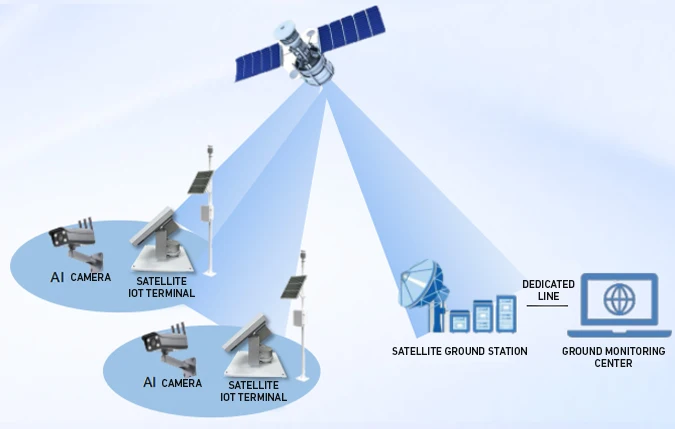

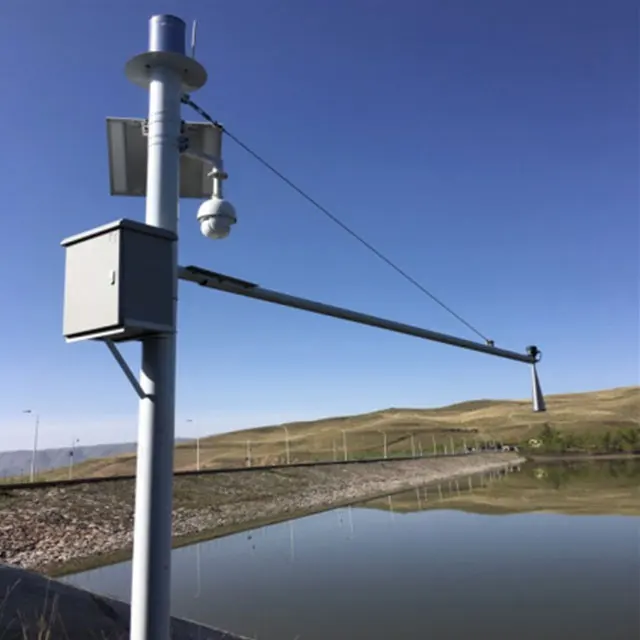

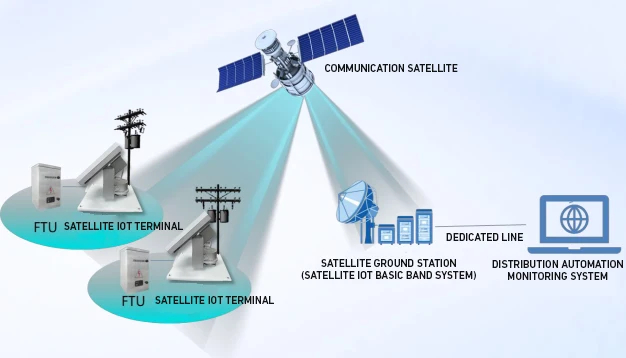

Smart Grid & Power Utility: Enables remote monitoring (SCADA) of transmission lines, facilitates fault detection, isolation,and enables rapid power restoration. Proven in use by State Grid Xinjiang for visual monitoring of transmission lines.
Renewable Energy Sites: Provides crucial communication links for the construction and operation of solar and wind power stations in remote locations.

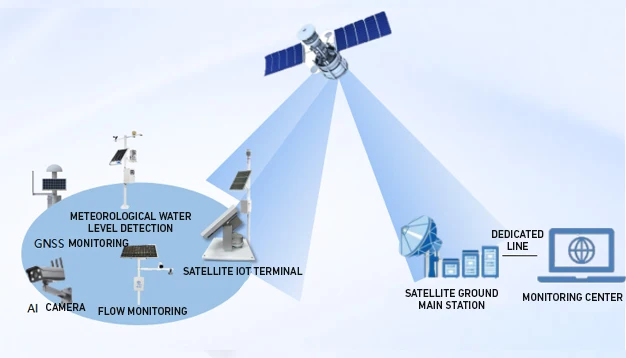

Water Resource Management: Monitors and controls remote hydropower plants and water distribution systems.
Emergency Communications: Serves as a rapid-deployment communication hub for disaster recovery teams when local infrastructure is destroyed.
Temporary Sites: Offers instant connectivity for construction, mining, or geological survey camps.
product auto pointing flyaway terminal for electric utility and hydropower plant-3
product auto pointing flyaway terminal for electric utility and hydropower plant-4
product auto pointing flyaway terminal for electric utility and hydropower plant-5
product auto pointing flyaway terminal for electric utility and hydropower plant-6
product auto pointing flyaway terminal for electric utility and hydropower plant-7
product auto pointing flyaway terminal for electric utility and hydropower plant-8
product auto pointing flyaway terminal for electric utility and hydropower plant-9
