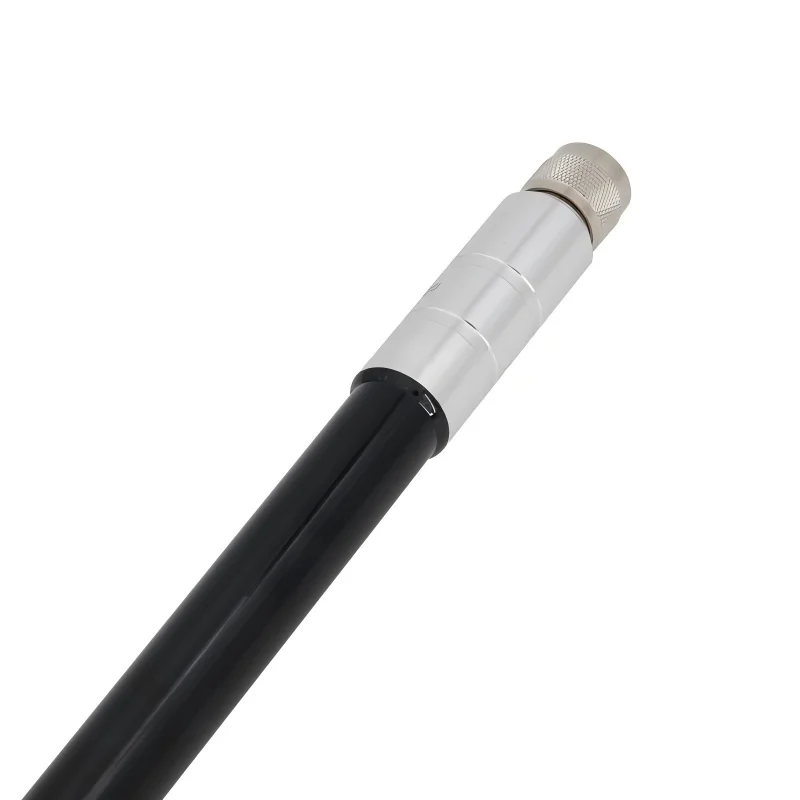

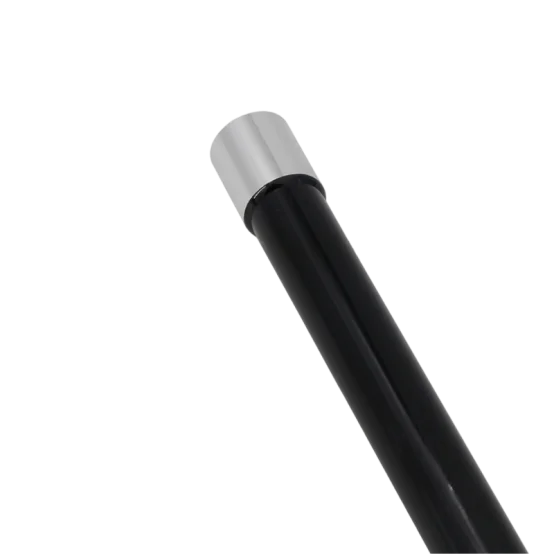

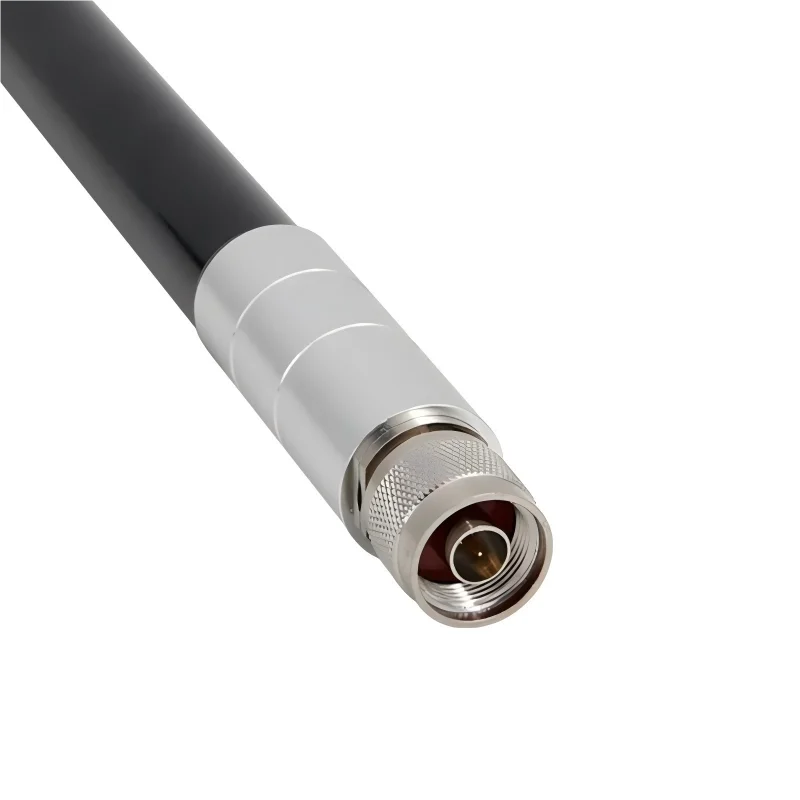

Outdoor 5dBi Omnidirectional Fiberglass Antenna with N-Male Connector |
||
Technical Specifications |
QB24V5A |
|
Frequency Range (MHz) |
2400～2483 |
|
Bandwidth (MHz) |
83 |
|
Polarization |
Vertical |
|
Gain (dBi) |
5 |
|
Input Impedance (Ω) |
50 |
|
Voltage Standing Wave Ratio (VSWR) |
≤1.5 |
|
Maximum Power (W) |
50 |
|
Connector Type |
N Female |
|
Antenna Length (cm) |
32.5 |
|
Antenna Weight (kg) |
0.6 |
|
Cover Material |
Fiberglass (Gray) |
|
Ultimate Wind Speed (m/s) |
60 |
|
Mast Diameter (mm) |
30~50 |
|
