Power Quality Future Trendy 380V-415V 50Hz 10A-480A Passive Harmonic Filter PHF

Power Quality Future Trendy 380V-415V 50Hz 10A-480A Passive Harmonic Filter PHF

Description

[email protected]

Description

Product Description

Product Detail

Rated operating voltage of PHF filter	380V - 415VAC 50Hz
Capacitor rated voltage Urms	540VAC
Capacitance withstand peak voltage	760VAC
Capacitance working temperature	-40°C—85°C
Protection grade	IP20
Insulation grade	F
Thermal Temperature switch	Thermik
Output terminals	DINKLE : PPAC series

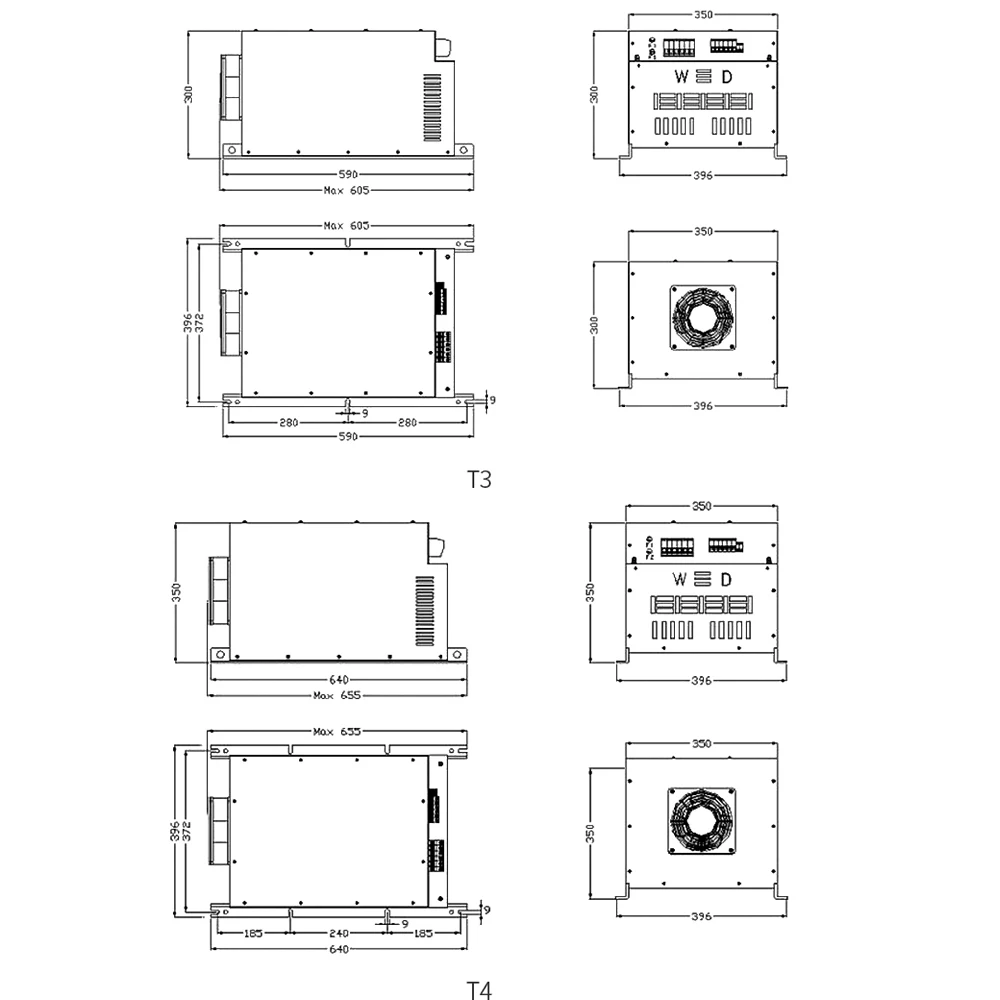

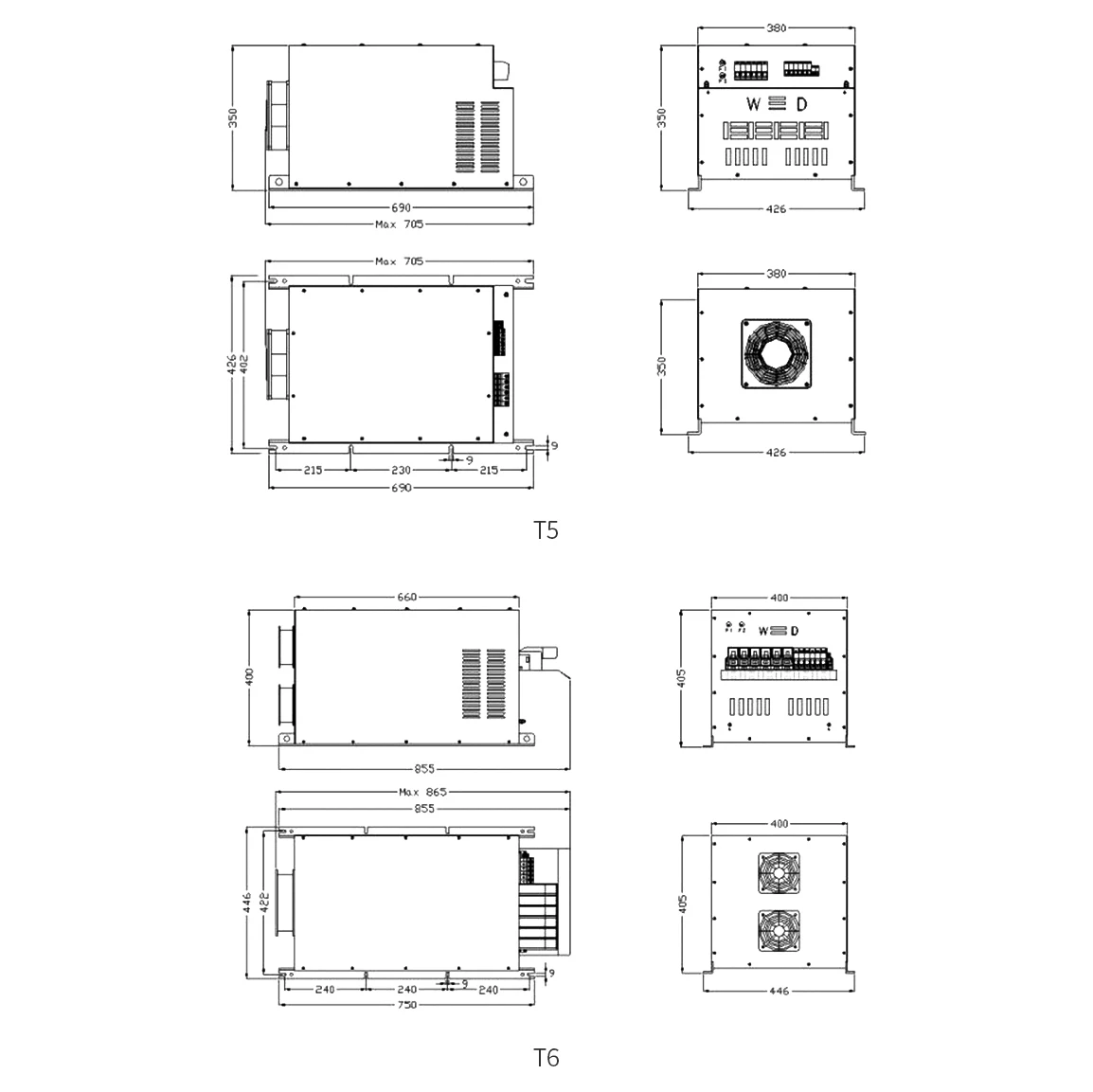

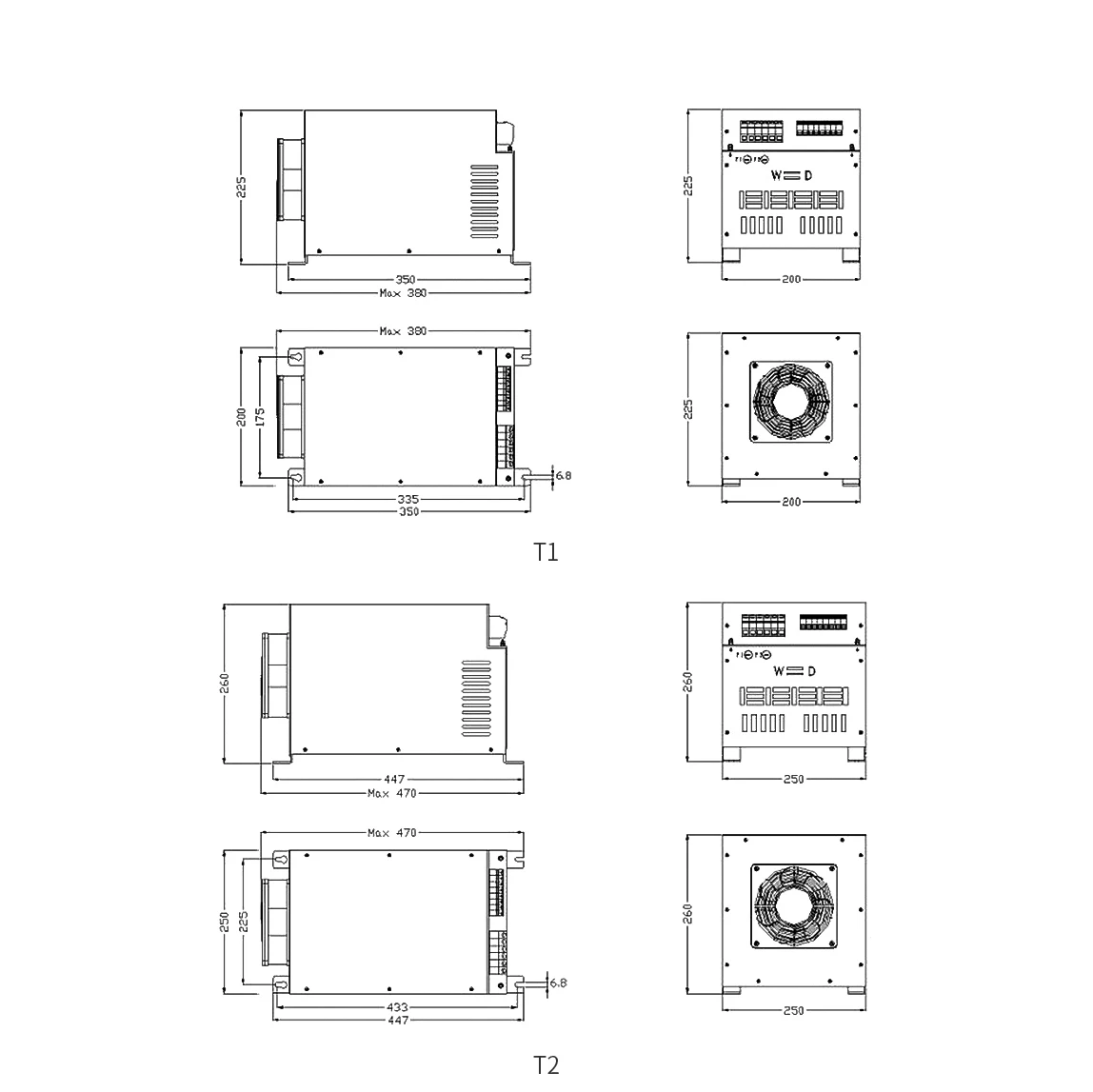

model	Rated current @50Hz(A)	Match the inverter power @380 - 415V kW	Filter loss @380 - 415V W	computer case	size
					size
								L	W	H
YB-DHF005-10	10	3.7	138	T1	200	225	380
YB-DHF005-14	14	7.5	165	T1	200	225	380
YB-DHF005-22	22	11	252	T2	250	260	470
YB-DHF005-29	29	15	305	T2	250	260	470
YB-DHF005-34	34	18.5	340	T3	400	350	605
YB-DHF005-40	40	22	364	T3	400	350	605
YB-DHF005-55	55	30	406	T3	400	350	605
YB-DHF005-66	66	37	420	T4	400	350	655
YB-DHF005-82	82	45	503	T4	400	350	655
YB-DHF005-96	96	55	635	T5	430	350	690
YB-DHF005-133	133	75	852	T5	430	350	690
YB-DHF005-171	171	90	1010	T6	450	405	850
YB-DHF005-204	204	110	1106	T6	450	405	850
YB-DHF005-251	251	132	1264	T7	550	465	1000
YB-DHF005-304	304	160	1342	T7	550	465	1000
YB-DHF005-381	381	200	1735	T8	580	550	1050
YB-DHF005-480	480	250	2250	T8	580	550	1050

model	Rated current @50Hz(A)	Match the inverter power @380 - 415V kW	Filter loss @380 - 415V W	computer case	size
					size
								L	W	H
YB-DHF010-10	10	3.7	115	T1	200	225	380
YB-DHF010-14	14	7.5	140	T1	200	225	380
YB-DHF010-22	22	11	210	T2	250	260	470
YB-DHF010-29	29	15	260	T2	250	260	470
YB-DHF010-34	34	18.5	283	T3	400	350	605
YB-DHF010-40	40	22	305	T3	400	350	605
YB-DHF010-55	55	30	346	T3	400	350	605
YB-DHF010-66	66	37	422	T4	400	350	655
YB-DHF010-82	82	45	470	T4	400	350	655
YB-DHF010-96	96	55	545	T5	430	350	690
YB-DHF010-133	133	75	630	T5	430	350	690
YB-DHF010-171	171	90	860	T6	450	405	850
YB-DHF010-204	204	110	950	T6	450	405	850
YB-DHF010-251	251	132	1045	T7	550	465	1000
YB-DHF010-304	304	160	1280	T7	550	465	1000
YB-DHF010-381	381	200	1450	T8	580	550	1050
YB-DHF010-480	480	250	1820	T8	580	550	1050
