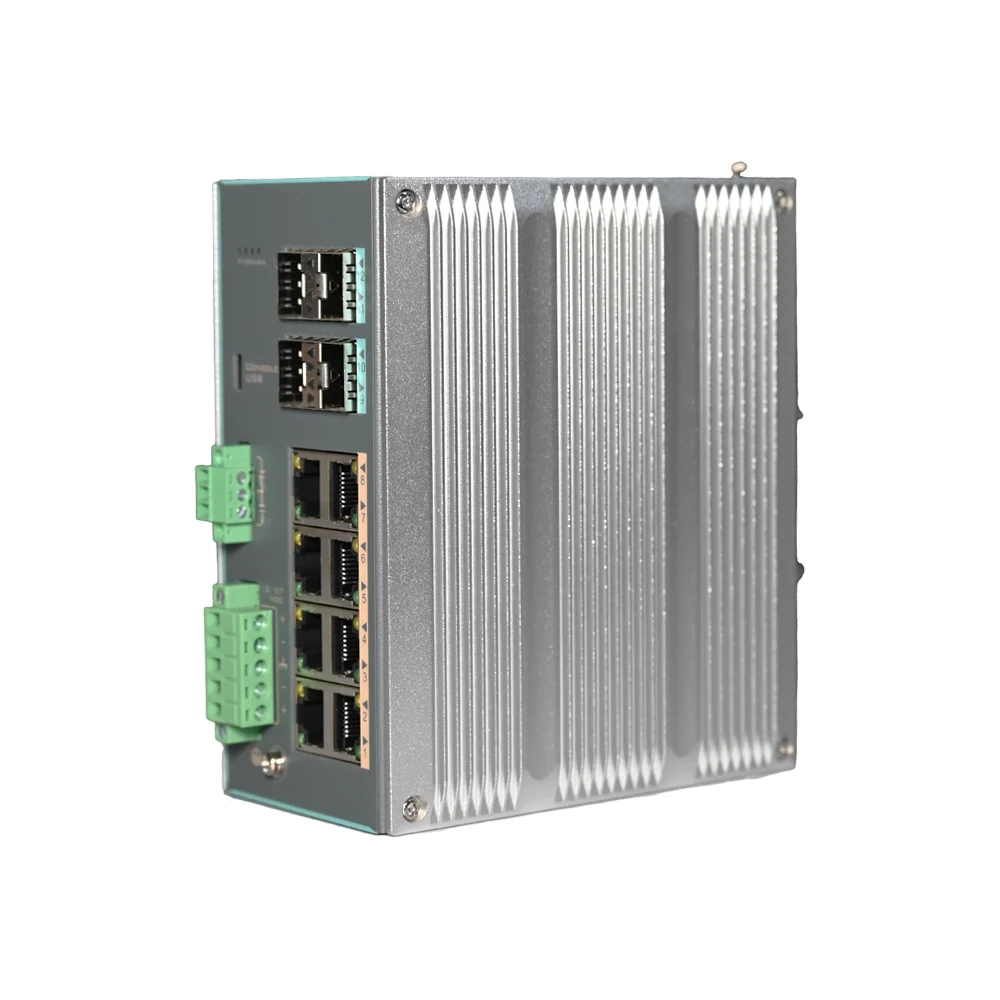

Cost-Effective 12-Port Fast Layer 2 Managed Industrial Ethernet Switch for Warehouse IoT Sensors

Cost-Effective 12-Port Fast Layer 2 Managed Industrial Ethernet Switch for Warehouse IoT Sensors

Description

[email protected]

Description

Product Description

Product Detail

Introduction

We provides industry users with a series of industrial switch products that meet strict environmental requirements and high reliability. The entire series of products meet industrial level 4 electromagnetic compatibility and anti-interference
requirements. The sturdy structure and compact size facilitate on-site installation. The product is widely used in industries such as power substations and distribution network automation, wind and solar power generation systems, rail transit, intelligent manufacturing, highways, petroleum and petrochemical, etc. It is the preferred brand for high-performance and highly reliable industrial switches.

Features

Supports STP/RSTP/MSTP and ERPS, with a minimum recovery time of<50 milliseconds
Support HTTPS/SSH to enhance network management security
Support IP based bandwidth management
Support Application Based Quality of Service (QoS)
Support IGMP v2/v3 (IGMP snooping) multicast management
Port Trunk facilitates bandwidth management
Support network management for SNMP v1/v2c/v3 security

100/1000Base-T sports	8
1000Base-FX SFP sports	4
Standard	IEEE 802.3: 10Base-T IEEE 802.3u: 100Base-TX和100Base-FX IEEE 802.3z 1000Base-X IEEE 802.3ab: 1000Base-TX IEEE 802.3x: Flow Control IEEE 802.3ad: LACP (Port Aggregation Control Protocol) IEEE 802.1D: STP (Spanning Tree Protocol) IEEE 802.1p: COS (Service Level) IEEE 802.1Q: VLAN Tag IEEE 802.1W: RSTP (Fast Spanning Tree Protocol) IEEE 802.1s: MSTP (Multi Generative Tree Protocol) IEEE 802.1X: Security Authentication IEEE 802.1AB: LLDP (Link Layer Discovery Protocol)
Signal processing method	Store and forward
Switch Properties	MAC address table：8192 Priority queues：4 Packet Buffer Size：4Mbits Max. Number of VLANs: 64 VLAN ID Range: 1~4096 IGMP groups: 1024
Security	Open/close ports, MAC based port security mechanism Port based network connection control (802.1x) Isolation through VLAN (802.1Q) network Radius Security Authentication SNMP V1/V2c/V3 encryption verification and access control Broadcast storm protection
Software Features	STP/RSTP/MSTP (IEEE 802.1D/W/s) ERPS: Typical recovery time<30mS Support TOS/Diffserv QoS (802.1p) traffic priority management VLAN (802.1Q) with VLAN tagging and GVRP IGMP v2/v3 (IGMP snooping) multicast management Port status and information traffic statistics monitoring SNTP 1588 PTP Client time synchronization（Software based） DHCP Server/Client Port Trunk MVR (VLAN Multicast)
Redundancy Protocols	ERPS V-RSTP STP RSTP MSTP
Alarm/Monitoring System	Fault alarm through relay output Record and browse events through system logs/server/client Support SMTP to send event warning notifications via email Support system log event filtering
Console Port	Micro-USB 2.0 B-type connector，115200bps，8，N，1
Fault output
Relay	1A@24VDC
Operating Voltage
DC input	Dual DC input, 9-57VDC, 8-pin screw crimping terminal
Consumption	<10W

Product Dimension

Cost-Effective 12-Port Fast Layer 2 Managed Industrial Ethernet Switch for Warehouse IoT Sensors details

Applications

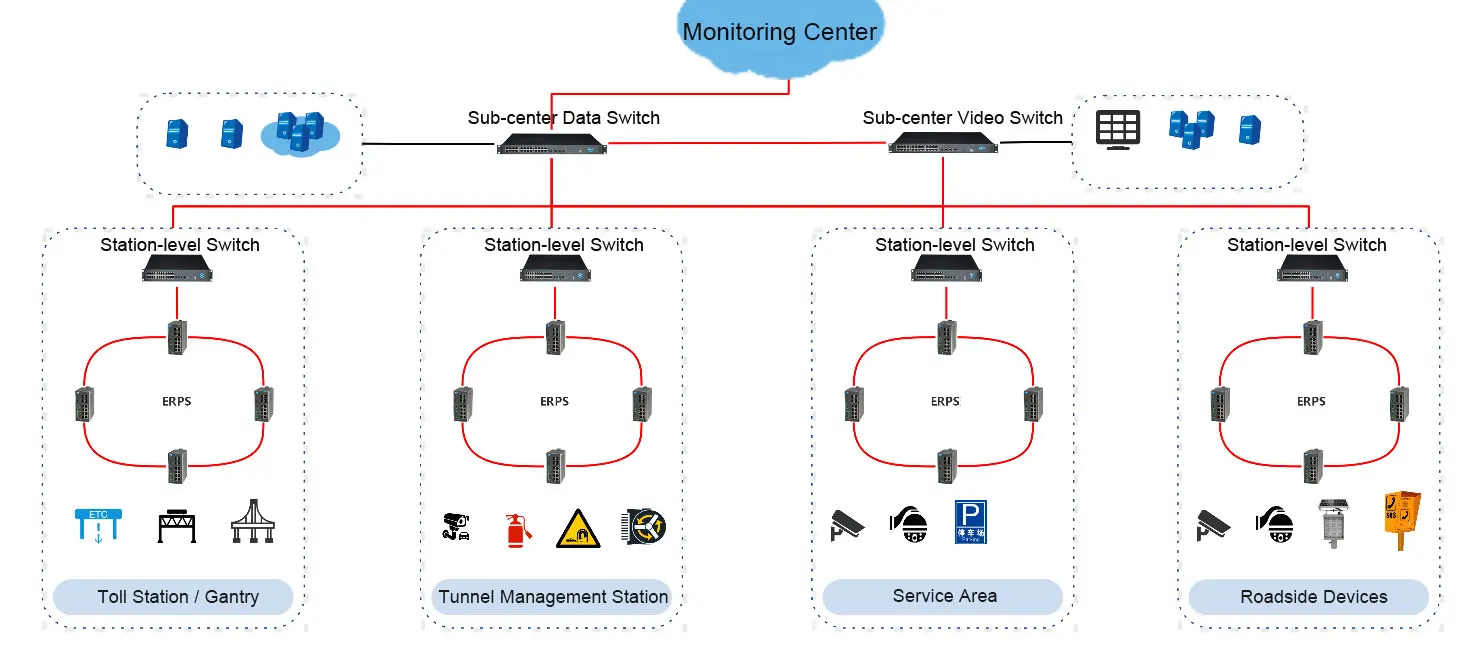

Highway Electromechanical System Architecture

The electromechanical systems in expressways primarily consist of toll collection, surveillance, and communication subsystems. As the foundational infrastructure, the communication system interconnects all subsystems, serving as the core for service delivery and information-based operations.The expressway's full-network communication adopts a fiber-optic ring network as its backbone, structured around Layer 3 Gigabit Industrial Ethernet Switches supporting fiber-optic ring topology.At each site access point, Layer 2 (or Layer 3) switches establish dedicated subnets for various services. These application subnets are segmented using Virtual Local Area Networks (VLANs) to meet distinct operational requirements.

Cost-Effective 12-Port Fast Layer 2 Managed Industrial Ethernet Switch for Warehouse IoT Sensors factory

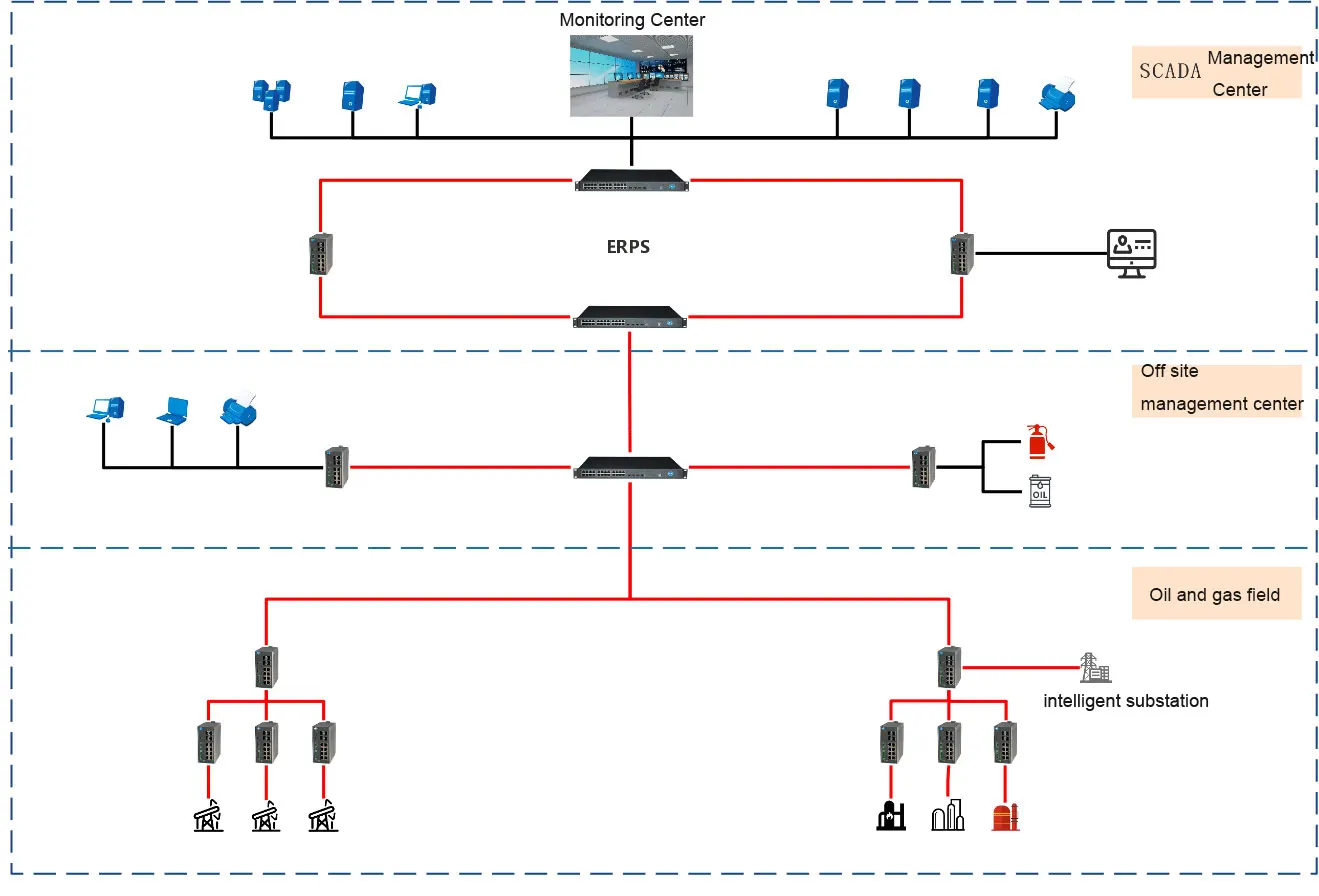

Industrial Switches for Oil & Gas Field Intelligence
Industrial Ethernet switches enable intelligent monitoring and management of oil/gas fields, enhancing production efficiency and operational safety. These switches withstand extreme field environments—including low/high temperatures, high altitude, humidity, and EMI—while delivering high-reliability, high-performance, stable, and secure network communications.

Recommend Products

Company Profile

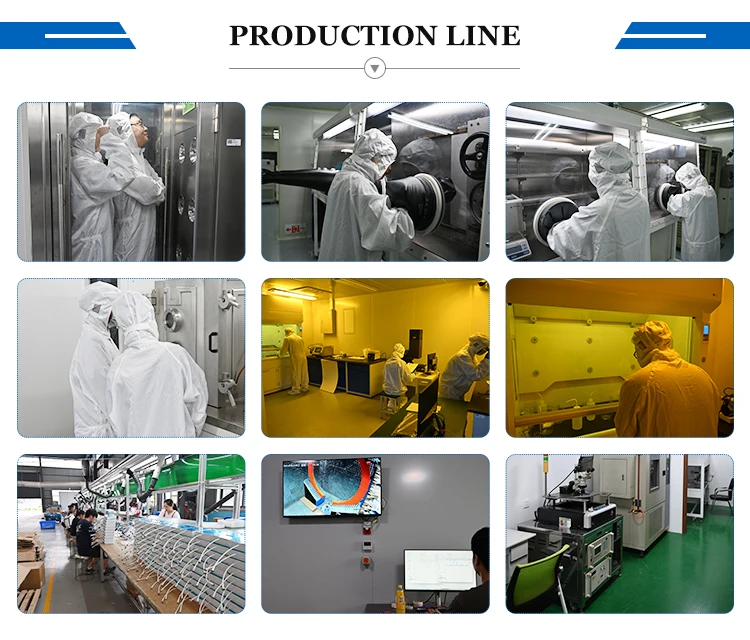

Cost-Effective 12-Port Fast Layer 2 Managed Industrial Ethernet Switch for Warehouse IoT Sensors supplier

Cost-Effective 12-Port Fast Layer 2 Managed Industrial Ethernet Switch for Warehouse IoT Sensors manufacture

FAQ

Q: Are you a manufacturer or a trading company? A: We have been professional antenna manufacturer for 18 years. Q: Have gps gsm combo antenna 100% assembles well in stock? A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples. Q: Could I use my own LOGO or design on goods? A: Yes, customized logo and design on mass production are available. Q: What's the payment term? A: T/T, AliPay,Paypal,Afterpay,Klarna etc. Q:What certifications do you have? A:Certified by FCC, CE, RoHS,ISO available upon request. Q: Where is your factory located? Can I visit your factory? A: Factory address: 2nd Floor, Building D4-1, Hongfeng Science and Technology Park, Nanjing Economic and Technological Development Zone, Jiangsu Province. Just call us, we will pick you up with no delay.
