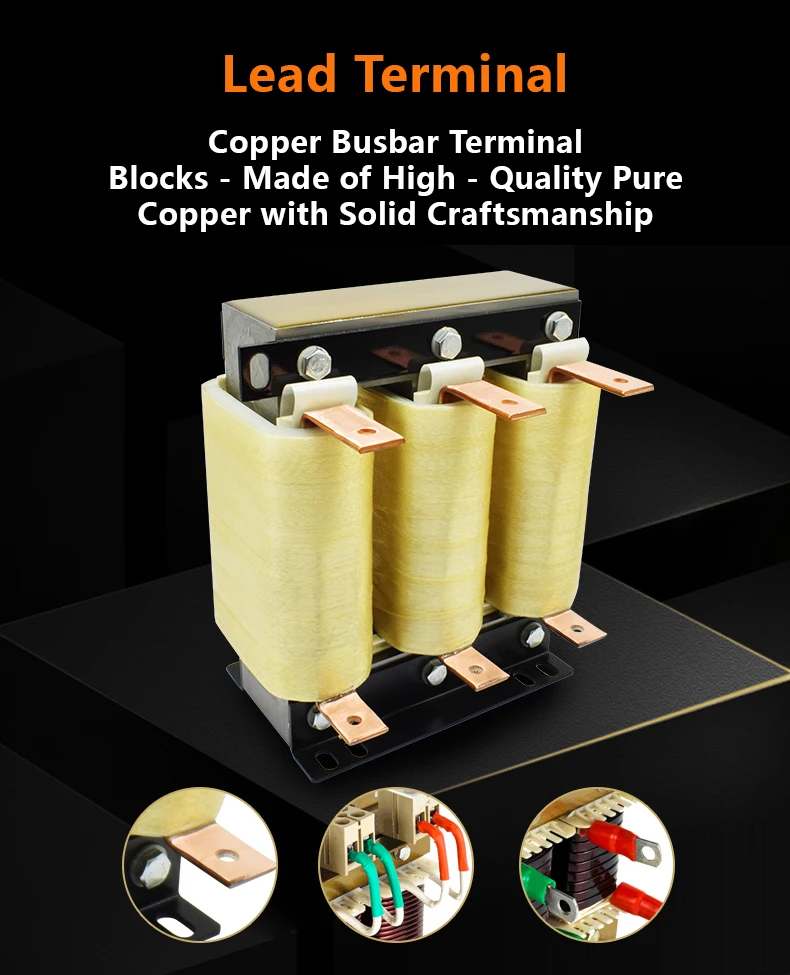

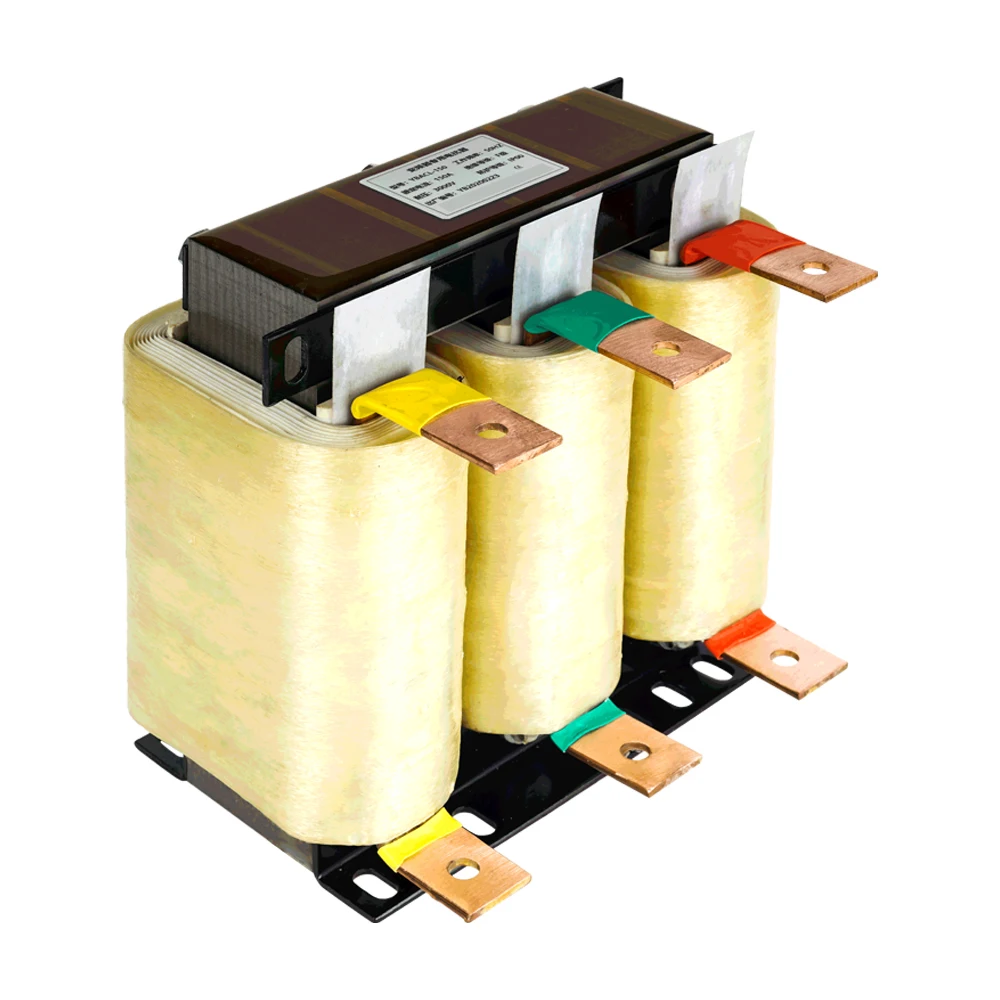

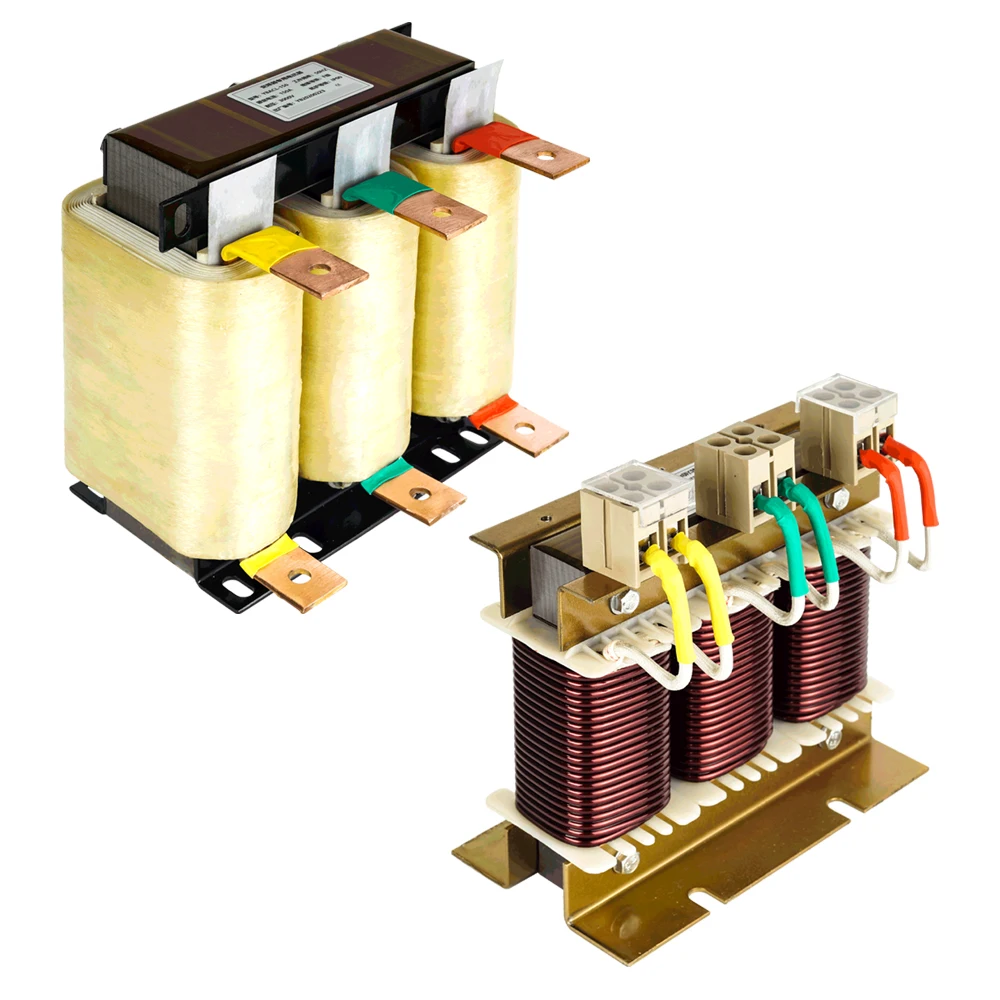

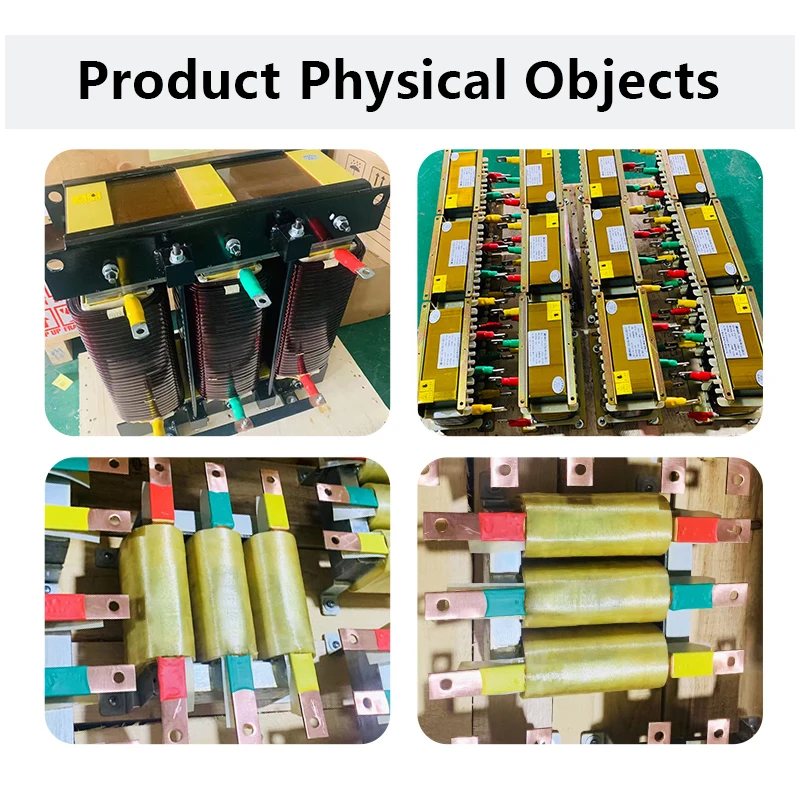

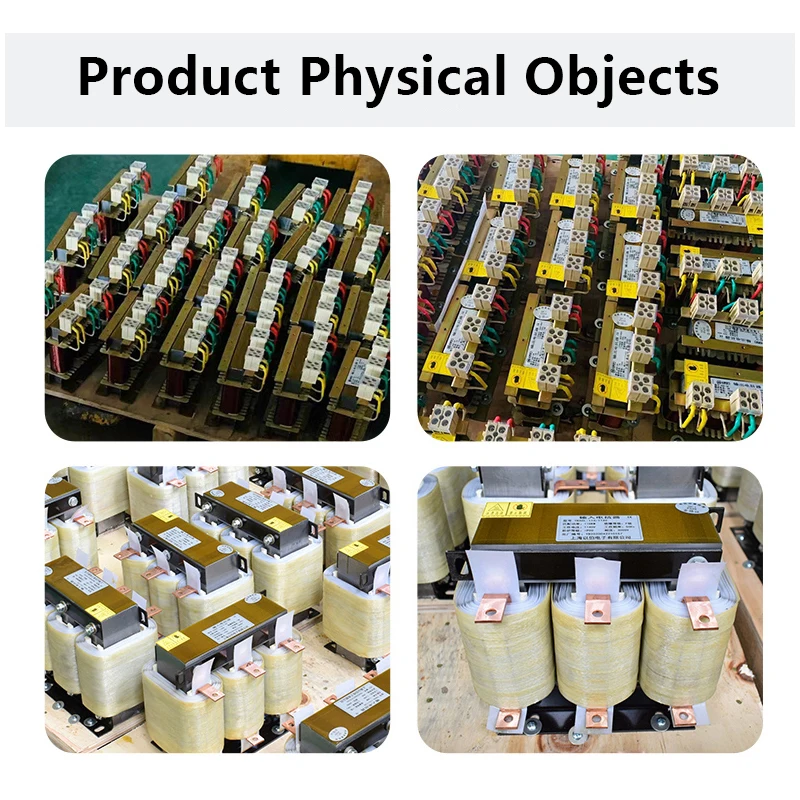

Rated voltage |
380VAC |
Rated current |
5A~5600A |
Dielectric strength |
3500VAC/50Hz/10mA/10s No flashover breakdown |
Fundamental frequency |
50Hz |
Temperature rise |
65K |
Overload capacity |
1.35 times the rated current for 1 minute |
Insulation class |
F/H |
Altitude |
<1000 meters |
Operating temperature |
-30~+45℃ |
Environmental rating |
IP00 |

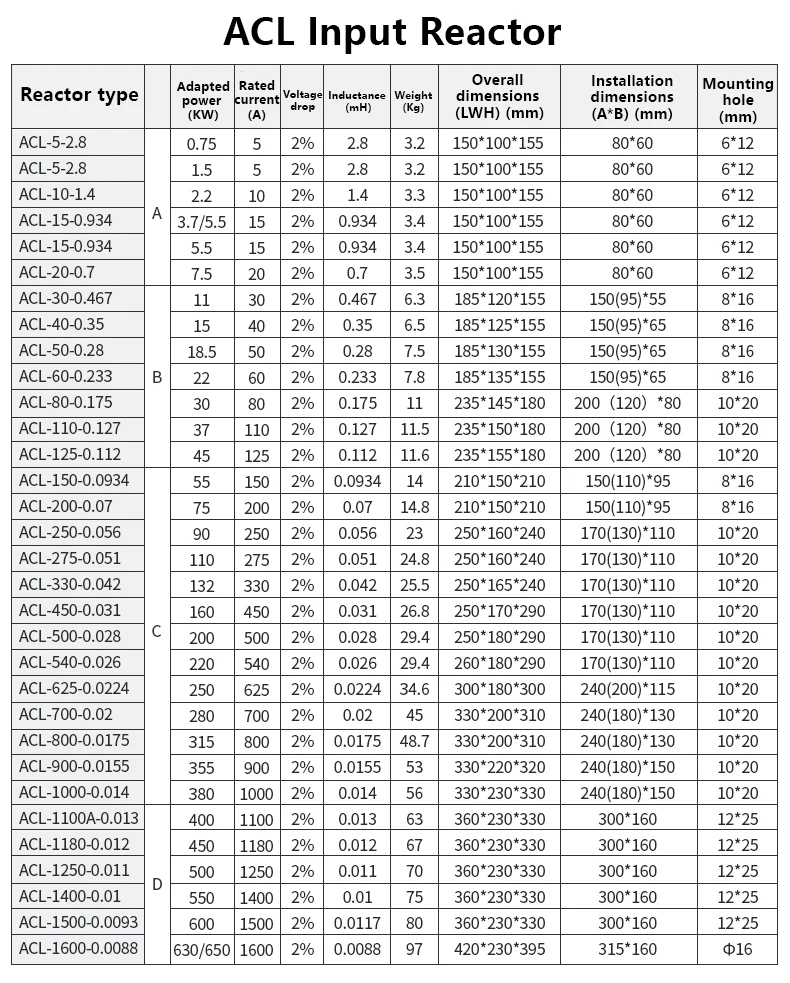

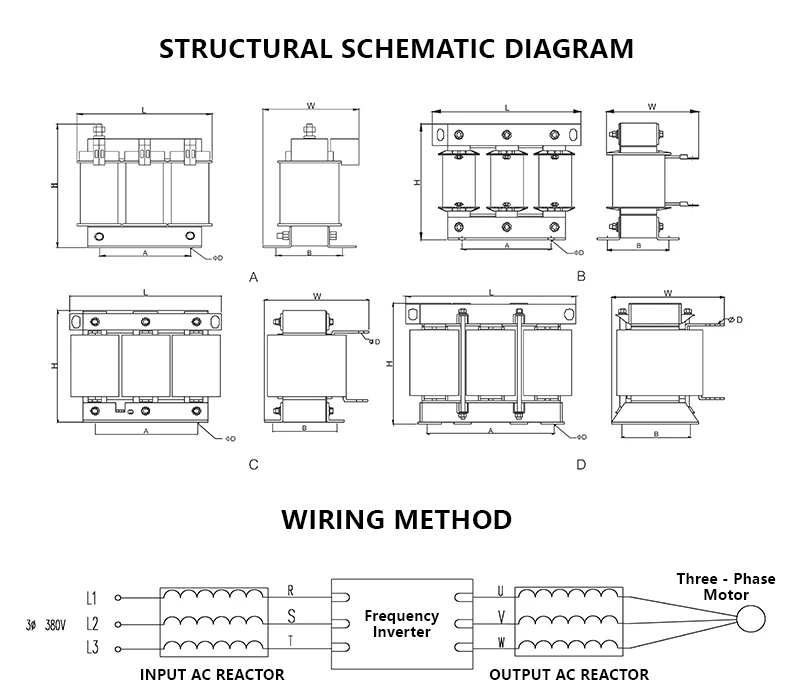

Reactor type |
Adapted power (KW) |
Rated current (A) |
Voltage drop |
Inductance (mH) |
Weight (Kg) |
Overall dimensions (LWH) (mm) |
Installation dimensions (A*B) (mm) |
Mounting hole (mm) |
ACL - 5 - 2.8 |
0.75 |
5 |
2% |
2.8 |
3.2 |
150100155 |
80*60 |
6*12 |
ACL - 5 - 2.8 |
1.5 |
5 |
2% |
2.8 |
3.2 |
150100155 |
80*60 |
6*12 |
ACL - 10 - 1.4 |
2.2 |
10 |
2% |
1.4 |
3.3 |
150100155 |
80*60 |
6*12 |
ACL - 15 - 0.934 |
3.7/5.5 |
15 |
2% |
0.934 |
3.4 |
150100155 |
80*60 |
6*12 |
ACL - 15 - 0.934 |
5.5 |
15 |
2% |
0.934 |
3.4 |
150100155 |
80*60 |
6*12 |
ACL - 20 - 0.7 |
7.5 |
20 |
2% |
0.7 |
3.5 |
150100155 |
80*60 |
6*12 |
ACL - 30 - 0.467 |
11 |
30 |
2% |
0.467 |
6.3 |
185120155 |
150(95)*55 |
8*16 |
ACL - 40 - 0.35 |
15 |
40 |
2% |
0.35 |
6.5 |
185125155 |
150(95)*65 |
8*16 |
ACL - 50 - 0.28 |
18.5 |
50 |
2% |
0.28 |
7.5 |
185130155 |
150(95)*65 |
8*16 |
ACL - 60 - 0.233 |
22 |
60 |
2% |
0.233 |
7.8 |
185135155 |
150(95)*65 |
8*16 |
ACL - 80 - 0.175 |
30 |
80 |
2% |
0.175 |
11 |
235145180 |
200 (120) *80 |
10*20 |
ACL - 110 - 0.127 |
37 |
110 |
2% |
0.127 |
11.5 |
235150180 |
200 (120) *80 |
10*20 |
ACL - 125 - 0.112 |
45 |
125 |
2% |
0.112 |
11.6 |
235160180 |
200 (120) *80 |
10*20 |
ACL - 150 - 0.0934 |
55 |
150 |
2% |
0.0934 |
14 |
210150210 |
150(110)*95 |
8*16 |
ACL - 200 - 0.07 |
75 |
200 |
2% |
0.07 |
14.8 |
210150210 |
150(110)*95 |
8*16 |
ACL - 250 - 0.056 |
90 |
250 |
2% |
0.056 |
24.8 |
250160240 |
170(130)*110 |
10*20 |
ACL - 275 - 0.051 |
110 |
275 |
2% |
0.051 |
23 |
250160240 |
170(130)*110 |
10*20 |
ACL - 330 - 0.042 |
132 |
330 |
2% |
0.042 |
25.5 |
250165240 |
170(130)*110 |
10*20 |
ACL - 450 - 0.031 |
160 |
450 |
2% |
0.031 |
26.8 |
250170290 |
170(130)*110 |
10*20 |
ACL - 500 - 0.028 |
200 |
500 |
2% |
0.028 |
29.4 |
250180290 |
170(130)*110 |
10*20 |
ACL - 540 - 0.026 |
220 |
540 |
2% |
0.026 |
29.4 |
260180290 |
170(130)*110 |
10*20 |
ACL - 625 - 0.0224 |
250 |
625 |
2% |
0.0224 |
34.6 |
300180300 |
240(200)*115 |
10*20 |
ACL - 700 - 0.02 |
280 |
700 |
2% |
0.02 |
35 |
300180300 |
240(200)*115 |
10*20 |
ACL - 800 - 0.0175 |
315 |
800 |
2% |
0.0175 |
48.7 |
330200310 |
240(180)*130 |
10*20 |
ACL - 900 - 0.0155 |
355 |
900 |
2% |
0.0155 |
53 |
330220320 |
240(180)*150 |
10*20 |
ACL - 1000 - 0.014 |
380 |
1000 |
2% |
0.014 |
56 |
330230330 |
240(180)*150 |
10*20 |
ACL - 1100 - 0.013 |
400 |
1100 |
2% |
0.013 |
63 |
360230330 |
300*160 |
12*25 |
ACL - 1180 - 0.012 |
450 |
1180 |
2% |
0.012 |
67 |
360230330 |
300*160 |
12*25 |
ACL - 1290 - 0.011 |
500 |
1250 |
2% |
0.011 |
70 |
360230330 |
300*160 |
12*25 |
ACL - 1450 - 0.01 |
550 |
1400 |
2% |
0.01 |
75 |
360230330 |
300*160 |
12*25 |
ACL - 1500 - 0.0093 |
600 |
1500 |
2% |
0.0117 |
80 |
360230330 |
300*160 |
12*25 |
ACL - 1600 - 0.0088 |
630/650 |
1600 |
2% |
0.0088 |
97 |
420230395 |
315*160 |
桅16 |
