DC-Grounded Communications 617 6000MHz Dual Horizontal-Polarized 20W Ceiling-Mounted Multi-Band Omni-Directional Antenna

DC-Grounded Communications 617 6000MHz Dual Horizontal-Polarized 20W Ceiling-Mounted Multi-Band Omni-Directional Antenna

Description

[email protected]

Description

Product Description

DC-Grounded Communications 617 6000MHz Dual Horizontal-Polarized 20W Ceiling-Mounted Multi-Band Omni-Directional Antenna manufacture

Product Detail

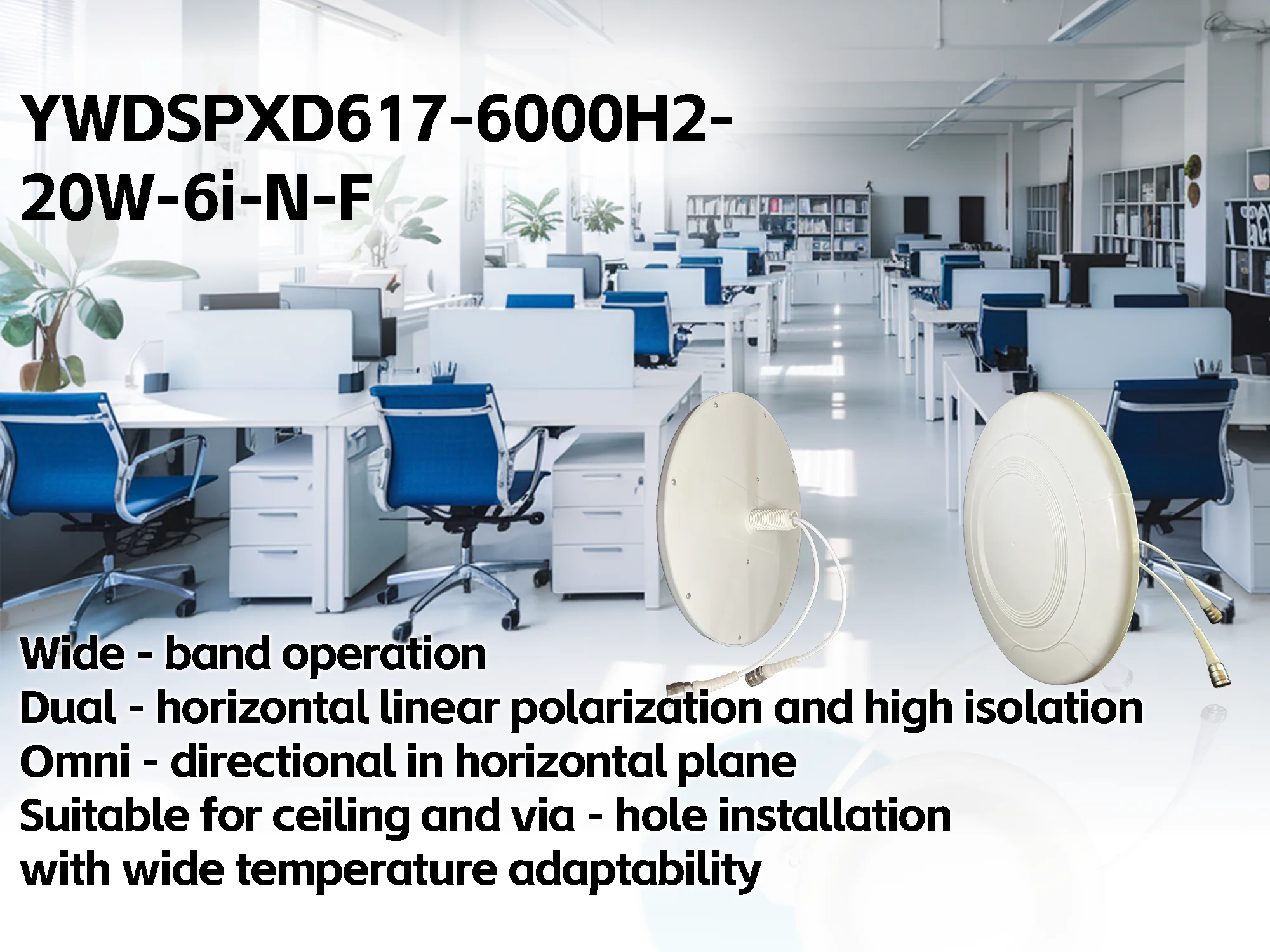

YWDSPXD617-6000H2-20W-6i-N-F
Frequency range (MHz)	617-960	1710-2700	3300-4000	4900-6000
Polarization	Linear(Horizontal) x 2
Gain(dBi)	2.2	4.5	5.5	6.0
Horizontal beam-width(°)	360
3dB Vertical beam-width(°)	105	40	40	30
VSWR	≤1.8	≤1.8	≤1.8	≤1.8
Isolation(dB)	≥16	≥20	≥23	≥23
Intermodulation IM3(dBc)	≤-150dBc(@2*43dBm)
Impedance(Ω)	50
Maximum input power(W)	50

Connector	2×N-Female
Connector position	Bottom
Size(mm)	Φ280×18
weight(kg)	0.55
Radome material	ABS
Radome color	White
Operating temperature(℃)	-40～65
Mounting Kit	Ceiling, via hole

DC-Grounded Communications 617 6000MHz Dual Horizontal-Polarized 20W Ceiling-Mounted Multi-Band Omni-Directional Antenna details

DC-Grounded Communications 617 6000MHz Dual Horizontal-Polarized 20W Ceiling-Mounted Multi-Band Omni-Directional Antenna supplier

DC-Grounded Communications 617 6000MHz Dual Horizontal-Polarized 20W Ceiling-Mounted Multi-Band Omni-Directional Antenna factory

Recommend Products

Company Profile

FAQ

Q: Are you a manufacturer or a trading company? A: We have been professional antenna manufacturer for 18 years. Q: Have gps gsm combo antenna 100% assembles well in stock? A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples. Q: Could I use my own LOGO or design on goods? A: Yes, customized logo and design on mass production are available. Q: What's the payment term? A: T/T, AliPay,Paypal,Afterpay,Klarna etc. Q:What certifications do you have? A:Certified by FCC, CE, RoHS,ISO available upon request. Q: Where is your factory located? Can I visit your factory? A: Factory address: 2nd Floor, Building D4-1, Hongfeng Science and Technology Park, Nanjing Economic and Technological Development Zone, Jiangsu Province. Just call us, we will pick you up with no delay.
