Product Name |

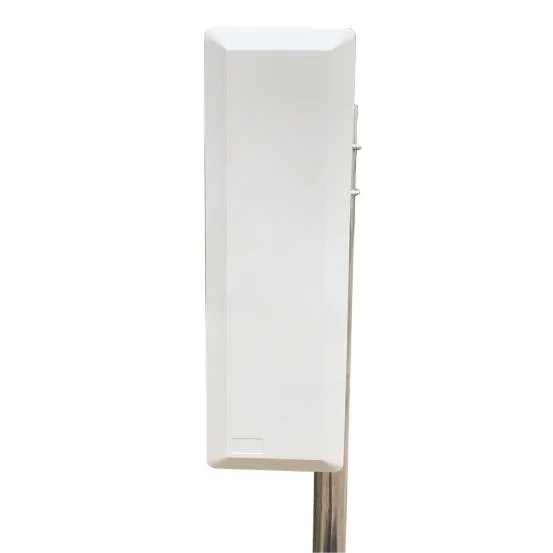

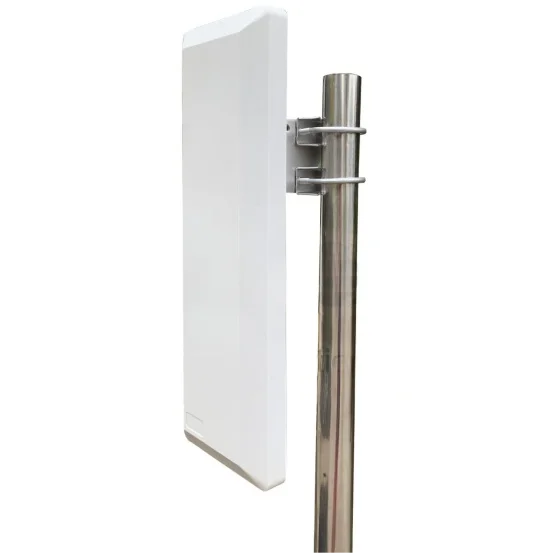

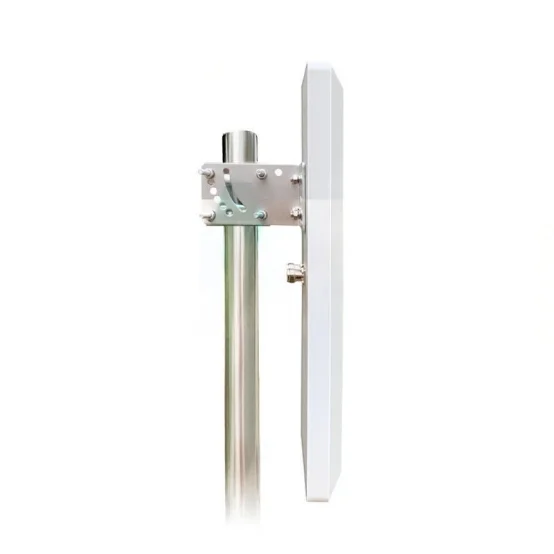

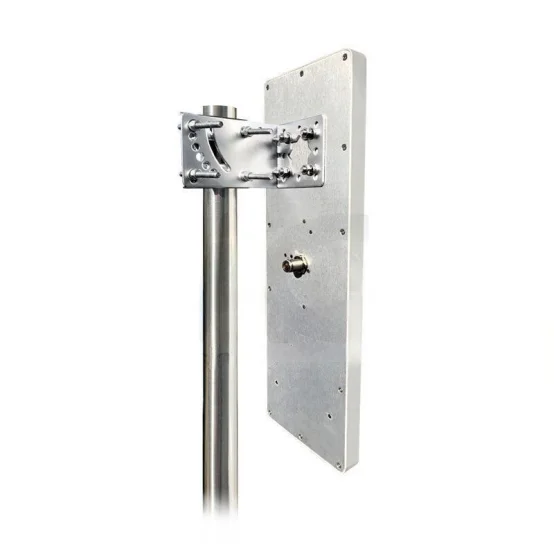

Sector-Directed Panel Antenna |
|
Electrical Index |
YW-DB62-90VH16C |
|
Frequency Range (MHz) |
5900–6500 |
|
Polarization |
Vertical/Horizontal |
|
Gain (dBi) |
2×16 |
|
Electrical Down-tilt (°) |
0 |
|
Half-power Beamwidth (°) |
Horizontal: 90 |
|
Vertical: 8 |
||
Port Isolation (dB) |
≥28 |
|
Front-to-Back Ratio (dB) |
≥20 |
|
Input Impedance (Ω) |
50 |
|
Voltage Standing Wave Ratio (VSWR) |
≤2.5 |
|
Maximum Power (W) |
50 |
|
Lightning Protection |
DC Ground |
|
Mechanical & Environmental Index |
||
Connector Type |
2×N Female |
|
Connector Position |
Rear |
|
Antenna Dimensions (L×W×H: mm) |
450×140×30 |
|
Antenna Weight (kg) |
Approximately 1.2 |
|
Radome Material |
ABS |
|
Radome Color |
White |
|
Mechanical Adjustable Tilt (°) |
0–15 |
|
Operating Temperature (℃) |
–40–60 |
|
Ultimate Wind Speed (m/s) |
60 |
|
Mast Diameter (mm) |
35–50 |
|
Mounting Part Model |
MK004 |
|
