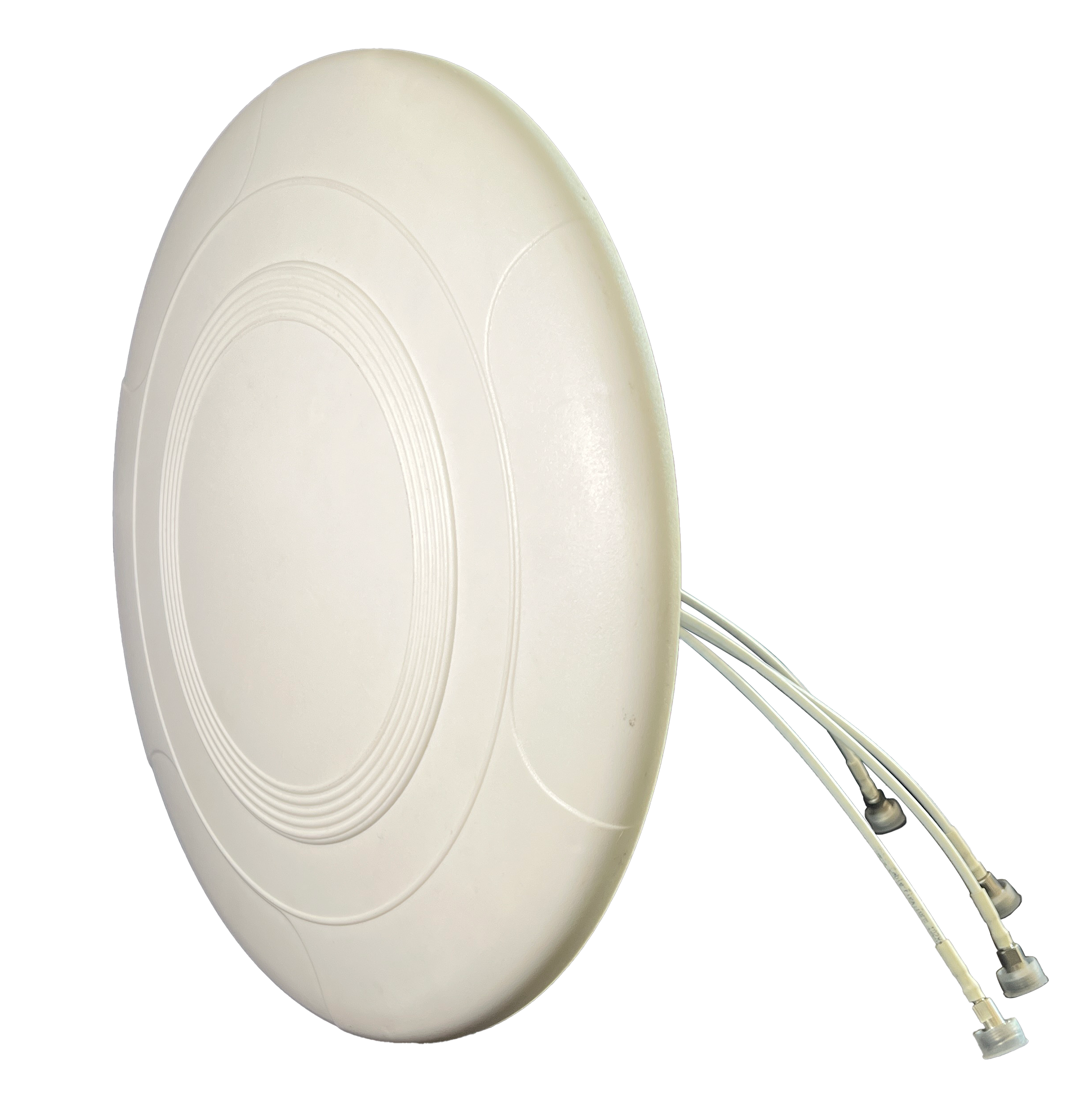

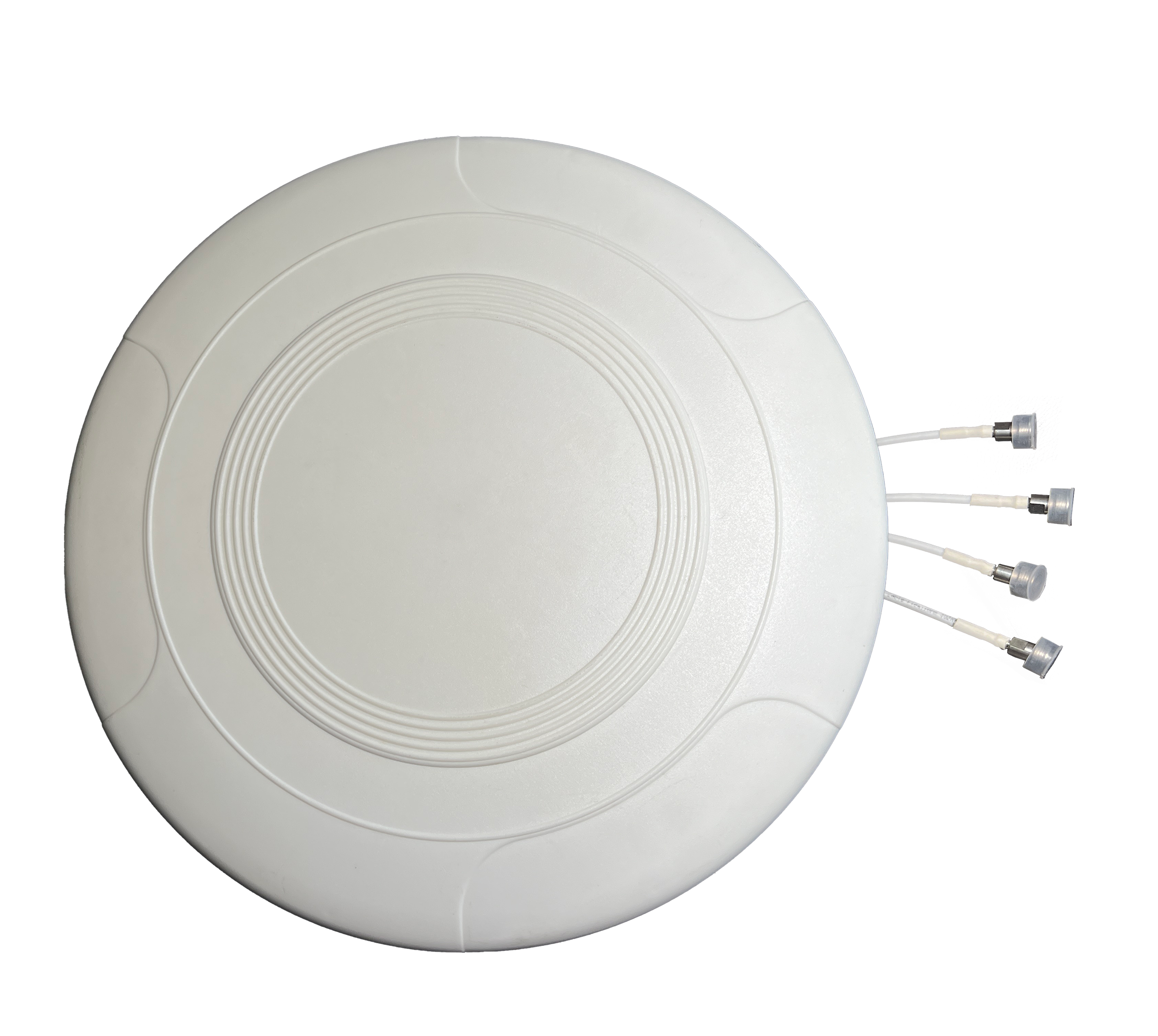

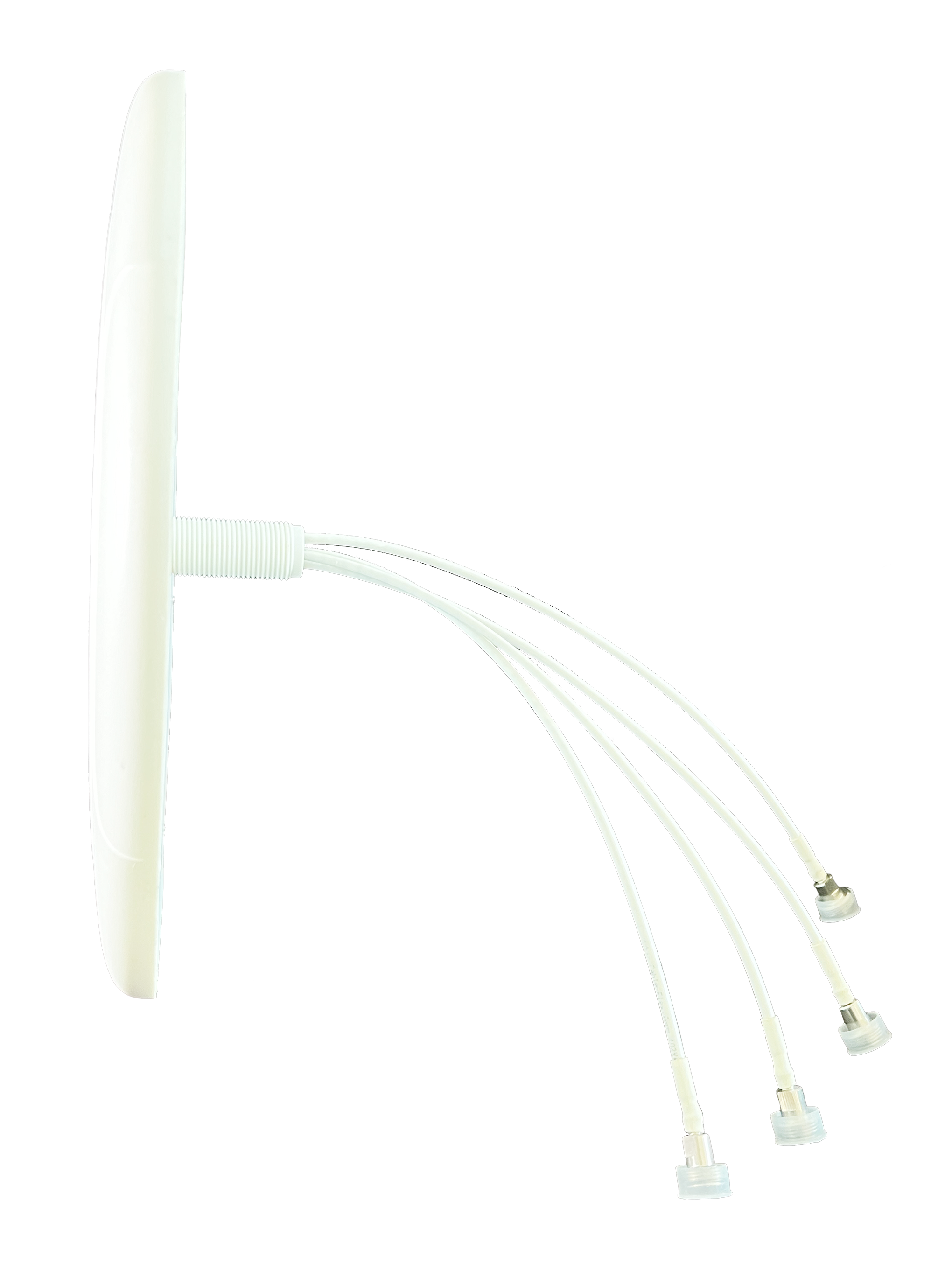

DC-Grounded Lightning-Protected 50Ω Impedance 617 6000MHz Quad Horizontal-Polarized Omni-Directional 20W Communication Antenna

Yoongwin

Introducing the Yoongwin DC-Grounded Lightning-Protected 50Ω Impedance 617 6000MHz Quad Horizontal-Polarized Omni-Directional 20W Communication Antenna, the perfect solution for reliable and high-performance communication needs.

Designed with durability and efficiency in mind, this communication antenna features a unique DC-grounded design that provides lightning Yoongwin protection to ensure the safety of your equipment during extreme weather conditions. With a 50Ω impedance, this antenna is optimized for efficient signal transmission and reception, making it an ideal choice for professional communication systems.

Operating at a wide frequency range of 617 to 6000MHz, this antenna offers versatile coverage for various communication applications, making it suitable for a range of industries including telecommunications, broadcasting, and public safety. Whether you need to transmit data, voice, or video signals, this antenna delivers seamless connectivity with its quad horizontal-polarized omnidirectional design.

The Yoongwin Communication Antenna is built to perform in any environment with its rugged construction and weatherproof design. Its quad horizontal polarization ensures optimal signal reception from all directions, making it an excellent choice for applications requiring reliable and consistent communication.

With a power handling capacity of 20W, this antenna is capable of handling high-power transmissions without compromising on signal quality or performance. Whether you are setting up a point-to-point communication link or a wireless network system, this antenna is designed to meet your specific communication needs.

Easy to install and maintain, the Yoongwin Communication Antenna is a cost-effective solution for enhancing your communication infrastructure. Its compact and lightweight design makes it easy to mount on various structures or locations, allowing for quick and hassle-free deployment.

The Yoongwin DC-Grounded Lightning-Protected 50Ω Impedance 617 6000MHz Quad Horizontal-Polarized Omni-Directional 20W Communication Antenna is a reliable and efficient solution for all your communication requirements. With its robust construction, wide frequency range, and high-power handling capacity, this antenna delivers exceptional performance for professional communication systems. Upgrade your communication network with the Yoongwin Communication Antenna and experience seamless connectivity like never before.

Product Description

Product Detail

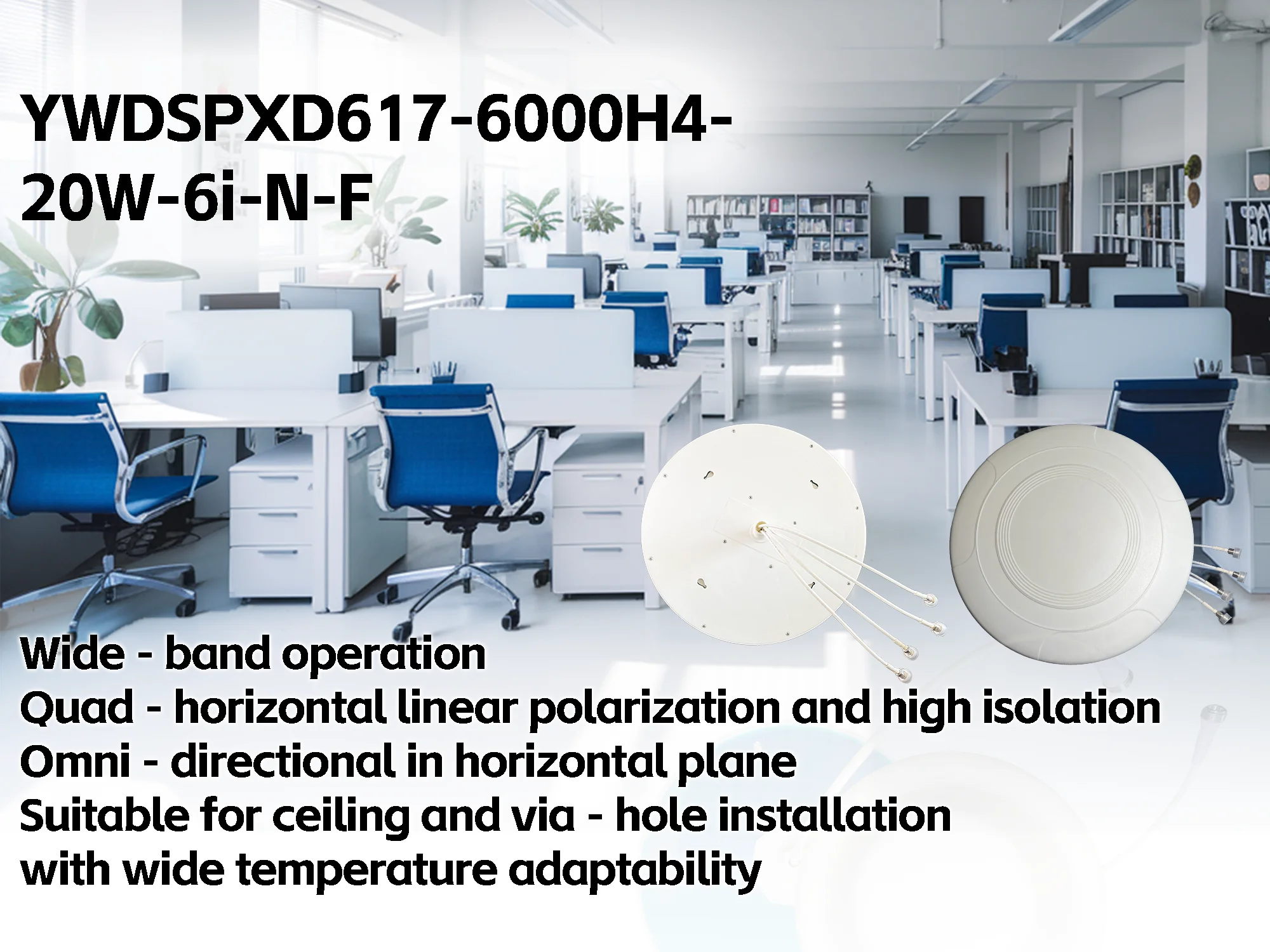

YWDSPXD617-6000H4-20W-6i-N-F
Frequency range (MHz)	617-960	1710-2700	3300-4000	4900-6000
Polarization	Linear(Horizontal) x 4
Gain(dBi)	2.2	4.5	5.5	6.0
Horizontal beam-width(°)	360
3dB Vertical beam-width(°)	105	40	40	30
VSWR	≤1.8	≤1.8	≤1.8	≤1.8
Isolation(dB)	≥16	≥20	≥23	≥23
Intermodulation IM3(dBc)	≤-150dBc(@2*43dBm)
Impedance(Ω)	50
Maximum input power(W)	50

Connector	4×N-Female
Connector position	Bottom
Size(mm)	Φ360×18
weight(kg)	0.96
Radome material	ABS
Radome color	White
Operating temperature(℃)	-40～65
Mounting Kit	Ceiling, via hole
